Daiso wooden stand wireless charging adapter (Templer WCP03 compatible)

[Design Introduction]

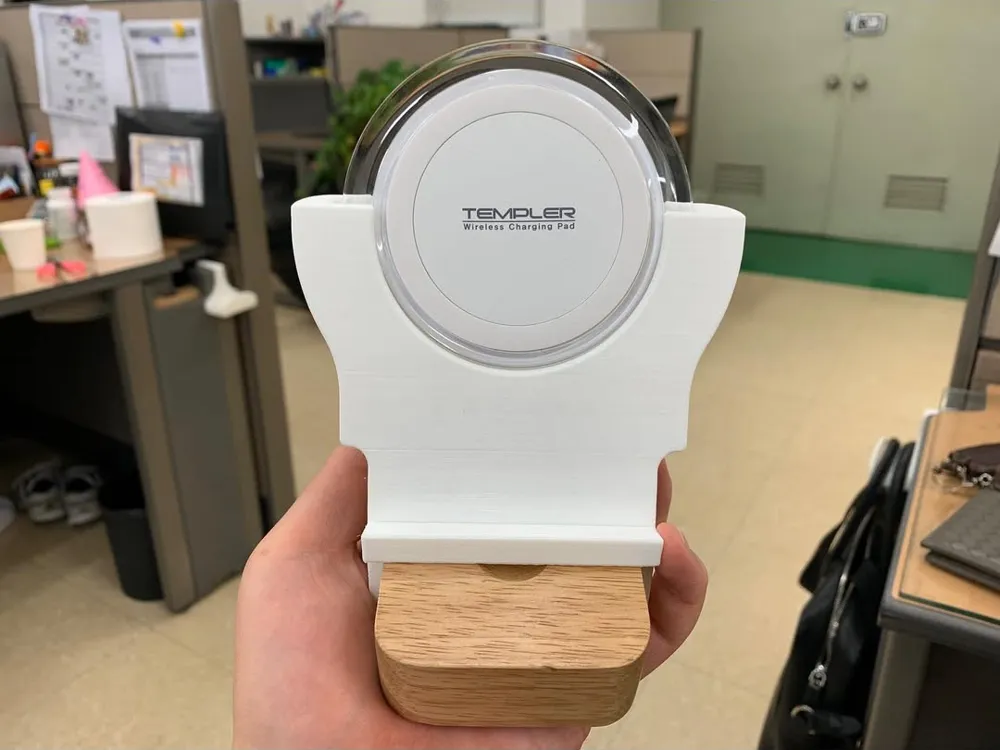

This adapter is designed to integrate a round wireless charging pad into the beechwood chair-shaped phone stand sold at Daiso.

By combining a spare wireless charging pad you have at home with the Daiso stand, you can use it as a charging stand without purchasing a separate wireless charging stand.

[Reason for Creation] I had a wireless charging pad, but it wasn't a stand type, which was inconvenient. The Daiso wooden stand had a nice design but no charging function.

It started with the idea that if I combined the two products, I wouldn't need either of them. Come to think of it, there's no need to buy a separate Daiso stand; this one adapter turns the charging pad into a stand.

[Component Parts] Consists of a single part.

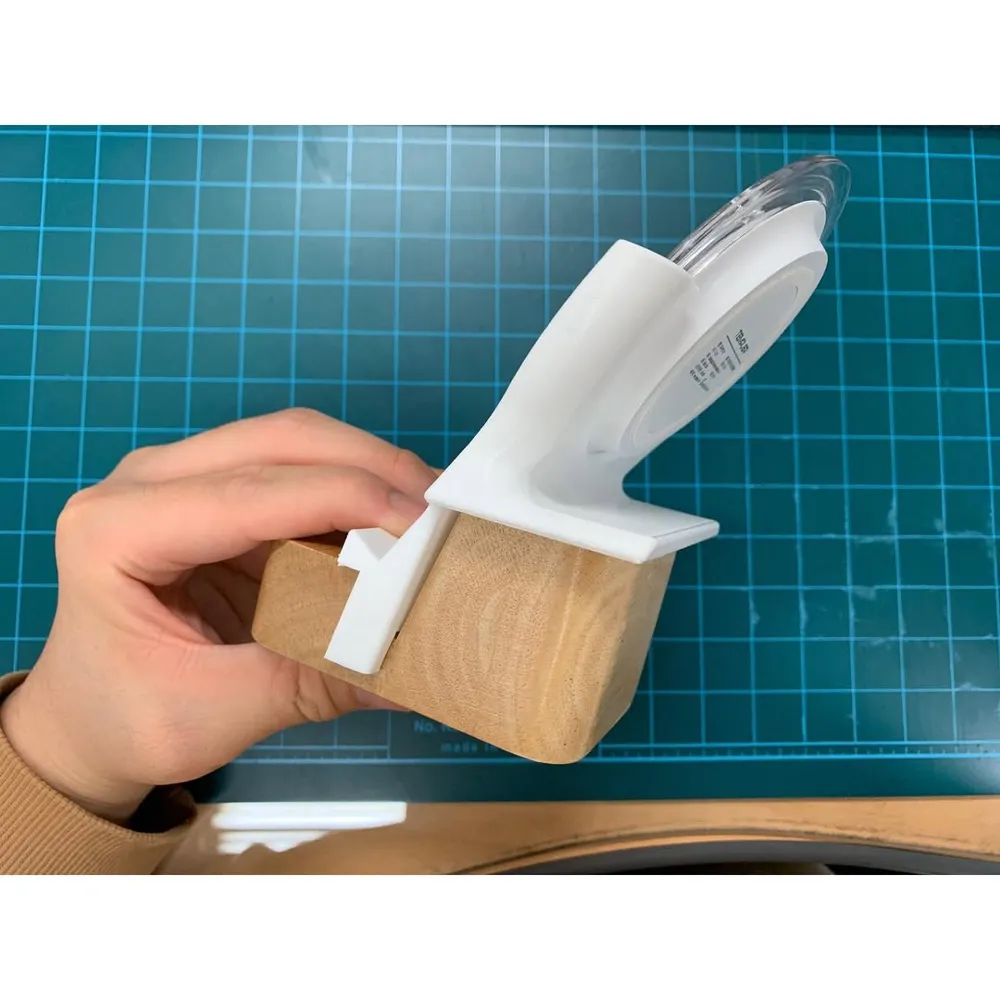

• Charging Pad Adapter : This is a connecting part that encloses and secures the round wireless charging pad, and fits into the top of the Daiso beechwood stand.

[Installation Method]

1. Insert the wireless charging pad into the adapter.
2. Insert the bottom of the adapter into the Daiso beechwood stand to complete the assembly.
3. Connect the charging cable (5-pin Micro USB) and place your smartphone on it to start wireless charging.

[Compatible Products]

• Wireless Charging Pad: TEMPLER Premium Wireless Charging Pad WCP03 (TEM-WCP03-100 / G-Star Korea / Qi certified / 5-pin Micro USB input / Charging status LED display)
• Stand: Daiso Beechwood Chair Phone Stand

[Recommended Print Settings]

• Material: PLA
• Layer height: 0.2mm
• Infill: 20%
• Supports: Required

[Notes]

• This adapter is designed based on the TEMPLER WCP03 (TEM-WCP03-100) charging pad. Other Qi wireless charging pads of similar diameter may also be compatible, but there might be dimensional differences depending on the product.
• Designed exclusively for the Daiso Beechwood Chair Phone Stand.
• The wireless charging pad and stand need to be purchased separately.
