Ulanzi 40W/Pro/100W High-Strength COB Cap

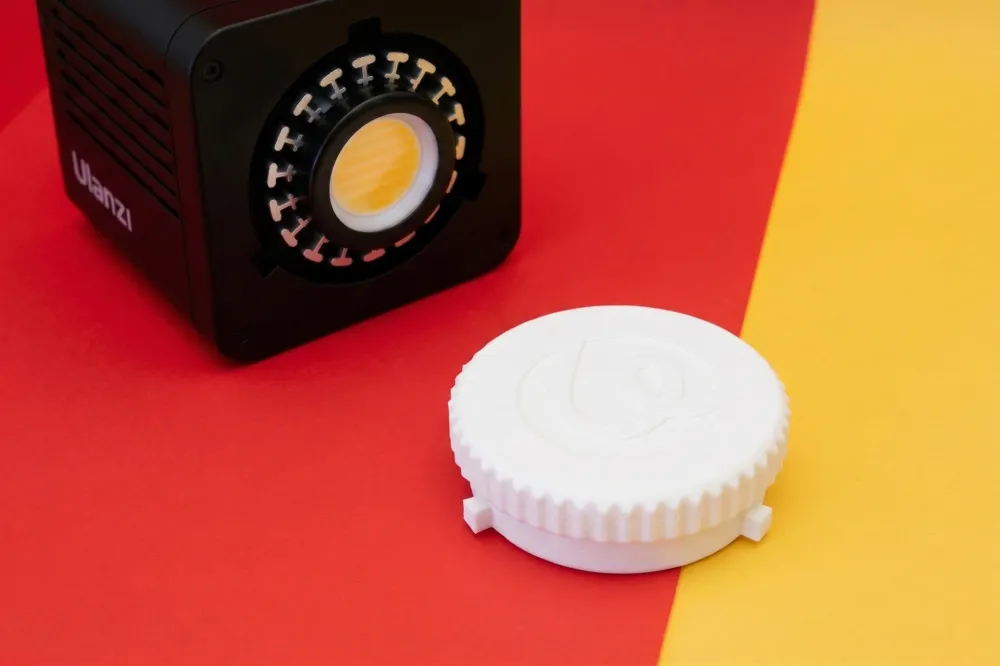

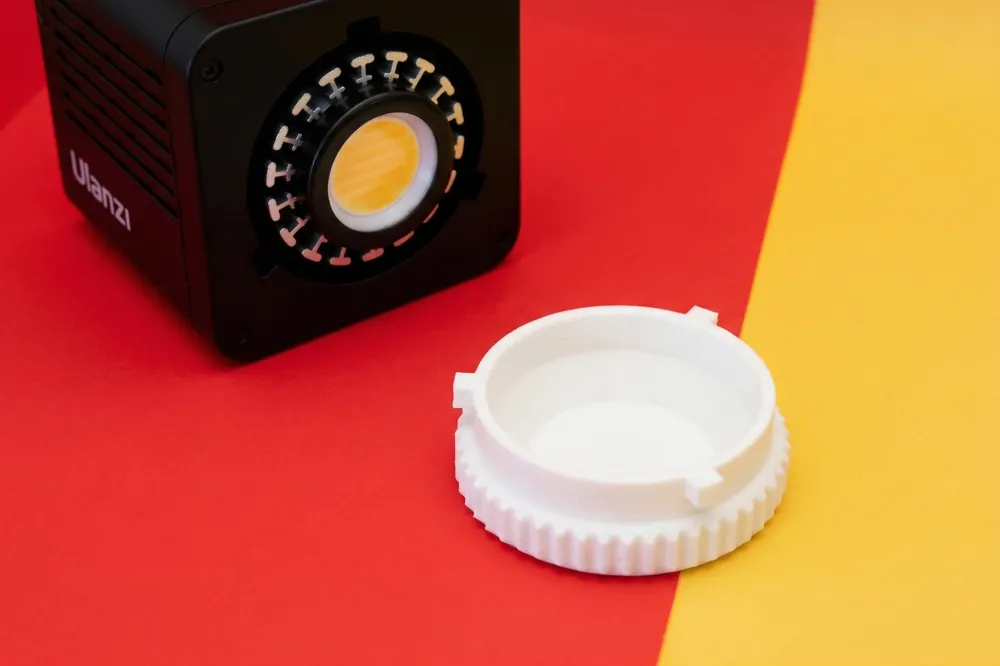

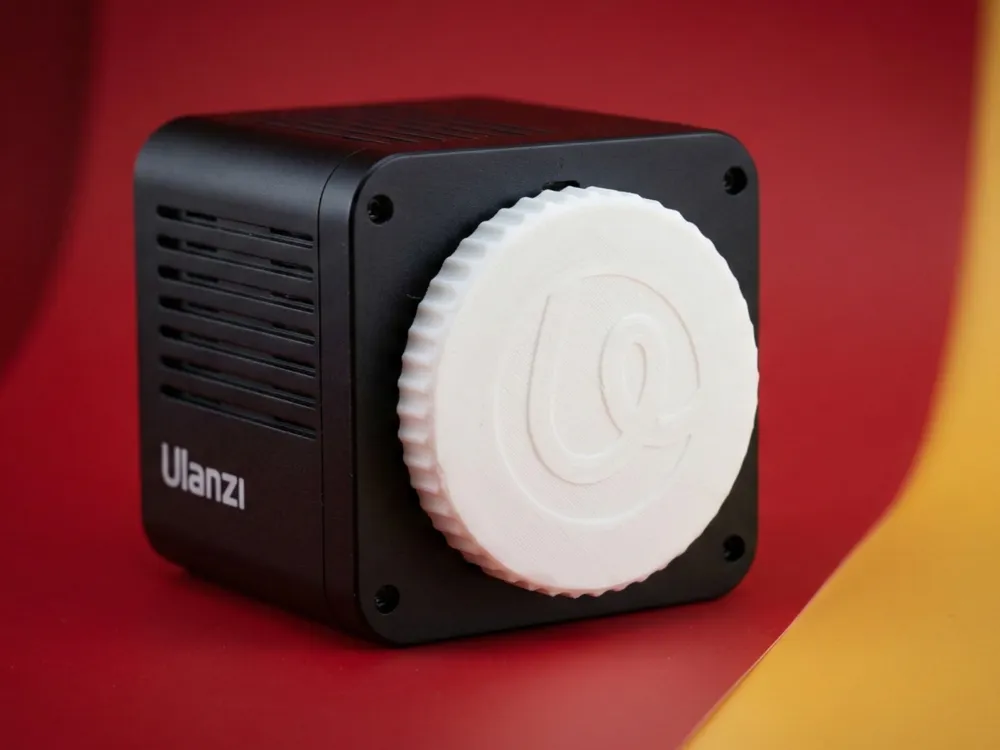

This is a precision-engineered protective cap for Ulanzi compact COB video lights (such as the Ulanzi 40W (LT028), 40W Pro (L023), and 100W). It protects the sensitive COB LED element and glass lens from dust, fingerprints, and impact during transport.

Unlike many flat-printed designs where the mounting tabs are prone to snapping, this model is optimized for maximum durability through a specific printing orientation.

Key Features

• Reinforced Design: Optimized to prevent the mounting tabs from breaking off under stress.
• Perfect Fit: Snaps securely into the Ulanzi mini-mount system.
• Travel-Ready: Ultra-compact profile allows your light to fit into tight camera bag compartments.
• Knurled Texture: Features a ribbed outer ring for an easy grip when attaching or removing the cap.

Critical Print Settings for Strength

To ensure the mounting tabs do not snap along the layer lines, do not print this flat on the bed. * Orientation: Print at a 45-degree angle (see the slicer screenshot). This ensures the filament strands run diagonally through the tabs, making them significantly stronger than if printed horizontally.

• Supports: Use Tree Supports. They are easy to remove and provide the necessary stability for the angled print.
• Material: PETG, ABS, or ASA are highly recommended. These materials offer better flexibility and heat resistance than PLA, which is important as COB lights can retain heat after use.
• Wall Loops: Increase to 3 or 4 walls for extra structural integrity.
• Infill: 20–25% (Gyroid or Adaptive Cubic).

Safety Warning

DO NOT turn on the LED light while the cap is attached. The intense heat from the COB chip will melt the plastic and potentially damage your light. This accessory is for storage and transportation only.
