Description

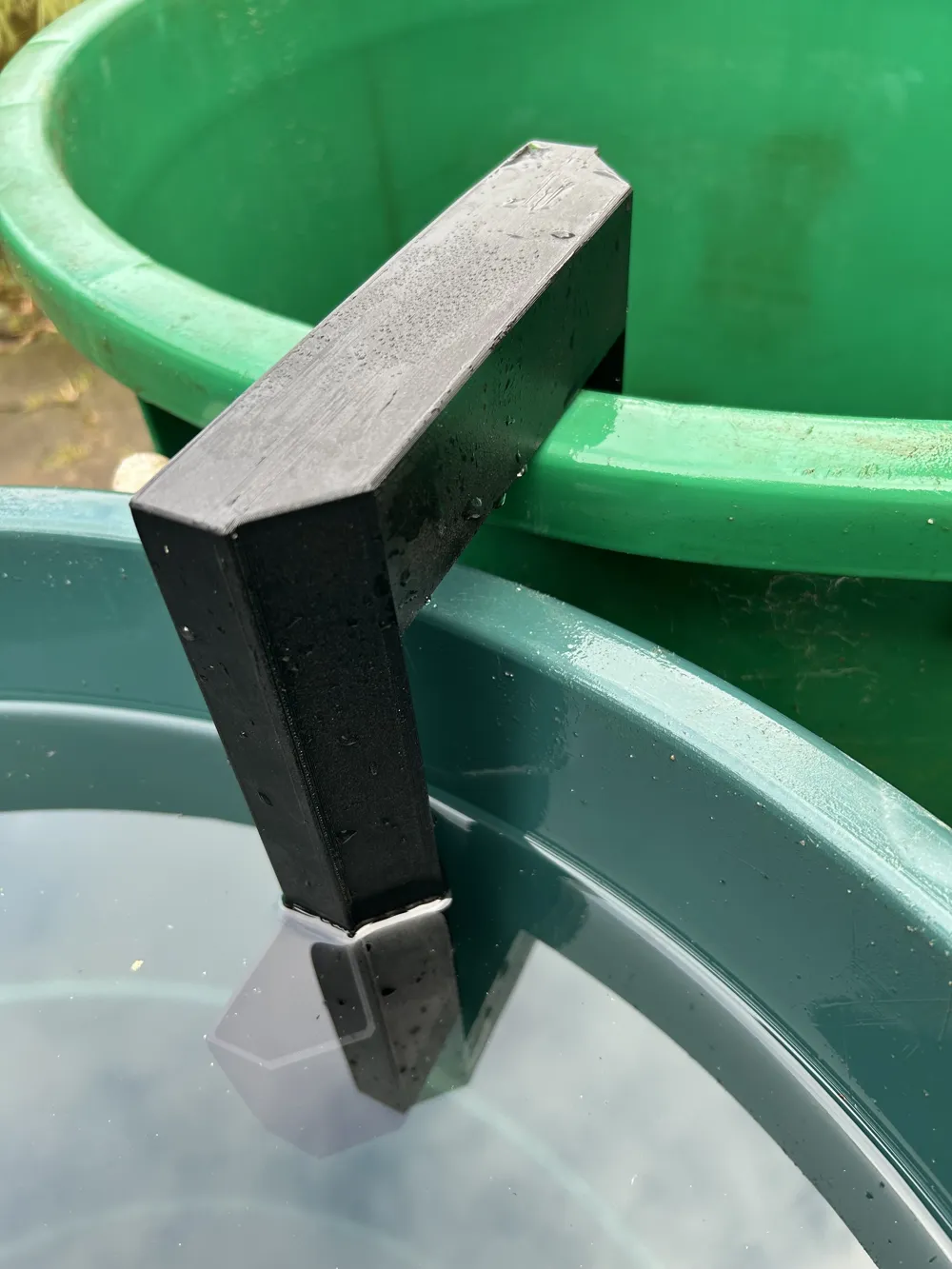

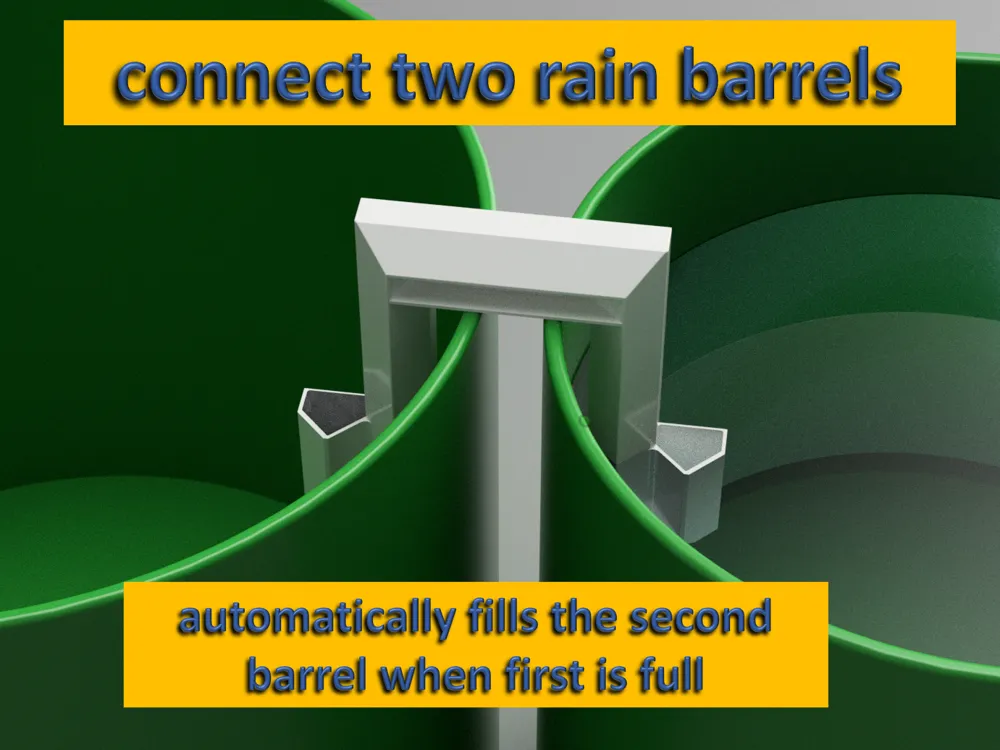

Connect 2 rain barrels without drilling

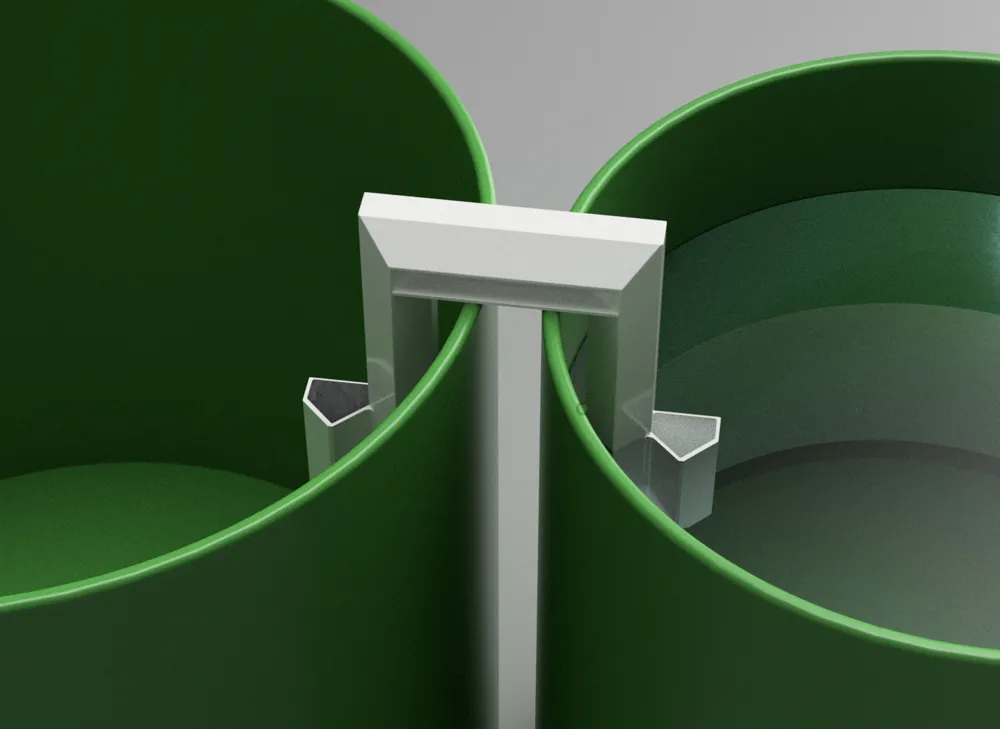

This is a connecting pipe to connect two rain barrels without drilling.
The second barrel is automatically filled when the first barrel is full.
The overflow directs excess water into the second barrel as long as the water level of the full barrel is above the opening of the connecting pipe.

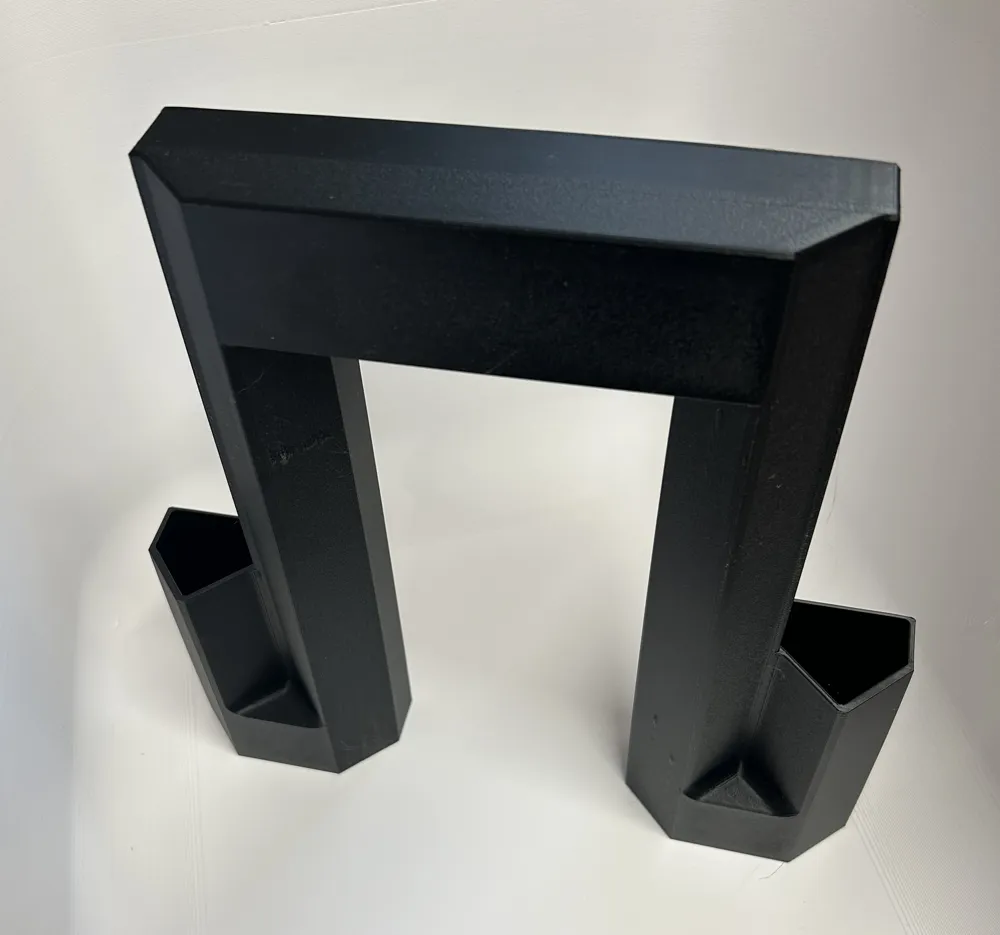

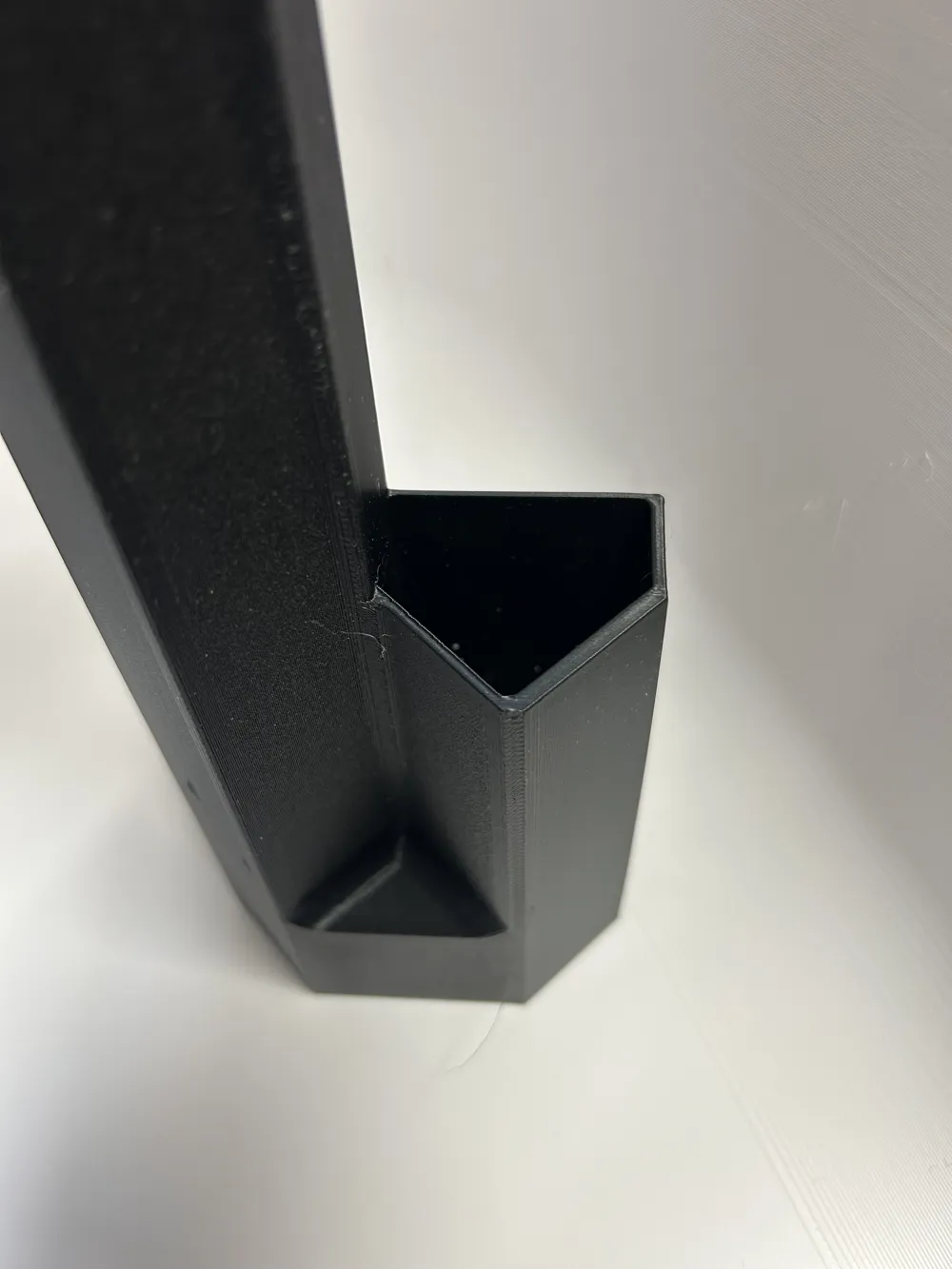

Due to the special "W" shape of the pipe, water remains in the pipe after equalization.
Thus, the overflow automatically works again as soon as the first barrel is full again.
Setup is simple:

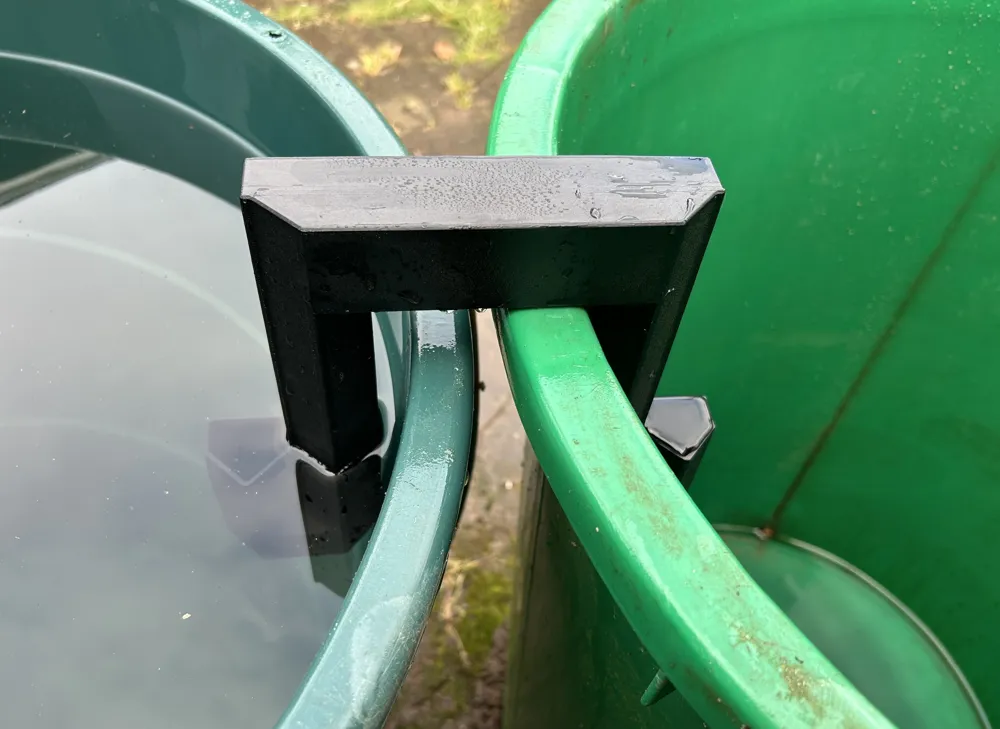

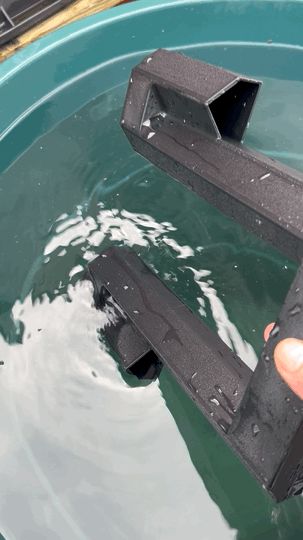

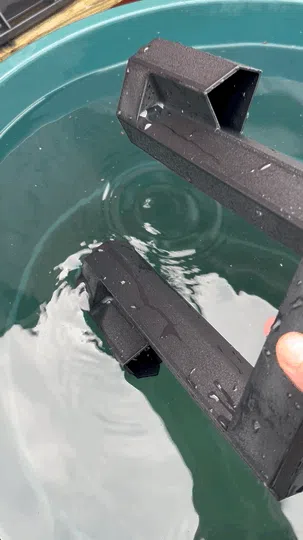

turn the pipe under water until all air has escaped, then lift the pipe upwards out of the water in the installed position and place it on the rim between the two barrels. See video
