Castlevania Book Nook

To celebrate Castlevania's 40th anniversary, this book nook recreates the eerie chamber connecting the Abandoned Pit and the Catacombs from the legendary game Castlevania: Symphony of the Night.

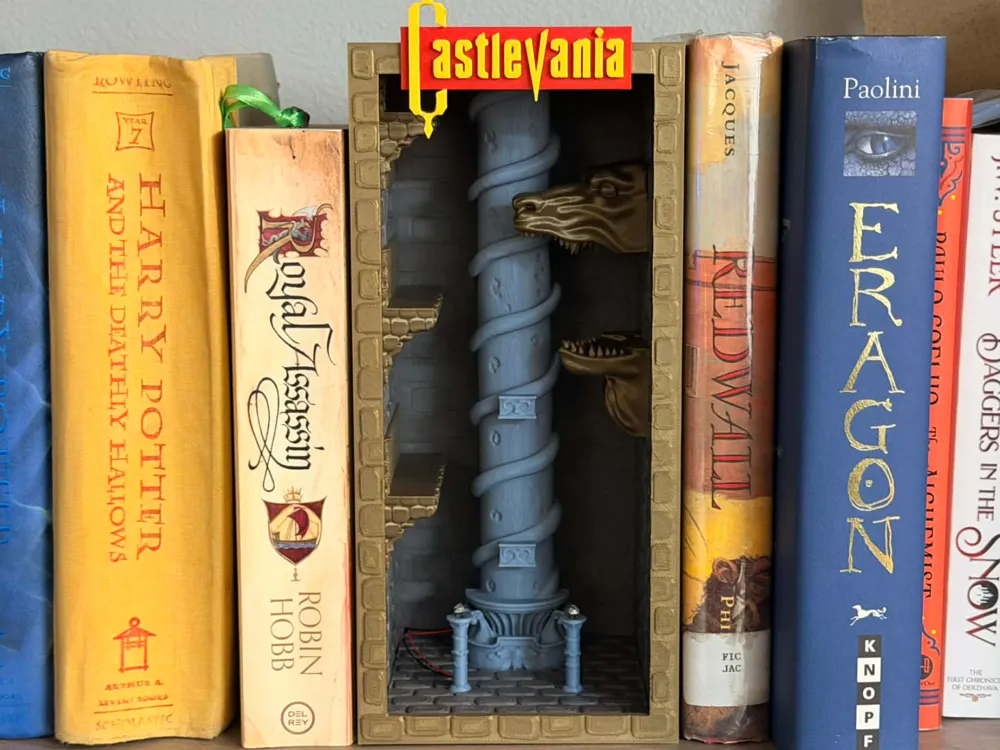

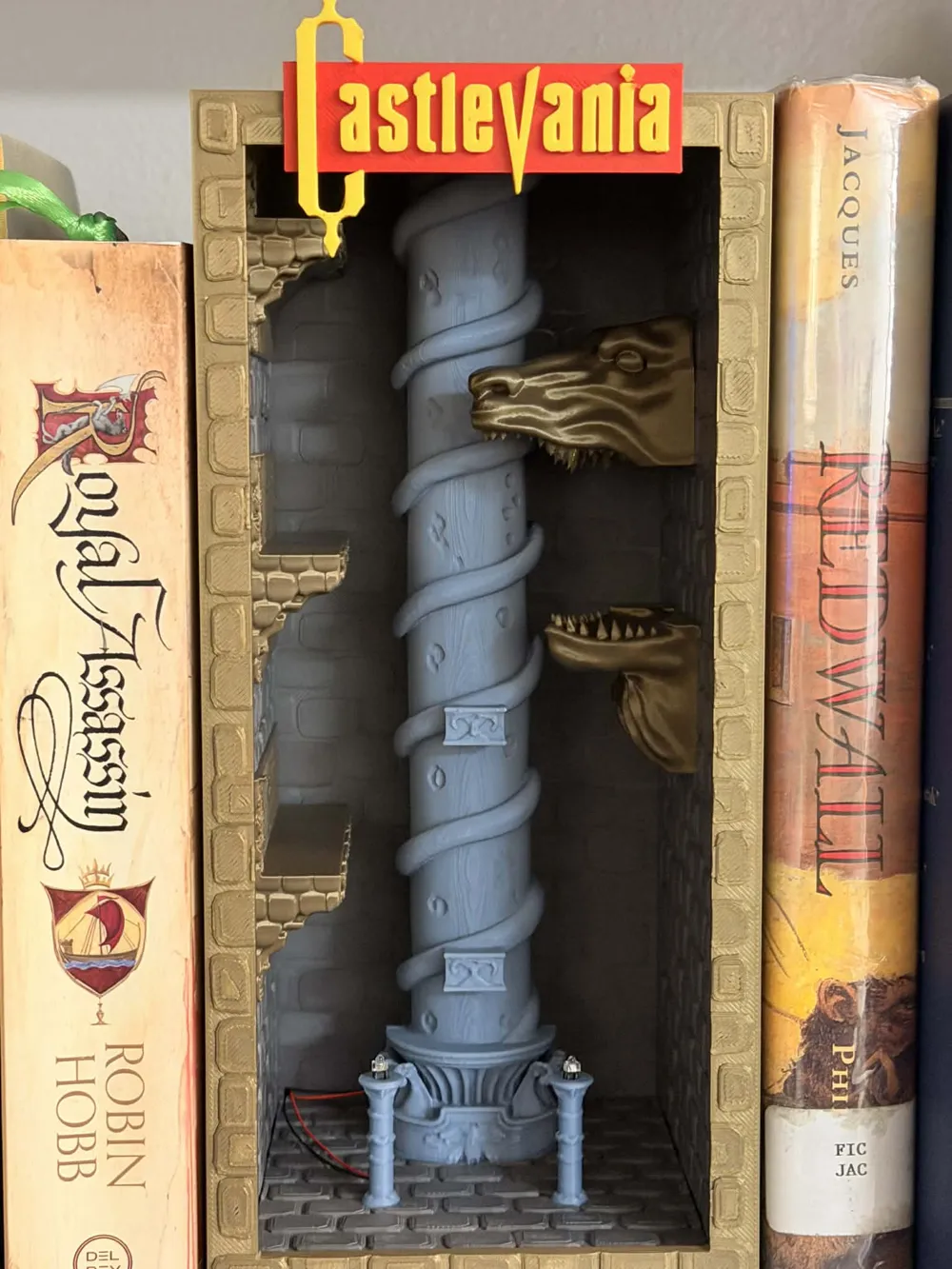

Hidden between your books, the scene reveals a gothic stone corridor inspired by one of the most atmospheric rooms in Dracula’s castle. A massive Cerberus relief emerges from the right wall, while the left wall features ascending ledges that Alucard uses to navigate through the room. At the center rises a twisting gothic column, with stone torch pedestals illuminating the floor.

The result is a miniature architectural scene designed to capture the dark mood and layered depth of the original game environment.

Lighting (Optional)

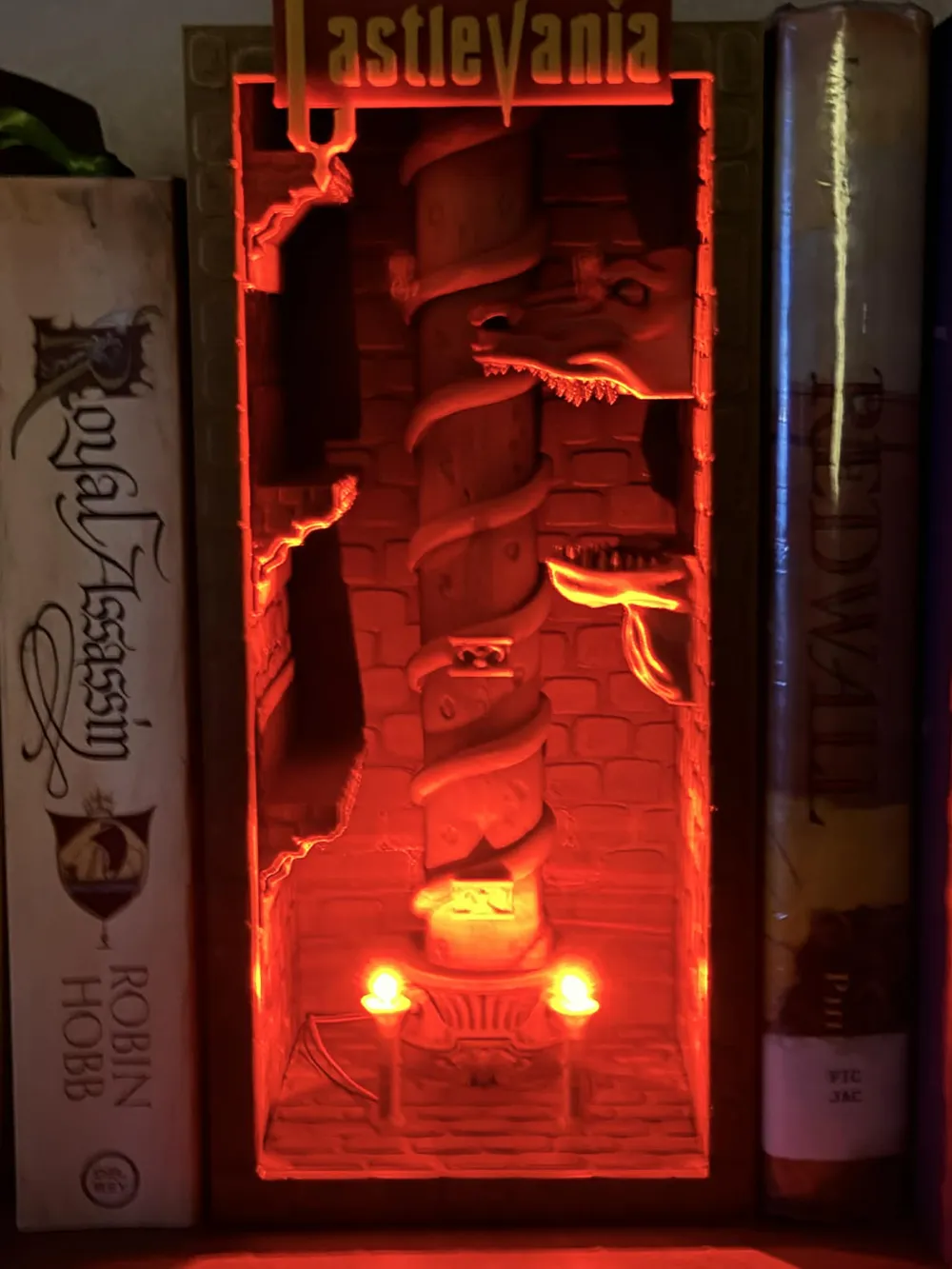

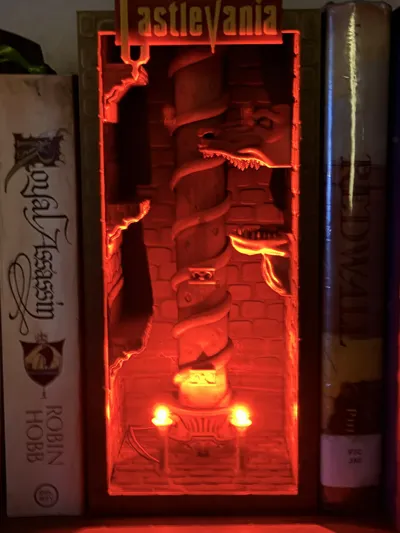

The floor torches are designed to support 1.8mm LEDs.

Wiring can be routed through a 2mm hole located at the bottom-left corner of the back wall, allowing the wires to exit cleanly behind the model.

For easiest installation, it is recommended to insert LEDs before assembling the walls.

I used these 1.8mm flickering LEDs from Evan Designs

Assembly Overview

The main wall pieces are designed to snap together and fit snugly inside the outer shell, requiring little or no glue.

Glue is only required for:

• Attaching the center column to the floor
• Attaching the front brick façade to the shell

Recommended assembly order:

1. Install optional LEDs into the floor torches
2. Route LED wires through the back wall hole
3. Snap together the back wall, left wall, and right wall onto the floor
4. Assemble and glue the center column in place
5. Insert the interior scene into the outer shell
6. Glue your preferred front brick façade

Front Panel Options

Three front façade variations are included:

• Plain brick front
• Brick front with logo slot + separate Castlevania logo
• Brick front with integrated logo

Choose whichever option best fits your printing preferences.

Optional Details

Two small wall torches are included and can be placed on the ledges of the left wall.

These can be left removable or glued depending on preference.

Filament Suggestions

To recreate the game’s look:

• Stone walls: dark gray
• Column & torches: blue-gray
• Cerberus carving & ledges: bronze or gold

Painting or filament swaps can further enhance the scene.

Final Result

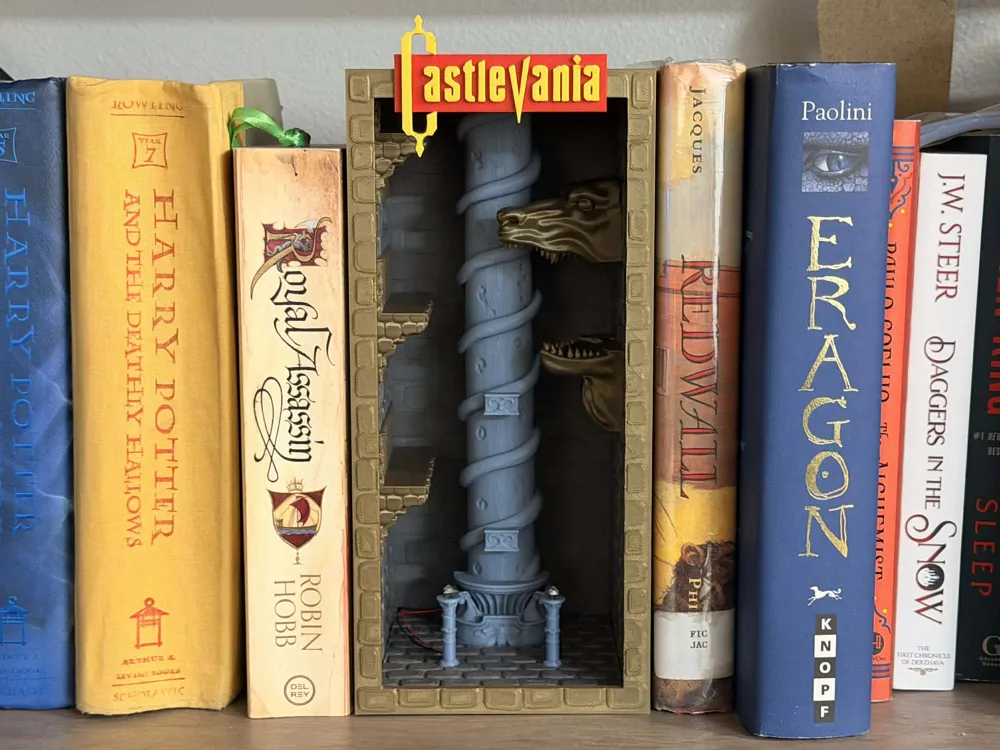

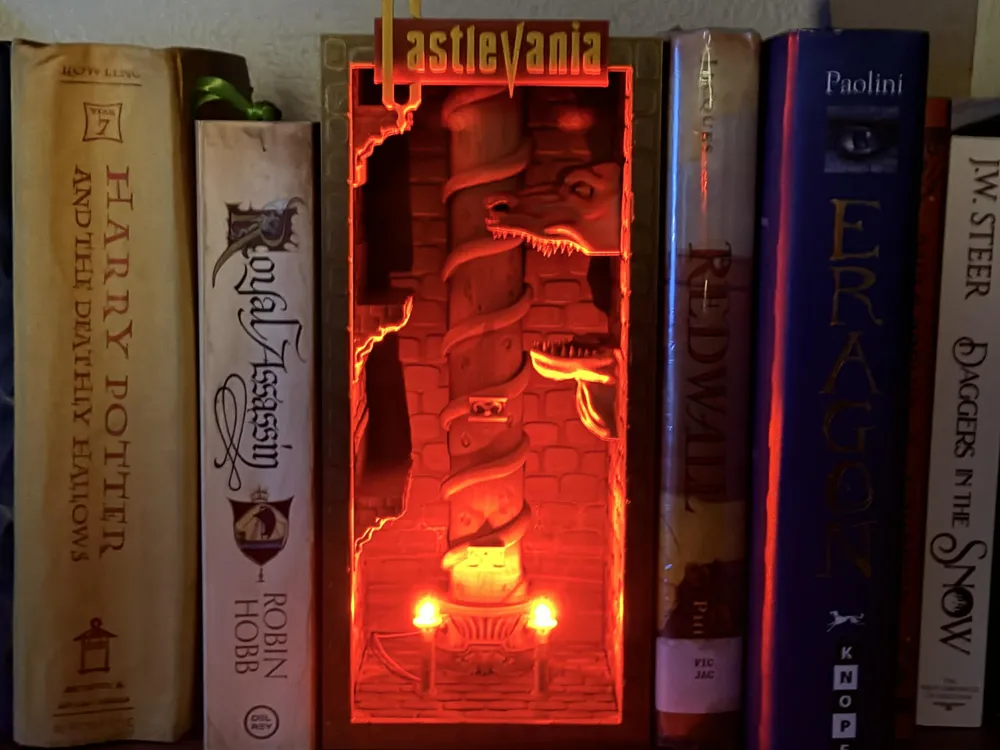

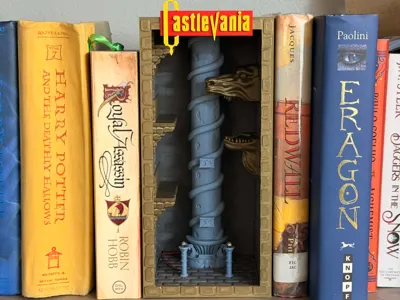

Once assembled, the book nook reveals a torchlit gothic chamber hidden between your books — a tribute to one of the most memorable games from the PSX era.
