John Deere Tractor

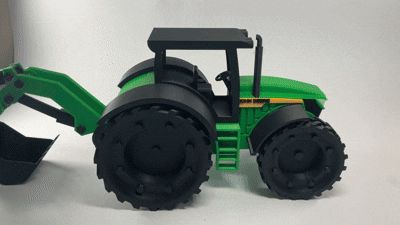

This is my model of a tractor. Its inspired from a john deere tractor and has a working scoop and spinning wheels.

I'ts a fully 3D printed toy, no hardware required and fun to assemble. I know these instruction look like heaps but they are really easy.

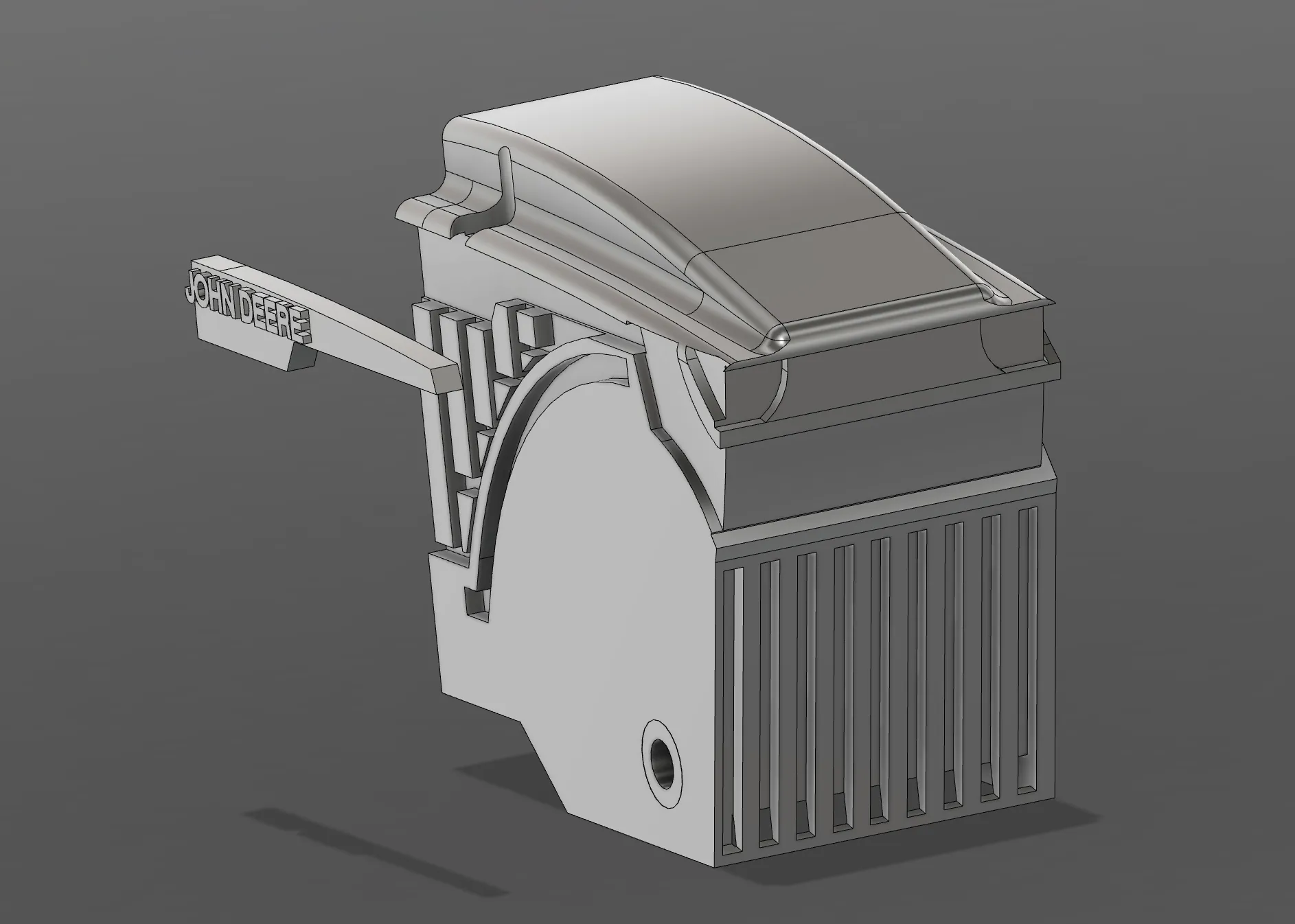

Start by gluing the logo onto the inserts on the nose and repeat on both sides.

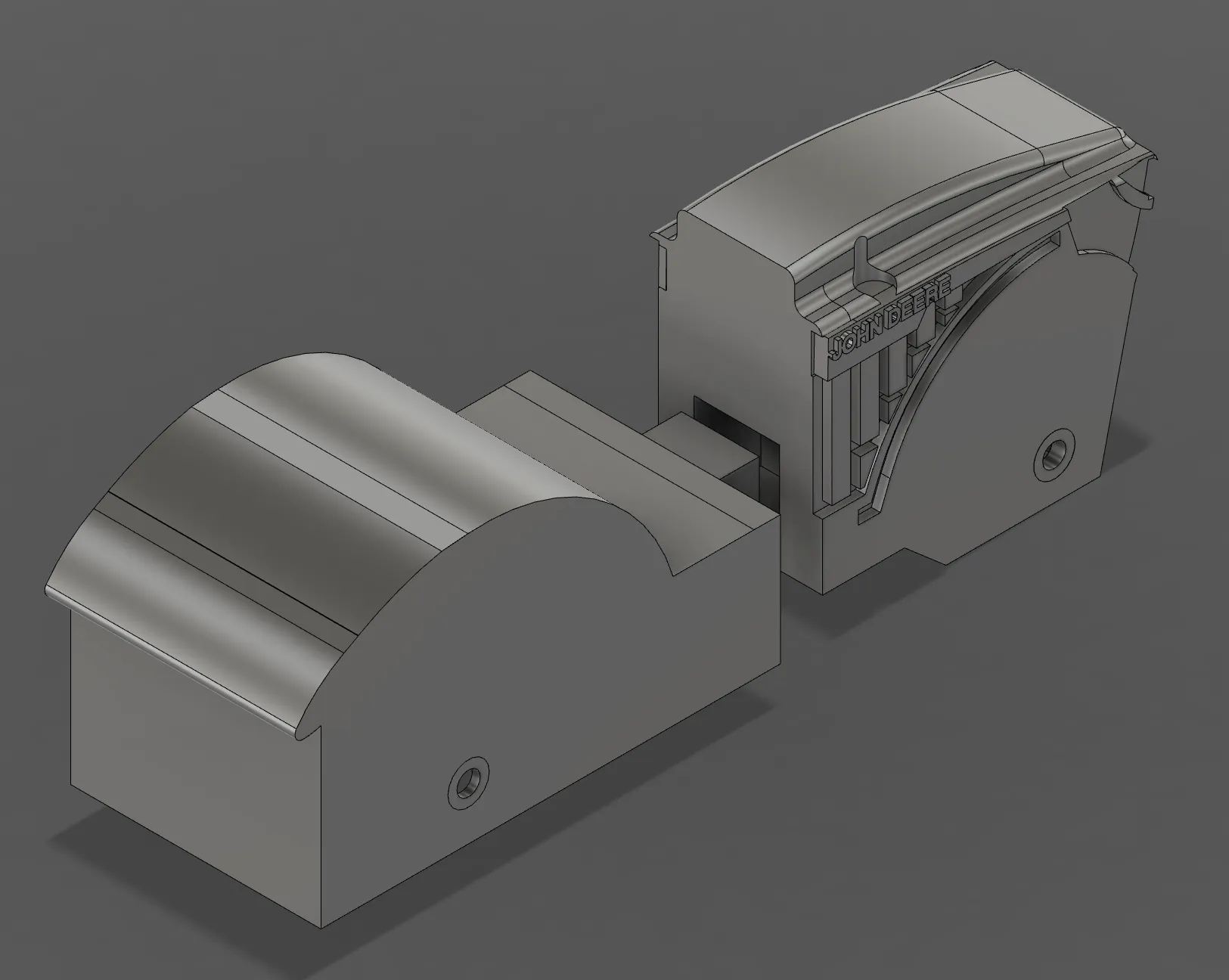

Next glue the 2 main body's together using the guide square.

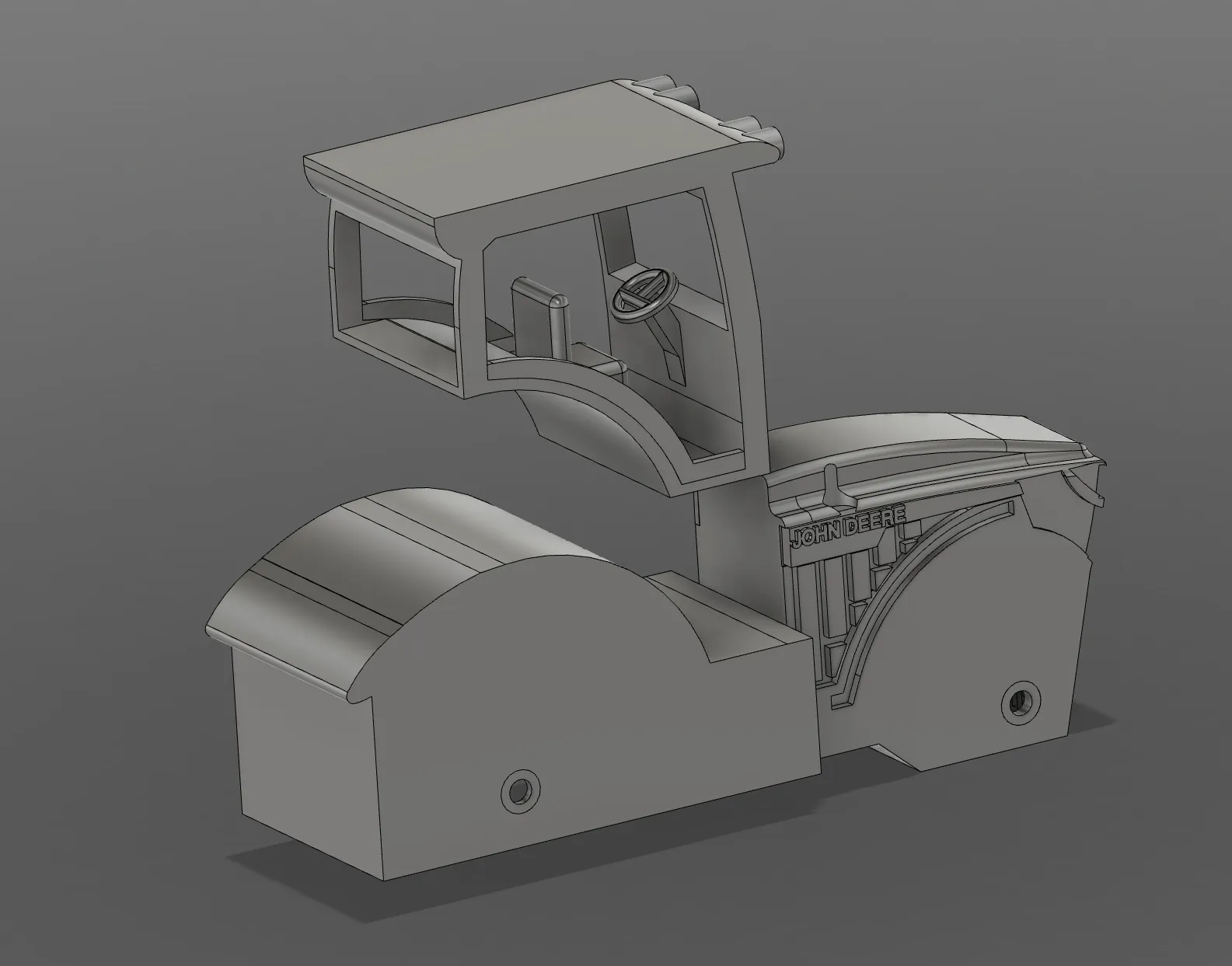

Now glue the cab onto the 2 Main body's and make sure it's in the middle.

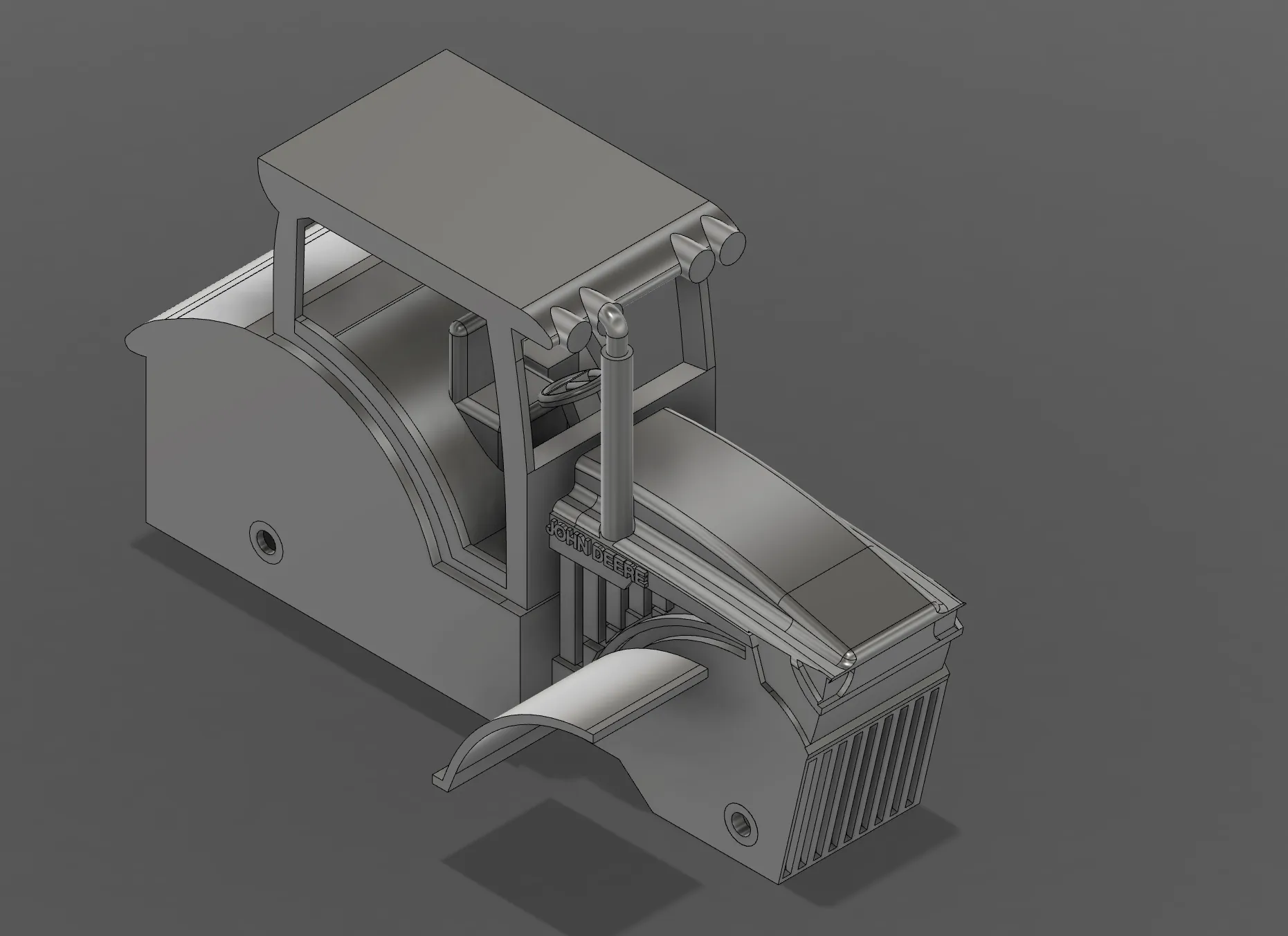

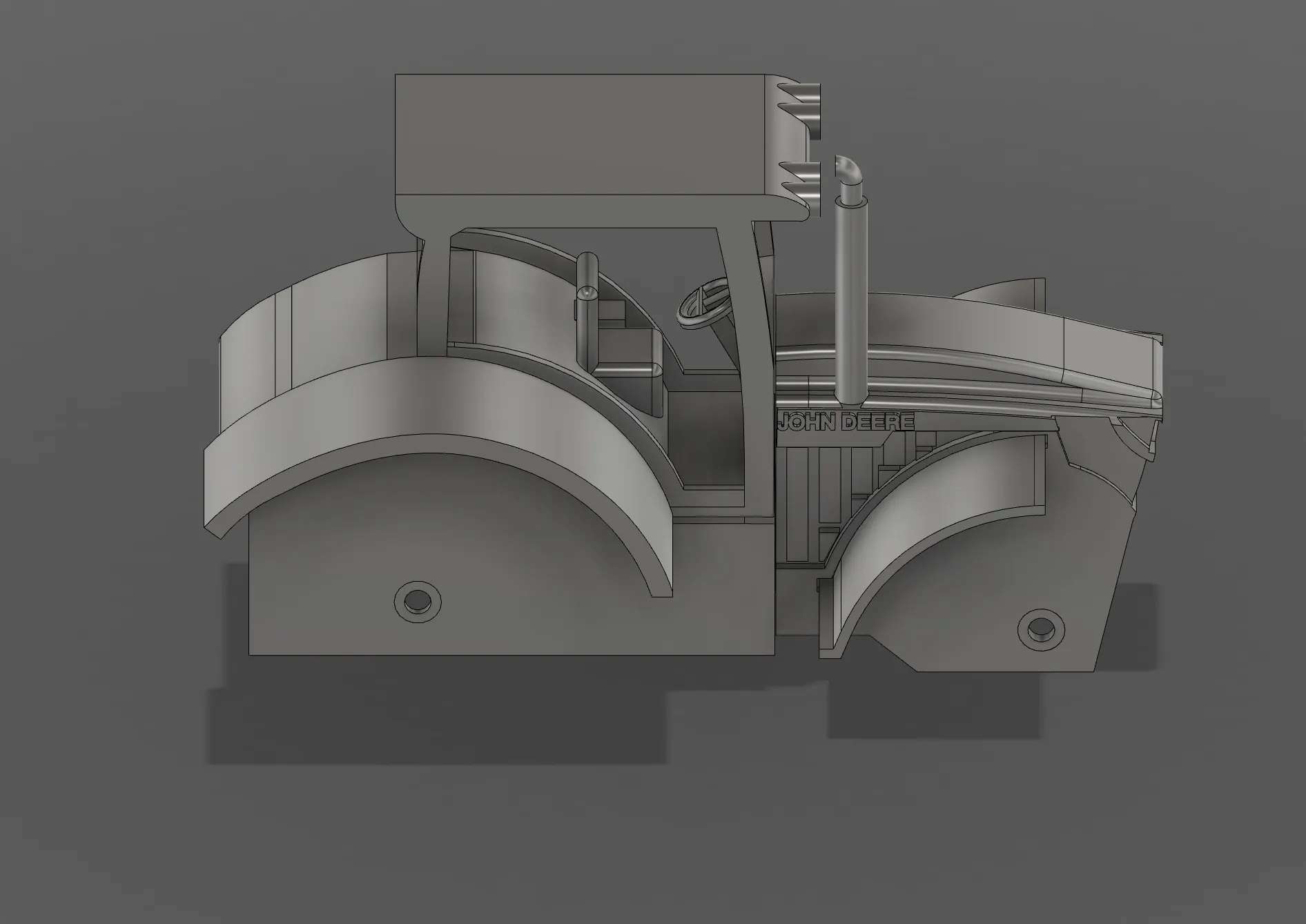

Now glue the mud guards into the inserts and repeat on the otherside, and glue the exaust into the insert

Now glue the section that joins the cab and the main body to the rear mudguards and repeat on otherside.

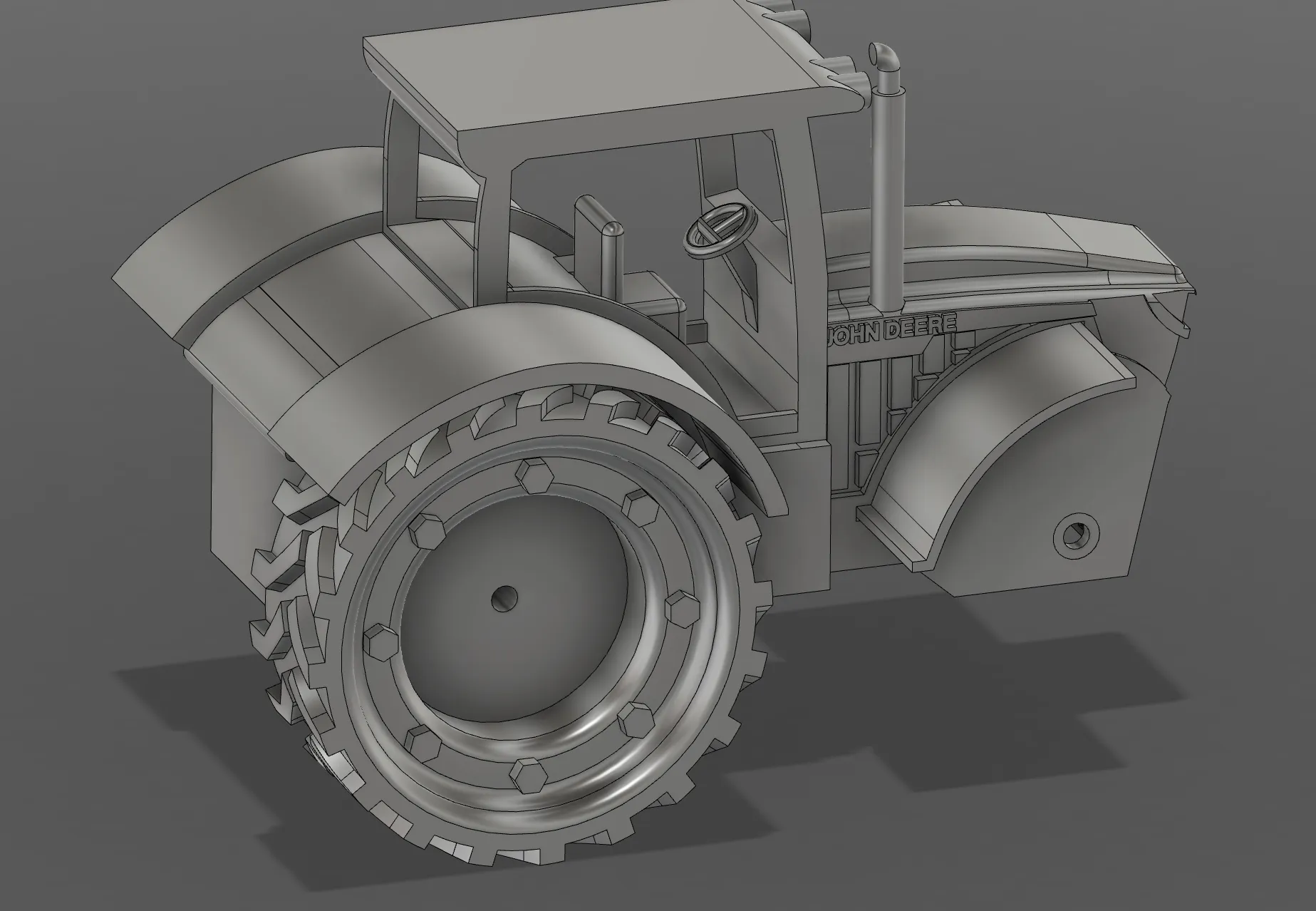

Next align the hole in the wheel and the main body hole and insert a pin that leaves a few mm of room on the other side then get a ring and put it over the pin on the inside and glue and repeat to the other back wheel.

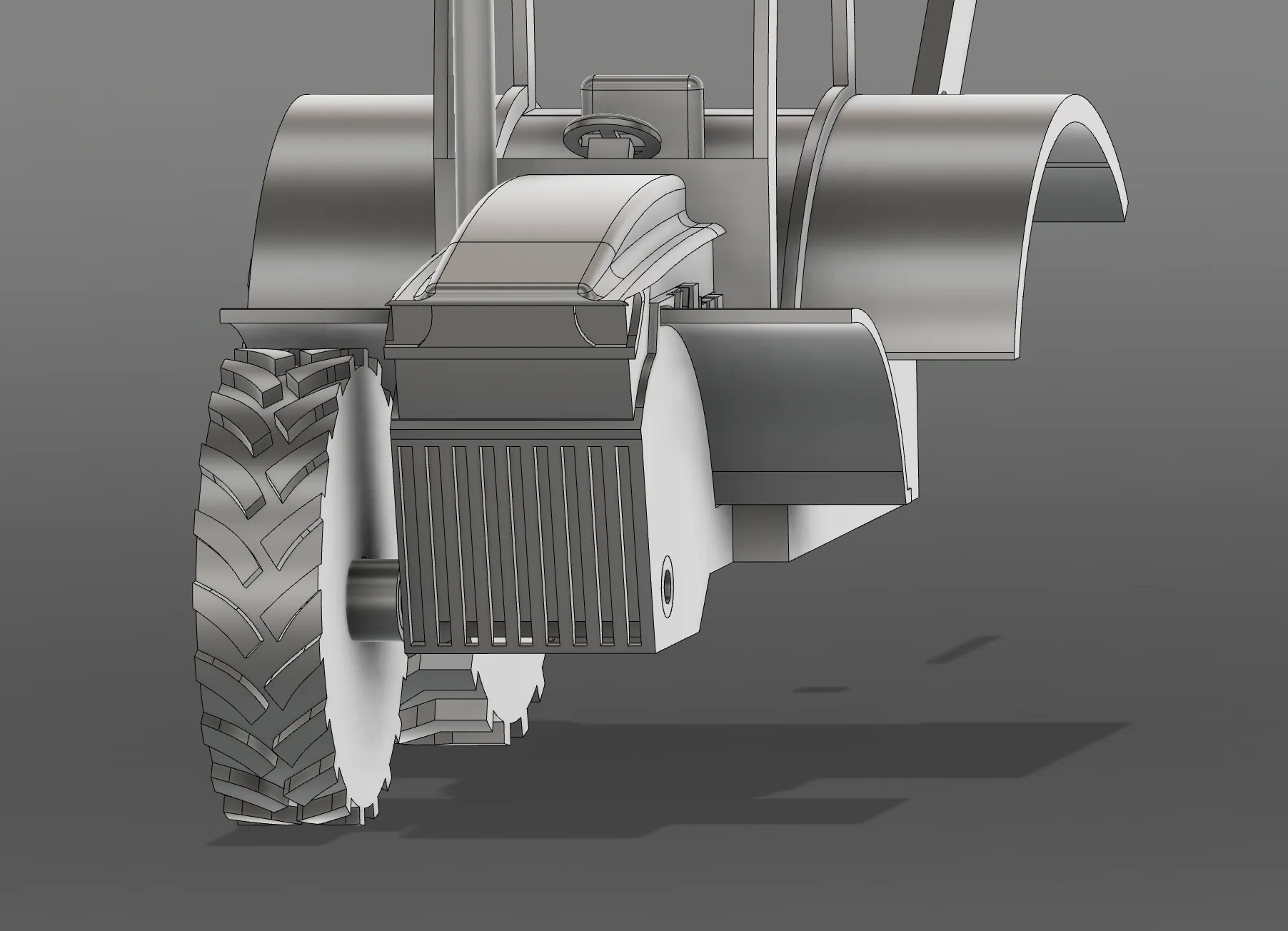

Now get the front wheel and the wheel spacer insert a pin through the wheel and spacer then put the pin through the main body, put the ring over the pin inside and glue. Do to both sides.

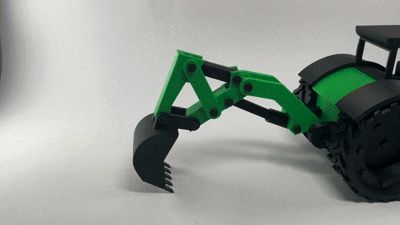

Now it's time for the scoop and arm.

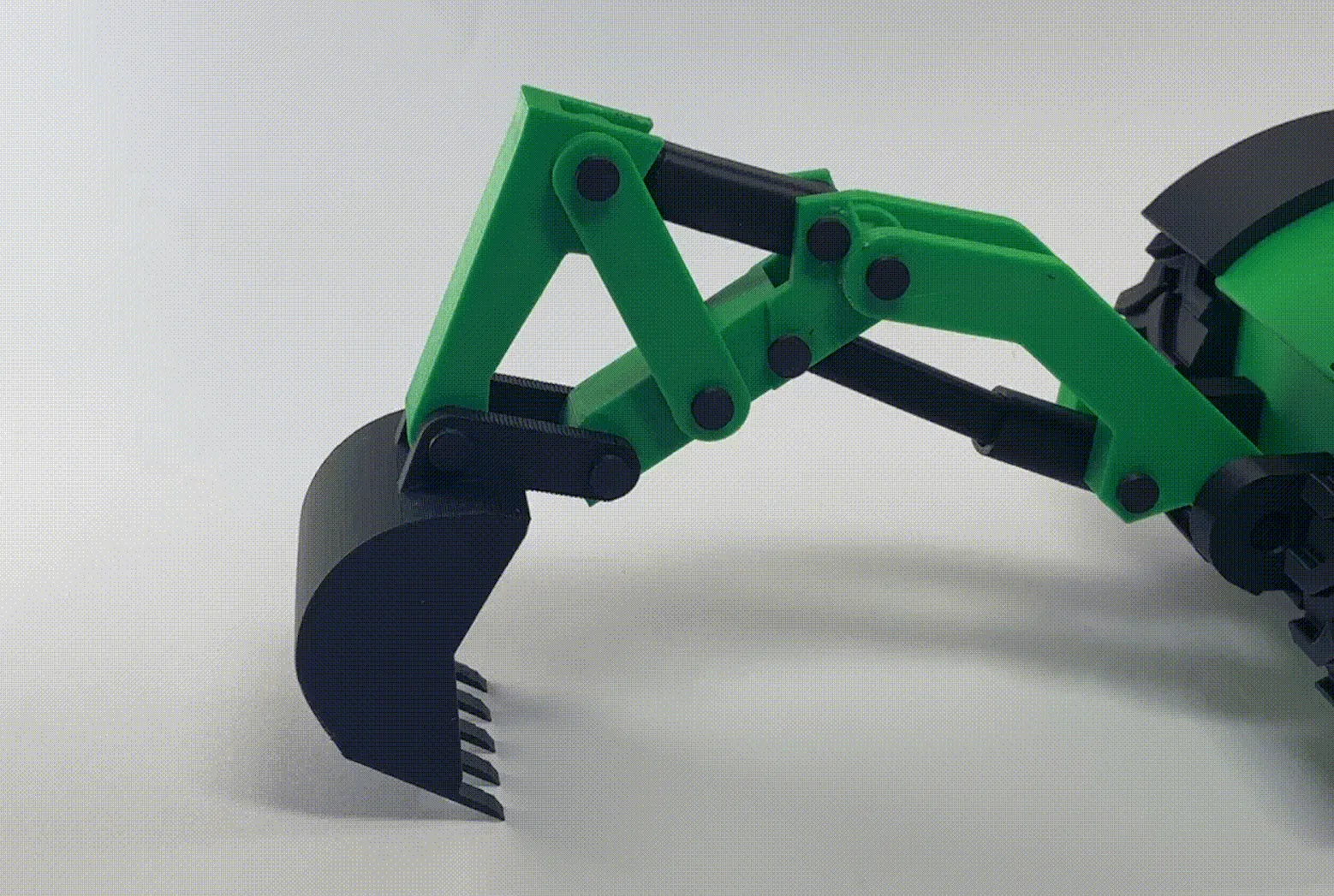

Its not hard to put the arm together so I will only put one picture of the assembled arm and you should be able to go off of that.

Use the same technique for inserting the pins as you used for the wheels.

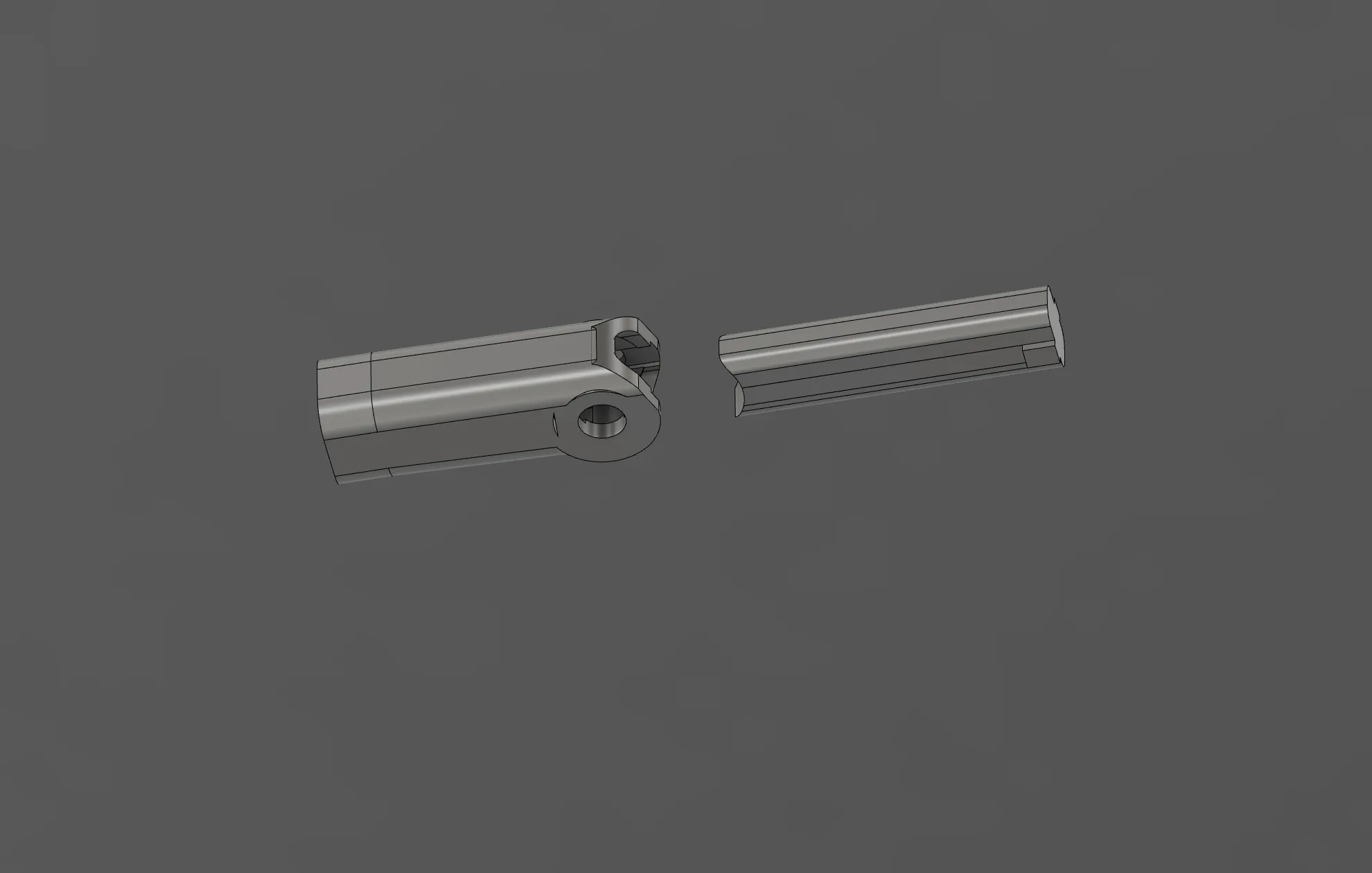

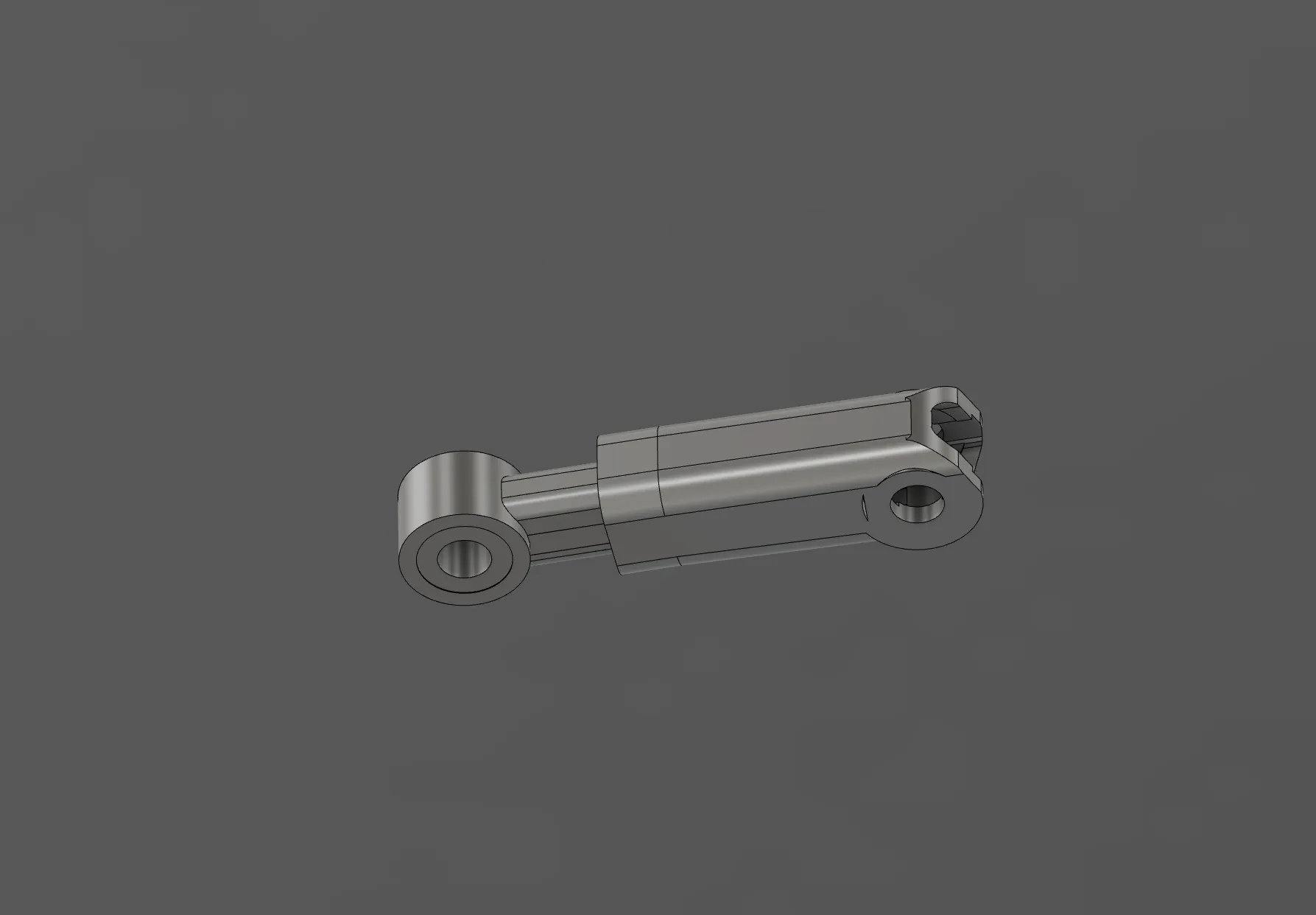

How to assemble pistons.

Push skinnier bit through the thicker bit and glue cylinder on the other end

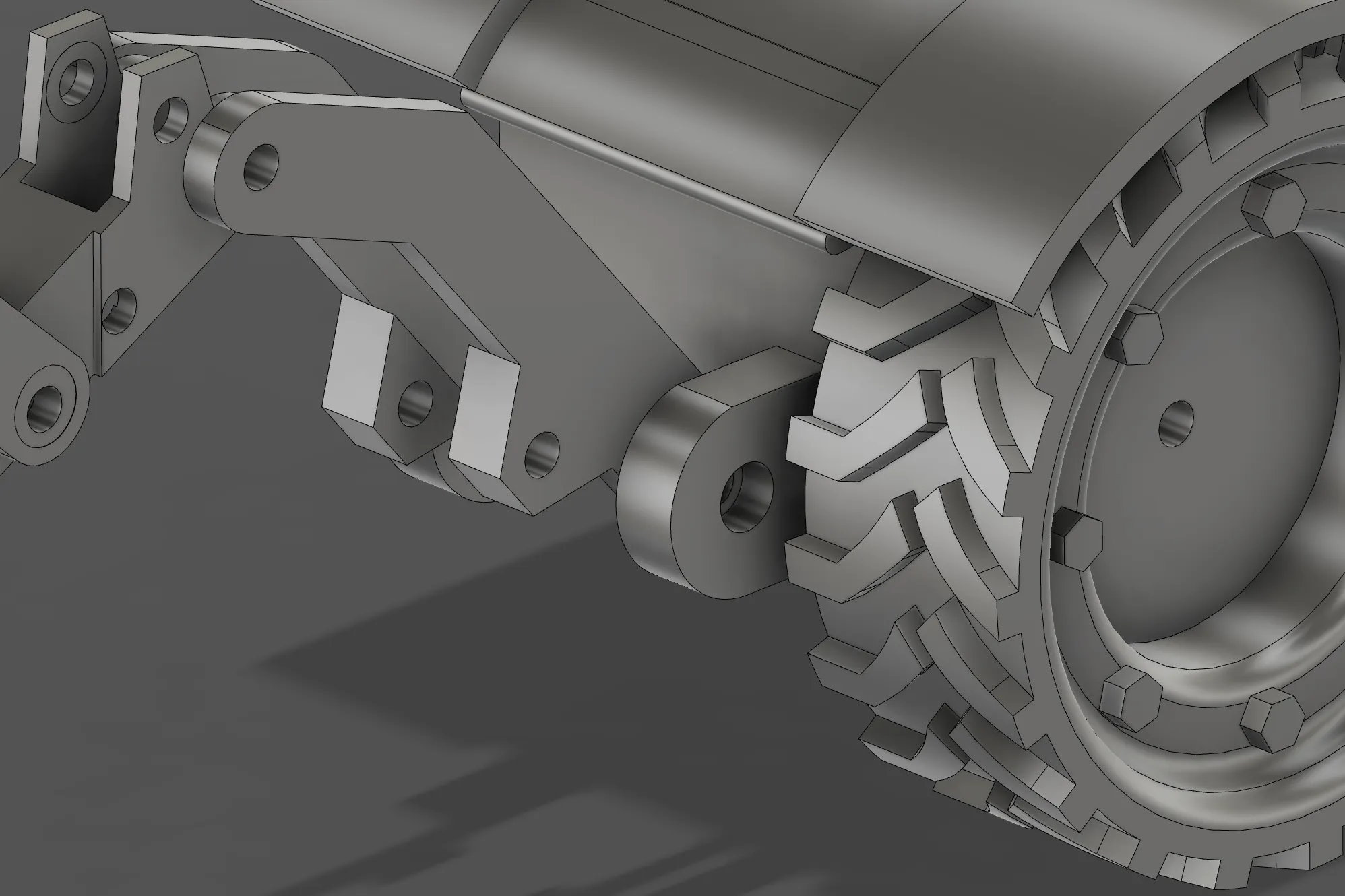

LAST step! Glue hitch to the back of the tractor and let dry. Then your done.

If you have any question please comment below!
