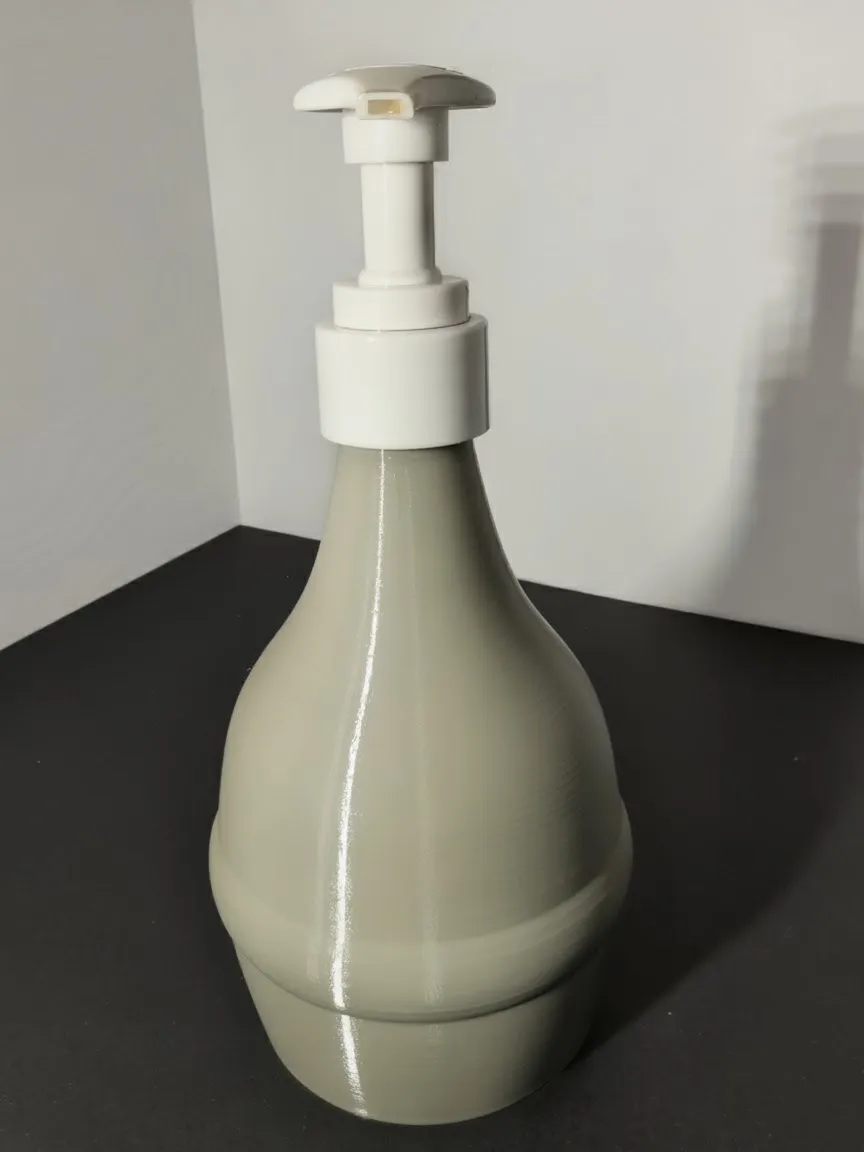

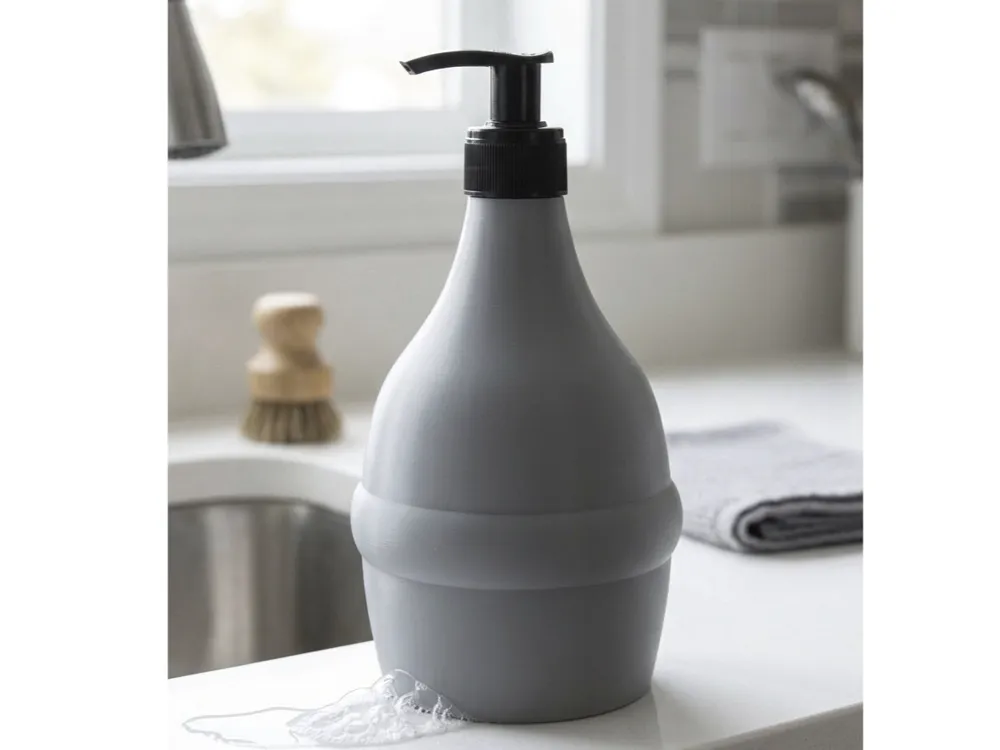

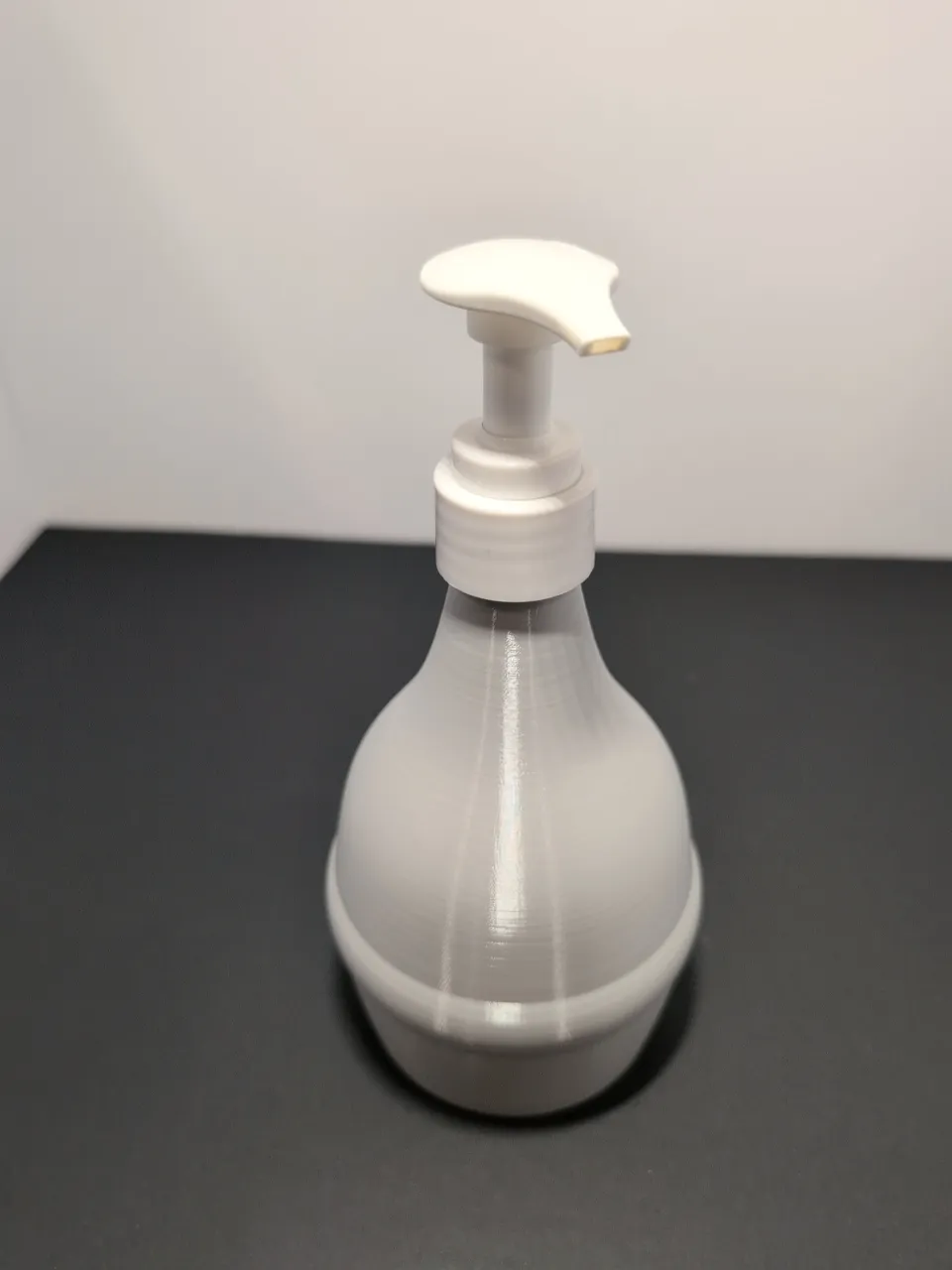

The "Bubble" Ergonomic Soap Dispenser

Elevate your sink with this modern, organic soap dispenser. Designed in Shapr3D, this model features a unique bulbous "teardrop" silhouette that provides a comfortable grip and a sophisticated look for both kitchens and bathrooms. It is specifically engineered for the industry-standard 28/410 pump mechanism, ensuring a perfect, leak-proof fit without the need for glue or hardware.

Key Features

• Ergonomic Grip: The flared middle section naturally fits the palm, making it easy to use even with wet hands.
• Standard Fit: Precision-modeled threads for standard 28mm liquid soap pumps.
• High Stability: Designed with a low center of gravity to prevent tipping during use.

Recommended Print Settings (Bambu Studio / PrusaSlicer)

To ensure your dispenser is completely watertight, please use the following settings:

• Material: PETG (Highly recommended for chemical resistance and durability).
• Wall Loops: 4 to 6 (Essential for a leak-proof seal).
• Layer Height: 0.2 (Initial: 0.28mm)
• Seam Position: Aligned (Place the seam at the back for a smooth, professional finish).
• Flow Ratio: 1.03 (Slight over-extrusion helps fuse layers for a better seal).

Assembly Instructions

1. Print the bottle using the "Watertight" settings above.
2. Check the neck for any stray filament "zits."
3. Insert your standard 28/410 pump and screw it down until the gasket is snug.
4. Fill with your favorite hand or dish soap and enjoy!
