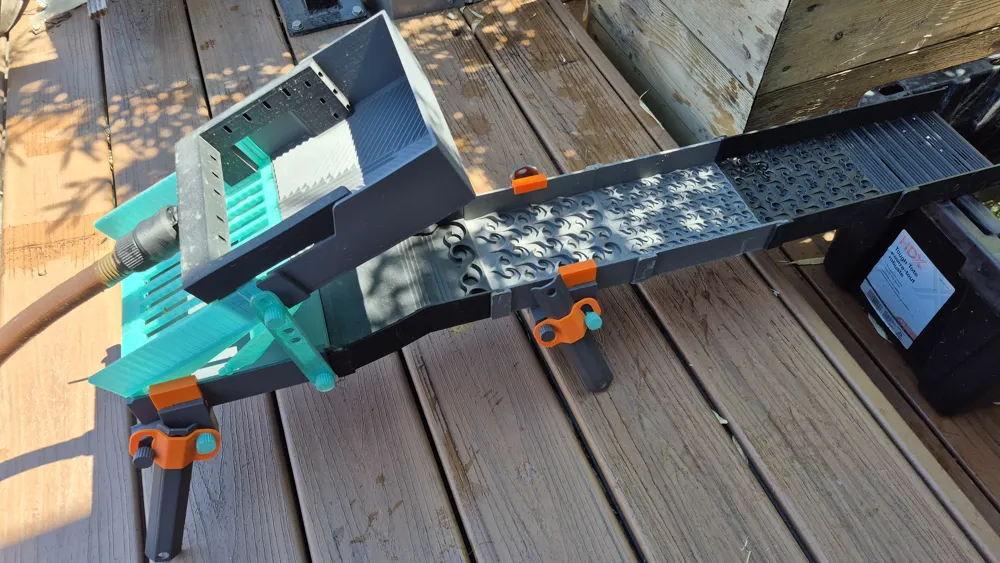

THE ultimate mini gold sluice highbanker dredgebox

This highly modular system offers endless customization. Simple and easy to assemble, this mini-system works incredibly well. (Note: Printing in PETG is highly recommended over PLA.)

Key Features & Components

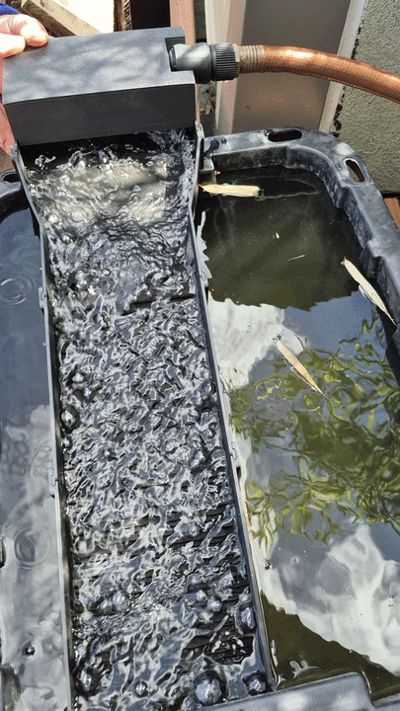

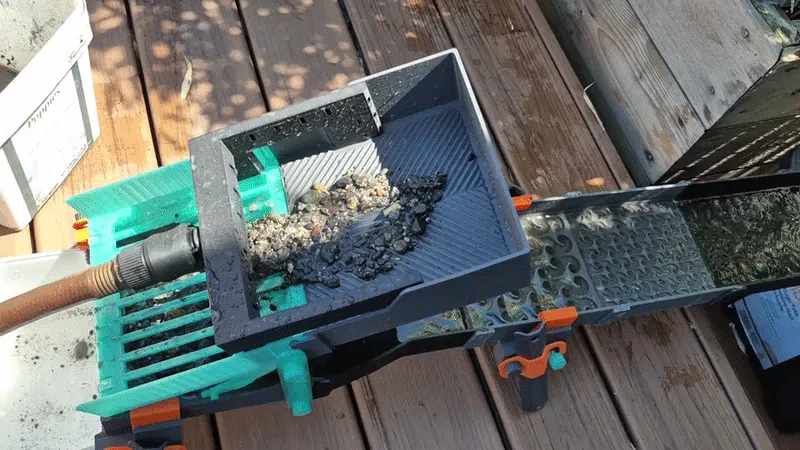

• Highbanker: Features an integrated quick-connect hose and is compatible with all available mat profiles.

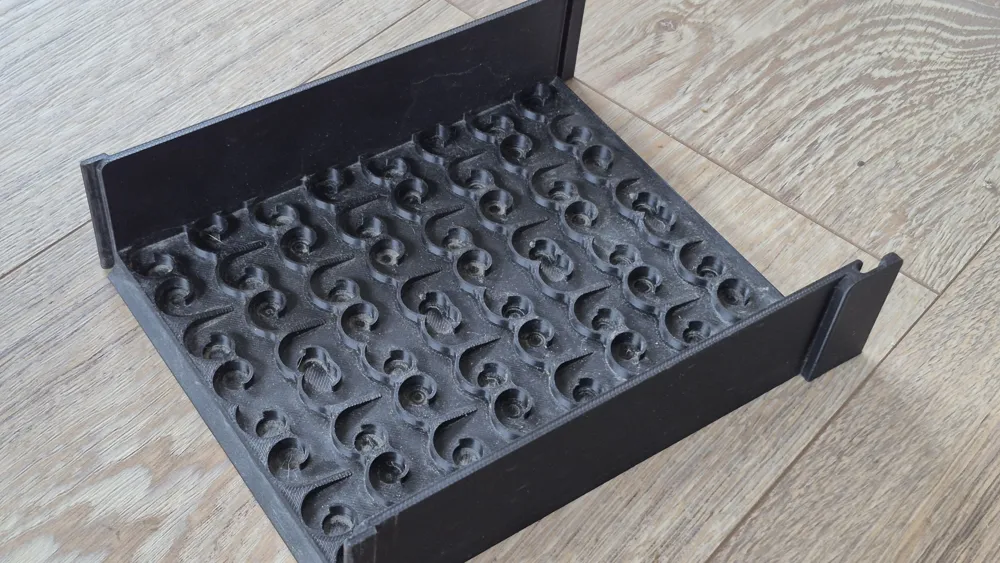

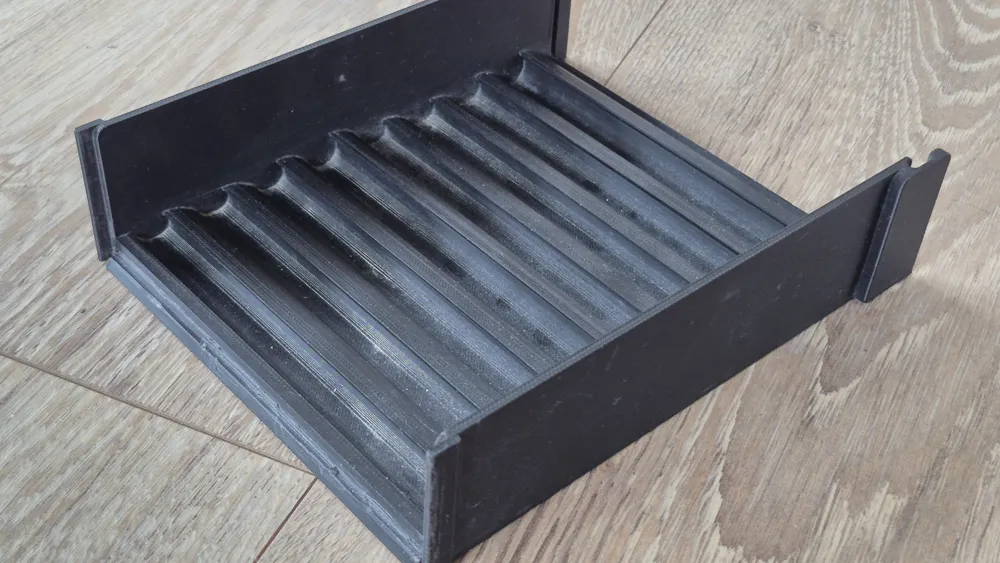

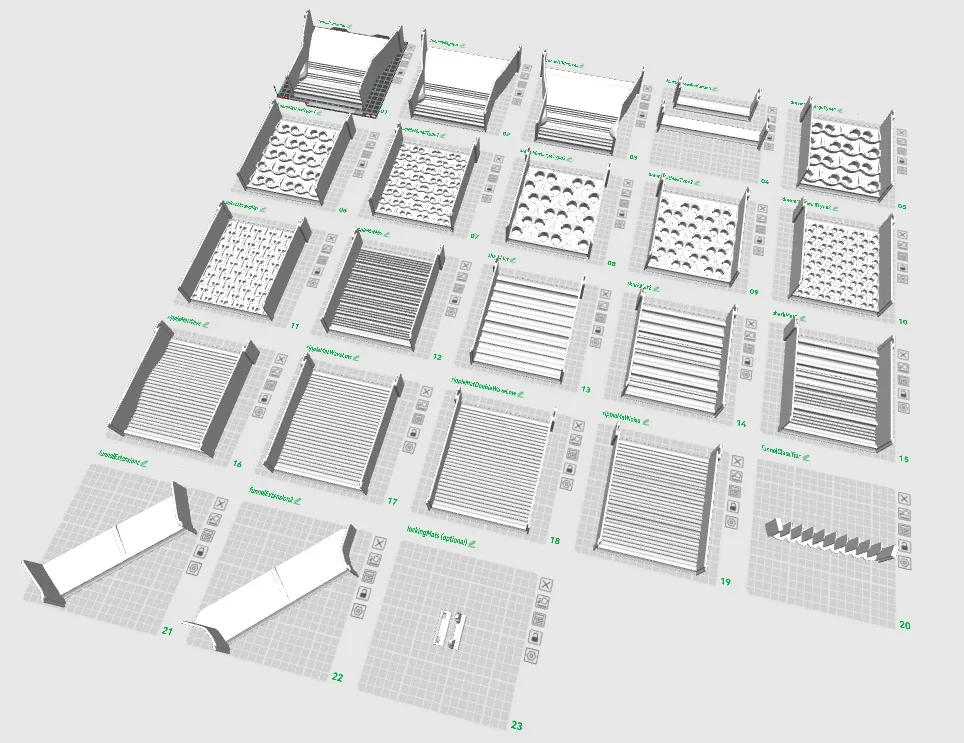

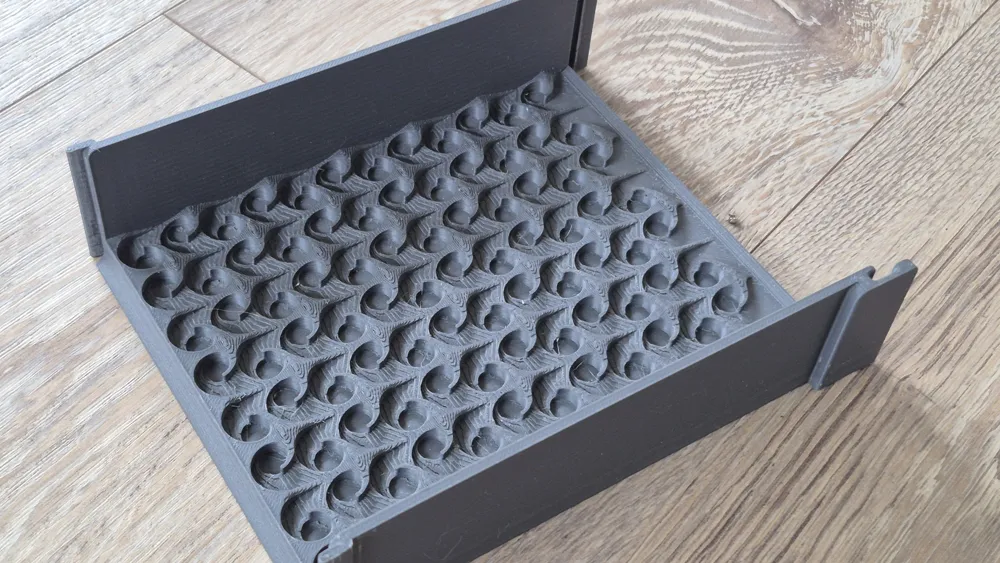

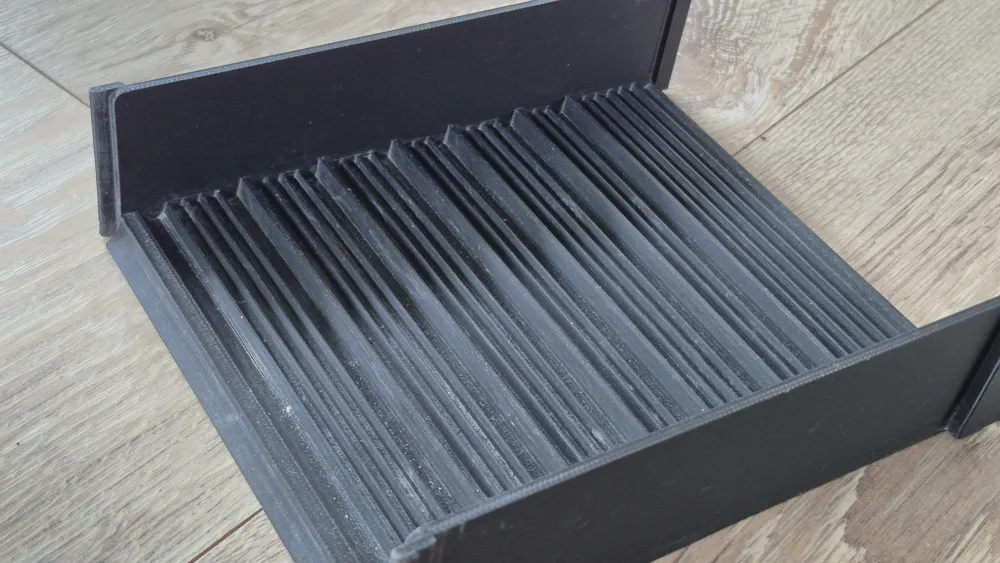

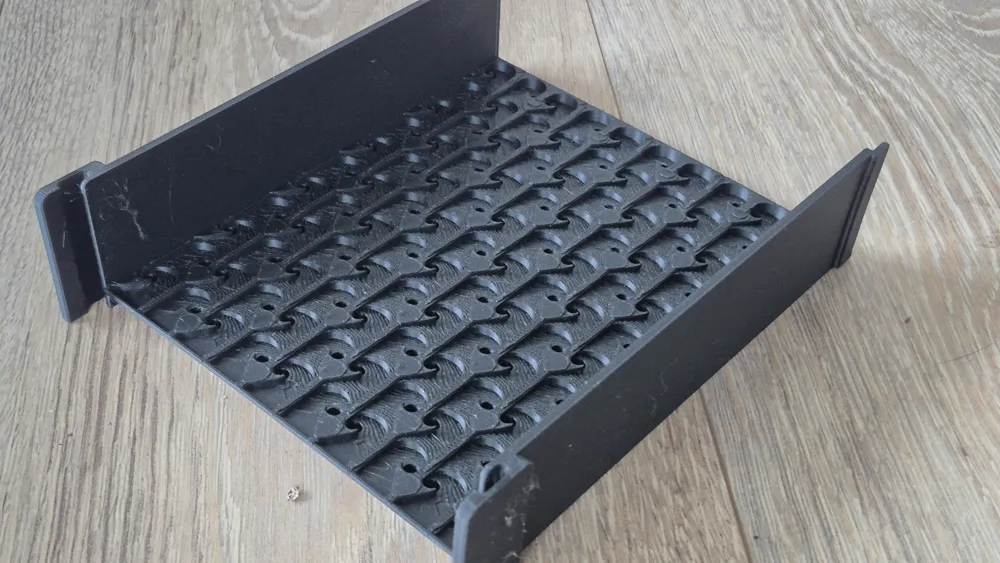

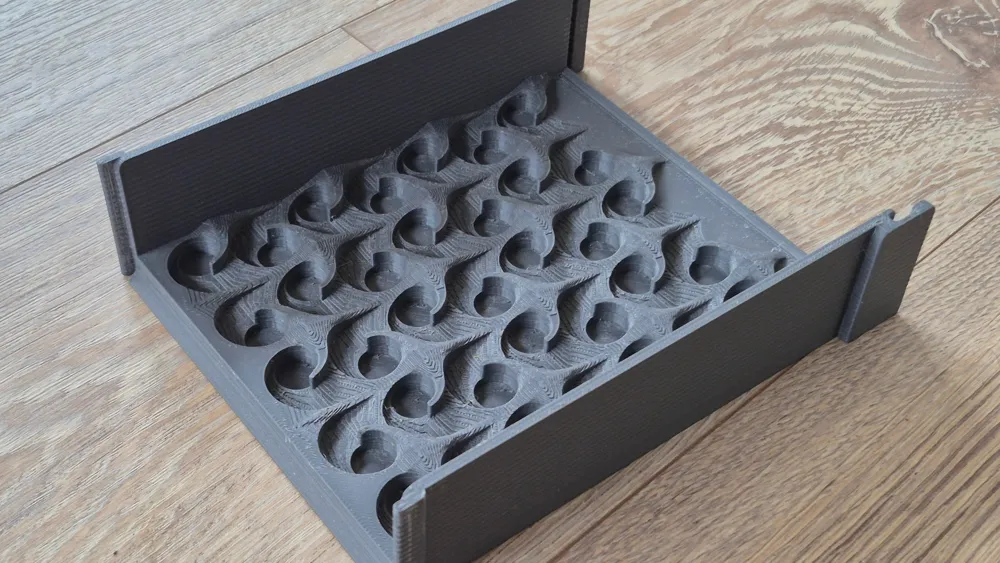

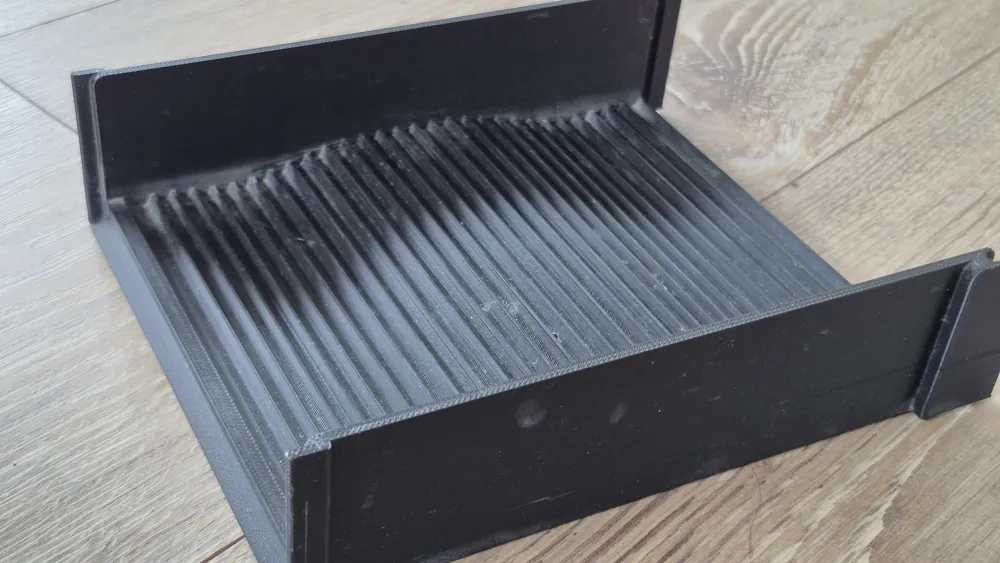

• Mat Profiles: Choose from a wide variety of profiles designed to catch everything from pickers to fine flour gold. Requests for custom mat profiles are welcome.
• Flare Design: Customize your water intake with 5°, 9°, or 13° flare angles. You can also start with a 13° angle and reduce the slope using a 4° adapter. Flare extensions are available at the head to capture more water in river currents.

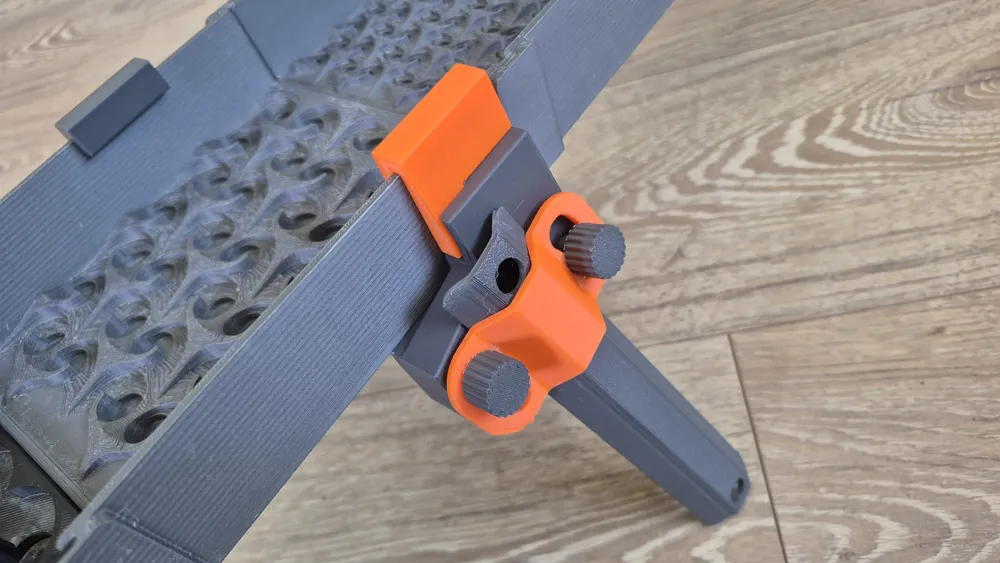

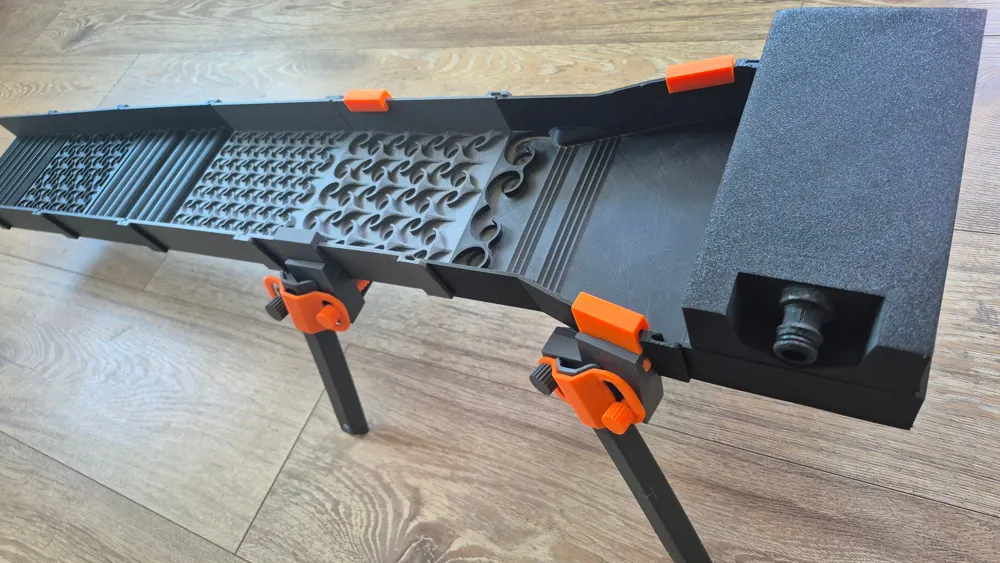

• Leg Attachments: These splayed, rotatable legs attach to the mats, flare, or highbanker for maximum stability. You can 3D print the legs or use custom hardware to achieve your desired height.

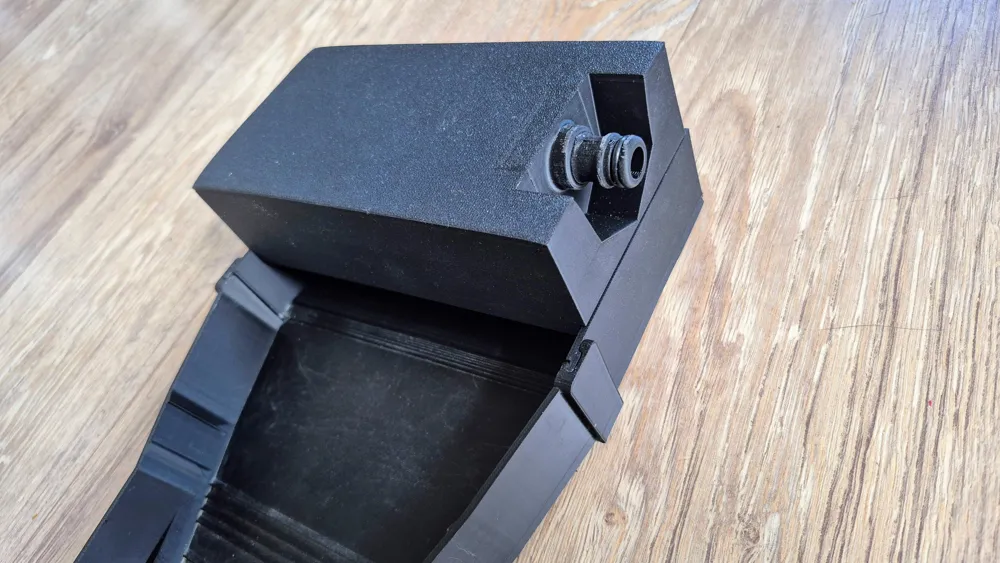

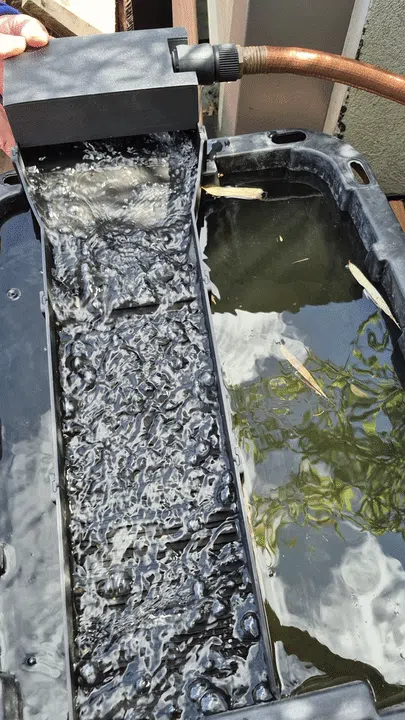

• Quick Connector Hose: Designed for easy water flow at the head of the sluice, this features an integrated Gardena-style quick connector. A compact version is also available.
• Dredge Box: Transform your highbanker into a floating system using the float attachments. It features a swappable inlet (5 cm / 2 in or 4 cm / 1.5 in) and is designed to accommodate DIY floats like pool noodles or plastic bottles.

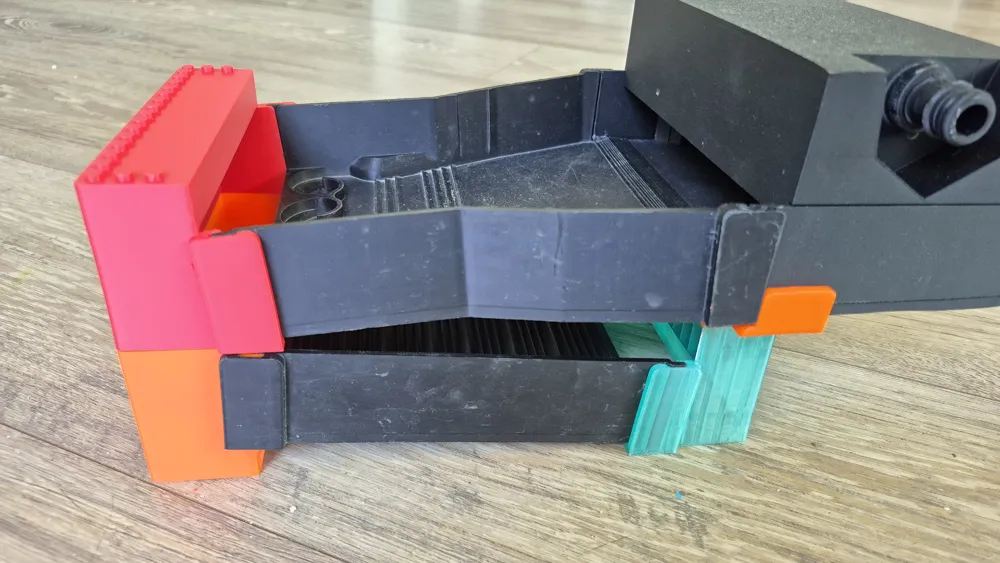

• Vertical Sluice Box: Stack your mats vertically using these elements, allowing them to snap together just like Legos.

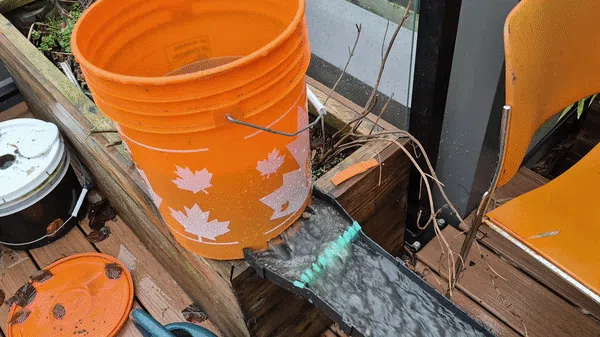

• Bucket Holder: An excellent option for a minimalist setup. It is designed to hold a standard Home Depot bucket; simply cut a 10 \(\times \) 2 cm hole at the bottom to allow water to flow through the sluice.

Thanks to this community, this project is constantly evolving. Feel free to join in, participate, and share your own improvements!
