Adjustable Wall Mount Bracket for Projector
Print Profile(1)
Bill of Materials
- M8*35MM螺丝 x 1:
- M8*75MM螺丝 x 1:
- 1/4螺丝*22MM x 1:
Description

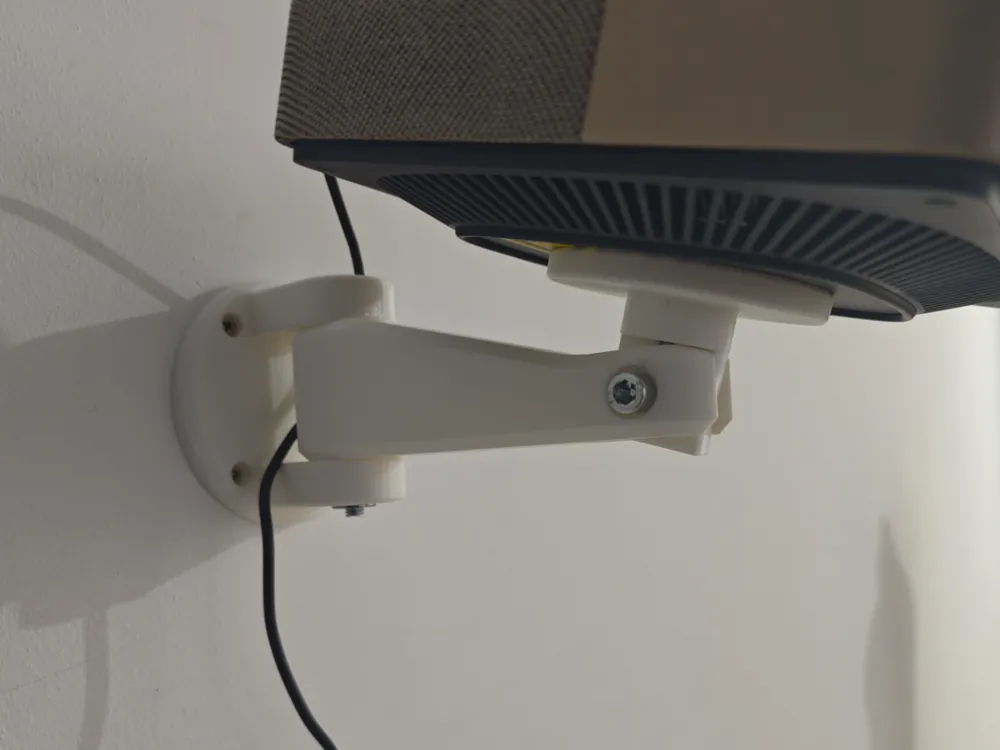

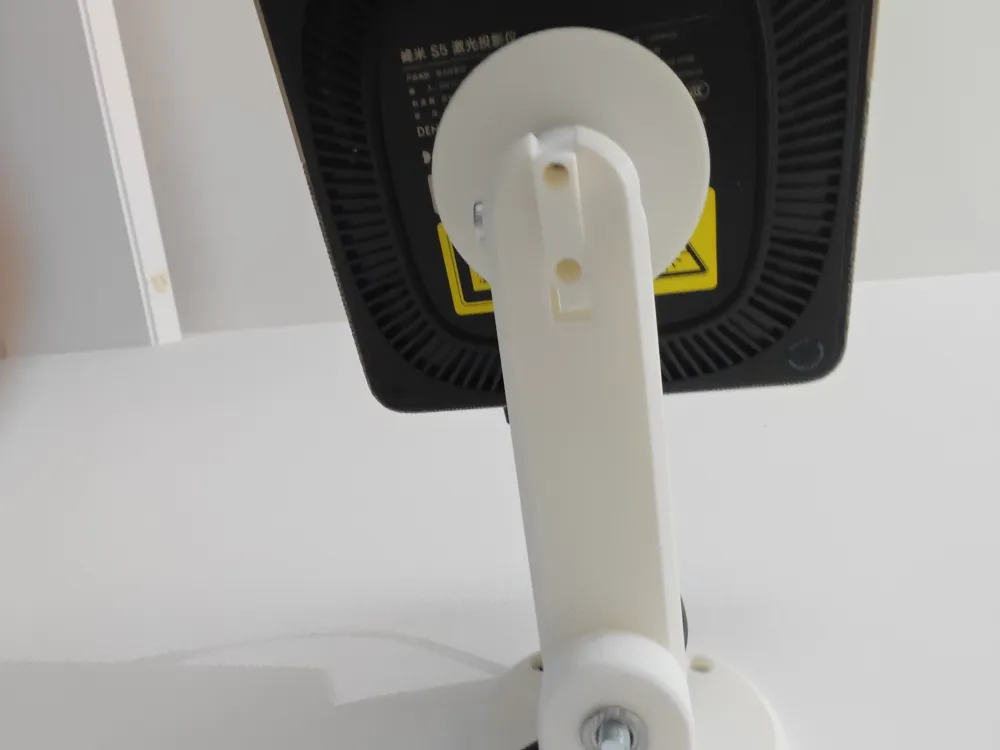

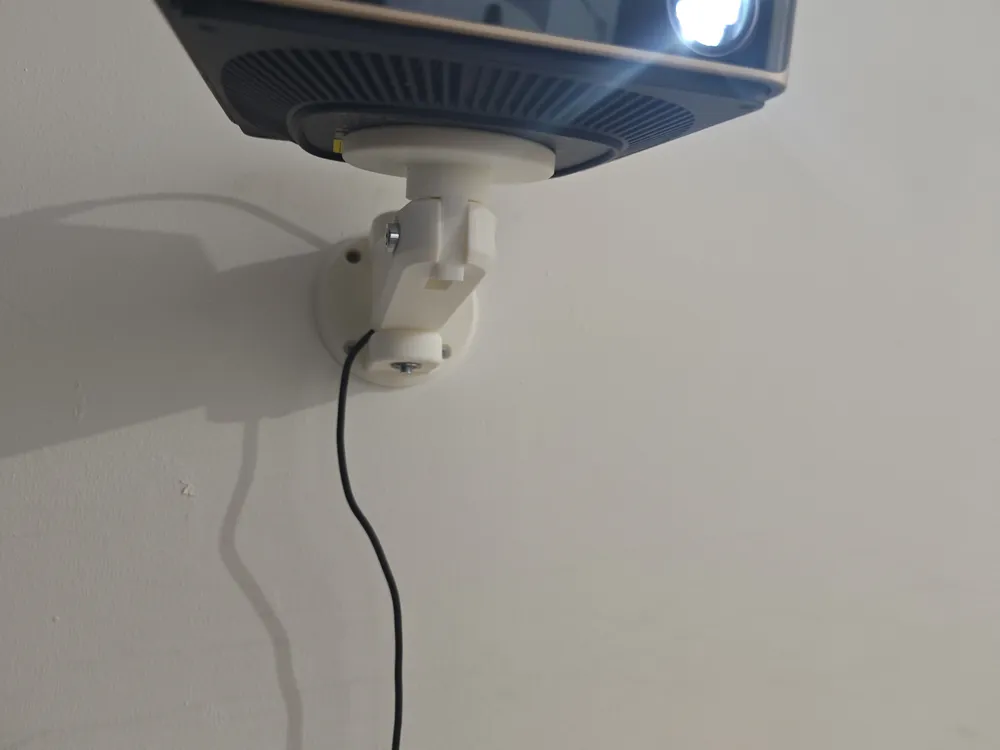

This model supports wall mounting of projectors with 1/4" threaded interfaces and allows for height and lateral adjustment of the projector.

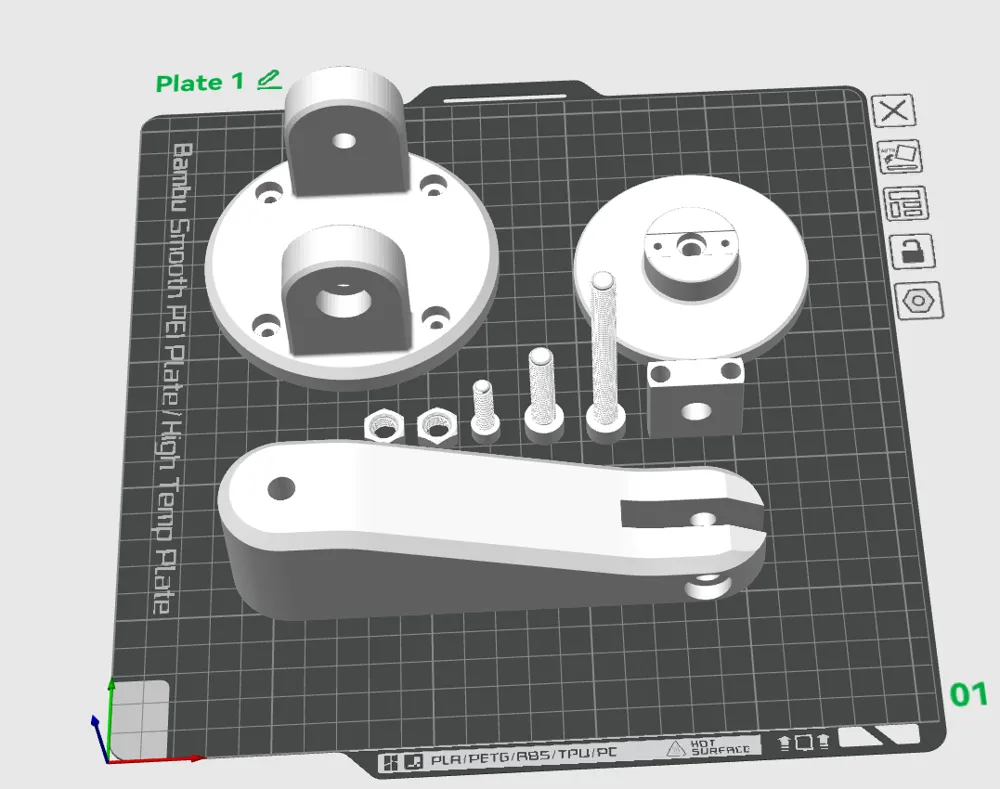

The configuration includes pre-printed screws (the connection between the hinge and tray can be secured with glue or M3*16 screws), but metal screws or
high-strength filament pre-printed screws are recommended. Screw specifications are as follows:
M8*35MM 1PC
M8*75MM 1PC
1/4" standard screw*22mm 1PC
M3*16MM 2PCS Mounting the chassis to the wall requires drilling holes and using expansion screws.
