Window prop for Sprite Cruzer Caravan

Window Bracket for Sprite Cruzer Caravan

This is a remix of a remix :))

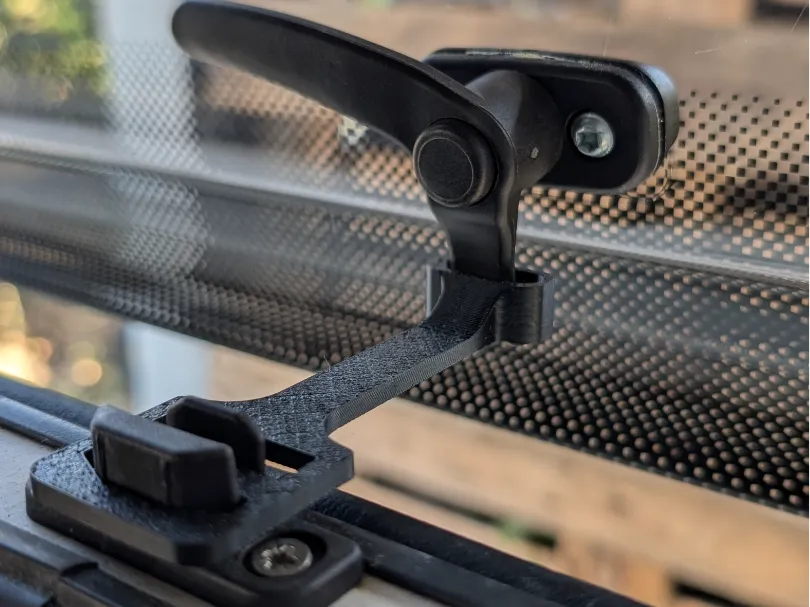

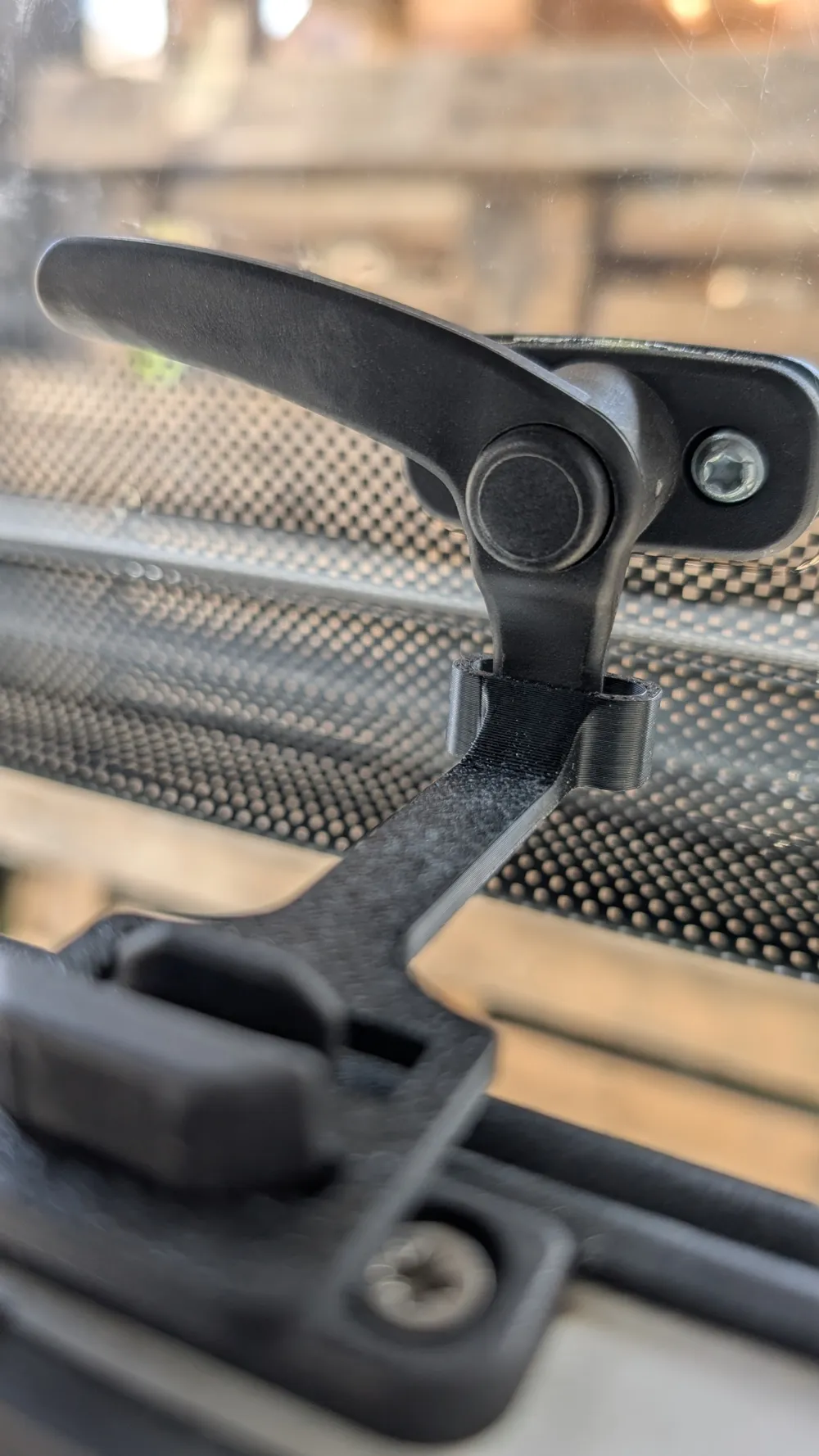

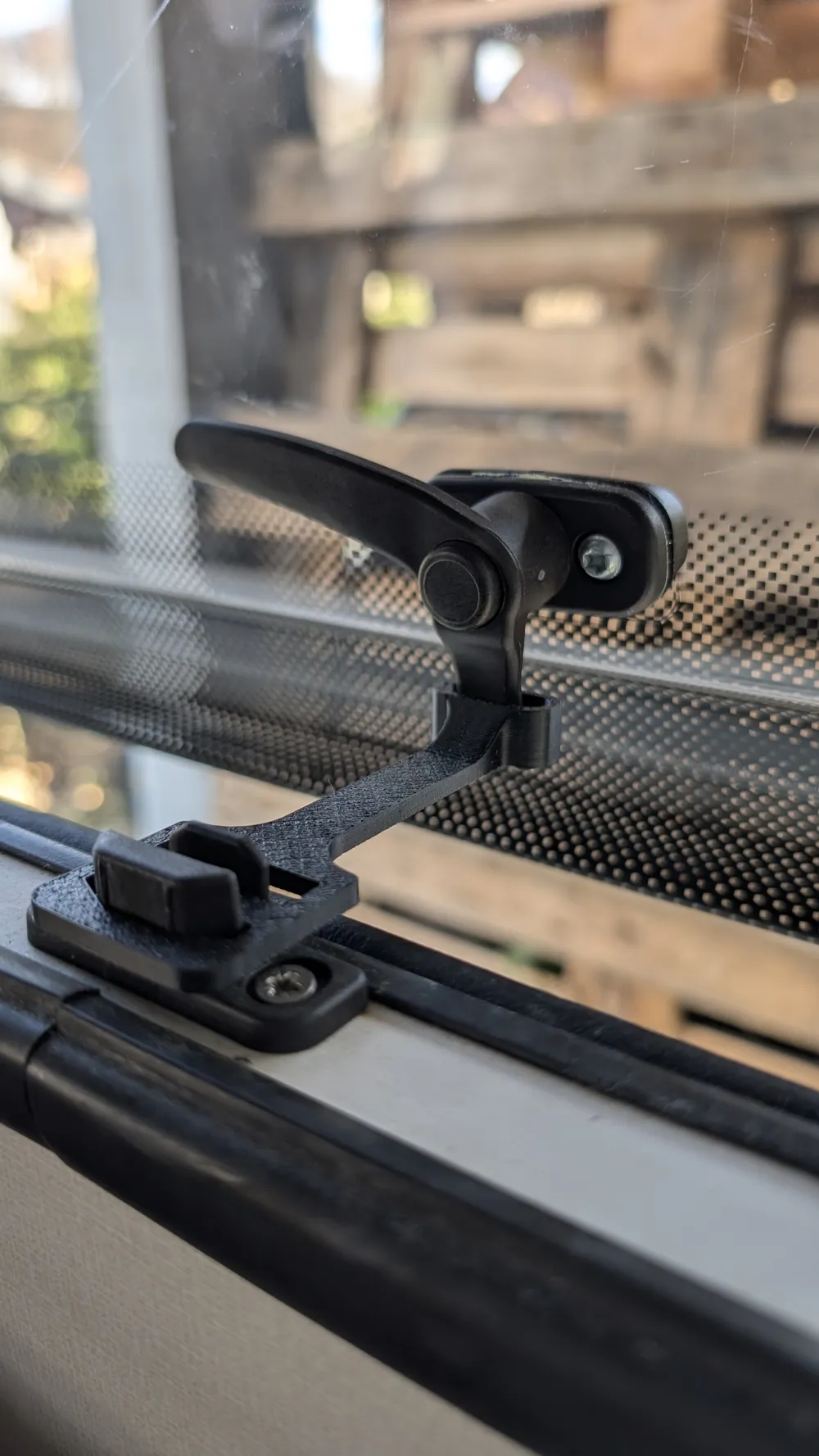

The window brackets on the Sprite Cruzer SR caravan, built 11/2016, are exactly reversed. I cut the model and attached the tab to the other side. The walls were reinforced. On the window side, I increased the receiver to 10mm so the latch holds easily.

I printed it with a 0.4 nozzle, 3 wall lines, and Gyroid infill. The model was printed in ASA, but PETG would certainly be sufficient.

It only fits all side windows. For the front windows, I still need to create them:
