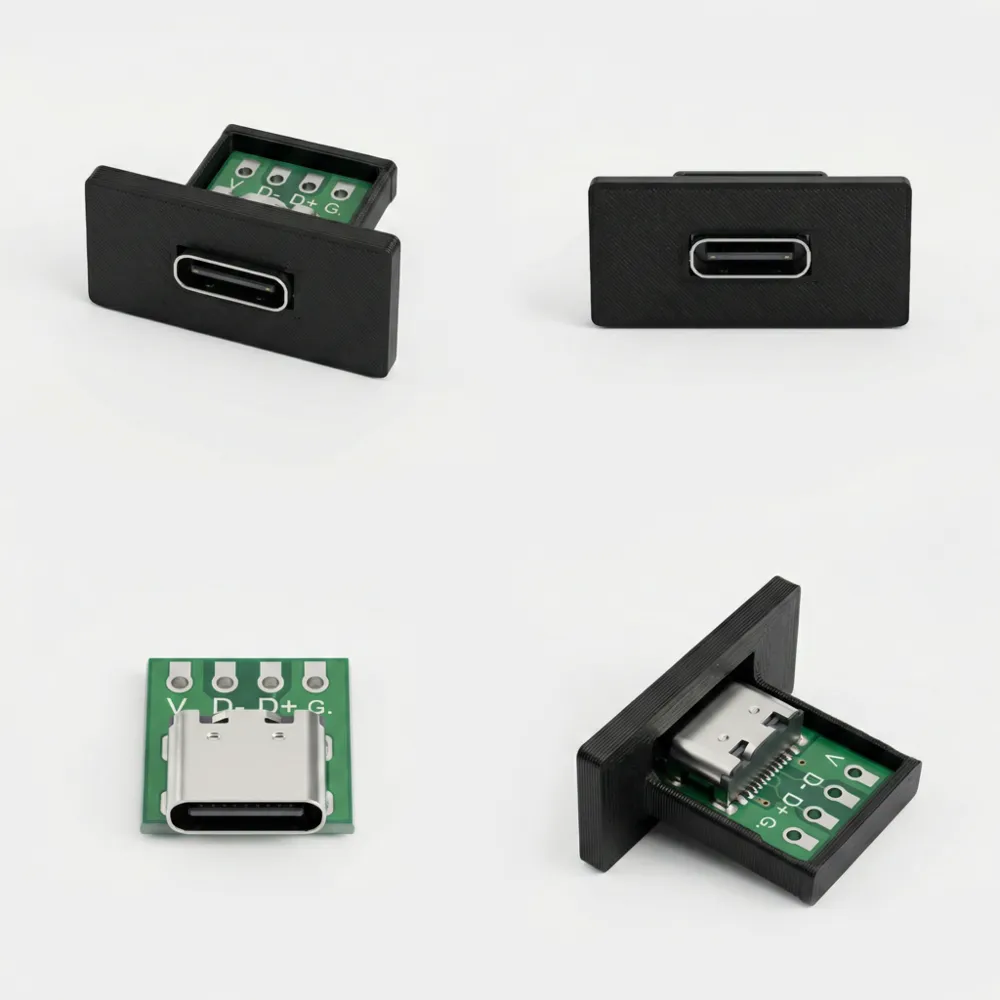

USB Type-C Female Breakout Board Mount / Holder
This is a sleek and minimalist mount designed for a popular 4-pin USB Type-C female breakout board (V, D-, D+, G). If you are tired of messy holes in your DIY project enclosures, this holder provides a professional "render-like" finish for your custom tech.
It features a front faceplate that hides the rough edges of your case cutout and securely holds the USB-C module in place. Perfect for power-only or USB 2.0 data projects.
Compatibility
Designed specifically for the USB-C breakout boards found on AliExpress:
- Hardware Link: USB 2.0 Type C Female Test Board
- Pins: VBUS, D-, D+, GND.
Print Settings
- Material: PLA, PETG or ABS/ASA.
- Layer Height: 0.15mm - 0.2mm for better detail on the front face.
- Infill: 20-100% (it's a small part, so 100% is recommended for strength).
- Walls: 3 perimeters.
