Gopro Hero 8 FPV Mount with ND Filter mount

Print Profile(1)

All
A1
P1P
P2S
A1 mini
H2S
P1S
X1E
X1 Carbon
H2D Pro
X1
H2C
H2D
X2D
A2L

0.2mm layer, 2 walls, 30% infill, Normal Supports
0.2mm layer, 2 walls, 30% infill, Normal Supports
Designer
1.8 h
1 plate

Open in Bambu Studio
Boost
3
4
0
0
6
2
Released

Bill of Materials

List other parts
  • 6x3x2 Magnets x 8: https://www.amazon.com/dp/B0GK1N9LZ5?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

Description

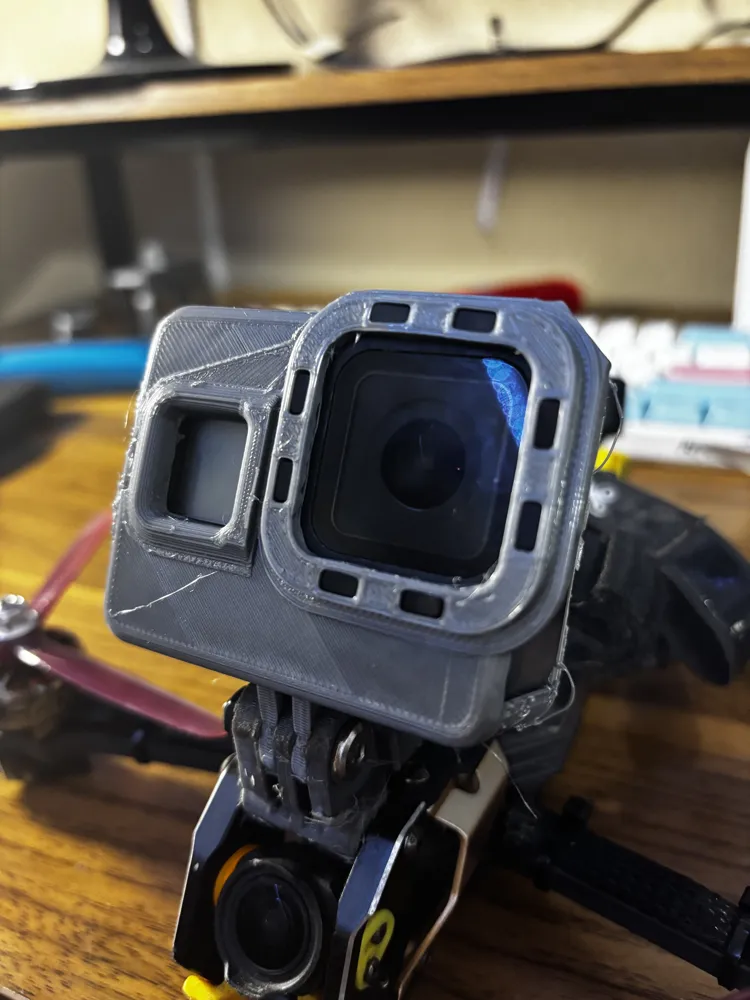

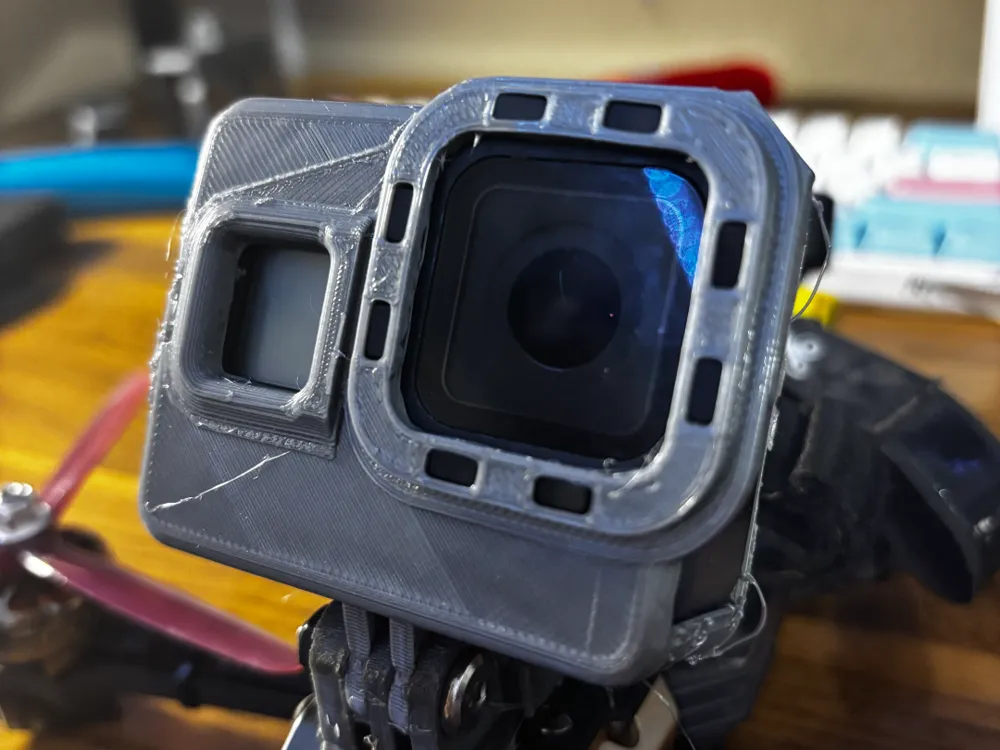

GoPro Hero 8 Black FPV Mount (Lenskins ND Compatible)

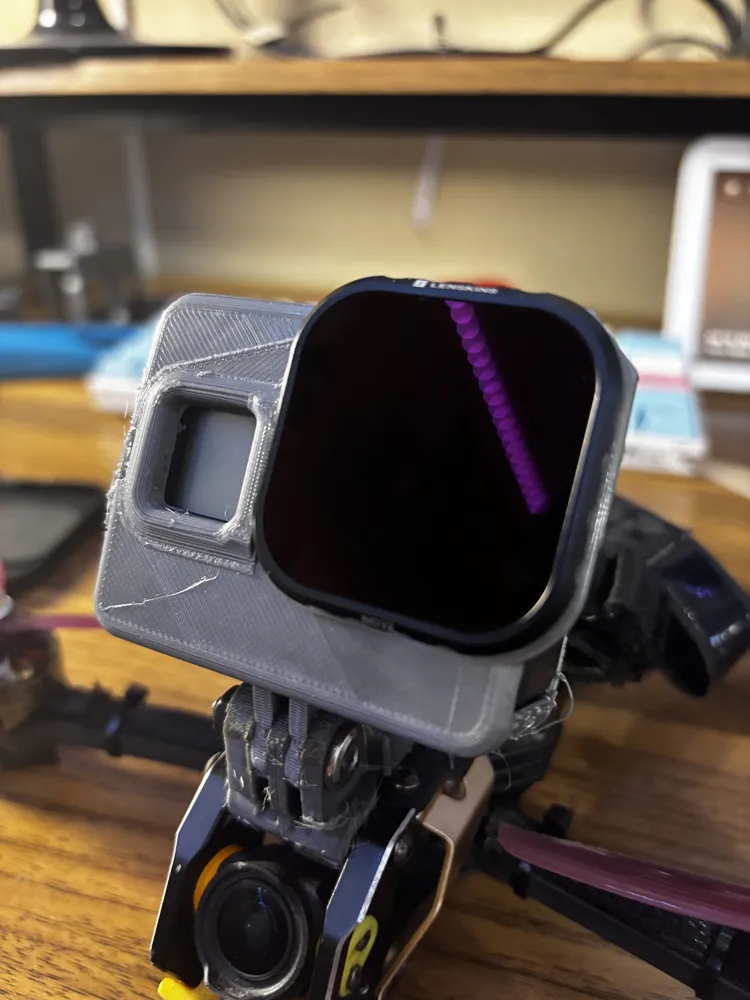

Engineered for pilots who refuse to compromise on image quality, this TPU mount features a dedicated slot designed specifically for Lenskins ND filters. By integrating 6x3x2mm magnets into the frame, this mount allows for lightning-fast filter swaps in the field while ensuring your glass stays secure during high-speed proximity lines. Because the Hero 8 Black lacks a removable lens cover, this integrated system is the ultimate way to add cinematic motion blur while providing a rugged layer of protection for your camera.

The design is optimized for a balance of durability and vibration dampening. For the best results, print in TPU with 30% infill and 15% support infill. To ensure the supports break away cleanly from the flexible filament, set your top and bottom Z distance to 0.4mm. This specific gap provides enough clearance for a smooth finish on the overhanging lens surfaces without the TPU fusing together.
