NP-F550 Battery Case (Feelworld Tested)
Print Profile(1)
Description
Compact and super secure case for NP-F550 batteries!
It allows you to check charging LEDs and recharge via USB-C without removing the battery, keeping it always protected and ready for use. Thanks to the integrated clip, you can easily attach it to your belt, pants, or backpack and always have it within reach
This case is designed for NP-F550 batteries and has been tested with a Feelworld battery
It offers protection during transport while maintaining full access to the battery's functions

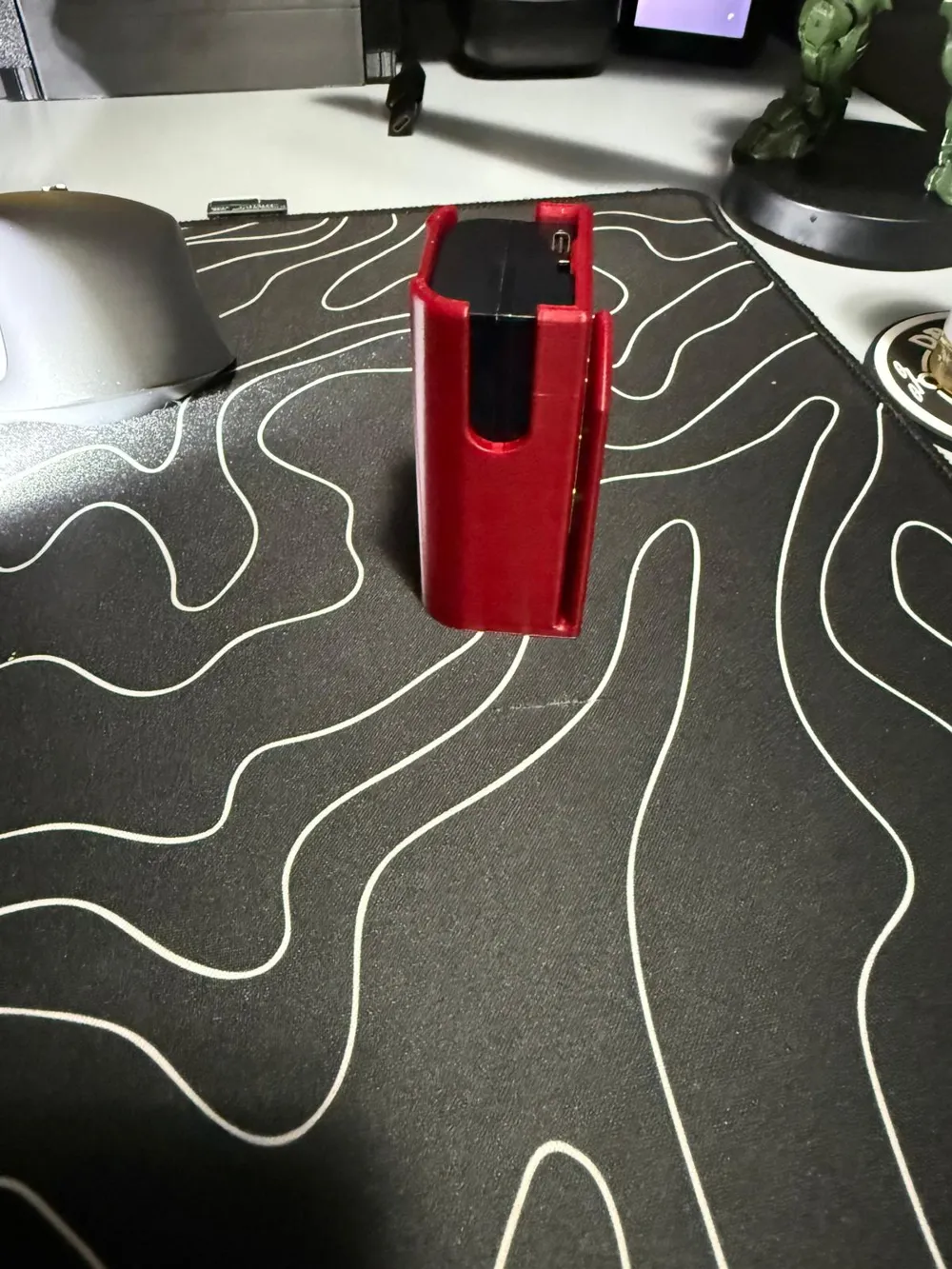

The case leaves the rear part open, allowing easy checking of charge status LEDs, and keeps the USB-C port exposed, so the battery can be recharged without being removed from the case
The design includes a precise interlocking system that keeps the battery firmly in place: even when shaking the case, the battery does not accidentally fall out
At the same time, thanks to a wide side opening that runs along one side and the bottom, together with a small opening on the opposite side, the battery can be quickly and easily removed and reinserted
To complete the design, an integrated clip is present, perfect for attaching the case to:
- pants
- belt
- backpacks
- bags or equipment
This makes battery transport more practical, secure, and always at hand
Features
- Compatible with NP-F550 batteries
- Tested on Feelworld NP-F550
- Access to charge LEDs
- Access to USB-C port for charging
- Secure interlocking system
- Quick battery removal
- Integrated clip for attachment
- Protection against accidental bumps
⚠️ Note: compatibility guaranteed with Feelworld NP-F550 batteries. Other NP-F550 models may have slightly different dimensions
Print Settings
- Material used: PLA
- Supports: not required
- Orientation: as in the STL file
The model was designed and tested with PLA
Using materials with higher shrinkage, such as ABS or PA-CF, could cause dimensional variations and thus tolerance issues when inserting the battery
If these materials are used, it may be necessary to slightly adjust tolerances or print parameters
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
