Printable ABS Handle – 110 mm Center Distance
Print Profile(1)
Description

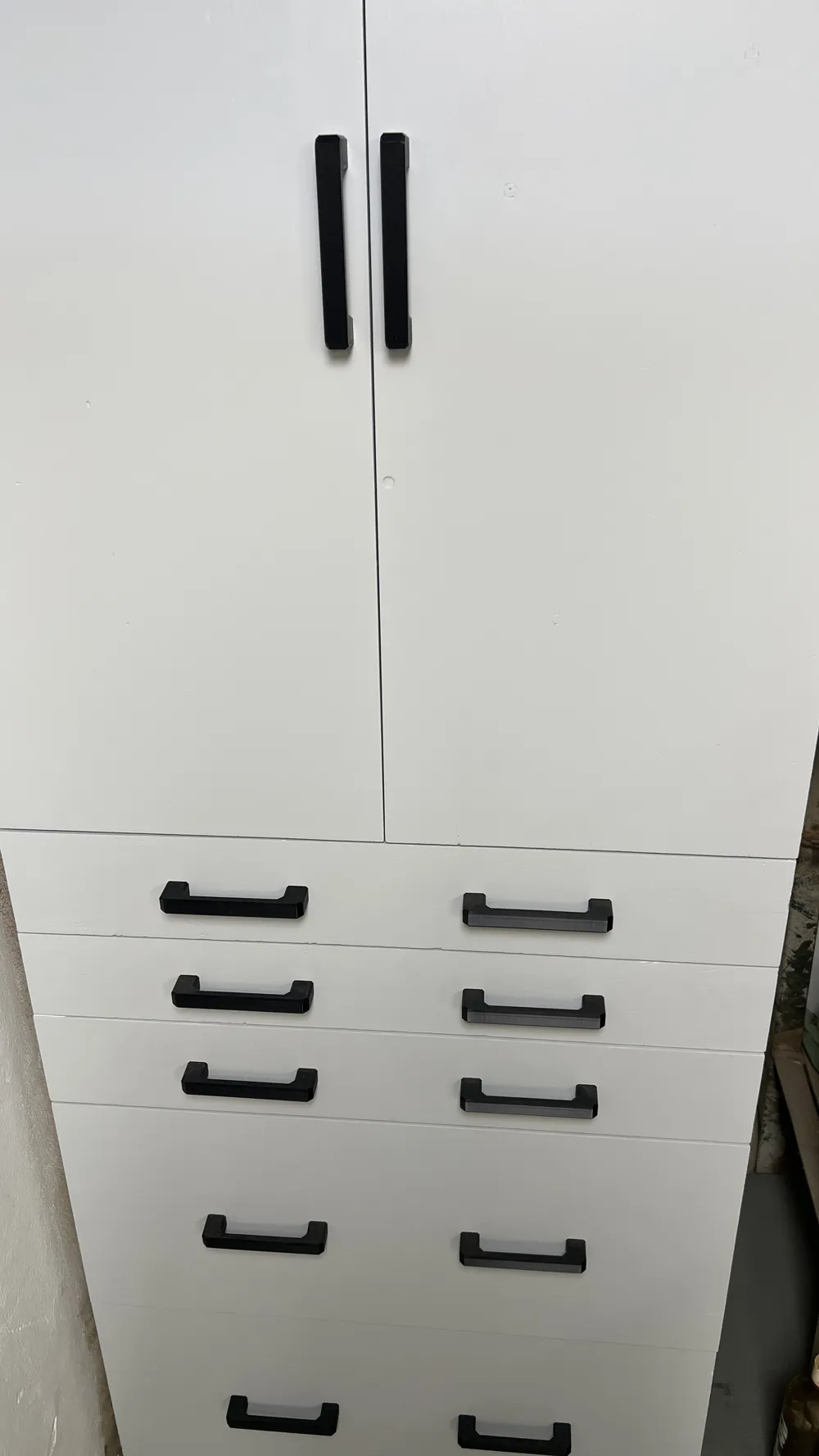

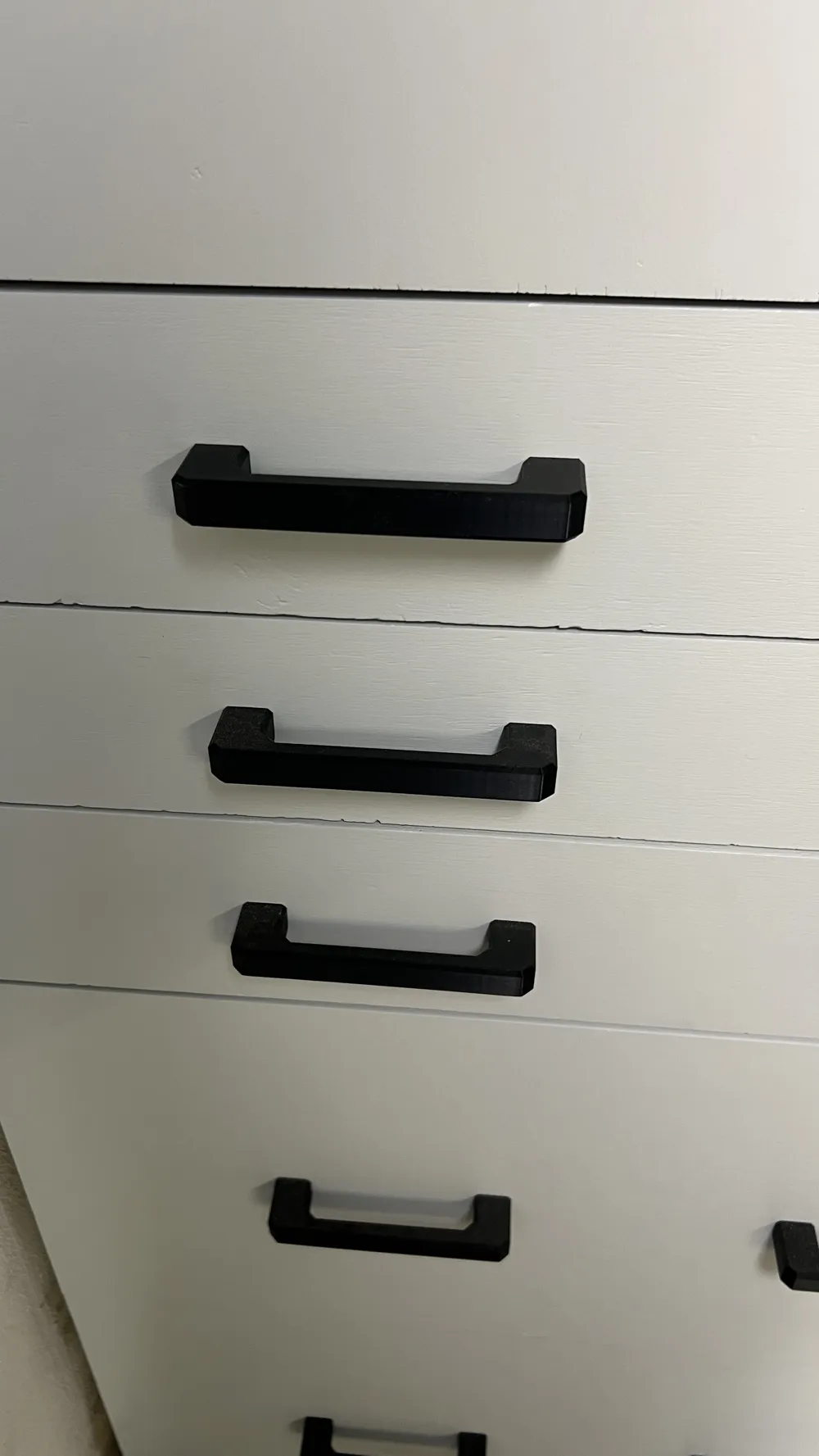

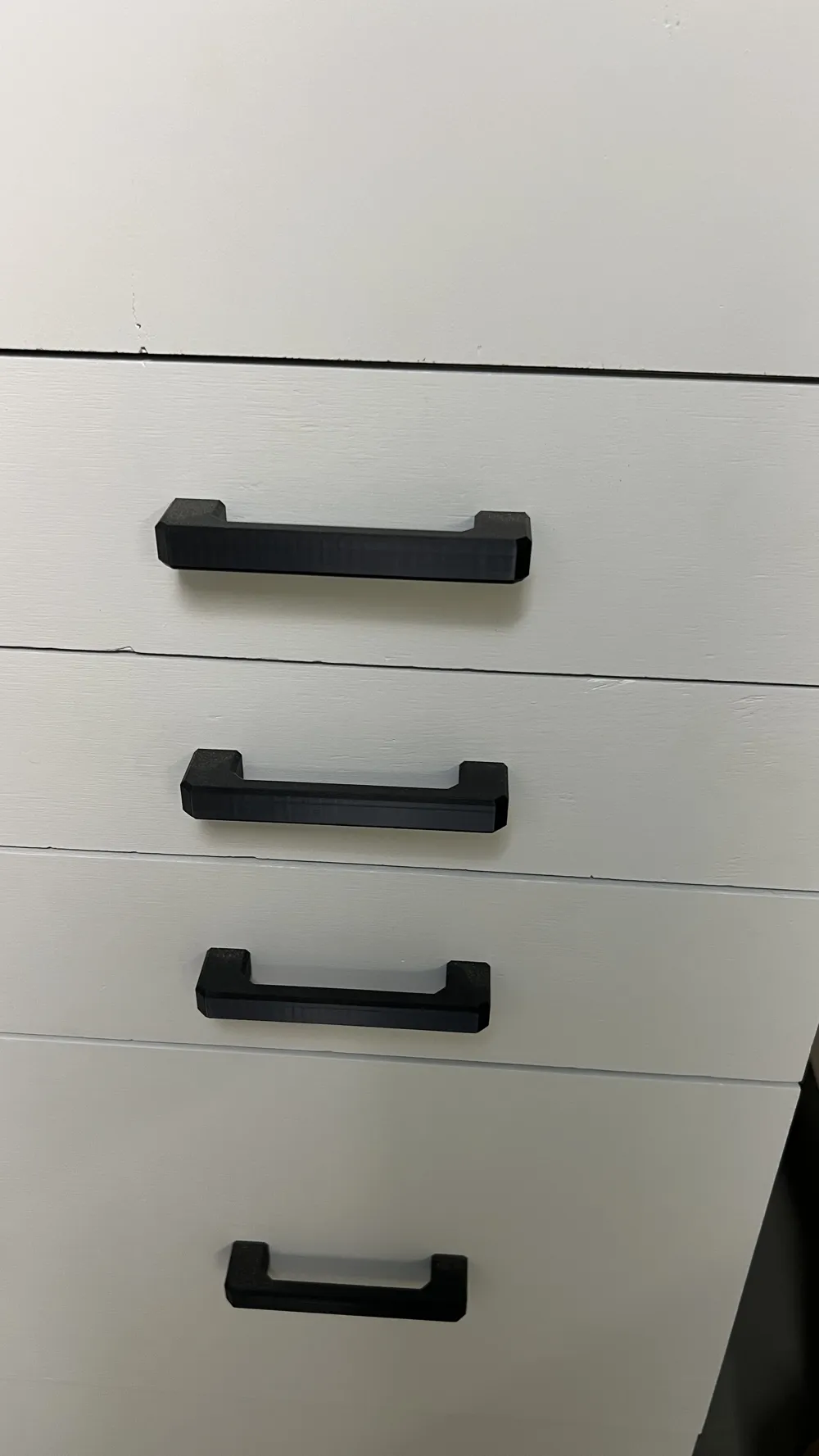

Robust handle designed for ABS printing, ideal for furniture, doors, drawers, or technical applications.
The model integrates seats for M5 threaded heat-set inserts, ensuring a solid and durable mechanical connection.
Technical Specifications
- 🔩 Hole center distance: 110 mm
- 🔘 Through hole diameter: 6 mm
- 🧵 Compatible with: M5 threaded inserts (heat-set)
- 🧱 Recommended material: ABS
- 🖨️ Optimized for FDM printing
The geometry is designed for:
- Good flexural strength
- Correct stress distribution
- Excellent ergonomic grip
Material
• ABS
• Nozzle: 0.4 mm
• Nozzle temperature: 240–260°C (depending on your ABS)
• Bed: 90–100°C
• Enclosed chamber recommended (your Bambu Lab P1S is perfect)
Structure
• Top layers: 5
• Bottom layers: 5
• Wall loops: 4
• Infill: 30–40% (Gyroid or Cubic recommended)
• Layer height: 0.2 mm
Orientation

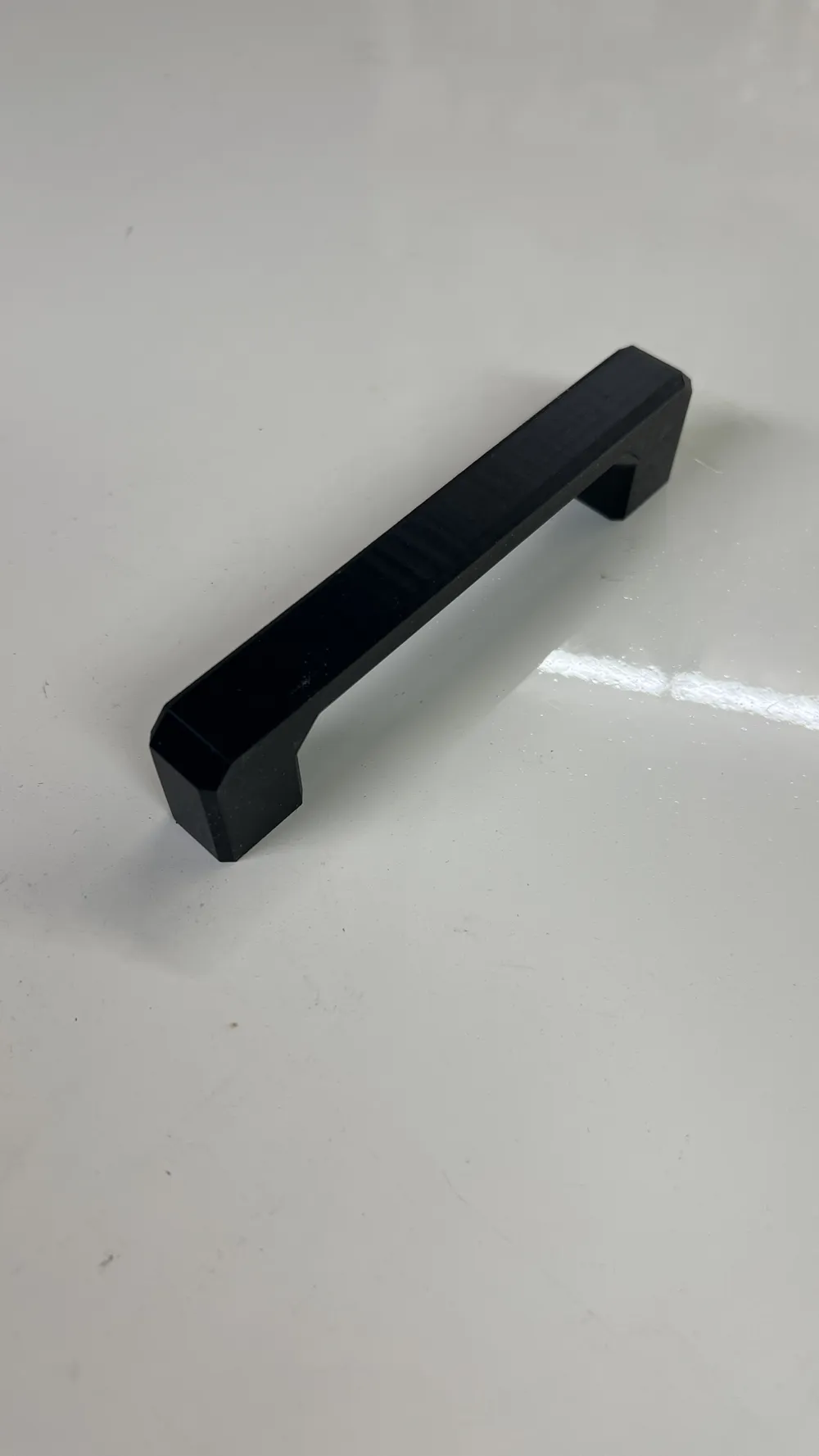

Print lying on the flat back side (as in photo).
Advantages:
• Maximum strength along the pulling direction
• Stronger threads
• Better aesthetic finish
