wii2hdmi xbox internal cover

A cover for the wii2hdmi adapter used in my original xbox. The original AV connector was removed, and the adapter wired to the motherboard (see

https://www.ogxbox.com/forums/uploads/monthly_2020_10/360-to-Xbox-Pinout.png.8b2ca18a163a36fb95085ad6e09f47af. png for wiring info).

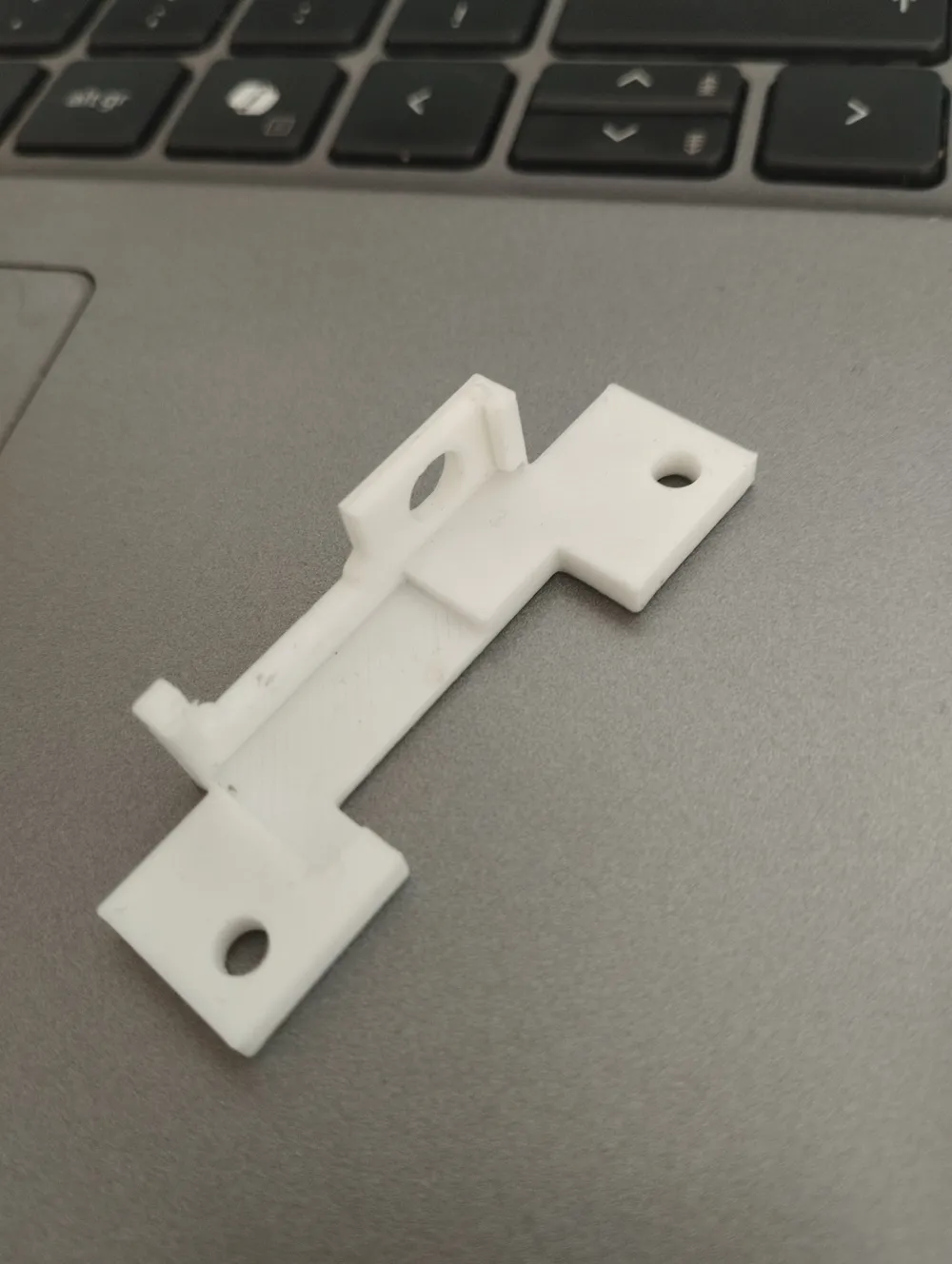

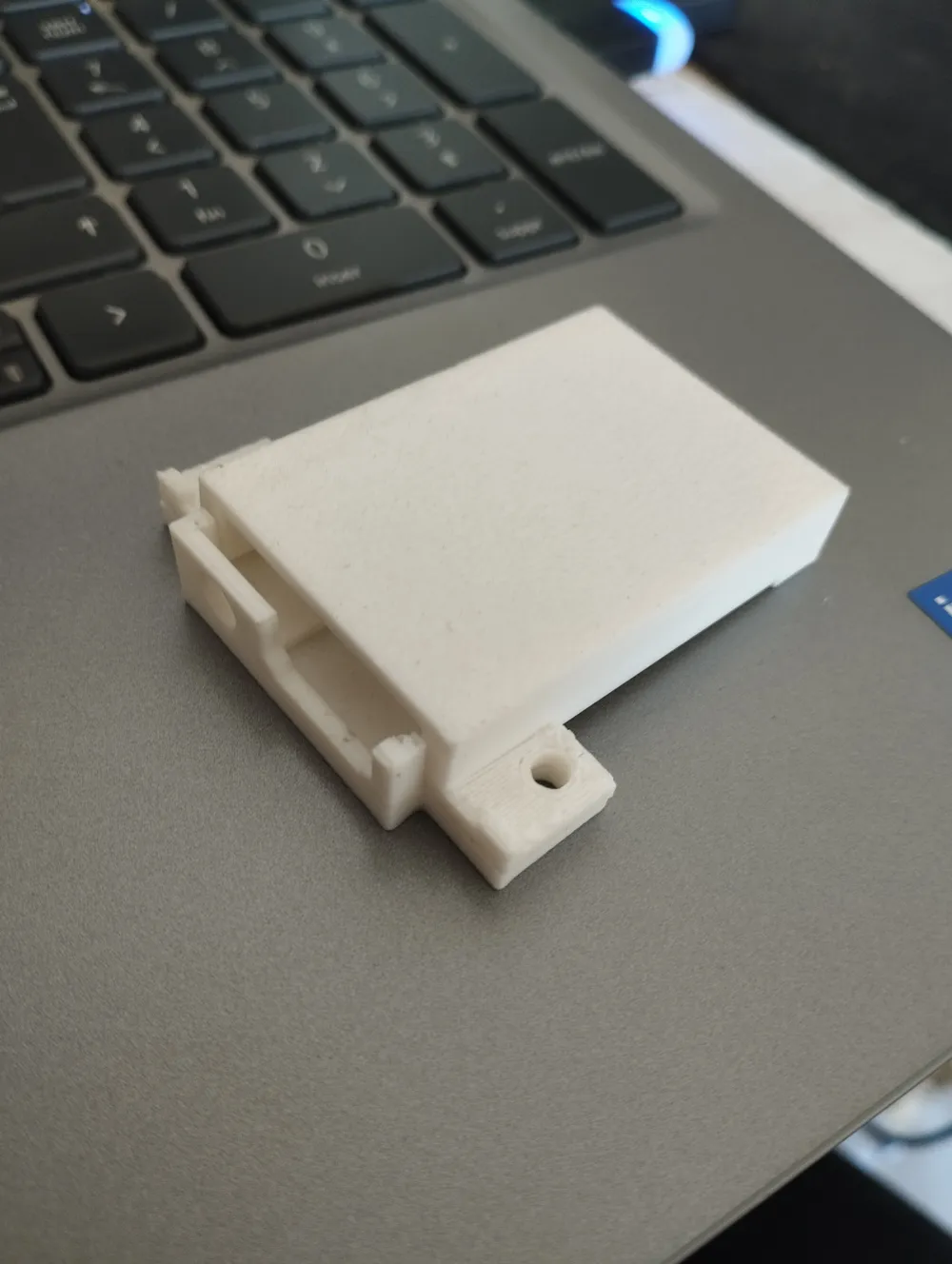

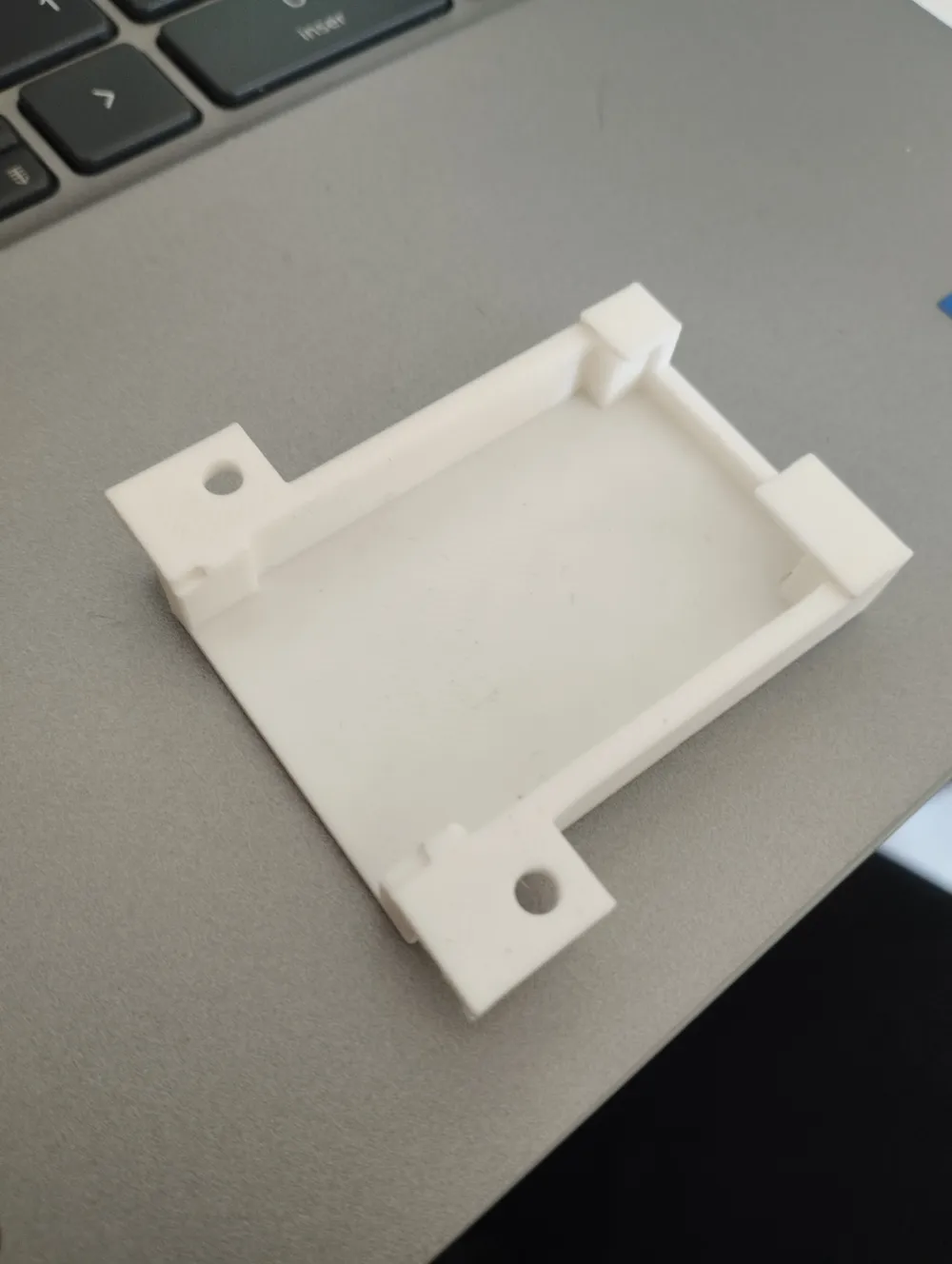

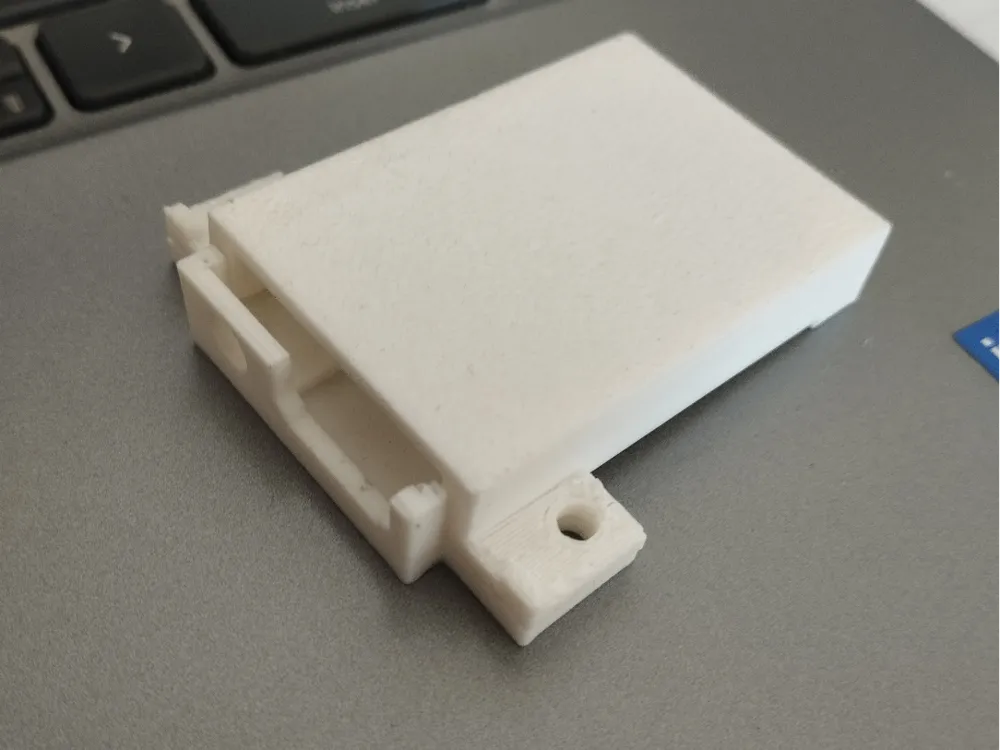

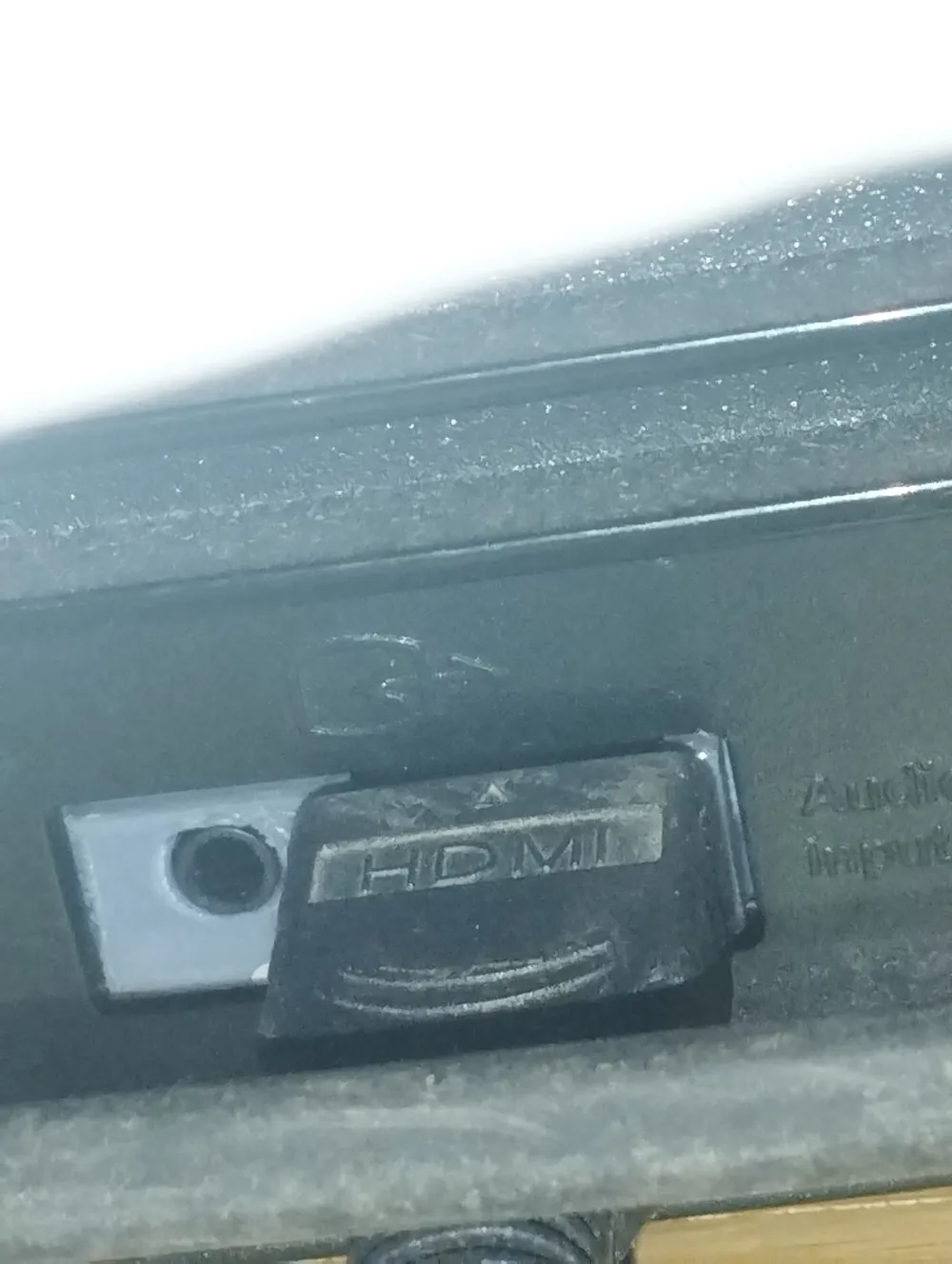

the adapter pcb is inserted in the large part, then in the smaller part. It will then fit onto the xbox motherboard and insert in the back cover to provide the hdmi port.

It is provided as-is, along with the freecad model. It fits perfectly the pcb of my wii2hdmi adapter but may need some adjustement on yours. Not much place underneath, but with proper, clean soldering, there is more than enough space, and it it is pretty solid.

I printed the proto with PLA, but of course due to xbox internal temp, I used PETG for the final block.
