Belt Burnishing Jig – 220 mm
Print Profile(1)
Description
Belt Burnishing Jig – 220 mm

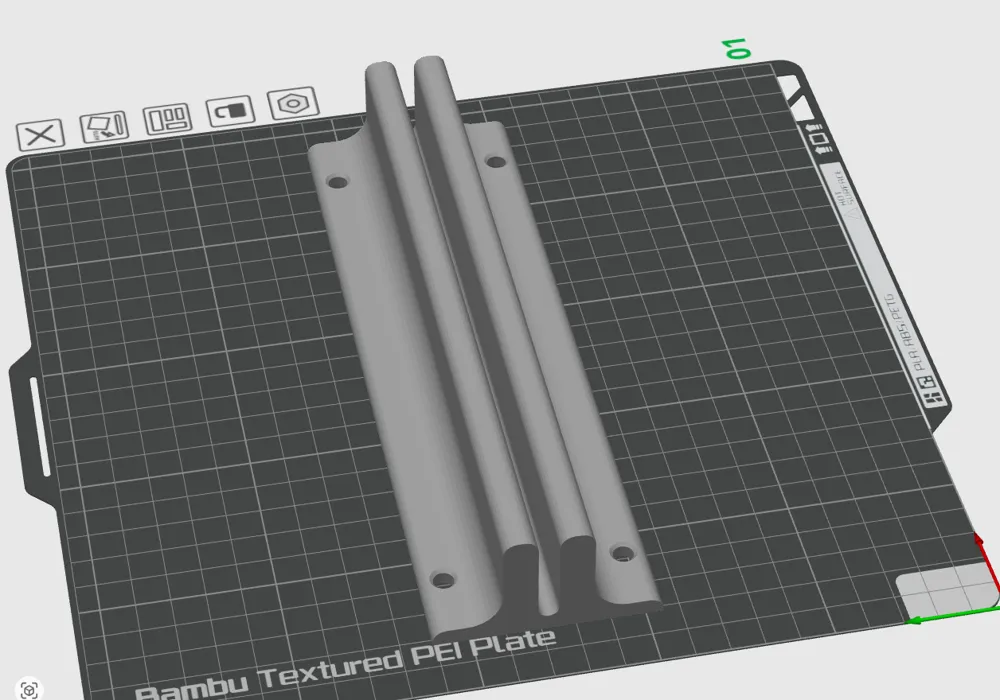

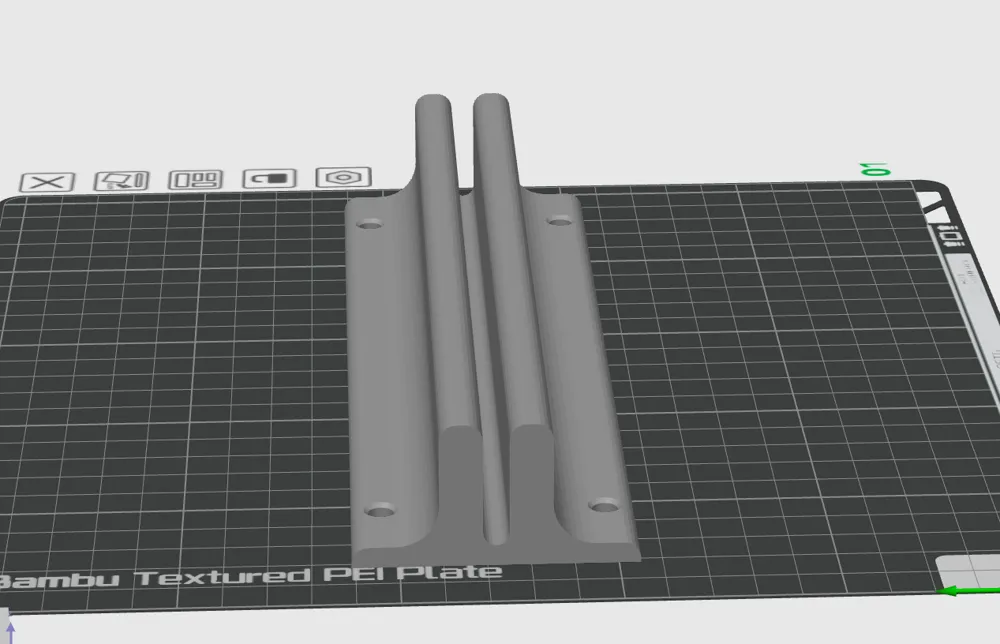

3D printed jig designed for burnishing long leather belts and straps. Its 220 mm length delivers superior stability, keeping the strap perfectly straight and preventing waviness or hand fatigue during edge finishing.
Dimensions:
- Length: 220 mm
- Width: 66 mm
- Height: 35 mm
- Center groove width: 6 mm (fits leather 2.5–5 mm thick)
- 4 side mounting holes for secure workbench attachment
Key Benefits
- Long straight groove keeps the belt perfectly aligned
- Rock-solid bench mounting eliminates movement and vibration
- Prevents uneven pressure and wavy edges on long straps
How to Use
- Secure the jig to your workbench using the 4 mounting holes (screws/bolts).
- Slide the belt into the center groove.
- Apply water, Tokonole, tragacanth, or your favorite burnishing compound.
- Burnish with a wooden slicker, rotary tool, or canvas.
Printing Recommendations
- Material: PETG, PLA+, ABS, or other strong filament
- Walls/Perimeters: 4–6
- Infill: 15–25%
- Orientation: Print flat on the base – no supports required
Clean, straight, professional leather edges – even on extra-long belts.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
