Smart Modular AI Robot
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
5 h
2 plates
Open in Bambu Studio
Boost
15
34
0
1
8
0
Released
Description
Content has been automatically translated.

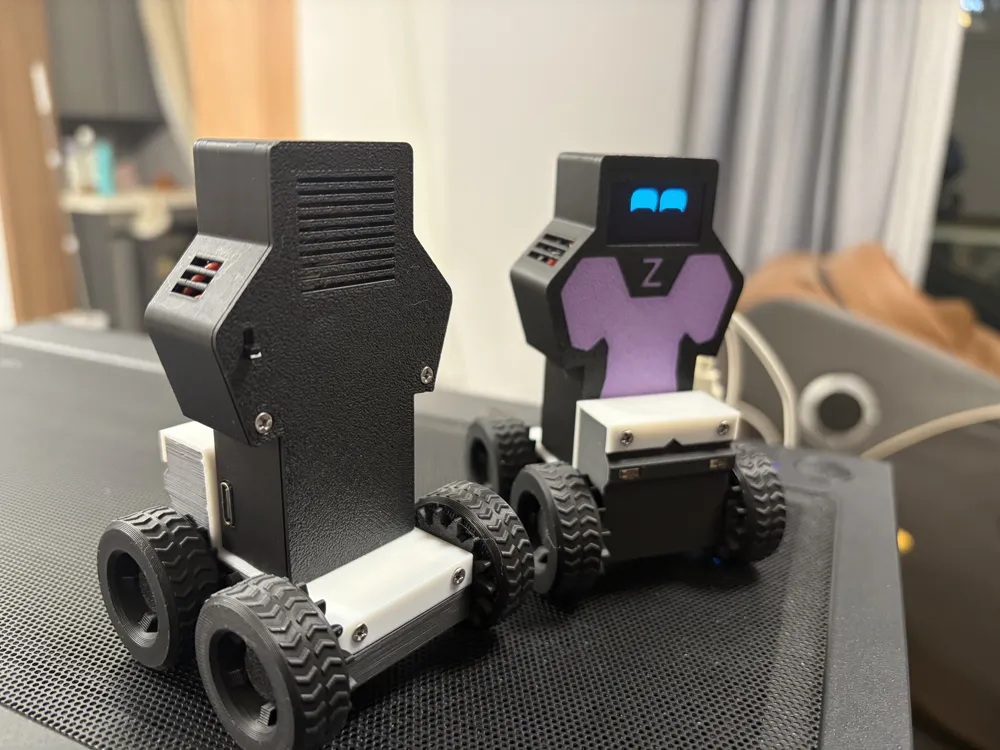

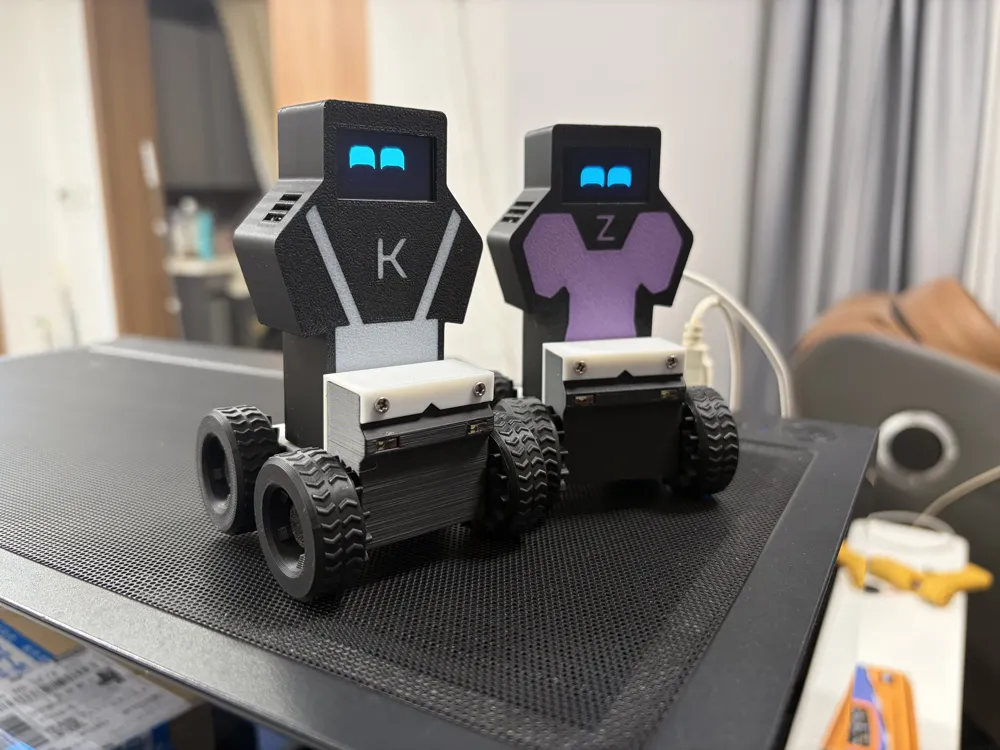

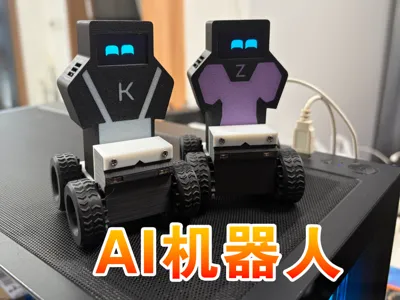

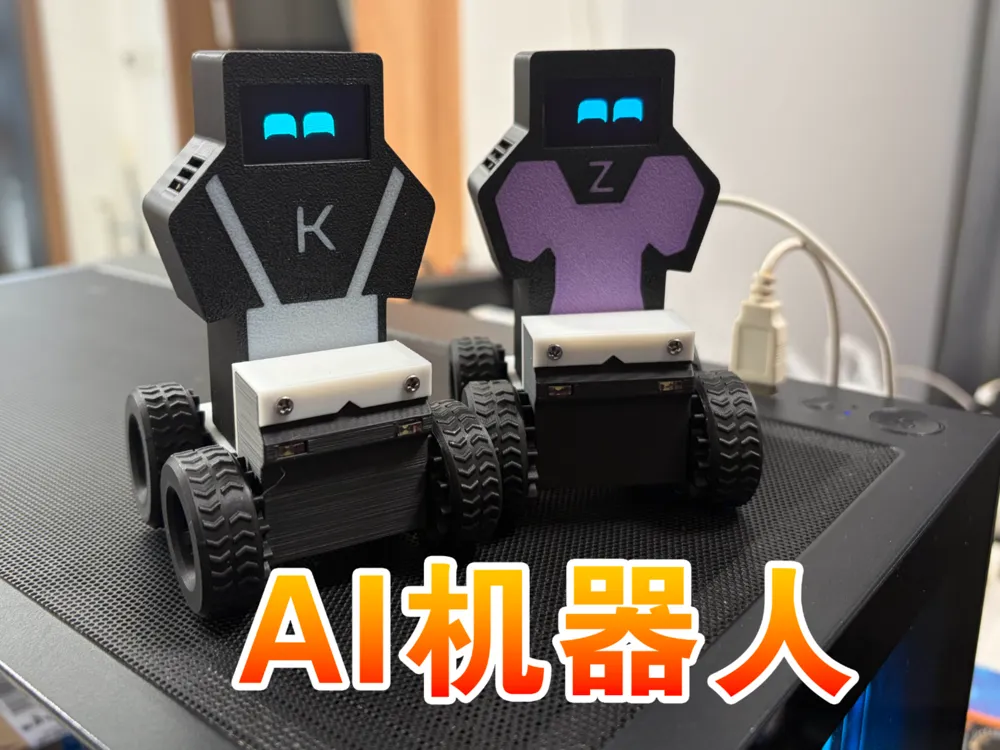

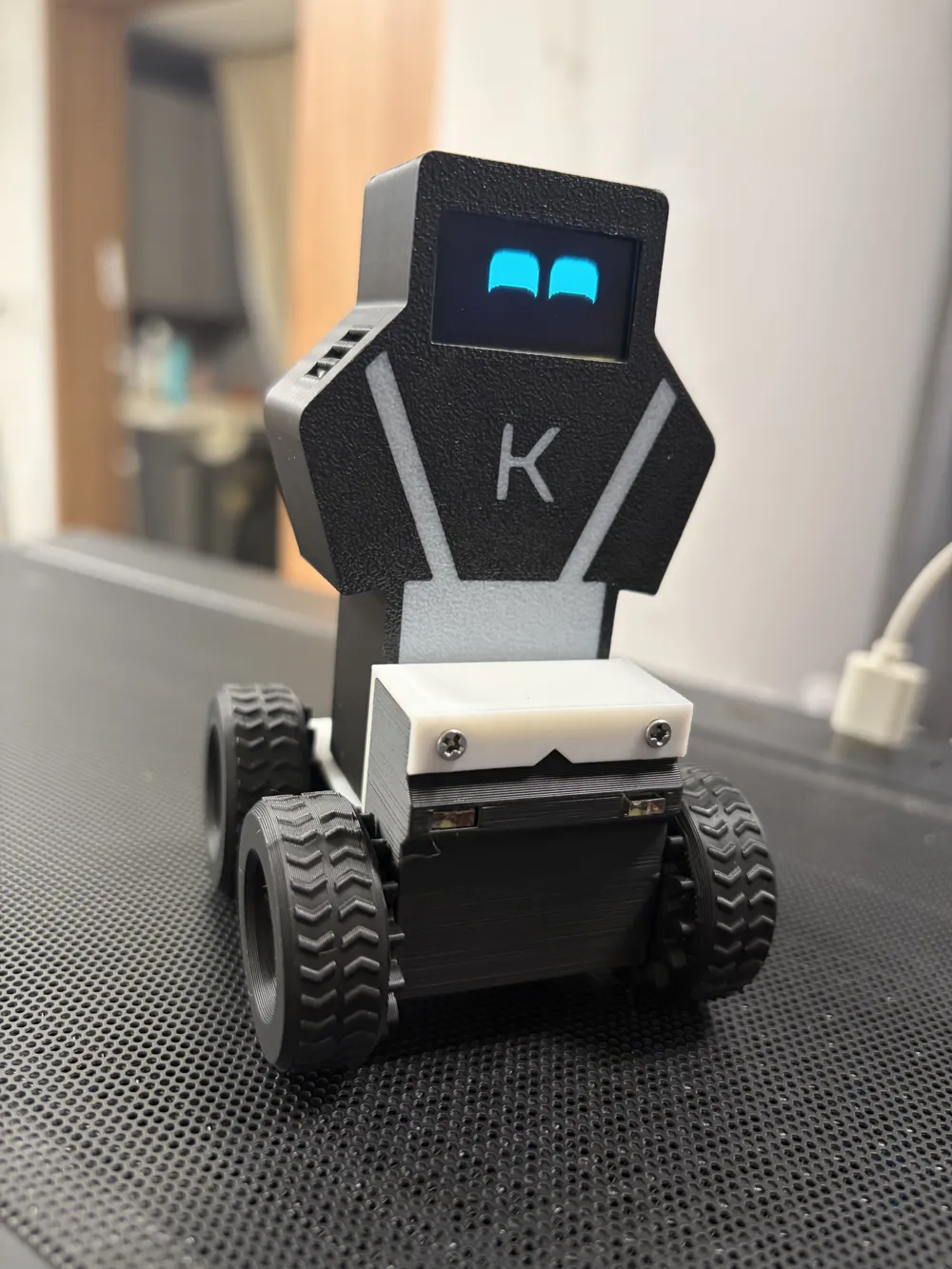

Modular conversational AI car with magnetic interface. Xiaozhi AI can converse in real-time and also control the car's movement
For accessories and DIY tutorial, see Feishu: https://wcntem0rabsz.feishu.cn/wiki/Q3FVwL2kOizlbxkVnnfc1b1Vn5b

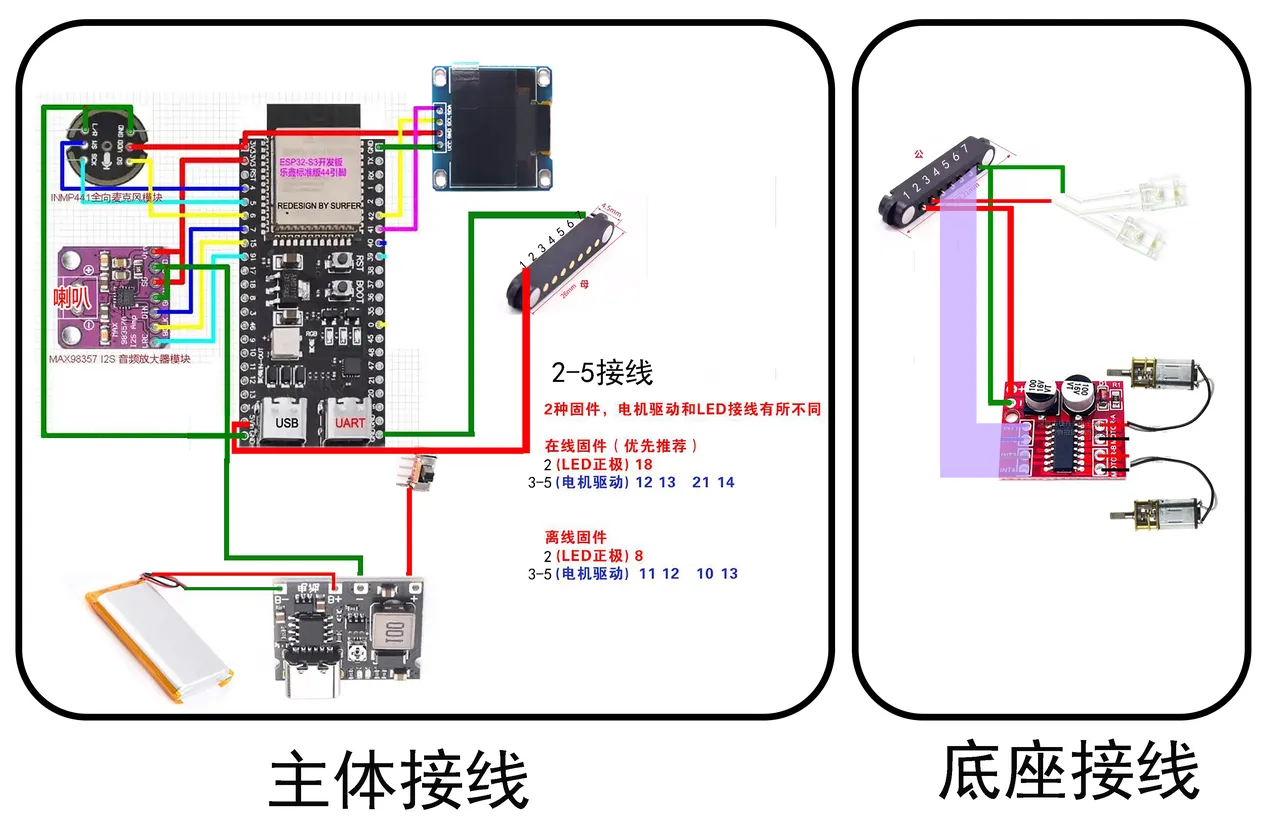

Materials List
- Development board: ESP32-S3-DevKitC-1 (choose WROOM N16R8 module)
- Magnetic connector pogo pin male and female socket!!! (7P-2.5PH male and female set)
- Digital microphone: INMP441
- Audio amplifier: MAX98357
- Cavity speaker: 8Ω 2~3W (diameter within 40mm)
- 0.96 inch 4-pin OLED LCD display, SSD1306 driver
- L298N motor driver
- N20 micro geared motor, 2 units, 30-60 RPM is acceptable N20 Micro Geared Motor DC3V-6V DC Motor Pure Steel Metal Gear Reduction
- 3.7V to 9V 5V Multimeter Modified 18650 Lithium Battery Charging Boost Discharge Integrated Adjustable Module 2A
- 3.7V polymer lithium battery, 80*25*35 (do not exceed 80*30*40 in size) 700-1000mA
- Toggle switch single row, straight plug, surface mount, horizontal small miniature power sliding switch 2/3 position 3/4 pin (SK12D07V G4 toggle switch 2 positions 3 pins (1 piece))
- 304 stainless steel self-tapping screws Phillips flat head screws wood screws extended countersunk head screws M2M3M4M5M6 Size: 2*6 [12 pieces]
- 2*5*7 square LED light emitting diode White or blue recommended, because the voltage is 3.2V (4 pieces)
