Description
Content has been automatically translated.
When I needed to balance, I thought of a solution and eagerly came to share it with everyone

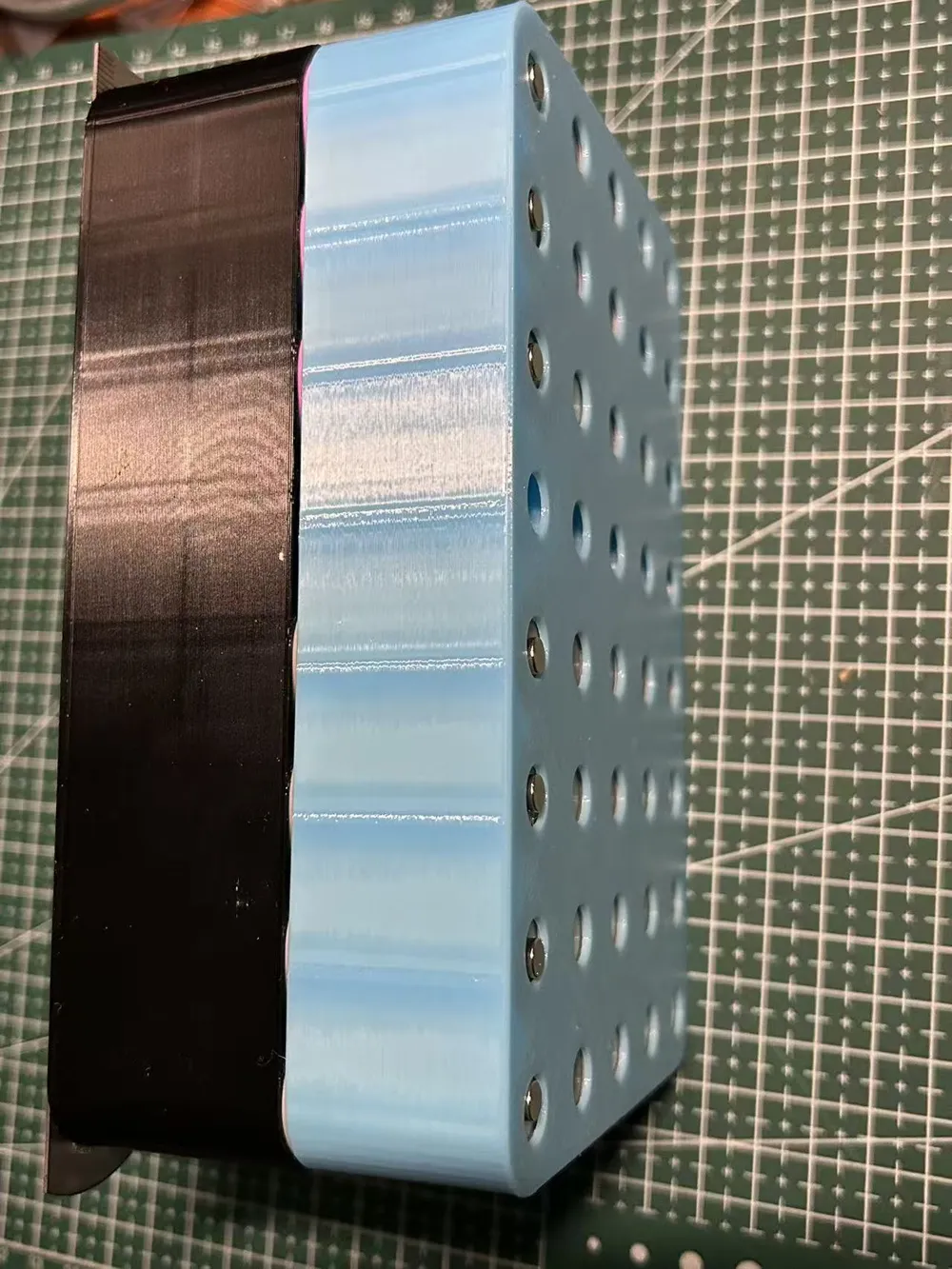

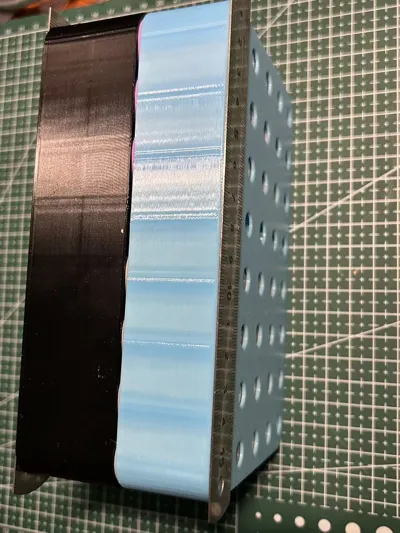

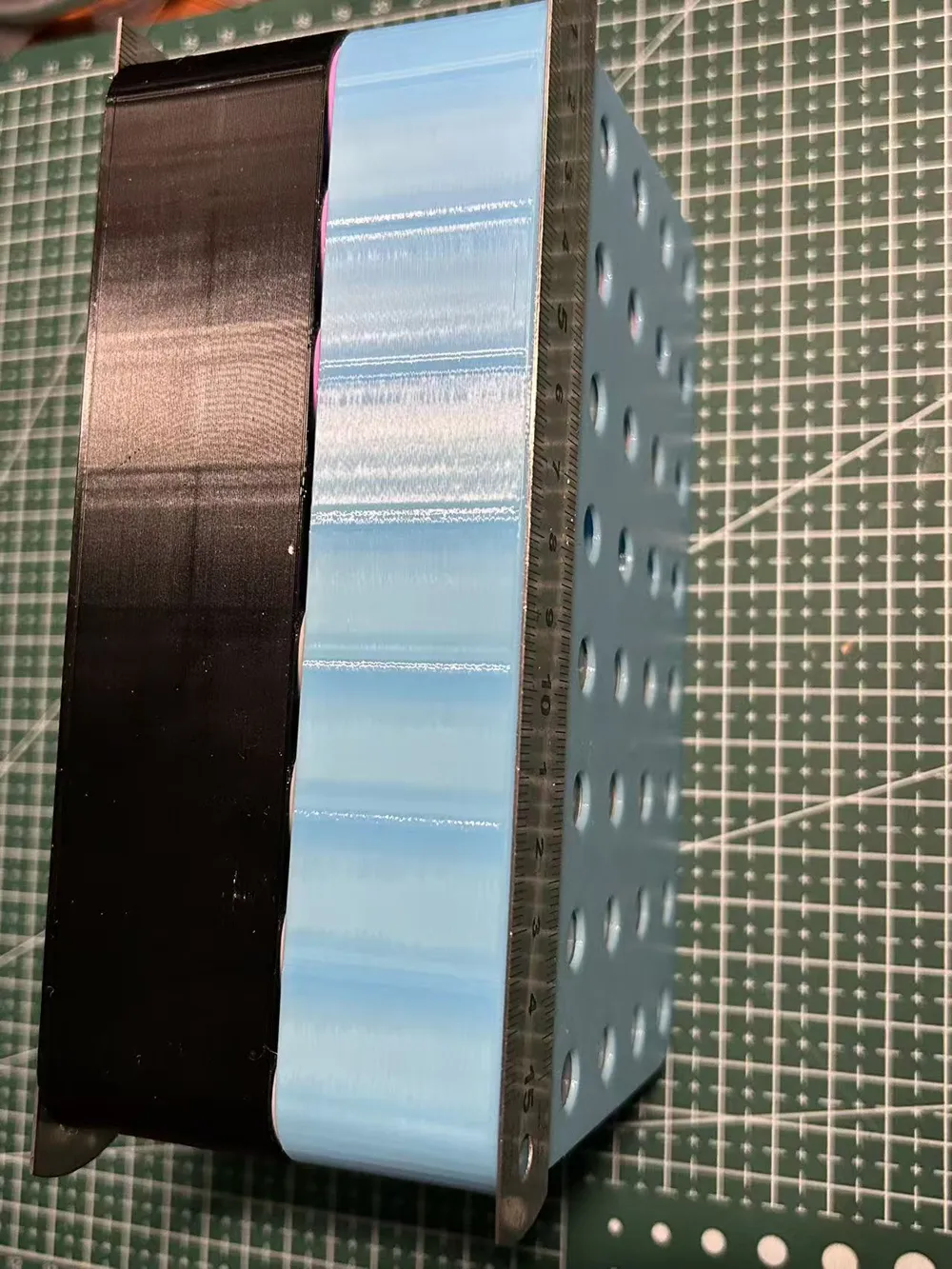

By adding conductive metal to the positive and negative terminals of this voltage-measuring battery holder, it can become a battery balancing box, which can be expanded indefinitely (as long as your conductor is large enough). After balancing is complete, the magnets will stick to the metal and can be easily removed, which is very convenient
Of course, you can also use it to charge batteries
You only need

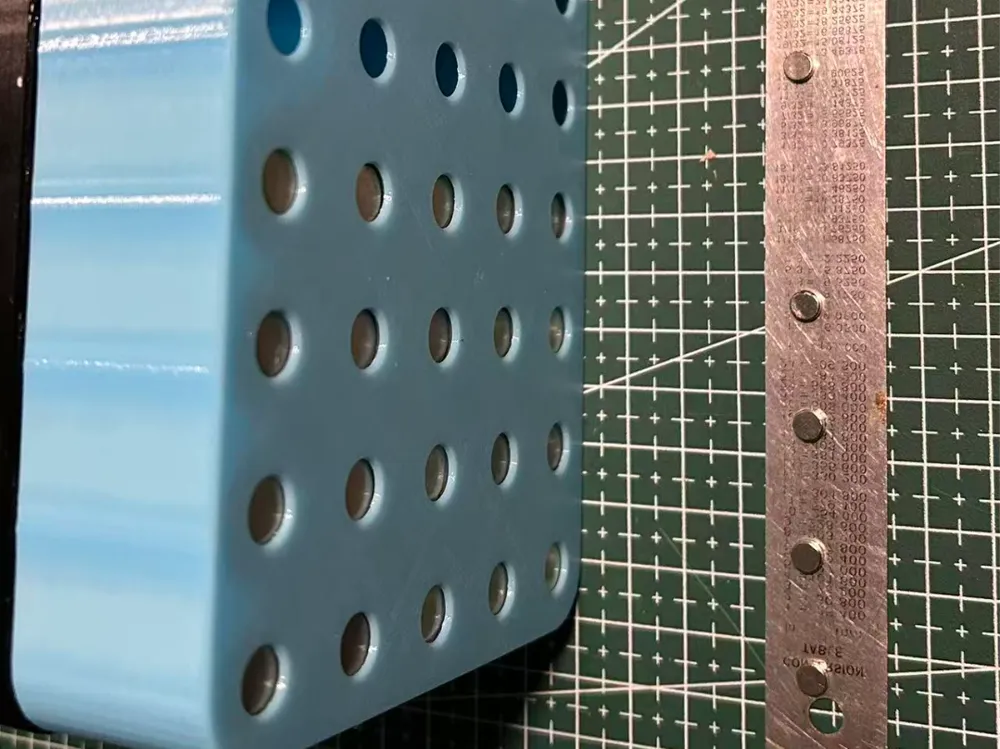

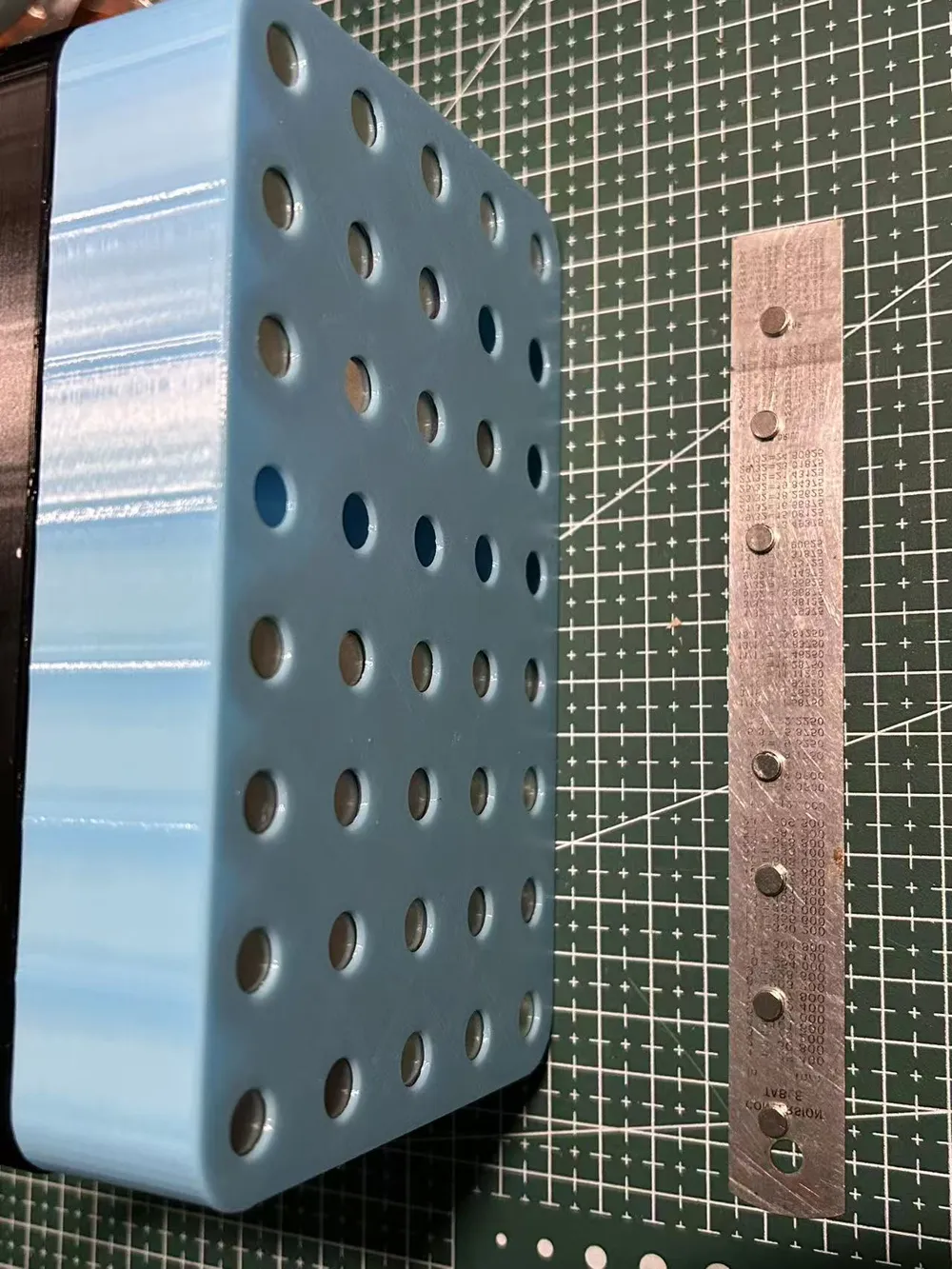

Magnets (for 18650, you need magnets with a diameter less than 8mm and a thickness greater than or equal to 2mm, where the diameter is smaller than the bottom through-hole, and the thickness is greater than the bottom thickness)Two metal pieces (must be conductive and magnetic)License
