This is an ASUS ROG STRIX X670i gaming wifi motherboard modification accessory
Originally, this ASUS motherboard had a complex metal casing + ABS support cover plate covering the rear I/O area, and even with the original cooling fan, the airflow was not ideal for the power delivery module. Moreover, the two original 3007 sleeve bearing fans were too weak.
An accessory has been designed here. If you are using a top-down cooler, you can directly remove the original bracket, fan, and the motherboard's M.2 heatsink.

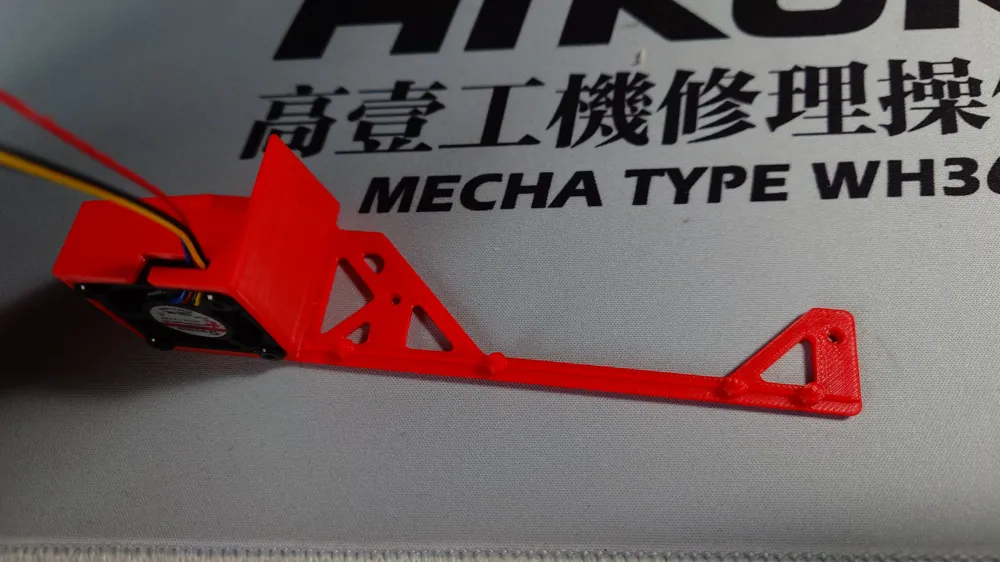

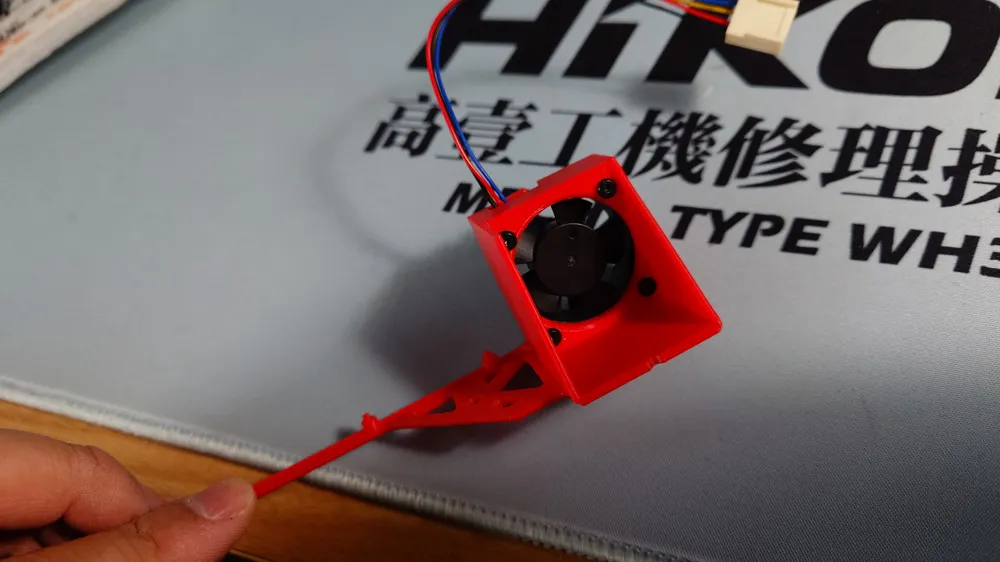

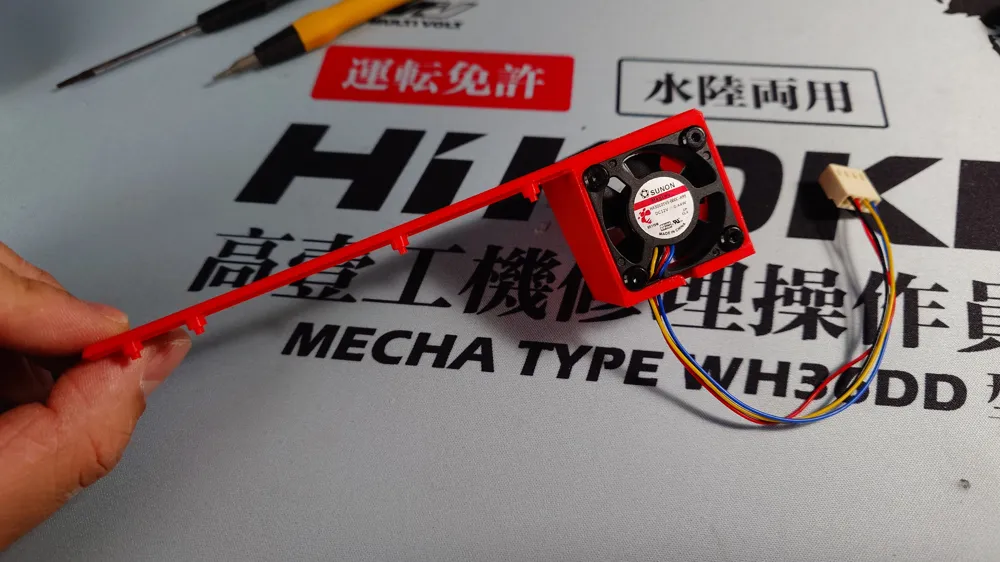

This bracket uses a 3010 ball bearing fan in the M.2 channel and is secured with 15mm long M.2 stand-off screws for dedicated exhaust.

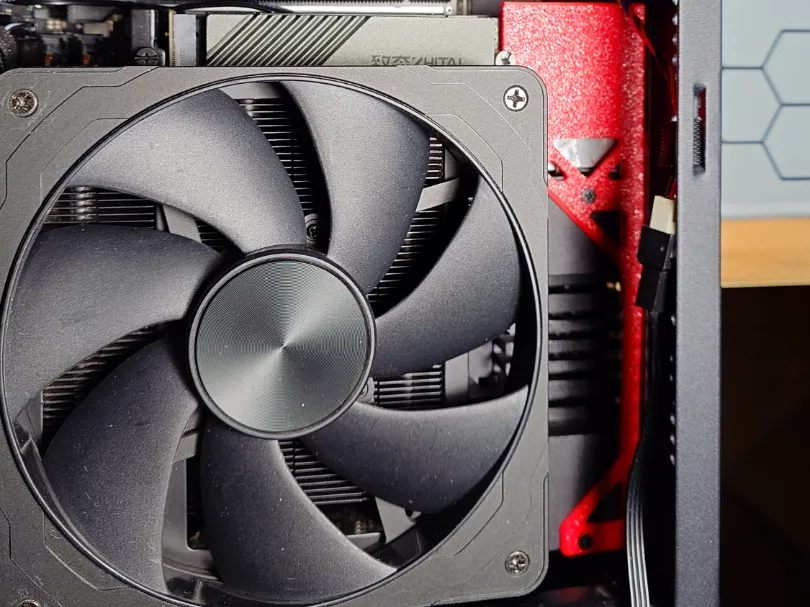

Above the power delivery heatsink, there is an open design, utilizing the airflow from the top-down cooler to cool the heatsink.
Installation uses the screws from the original removed components, and once installed, it can secure the I/O shield like the original black plastic frame.
The upper M.2 SSD comes with its own cooling accessory (friendly to double-sided modules).
