Base adapter for laser level - QB-62 (DIN 4503) QR
Print Profile(1)
Bill of Materials

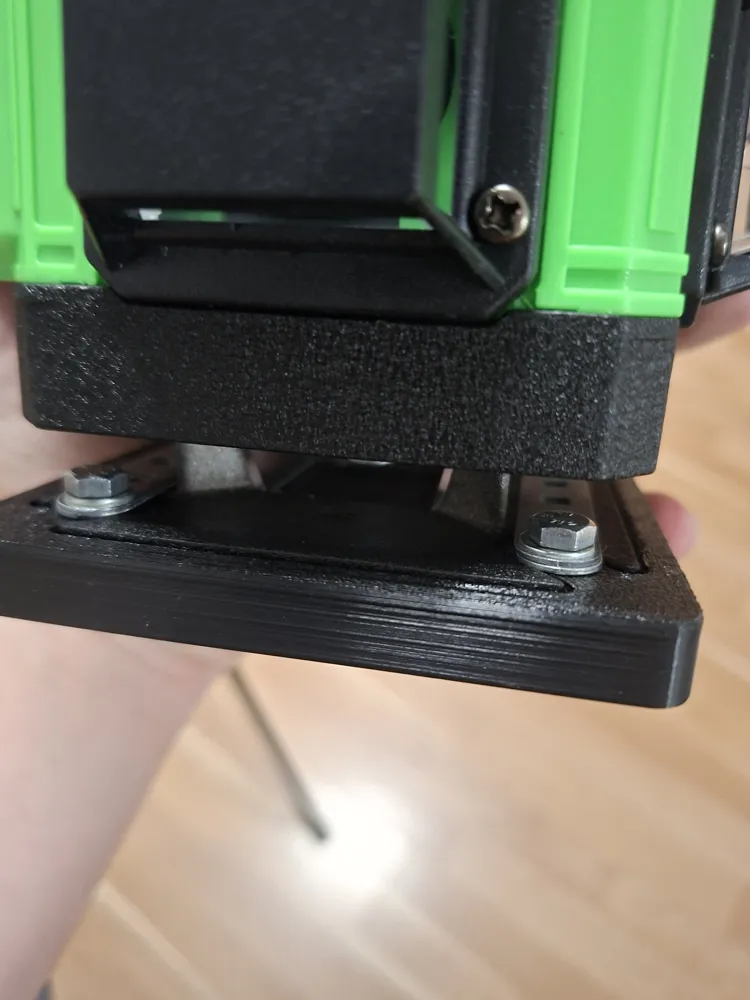

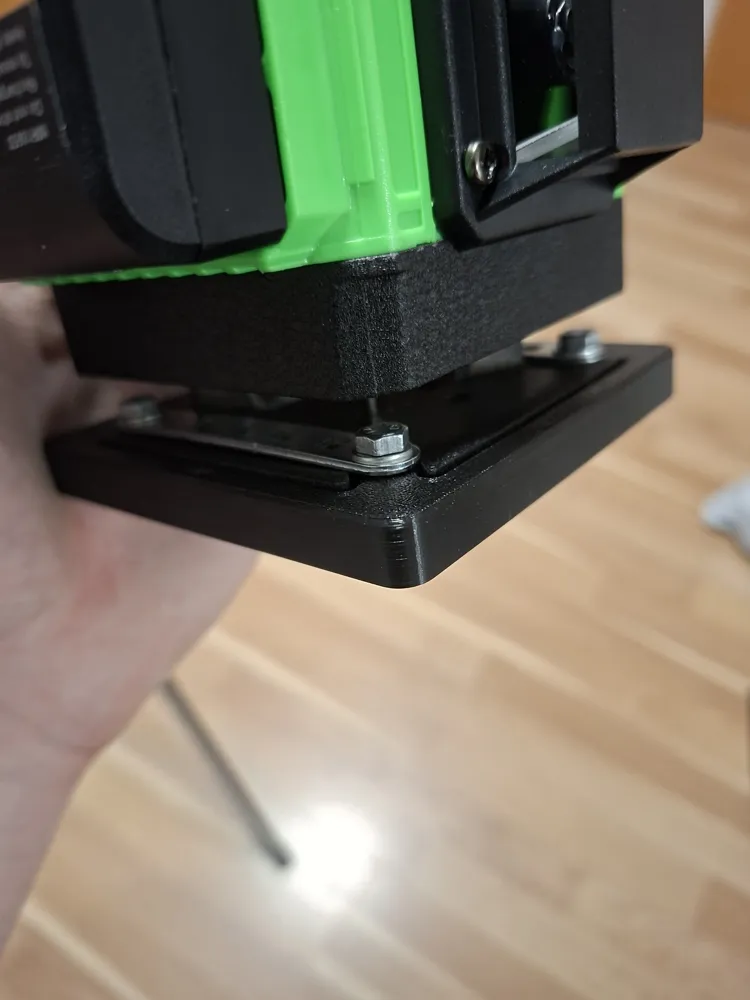

- M4 socket head cap screws (SHCS) x 4:
- M4 hex nuts x 4:
- M4 flat washers x 8: 2 per screw
- Steel clamping plates x 2: Simple flat steel strips used as clamps
Description

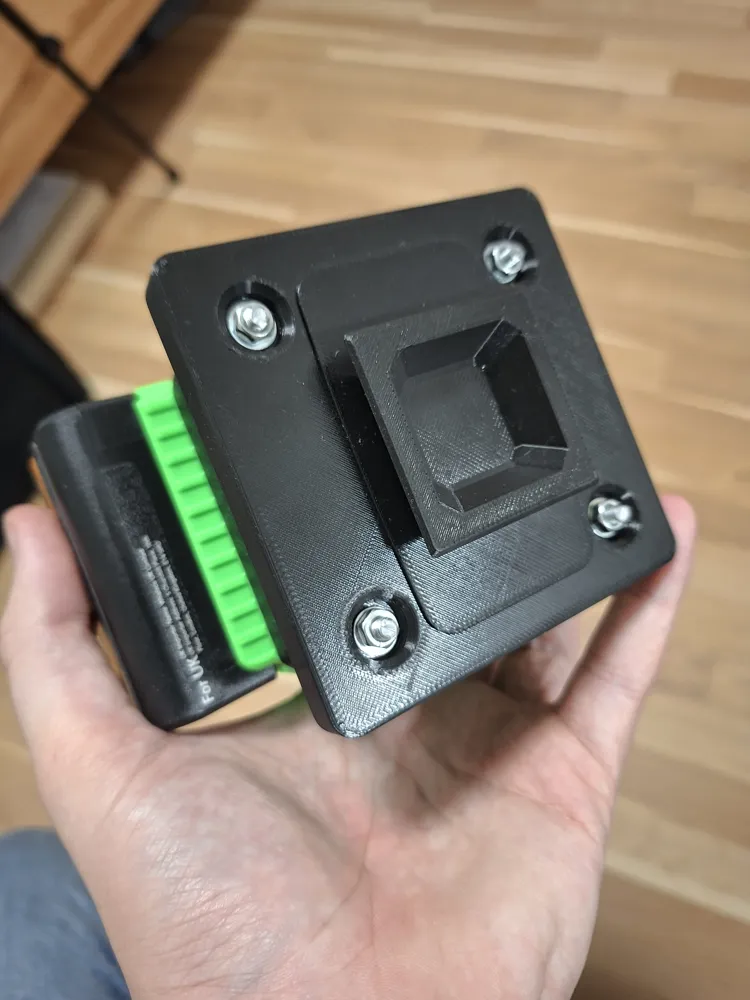

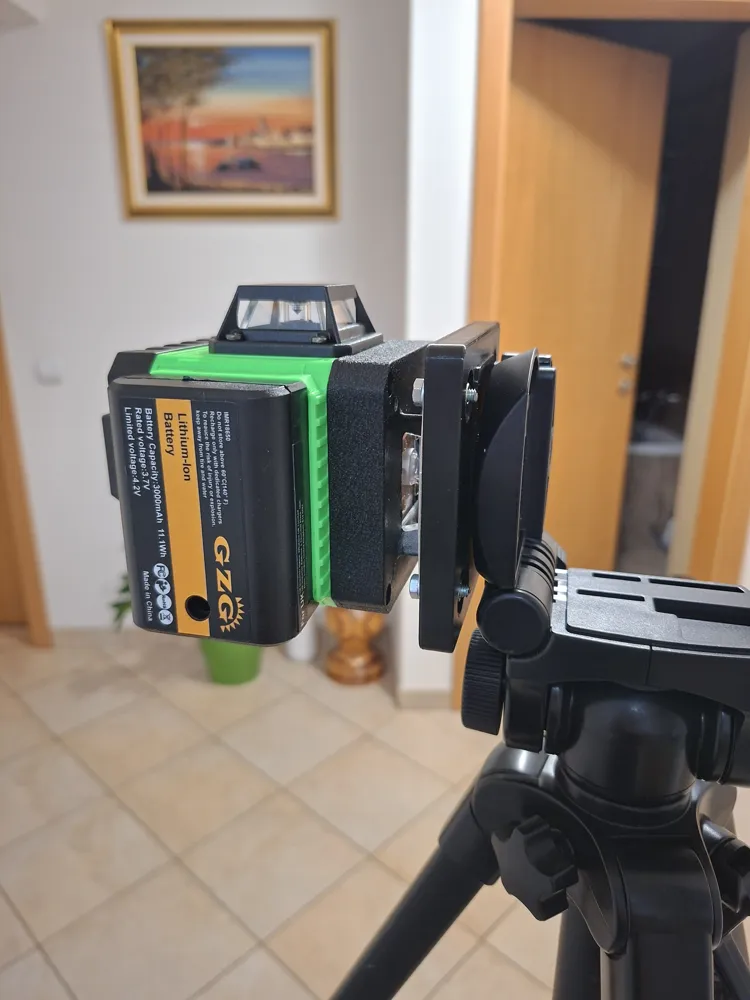

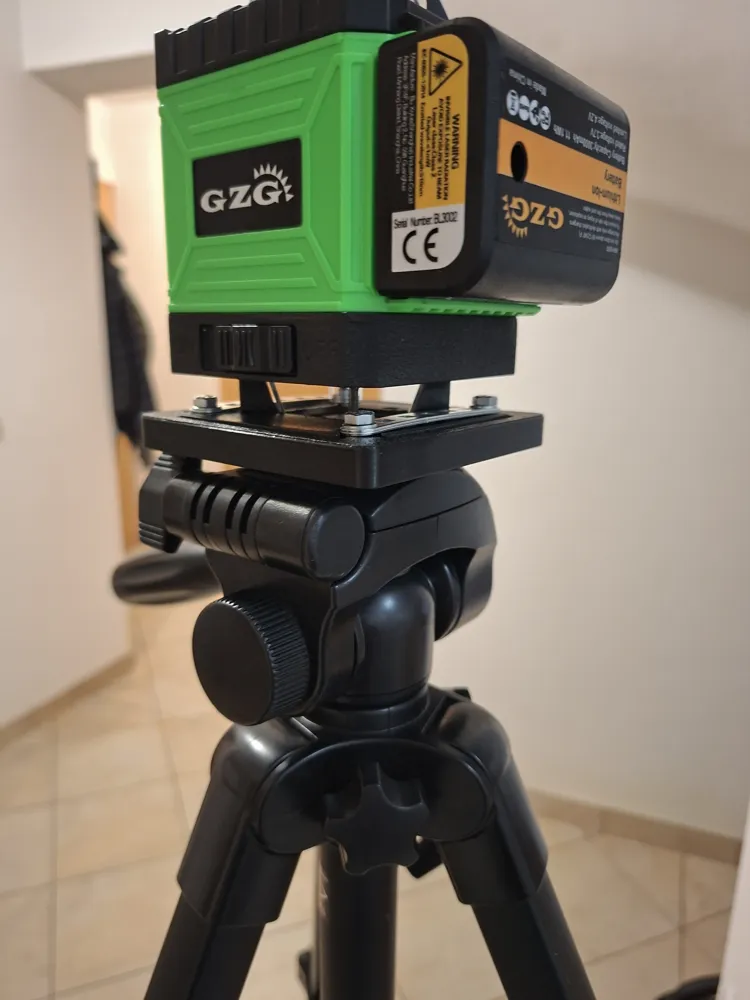

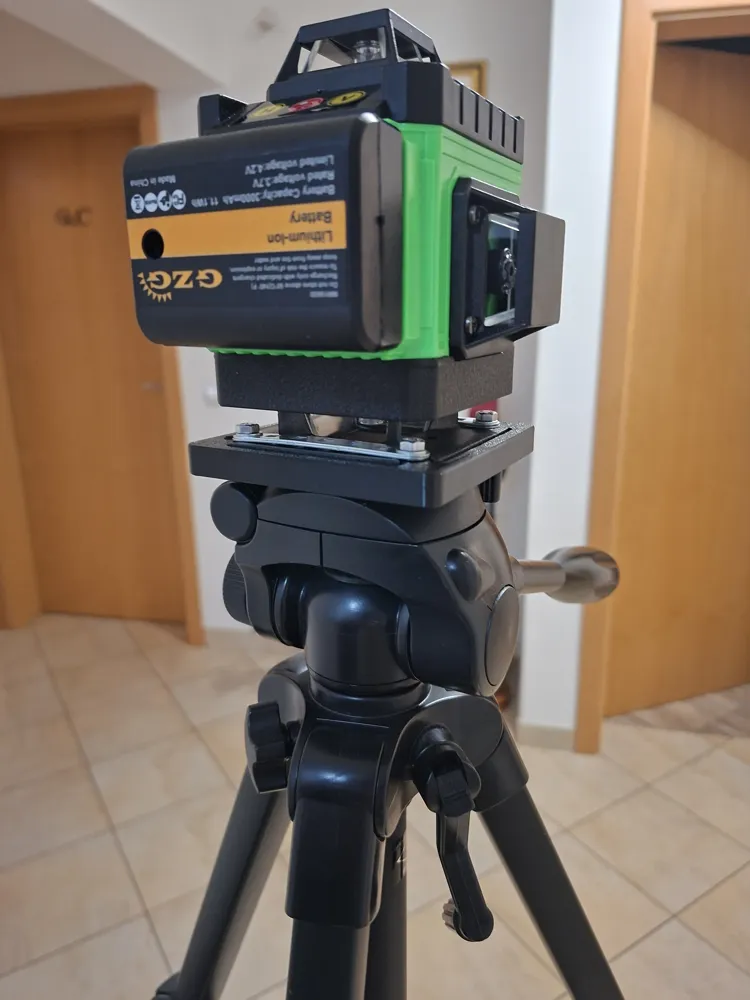

This model is a 3D-printed adapter that lets you mount a laser level onto a tripod using the QB-62 quick-release system (DIN 4503). It provides a stable, repeatable connection and allows fast attachment/removal without changing the tripod setup.
The design is optimized for FDM printing and uses standard hardware (screws, nuts, washers). For best rigidity and durability—especially for jobsite use—print with more perimeters and a higher infill to minimize flex.
Printing recommendations:
- Material: PETG (best for field/worksite use), PLA for indoor/light duty
- Orientation: print the main flat face on the build plate
Tested with a common 4D/16-line budget laser level. If your device has a similar base shape/hole pattern, it should fit—please verify the dimensions before printing.
