Gladiator GearWall Magwell Vertical Mount for AR

I loved @McAuley502's design very much, but I needed it to support my Gladiator GearWall, so here are my remixes to fit all my current rifles.

Original: https://makerworld.com/en/models/1864288-ar-15-magwell-vertical-wall-mount-wallmag-v#profileId-1994459

Current print profiles include:

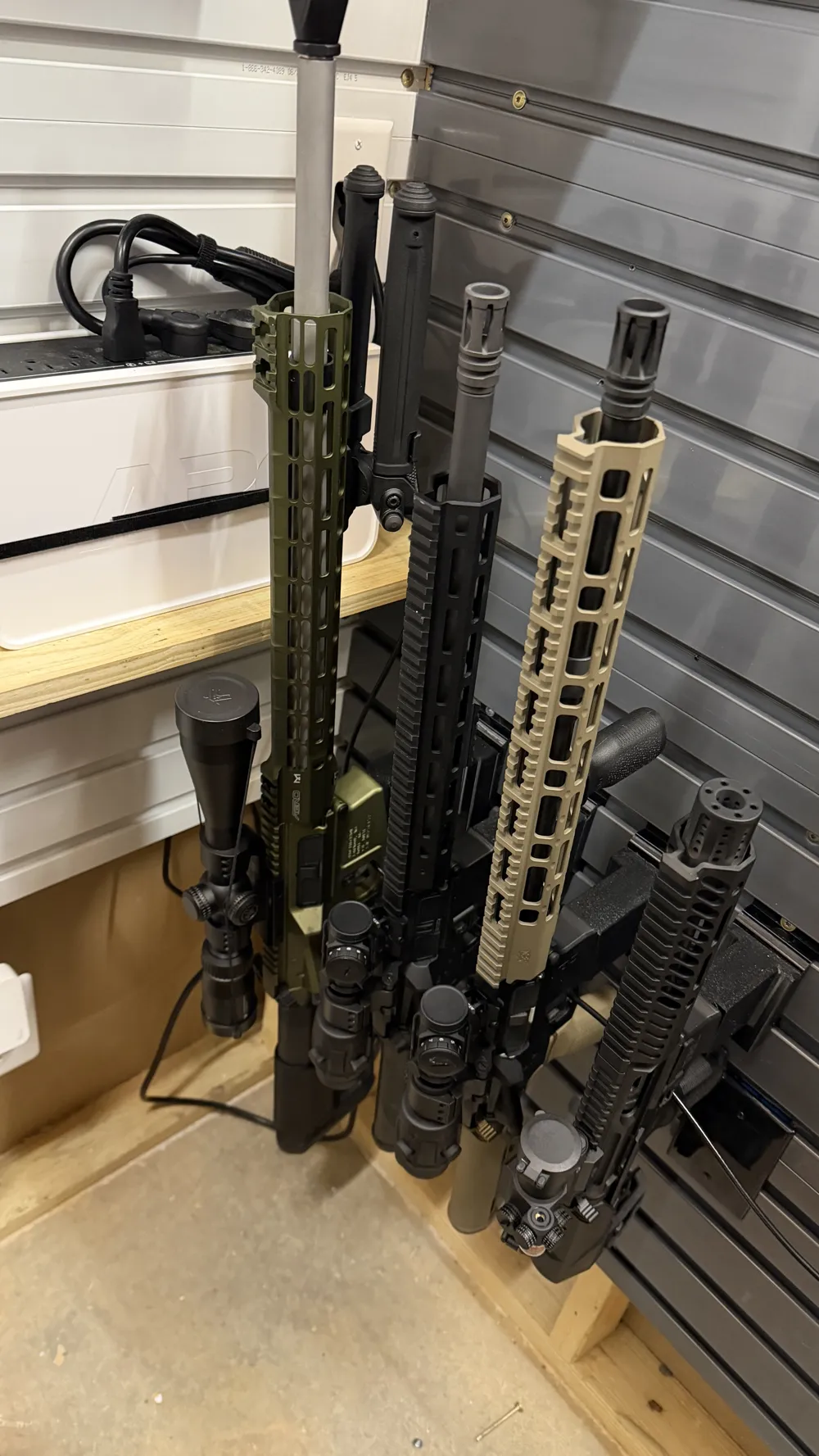

AR-15

AR-10

Tippmann M4-22

AR-9 (PCC Glock)

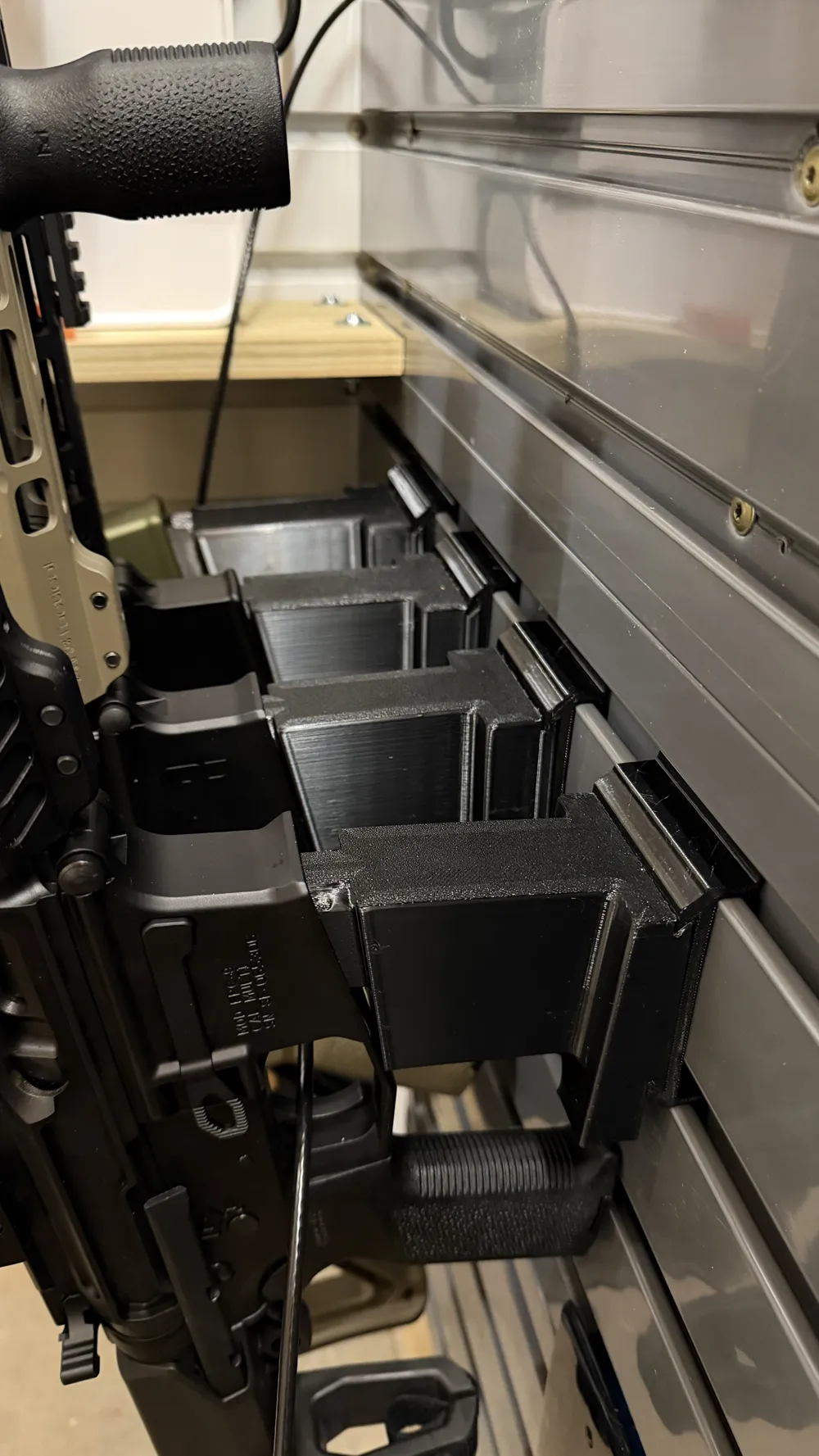

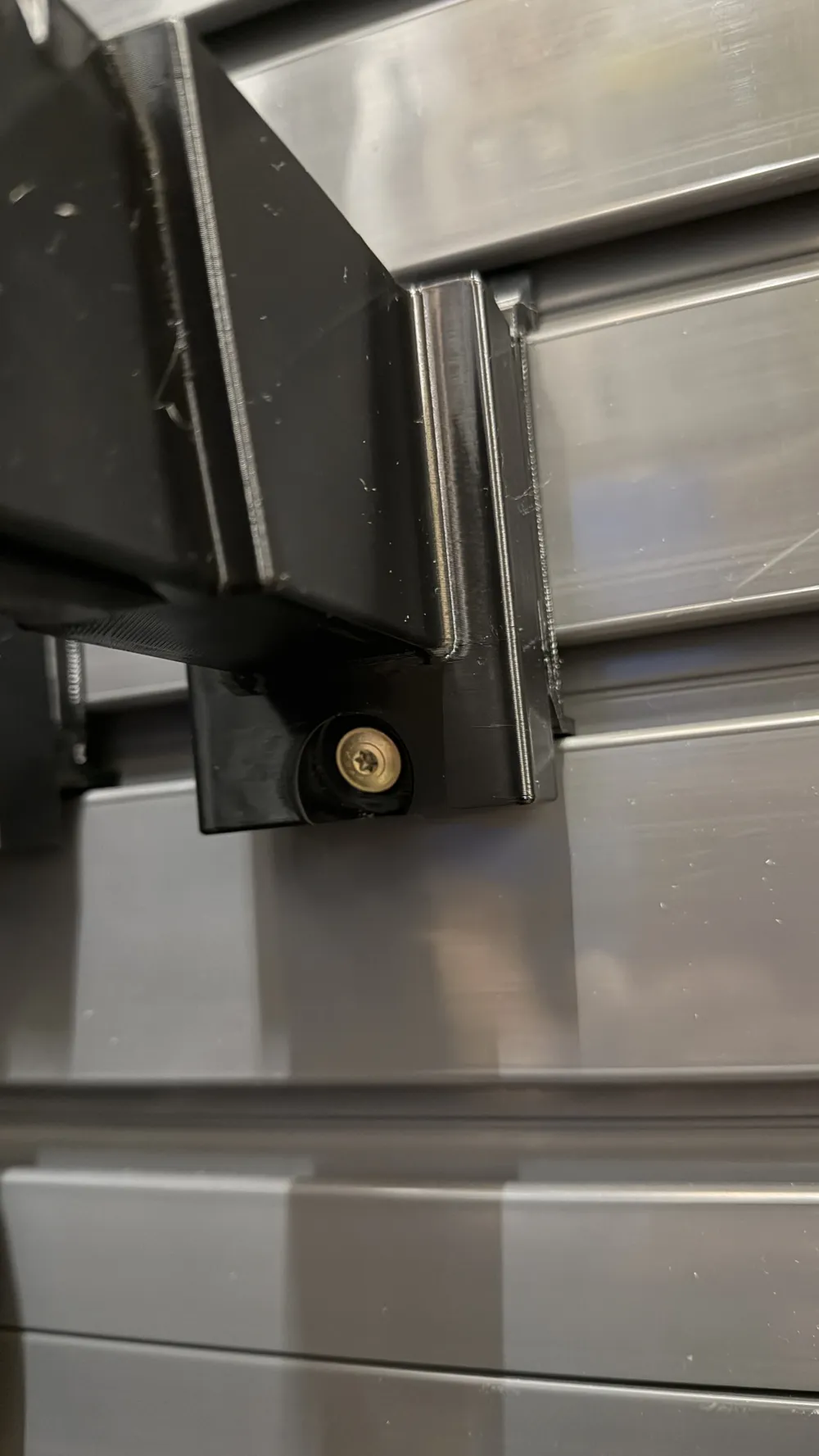

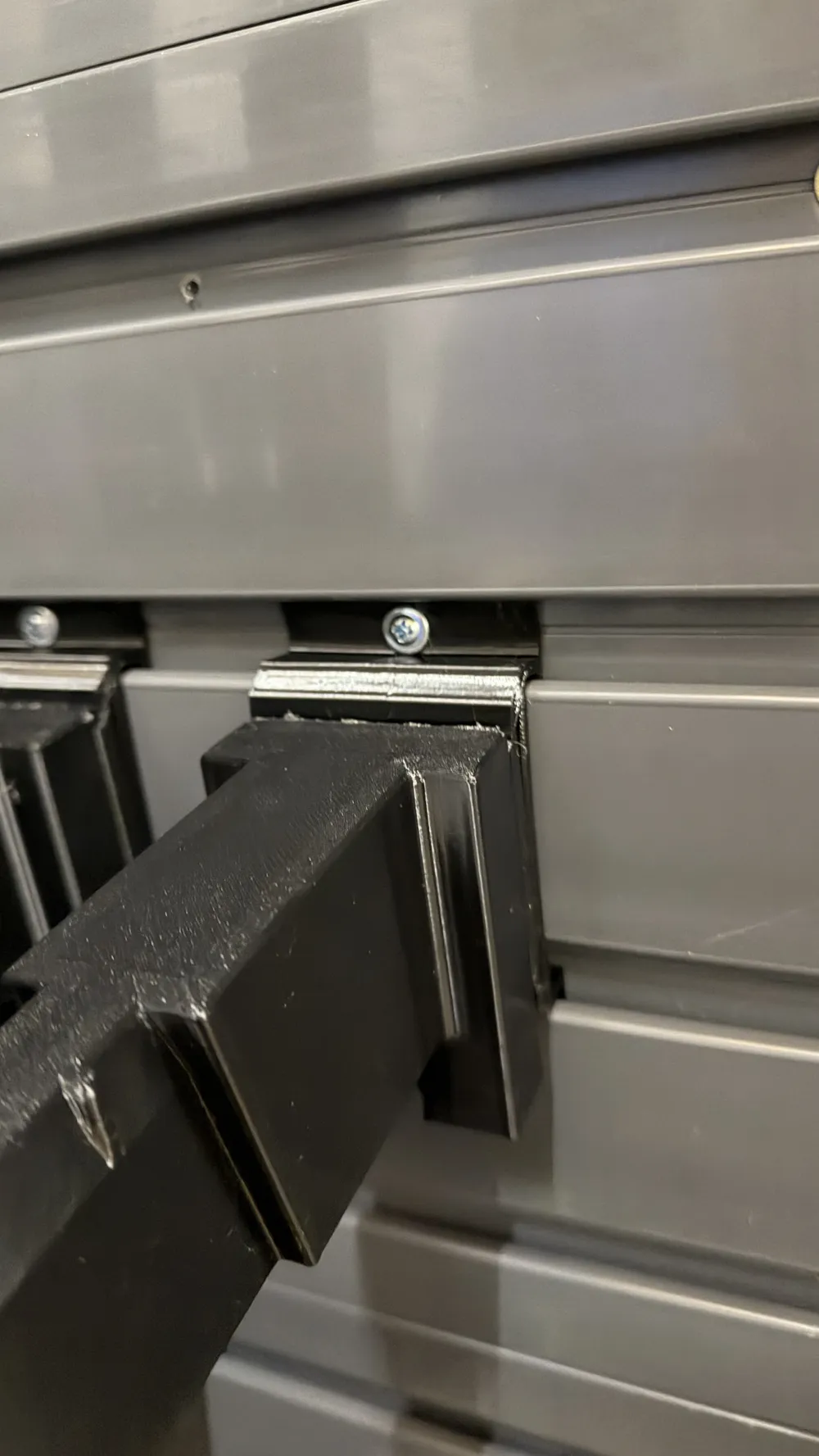

I incorporated screw holes, that screw into the inset of the GearWall. This wasn't needed to add support, as the mounts are plenty strong, but it helps keep them in place when removing/storing the rifle.  All of them sit flat, but because of the angle of the glock magwell, the the PCC 9 had an angle that was out of line.  I added a 5° tilt to the mount plate to bring it in line.  If you would prefer the mount be flat, the STL is included, but only the angled model is in the print profile.

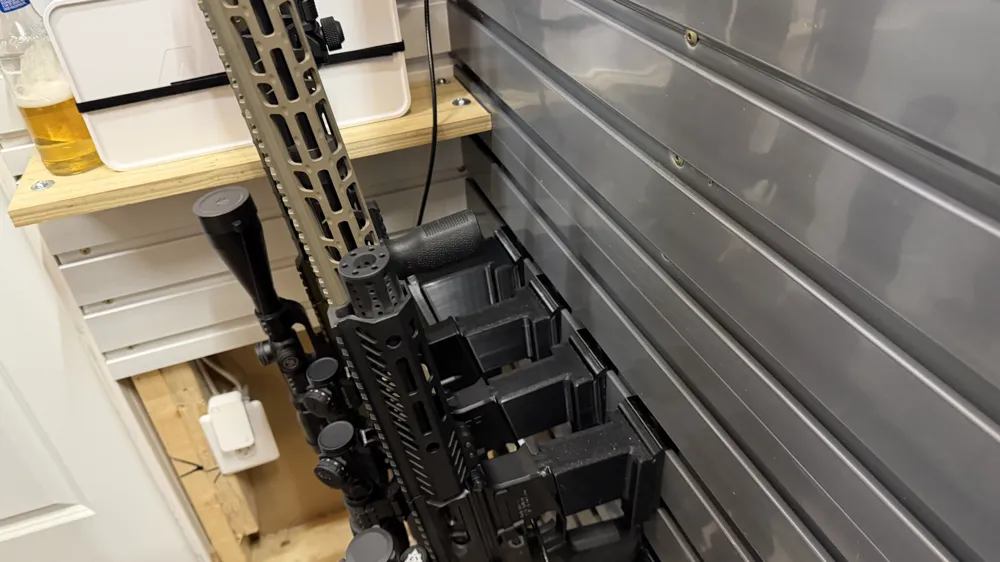

I may have gone a bit overkill here, but i really wanted to make sure I had no support issues.  I printed in Elegoo PETG, and the AR-10 with 20" barrel has been hanging perfectly stable for well over a week with no movement.

Print settings:

Layer Height: 0.2mm

Wall Loops: 10

Infill: 25% Gyroid

Supports: Yes (recommend critical regions only as the only spot that really needs it is for where the GearWall clip attaches to the mount)

Finally… all mounts are A1 Mini compatible!!!!!
