Walther PDP Pro / Canik Magazine Baseplate (+0)

Walther PDP Extended Magazine Baseplate (+0 Capacity)

Upgrade your Walther PDP with this custom-designed extended magazine baseplate. This model is strictly designed to improve ergonomics and handling, and does not increase the magazine's ammunition capacity (+0). Features:

• 3D Printing Optimized: The geometry has been carefully designed from the ground up specifically for FDM 3D printing. It ensures clean overhangs and accurate tolerances, completely eliminating the need for supports depending on your printer's bridging capabilities.
• Potential Canik Compatibility: Because Walther (PDP/PPQ) and Canik (TP9/Mete series) utilize very similar magazine tubes — both often manufactured by Mec-Gar — the baseplate locking tabs and profiles are nearly identical. Therefore, this basepad should also fit standard Canik magazines perfectly. (Note: While highly likely to work based on the shared Mec-Gar design, Canik fitment is a bonus and hasn't been extensively tested by me).

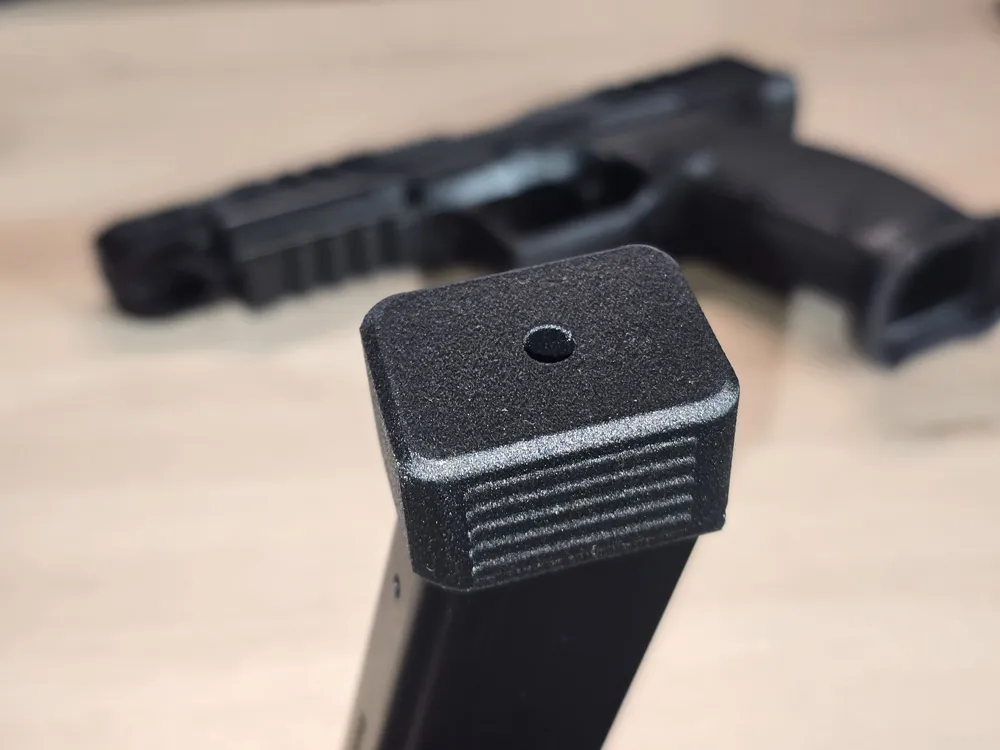

• Enhanced Grip: Features a ribbed texture on the sides and front to ensure a secure grip during tactical reloads or stripping the magazine during a malfunction.

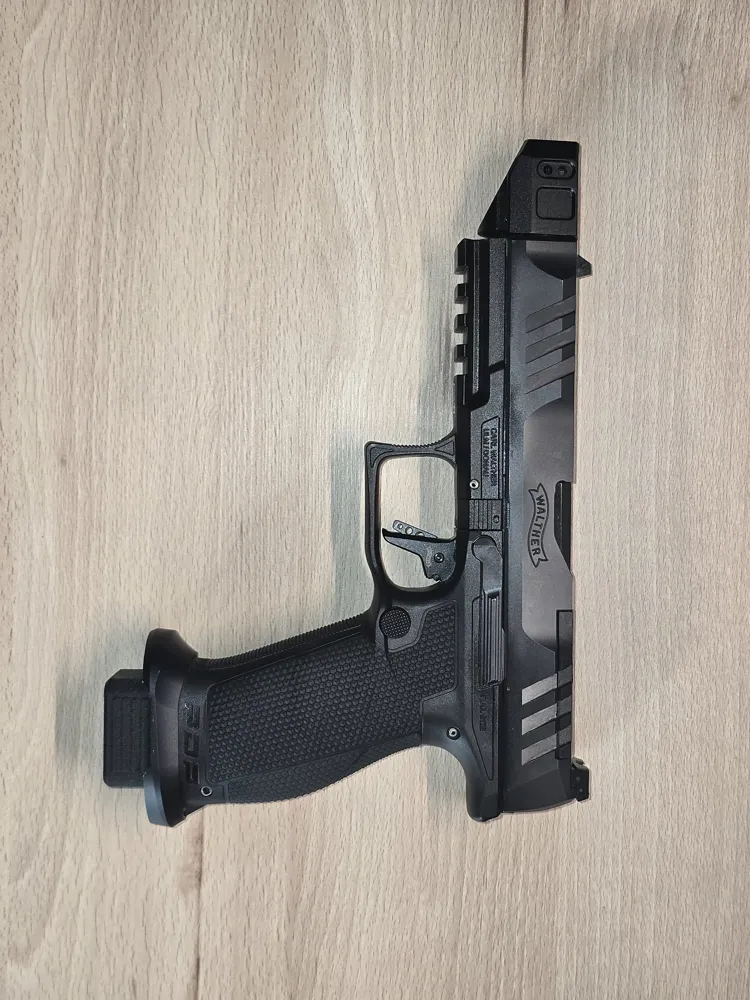

• Improved Ergonomics: Extends the grip area slightly, providing a more comfortable and secure hold, especially for users with larger hands.
• Drop-In Fit: Designed to seamlessly replace the factory baseplate using the original magazine spring and retainer plate.

Printing Guidelines:

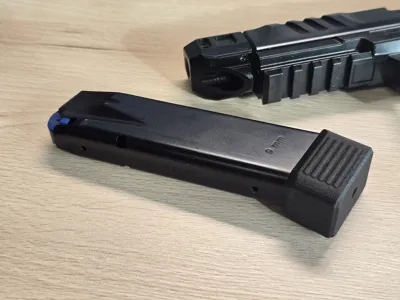

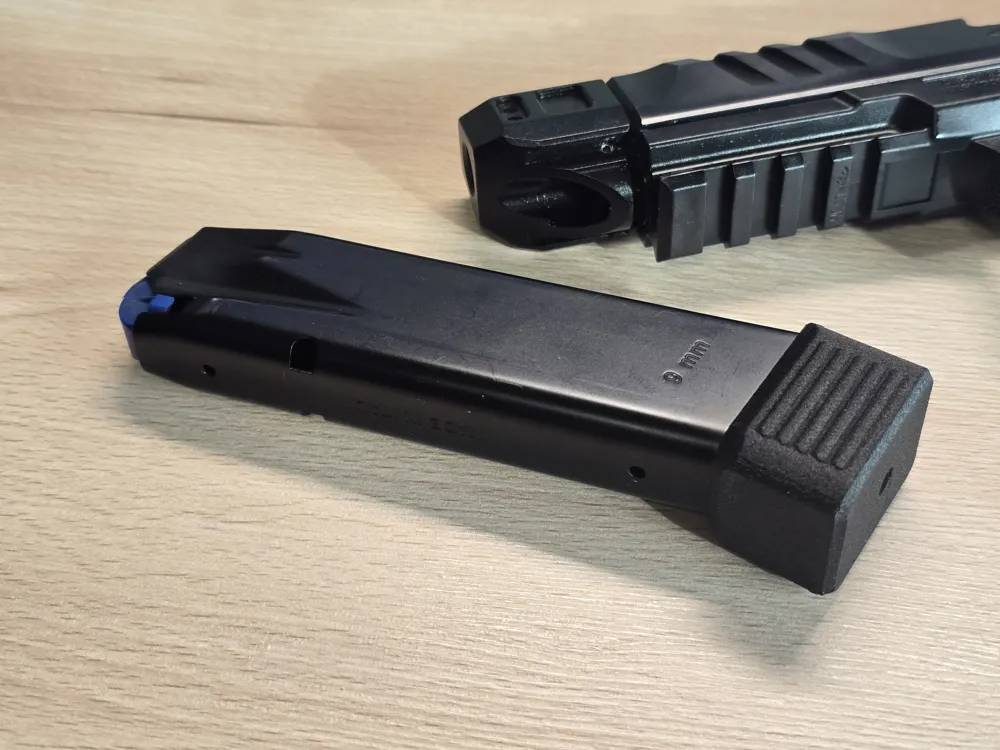

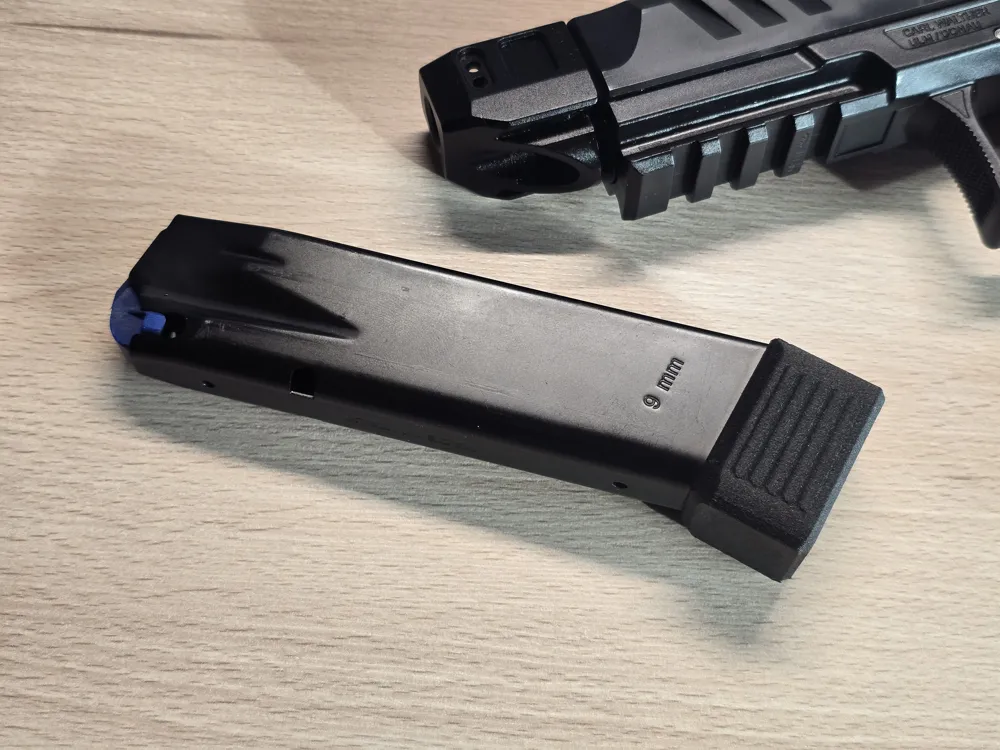

• Recommended Material: I highly recommend printing this in PA6-CF (Carbon Fiber Nylon), as shown in the pictures, for maximum durability, impact resistance, and a premium matte finish.
• Alternative Materials: ABS, ASA, PETG, or PC are also excellent choices for durability. PLA/PLA+ will work fine for casual range use but may eventually crack if dropped repeatedly on hard surfaces (like concrete floors).
• Infill: 40-100% (Higher infill is strongly recommended for added weight and impact resistance when dropping empty magazines).
• Walls/Perimeters: 4+ for necessary structural integrity around the locking lips.
• Orientation: Print it as in the print profile to ensure maximum strength at the magazine tube connection.

Installation: Ensure your firearm is completely unloaded. Depress the locking pin on the bottom of your factory magazine, carefully slide off the original baseplate (keep your thumb over the spring so it doesn't fly out!), and slide this new 3D-printed baseplate on until the retainer clicks securely into the hole.

Safety Note: Always treat your firearm as if it is loaded. Ensure it is clear and safe before handling or modifying any parts.
