Samsung DW60CG880B00ET Dishwasher Riser
Print Profile(1)
Bill of Materials
Description

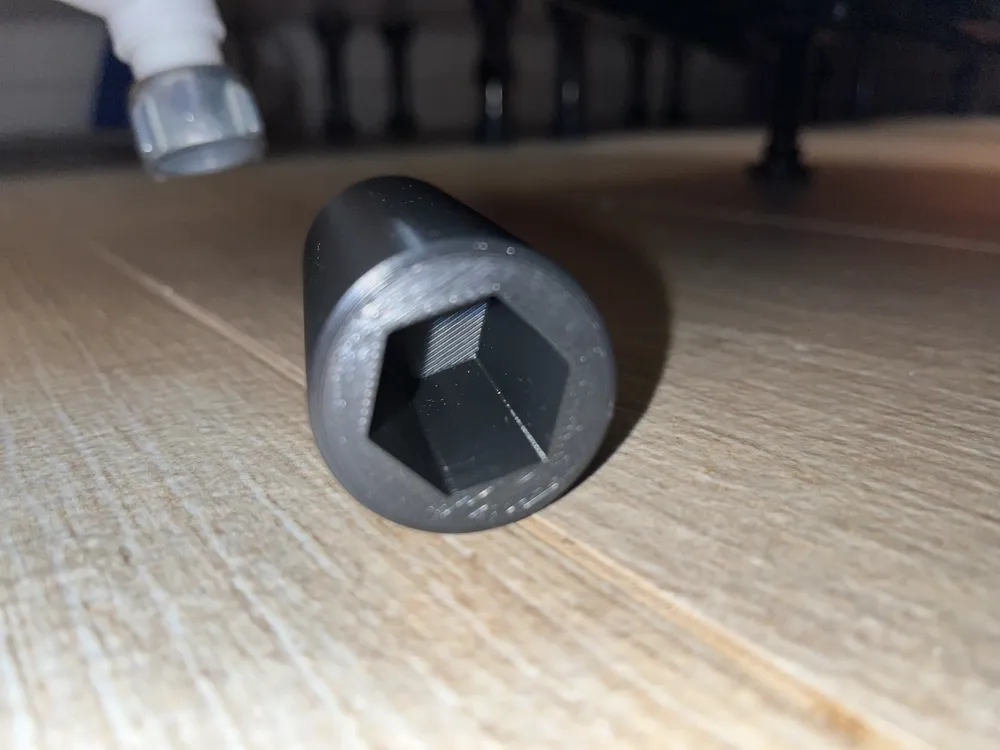

Simple riser for the third rear foot of a Samsung dishwasher.

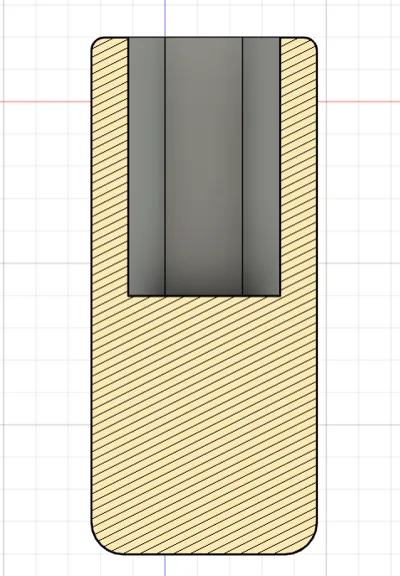

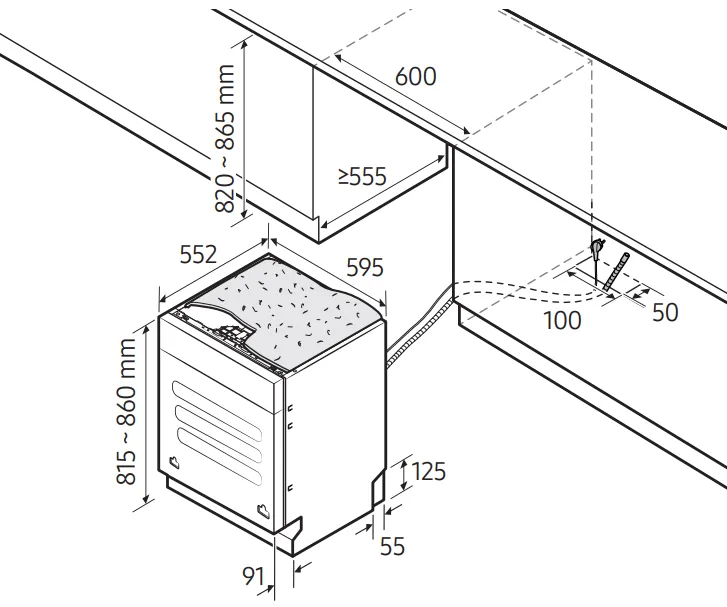

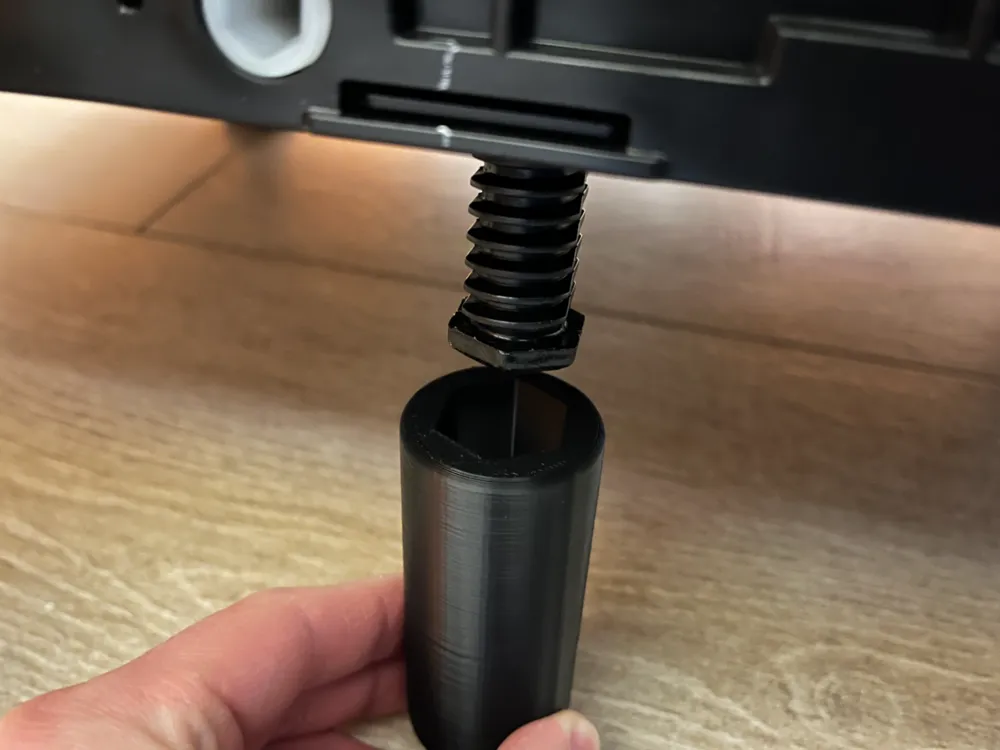

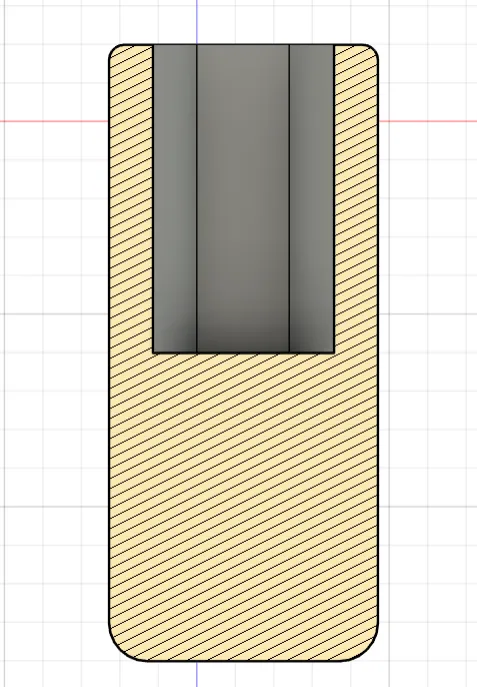

This component was made for a DW60CG880B00ET dishwasher whose rear foot can only raise the dishwasher up to 865mm (as shown in the installation manual photo); in my case, I needed to raise it to 880mm, and the most practical and quickest solution was to create this “support”/"spacer". When designing, a good safety margin was considered so that the original threaded foot resides in its seat without damaging it during the “push” and positioning phases of the appliance.
This support can also be used on kitchen countertops where the height between the floor and the underside of the kitchen countertop is 890mm.
