<h2>🔧 Adattatore Idraulico 3/4&#34; Femmina → 1/2&#34; Maschio (GAS/BSP)</h2><p>Raccordo stampabile progettato per collegare filettatura maschio di diametro 3/4&#34; e femmina da 1/2&#39;&#39;.</p><p>Ideale per:</p><ul style="list-style-type: disc"><li>Impianti di irrigazione</li><li>Collegamenti temporanei</li><li>Test e prototipi</li><li>Officina e fai-da-te</li></ul><p>✔ Filettature compatibili standard idraulico GAS/BSP<br>✔ Corpo esagonale centrale per serraggio con chiave<br>✔ Geometria ottimizzata per stampa FDM<br>✔ Struttura compatta e robusta</p><p>⚠️ Non adatto per impianti permanenti ad alta pressione o acqua calda.<br>Utilizzare sempre nastro PTFE (teflon) per garantire la tenuta.</p><h2>📐 SPECIFICHE TECNICHE</h2><ul style="list-style-type: disc"><li>Filettatura lato A: 3/4&#34; GAS (BSP) Femmina</li><li>Filettatura lato B: 1/2&#34; GAS (BSP) Maschio</li><li>Compatibile con raccordi idraulici standard</li></ul><h2>🖨️ IMPOSTAZIONI DI STAMPA CONSIGLIATE</h2><ul style="list-style-type: disc"><li>Materiale: PLA / PETG / ASA / Nylon</li><li>Altezza layer: 0,2 mm</li><li>Infill: 40%</li><li>Orientamento: verticale</li></ul><p>Per massima resistenza si consiglia 100% infill.</p><p>&nbsp;</p><p>Fatto in due versioni. Una con dado per serraggio e una senza.</p><h3><span style="color: rgb(225,71,71)"><u>Attenzione: tutti i modelli da me creati sono stati testati giungendoli con modelli commerciali in metallo. Ne garantisco la piena compatibilità ed efficace tenuta.</u></span></h3>

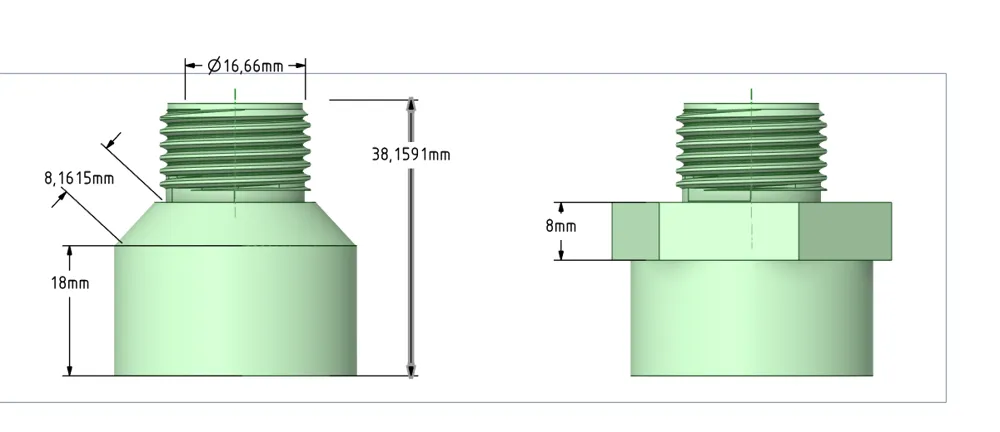

<h2>🔧 Hydraulic Adapter 3/4&#34; Female → 1/2&#34; Male (GAS/BSP)</h2><p>Printable fitting designed to connect a 3/4&#34; male thread and a 1/2&#39;&#39; female thread.</p><p>Ideal for:</p><ul style="list-style-type: disc"><li>Irrigation systems</li><li>Temporary connections</li><li>Tests and prototypes</li><li>Workshop and DIY</li></ul><p>✔ Standard GAS/BSP plumbing compatible threads<br>✔ Central hexagonal body for wrench tightening<br>✔ Geometry optimized for FDM printing<br>✔ Compact and robust structure</p><p>⚠️ Not suitable for permanent high-pressure or hot water systems.<br>Always use PTFE tape (Teflon) to ensure a seal.</p><h2>📐 TECHNICAL SPECIFICATIONS</h2><ul style="list-style-type: disc"><li>Thread side A: 3/4&#34; GAS (BSP) Female</li><li>Thread side B: 1/2&#34; GAS (BSP) Male</li><li>Compatible with standard plumbing fittings</li></ul><h2>🖨️ RECOMMENDED PRINT SETTINGS</h2><ul style="list-style-type: disc"><li>Material: PLA / PETG / ASA / Nylon</li><li>Layer height: 0.2 mm</li><li>Infill: 40%</li><li>Orientation: vertical</li></ul><p>For maximum strength, 100% infill is recommended.</p><p>&nbsp;</p><p>Made in two versions. One with a nut for tightening and one without.</p><h3><span style="color: rgb(225,71,71)"><u>Note: all models created by me have been tested by connecting them with commercial metal models. I guarantee full compatibility and effective sealing.</u></span></h3>

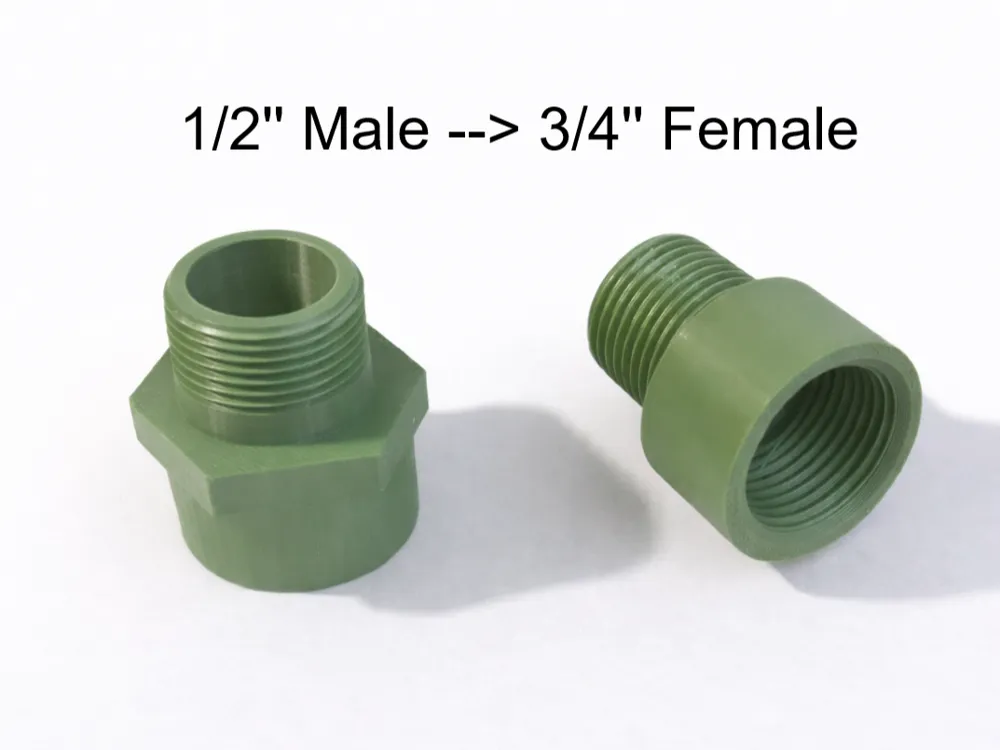

Hydraulic Fitting 3/4" Female → 1/2" Male

ASIA

Print Profile(3)

Description

🔧 Hydraulic Adapter 3/4" Female → 1/2" Male (GAS/BSP)

📐 TECHNICAL SPECIFICATIONS

🖨️ RECOMMENDED PRINT SETTINGS

Note: all models created by me have been tested by connecting them with commercial metal models. I guarantee full compatibility and effective sealing.
