Rotating Pill Dispenser – No Supports, No Hardware

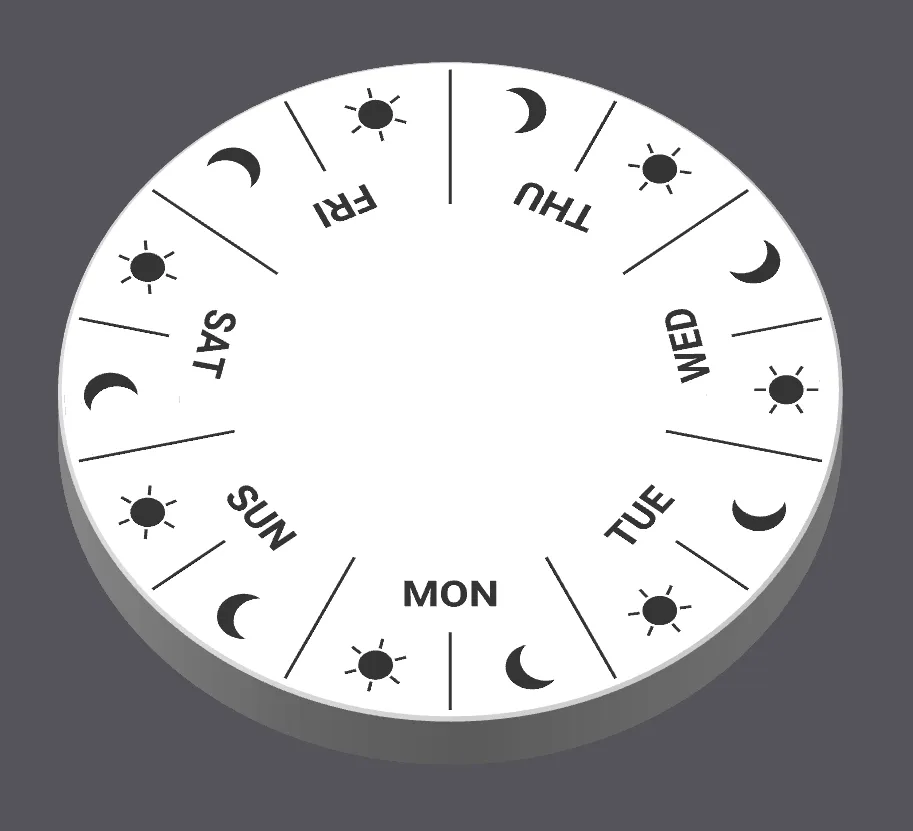

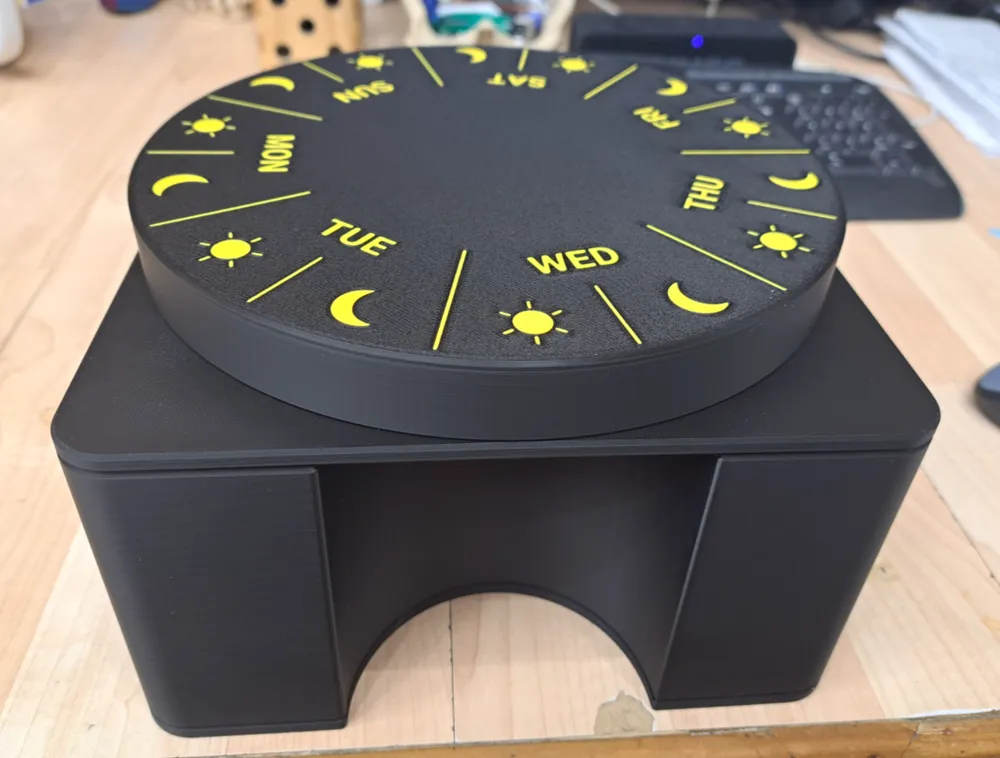

*****Update 03.31.2026_ Added an alternative top plate including the days of the week.*****

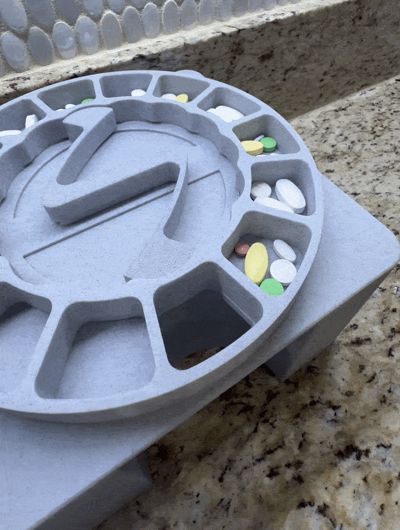

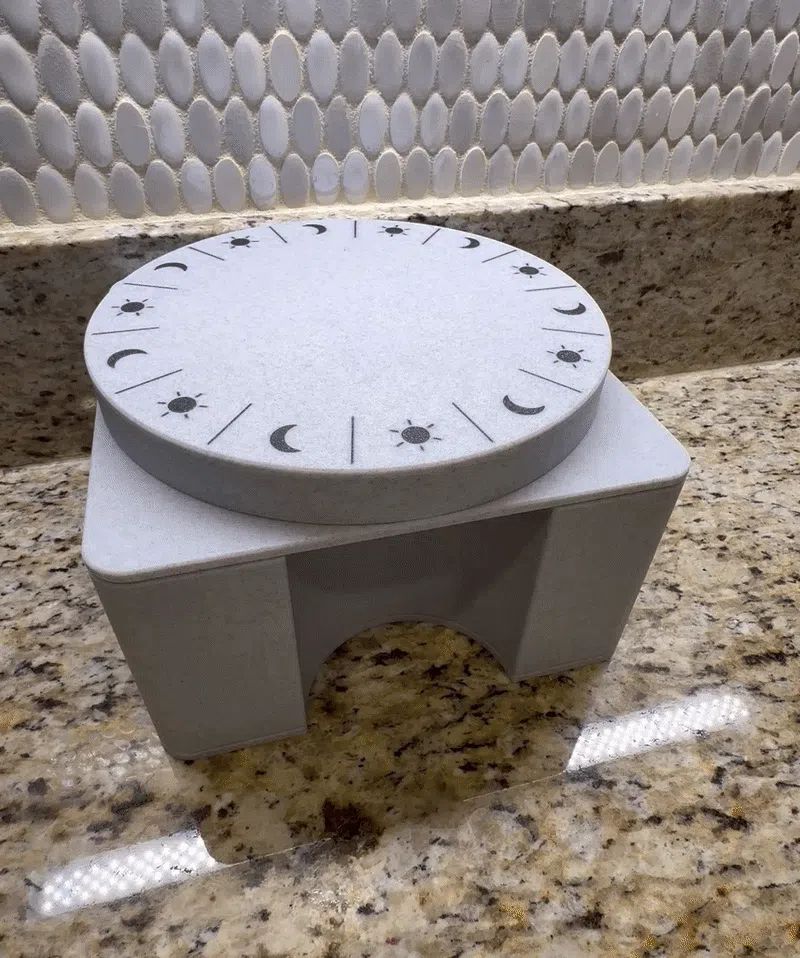

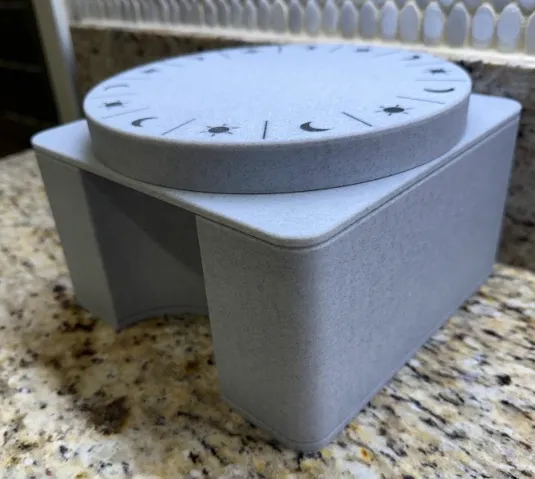

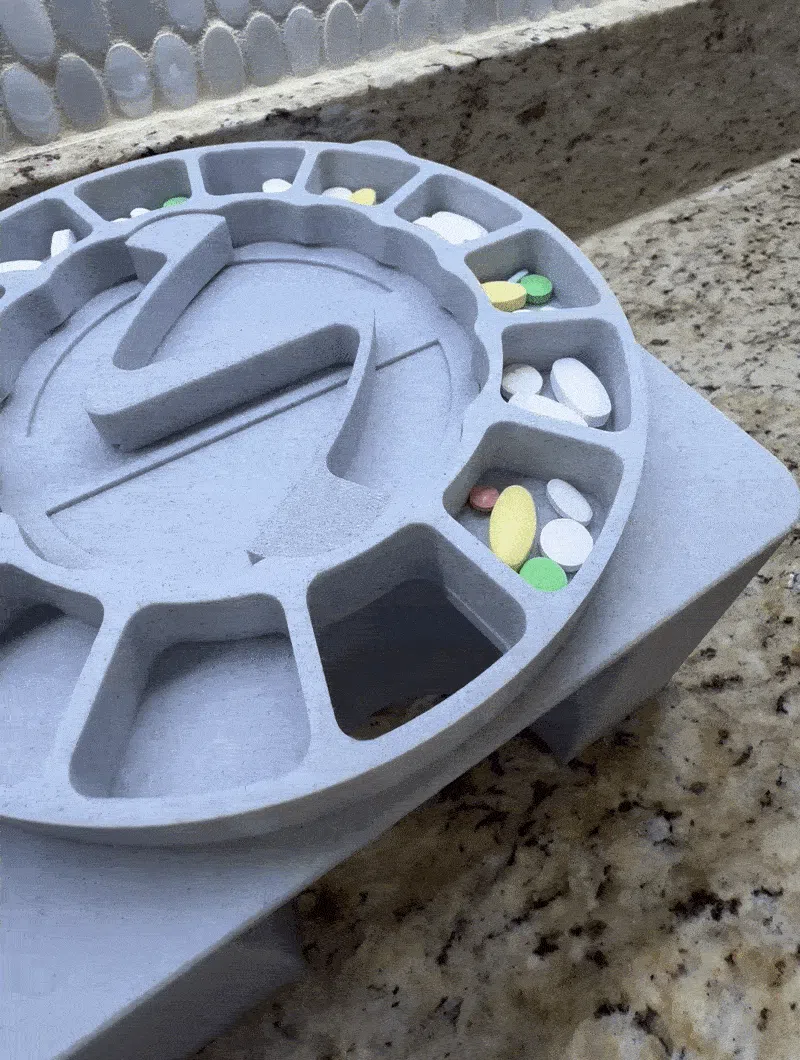

This rotating pill organizer/dispenser is designed for fast, simple dosing with one-handed operation. Simply rotate the top to the next compartment and dispense directly into your hand.

This model prints cleanly with no supports and requires no hardware.

Key Features

• Designed for one-handed operation
• Rotating index-style dispenser snaps into each position

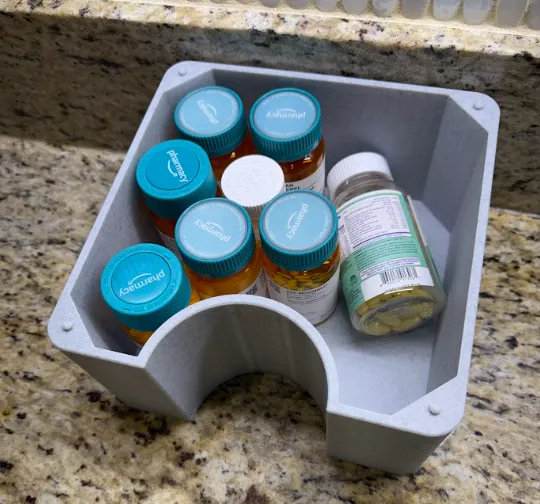

• Includes storage under top plate
• Top plate fits securely over indexing pins
• No supports required
• No screws, magnets, or other hardware
• Matching cup file included

Assembly Notes

1. Slide the spring onto the mating dovetail on the top plate. Orientation doesn't matter.
2. Slightly compress the spring arms just enough to slide the indexing dosage ring over.
3. The spring arms will capture the indexing dosage ring to stop it from lifting off the top plate.
