6.5" Trench Box - Bluetooth Speaker V2
Print Profile(1)
Description

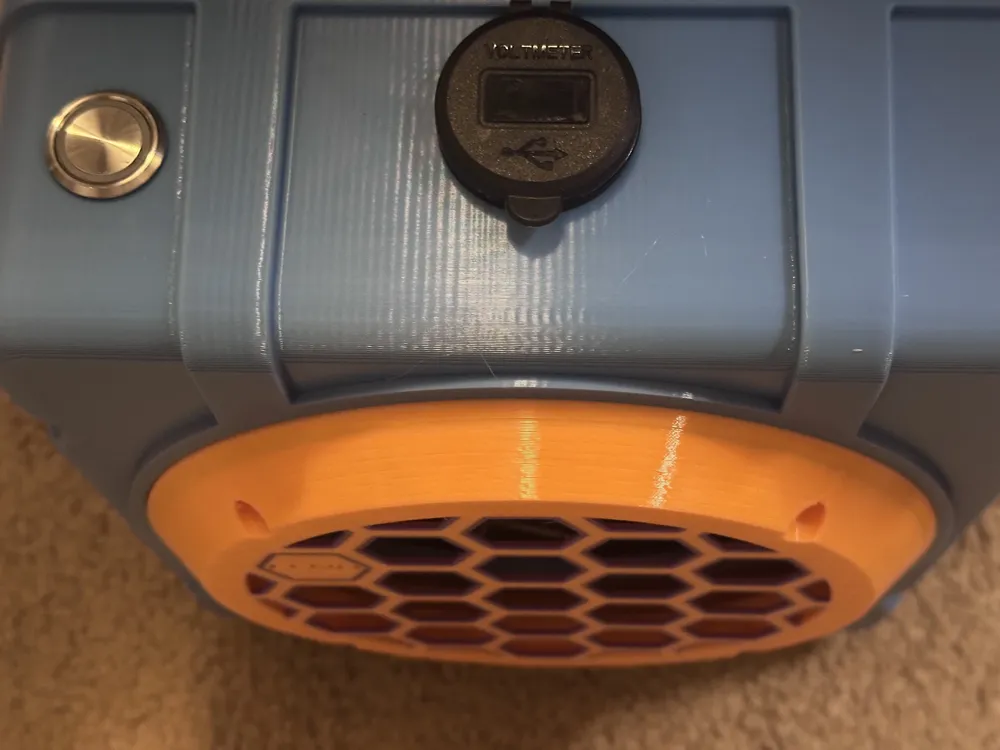

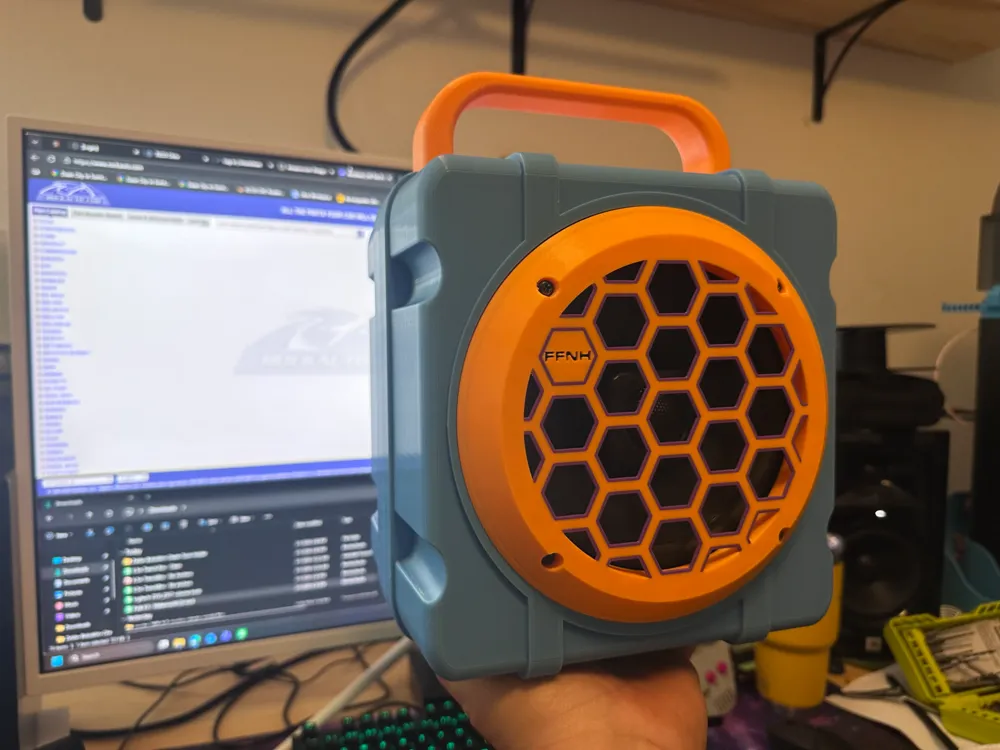

This is an update of the previous Trench Box that has the extra contours removed. This is designed for a 6.5" Polk marine speaker in front, a 6.5" Dayton Audio passive radiator in back, a volt gauge/charging adapter and a power button.
The halves are glued together with Lexcel.
The feet are screwed on from the INSIDE.
There aren't holes in the box for the handle, as some people wanted to design their own. I just made a template from the holes in the handle and drilled the holes in the box.
I used Nik's (Filament Forged) 6.5" Polk speaker grille (It's free on MakerWorld) until I design my own. It fits perfectly. Nik has a version of the grill for the PR already. You can order the file from his website. The Dayton Audio PR has 5 screw holes. I just drilled out 4 new ones to fit the grille. I'll make new grilles and add them eventually.
This is best done on an enclosed printer. It WILL warp a bit if it's not enclosed.
It prints best in PETG, nylon or other more temp resistant filaments.
4+ walls is best.
The print profile is for a .04mm nozzle. It takes a while. You can do it with a .06 or .08mm nozzle and cut the time significantly.
It WILL NOT TURN OUT WELL printed in any orientation other than face up. Yes, there's waste from supports. But to me it's worth it for the clean outcome.
