fb rx7 storage box hinge replacement (no drilling)

i would recommend printing in abs or a similar material so it will last

assembly

step 1

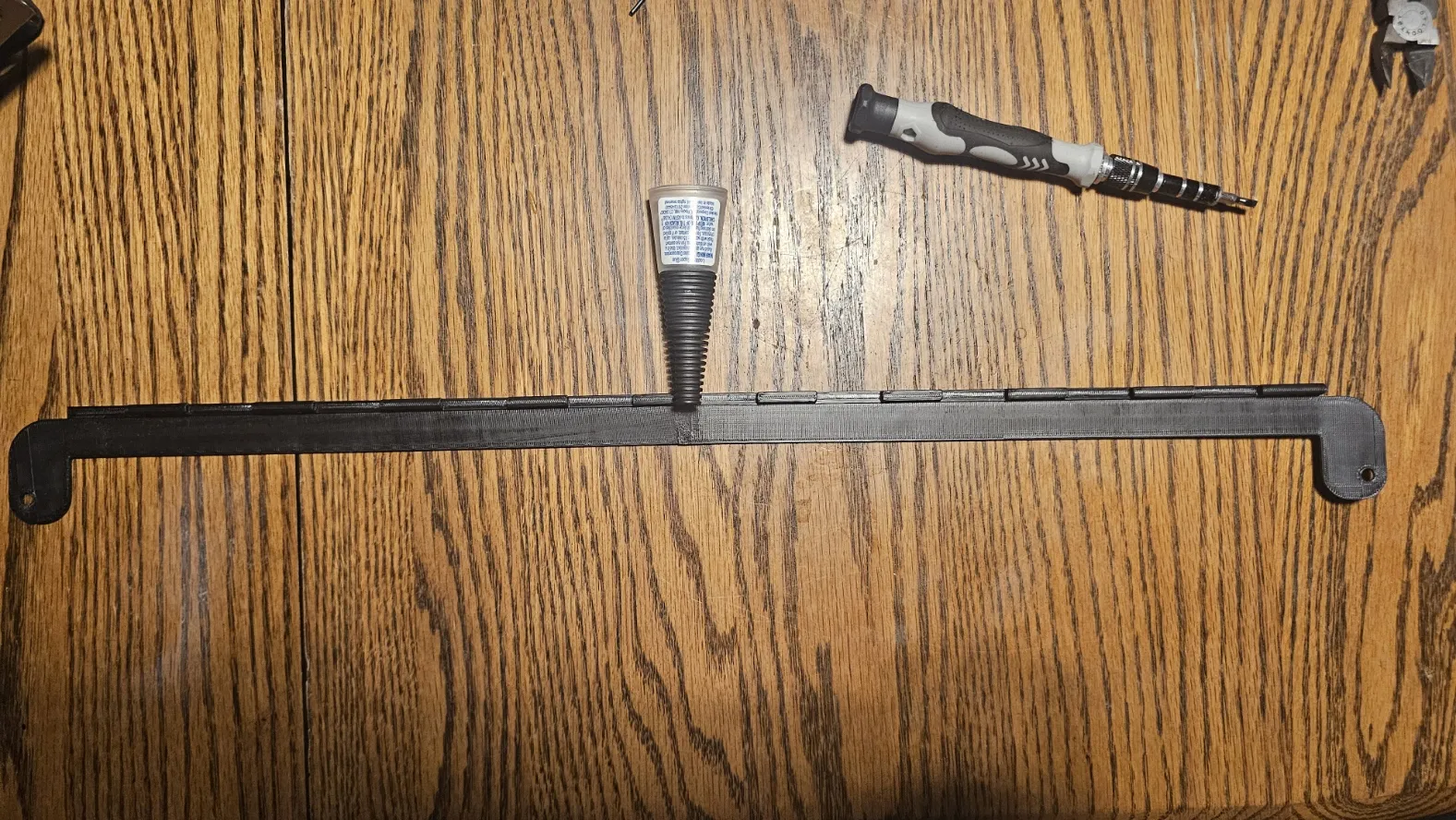

super glue the two pieces shown below together

step 2

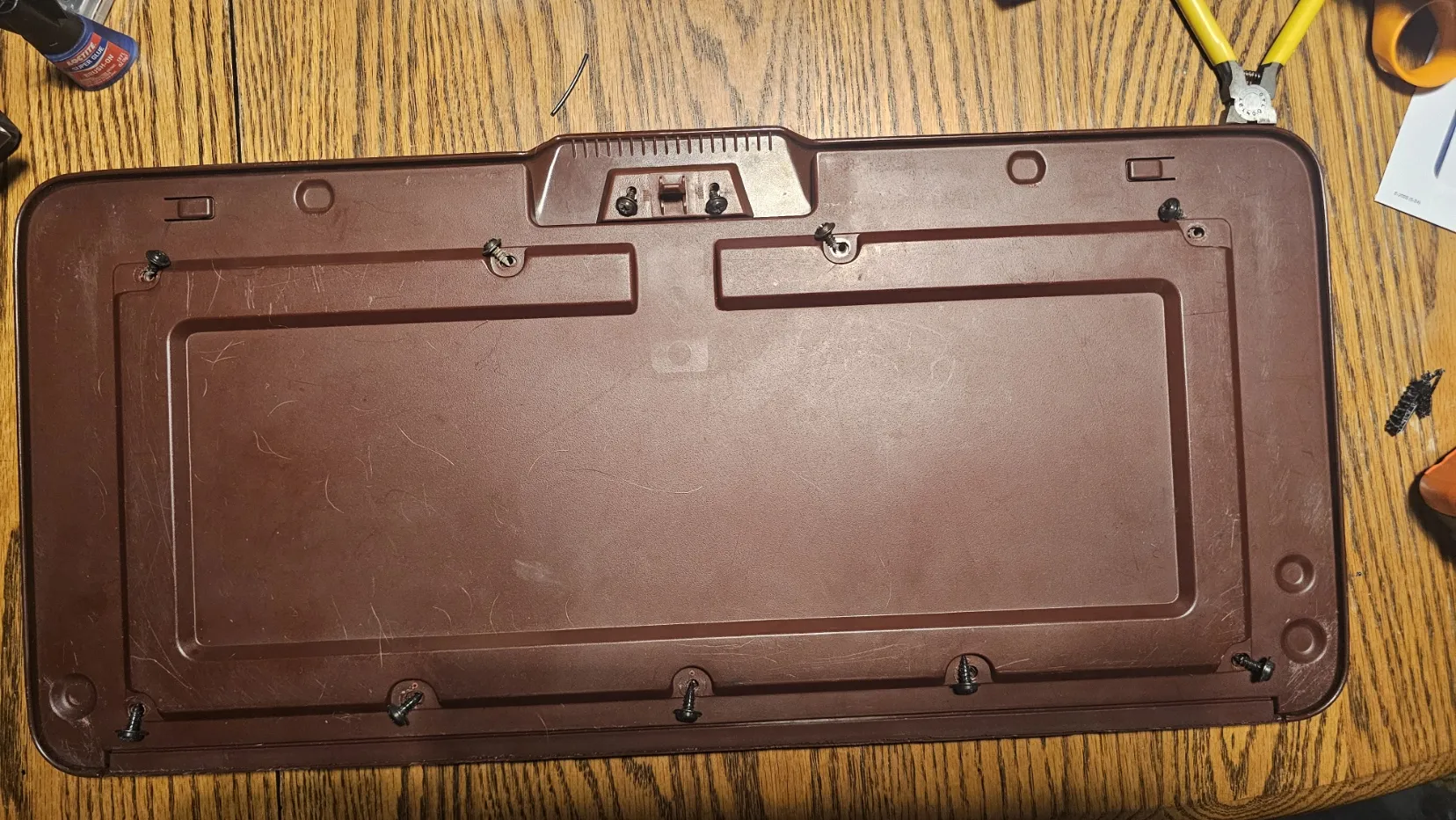

remove the 11 screws holding the lid together

step 3

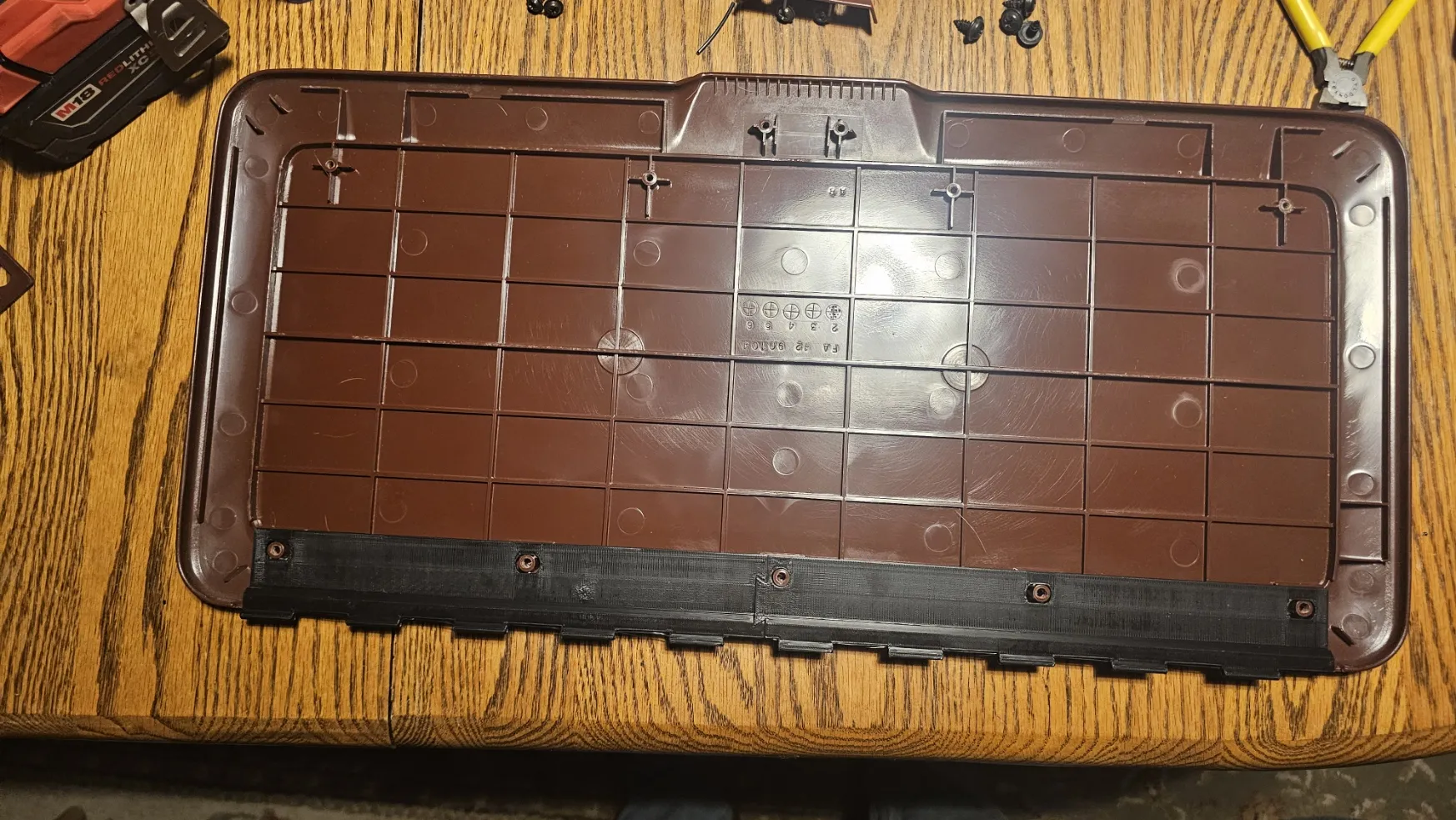

 replace old hinge with new one

step 4

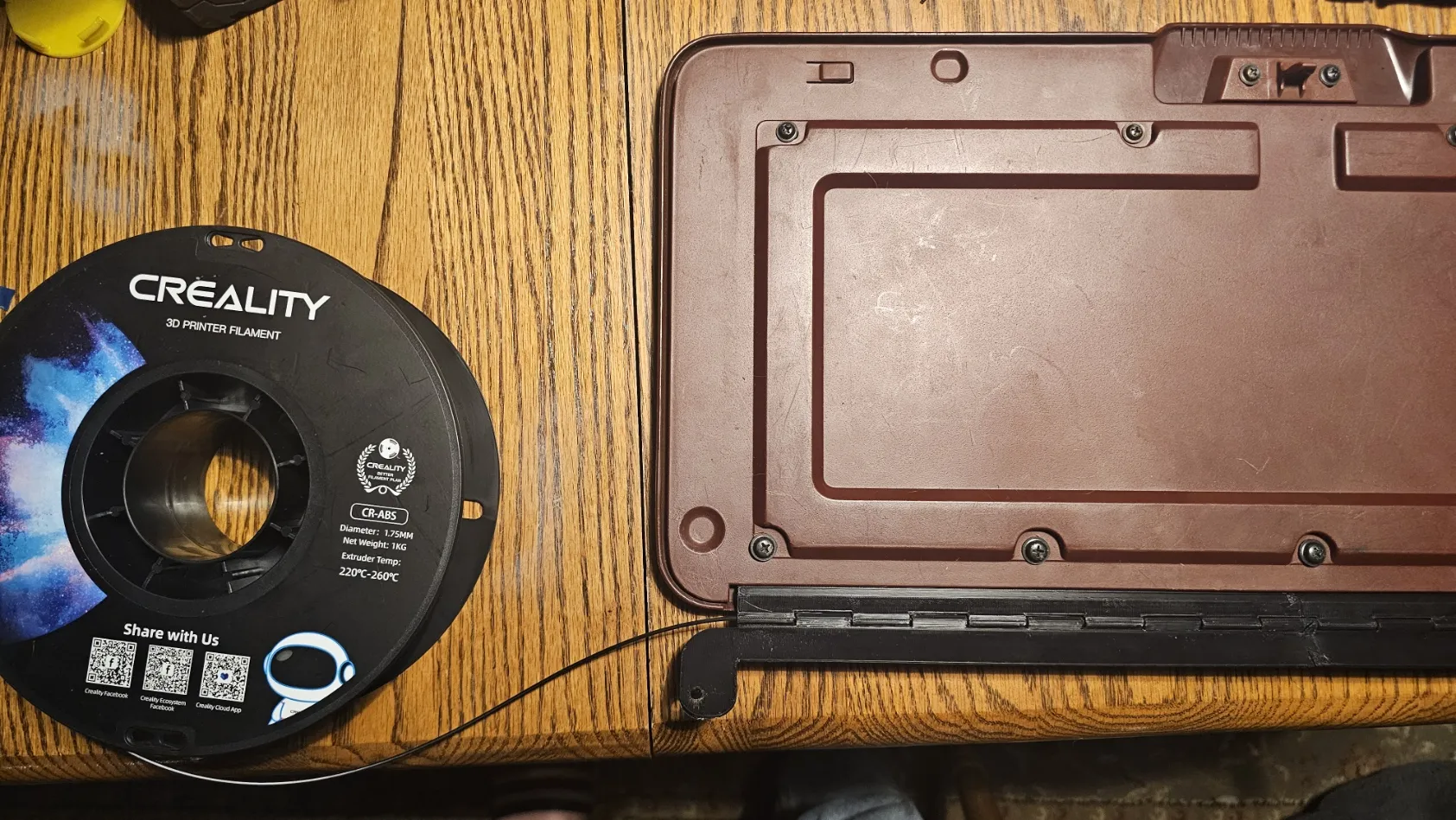

once the super glue has dried place the 2 hinge pieces together and feed 1.75mm filament trough

step 5

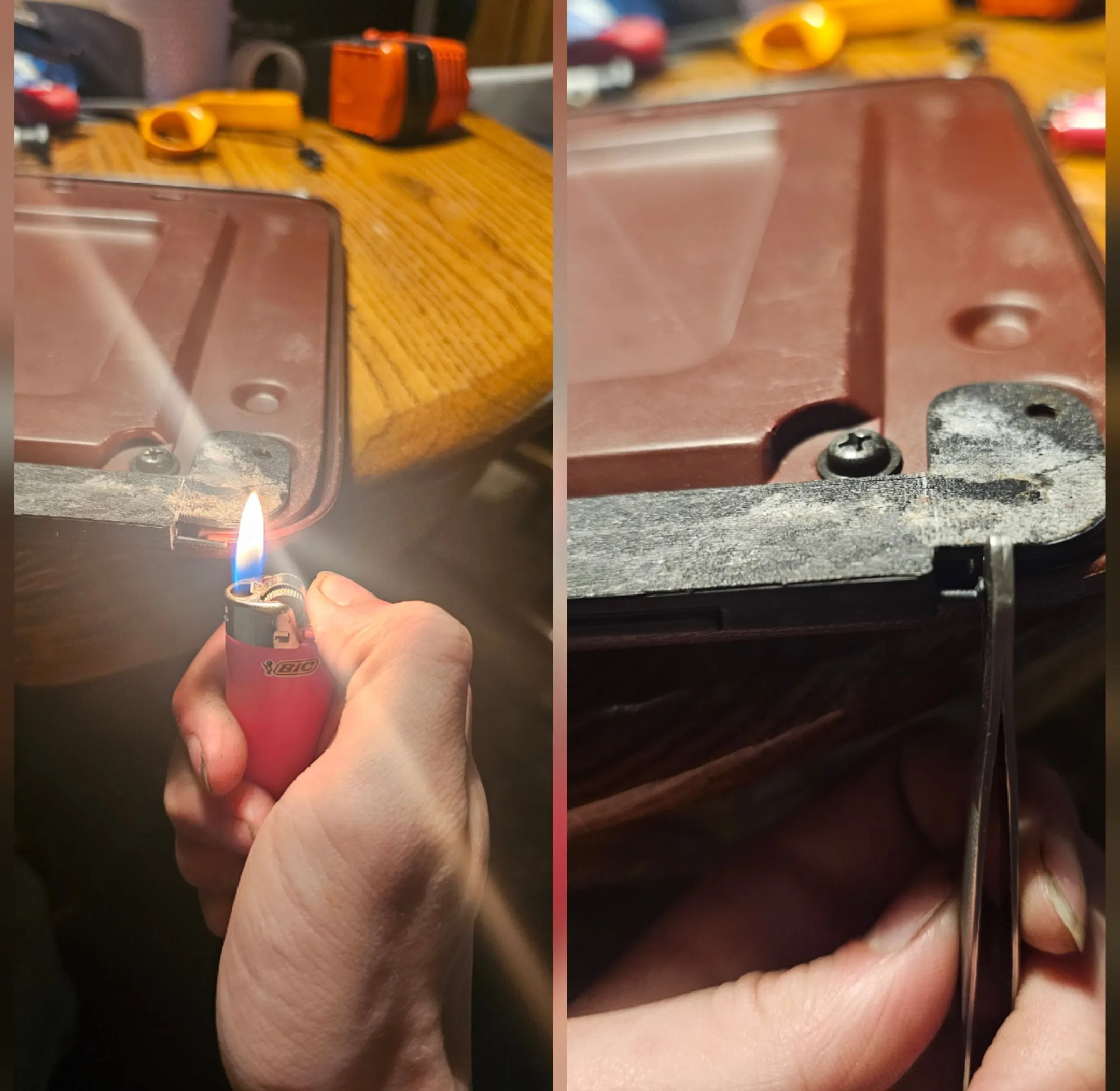

melt and flatten both ends of filament

step 6

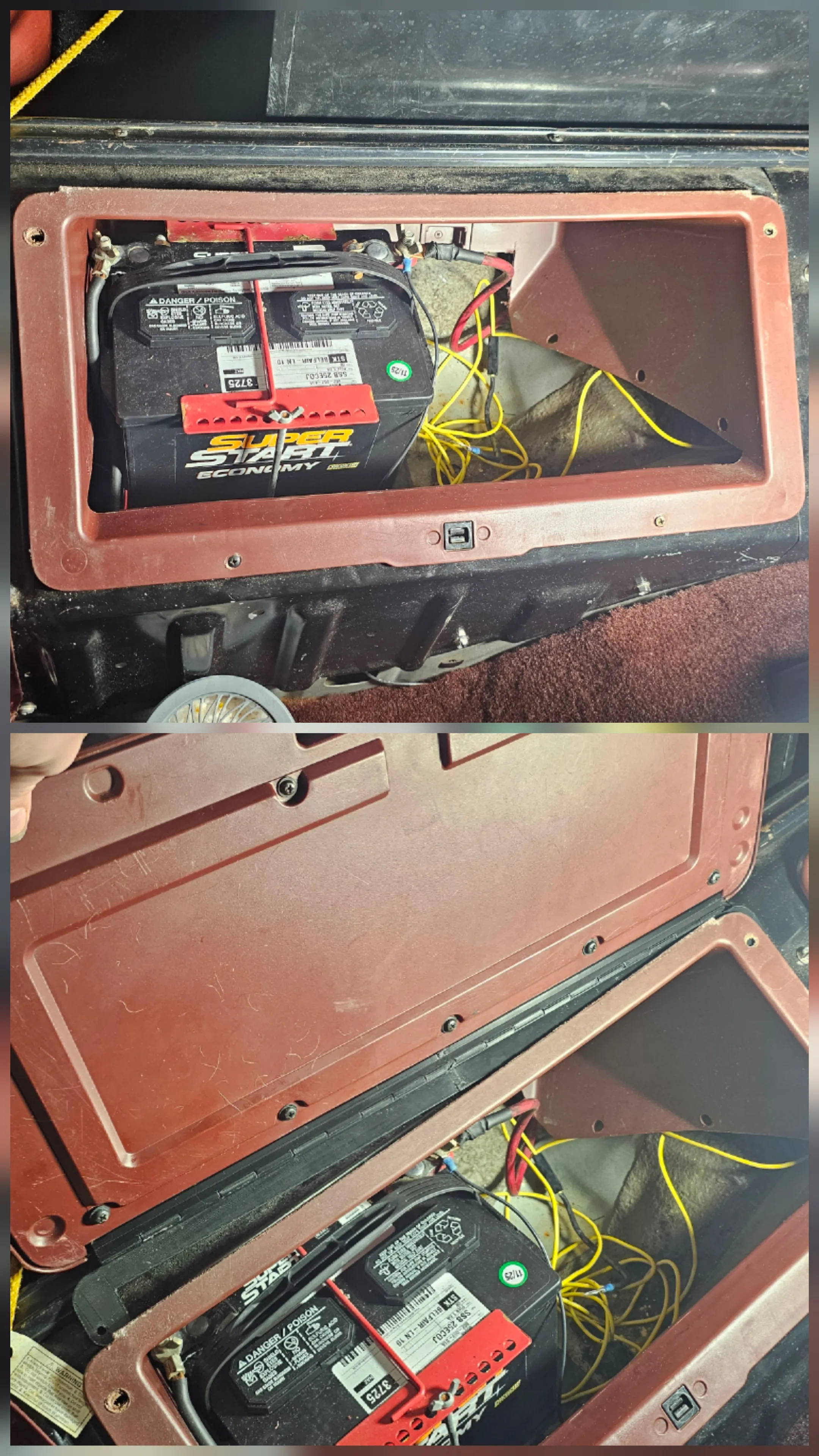

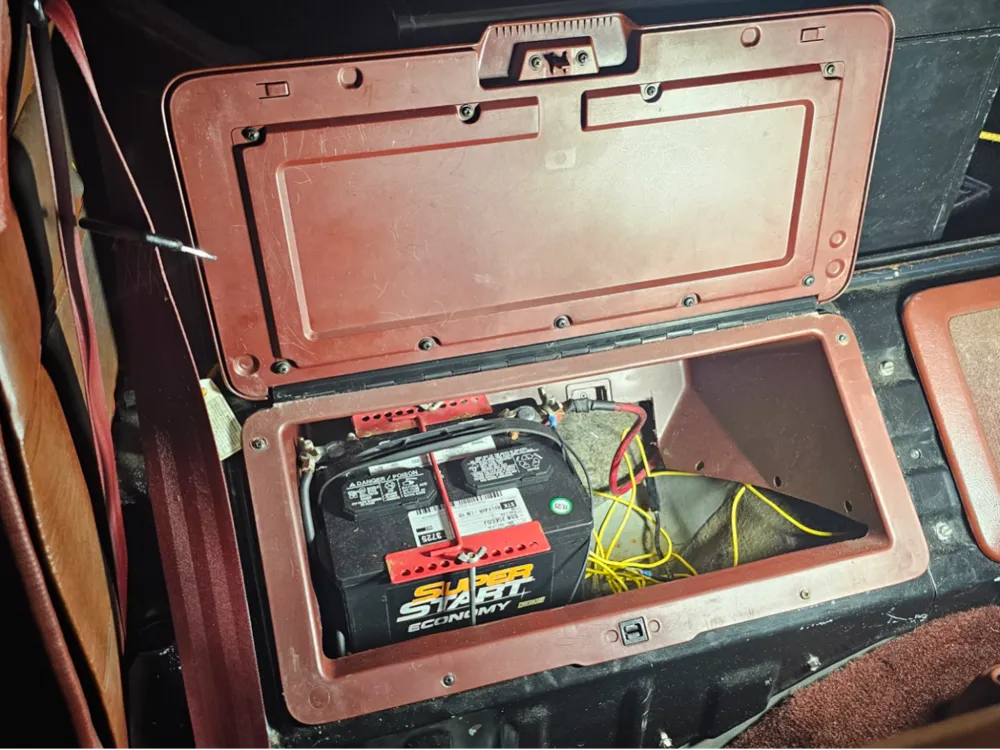

remove the top 2 screws on the bin then slide the assembly behind then reinstall the 2 screws

if it doesn't latch correctly loosen the 2 screws holding the latch and adjust it
