1/64 Diorama: Car Repair Shop Parking Lot

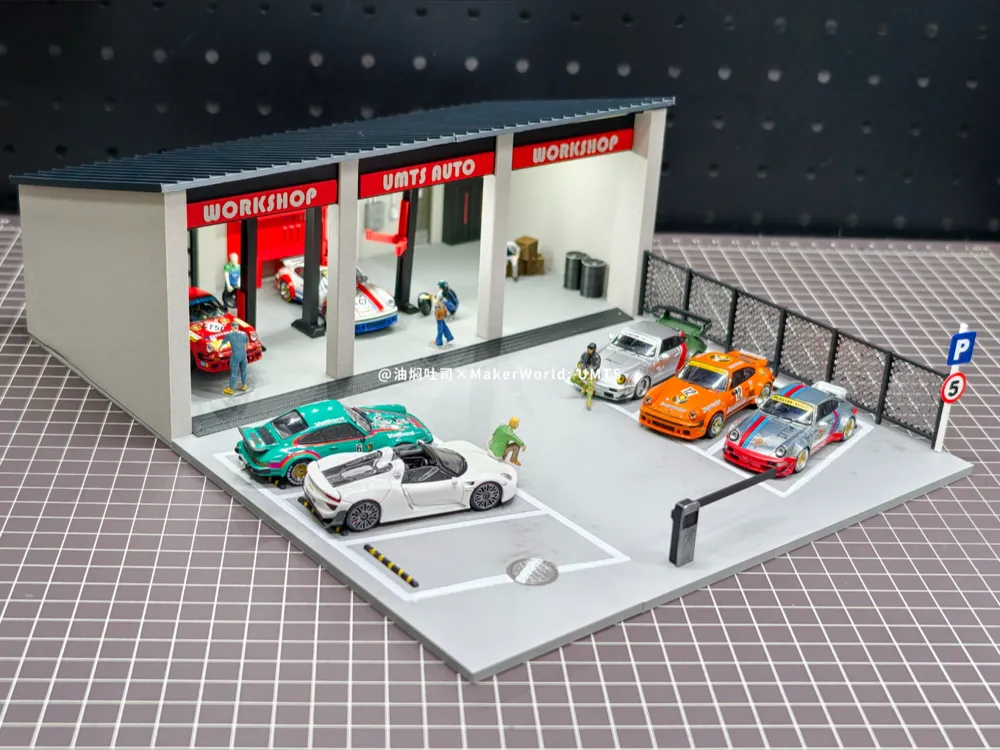

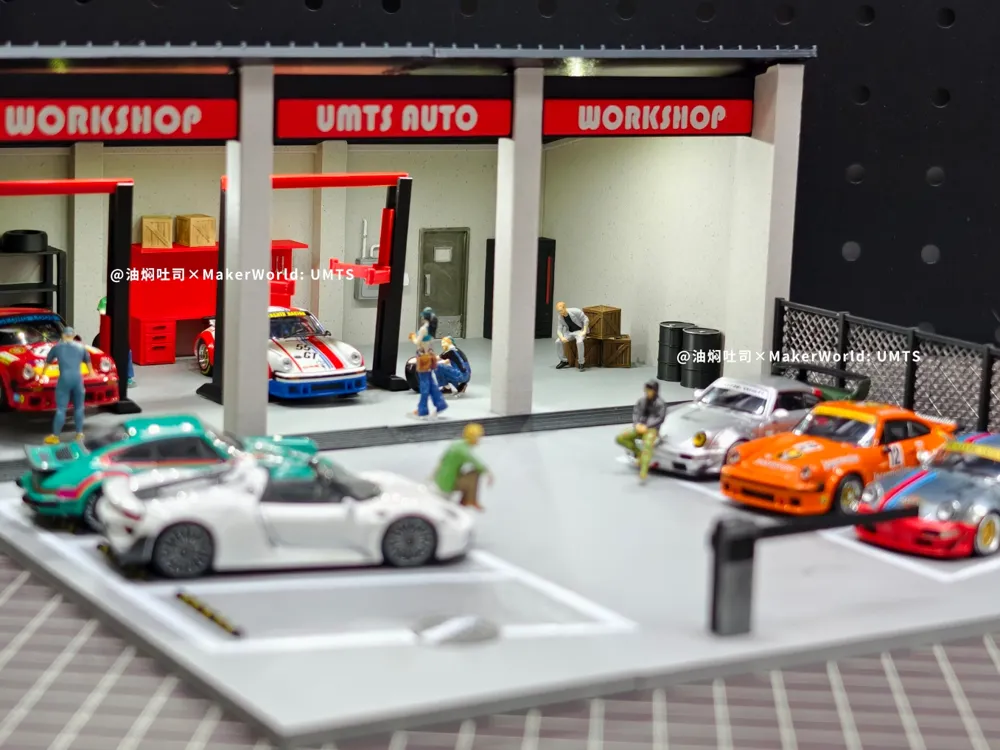

Fourth 1/64 diorama model: auto repair shop + six-car parking lot

model for personal collection only, copyrighted©, unauthorized commercial use or image theft is prohibited

————————

New car repair shop model【A1 mini friendly version】click here: 1/64 diorama: Car Repair Shop Parking Lot【A1 mini friendly version】No Cuts - Free 3D Print Model - MakerWorld

This is a revised version for the A1 mini, retaining the original architectural features, with reduced overall size, no cuts, and can fit into a 26cm deep bookshelf, making it easier to assemble and store

If you still want to print the large version of the car repair shop with the A1 mini, you can select the A1 mini version in the print profile for this model (cut, requires gluing for assembly)

————————

Friends who have printed my models know that my usual practice is to print large architectural structures with a 0.4mm nozzle and fine details with a 0.2mm nozzle

and reverse printing the ground

This time is no exception

The model occupies a large area: 230x291x98 (dimensions after assembly)

Both a regular version and an A1 mini version have been uploaded (A1 mini version requires large parts to be cut and then glued; scroll down for details)

There are AMS parts (door sign, road sign), and a monochromatic version has also been made for easy painting after printing, you can choose which to print

【Building Structure】

1. Base: Divided into two parts: house base and parking lot ground, joined with mortise and tenon joints, covering the ramp (A1 mini version is cut into two parts)

2. Walls: There is a gap left on the top of the wall, if you want to attach light strips, power cables can pass through the gap (A1 mini version is cut into two parts)

3. Roof: There are buckles at the bottom, connecting with the walls and pillars, they can be clipped in without permanent gluing, allowing for easy replacement of items (A1 mini version is cut into two parts)

4. Pillars: Two pillars, inserted into the indicated position on the base, with the top aligned with the buckles under the roof

5. Door Sign: Clip into the slot as shown in the figure

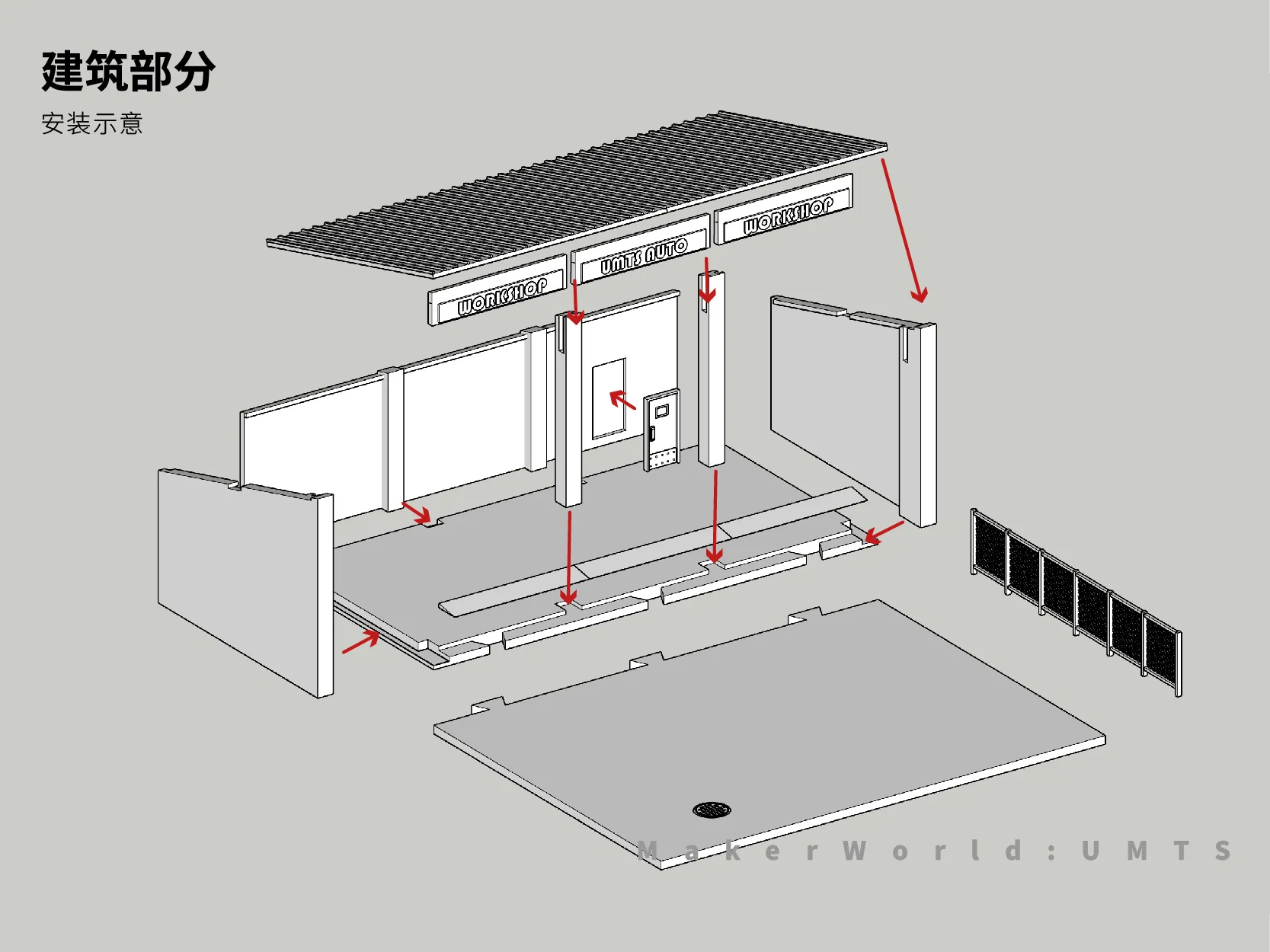

Install according to the positions shown in the figure, for all jointed parts, please fix with glue

【A1 mini Version】

Cut the house base, parking lot ground, and roof into two parts, print separately, then glue together

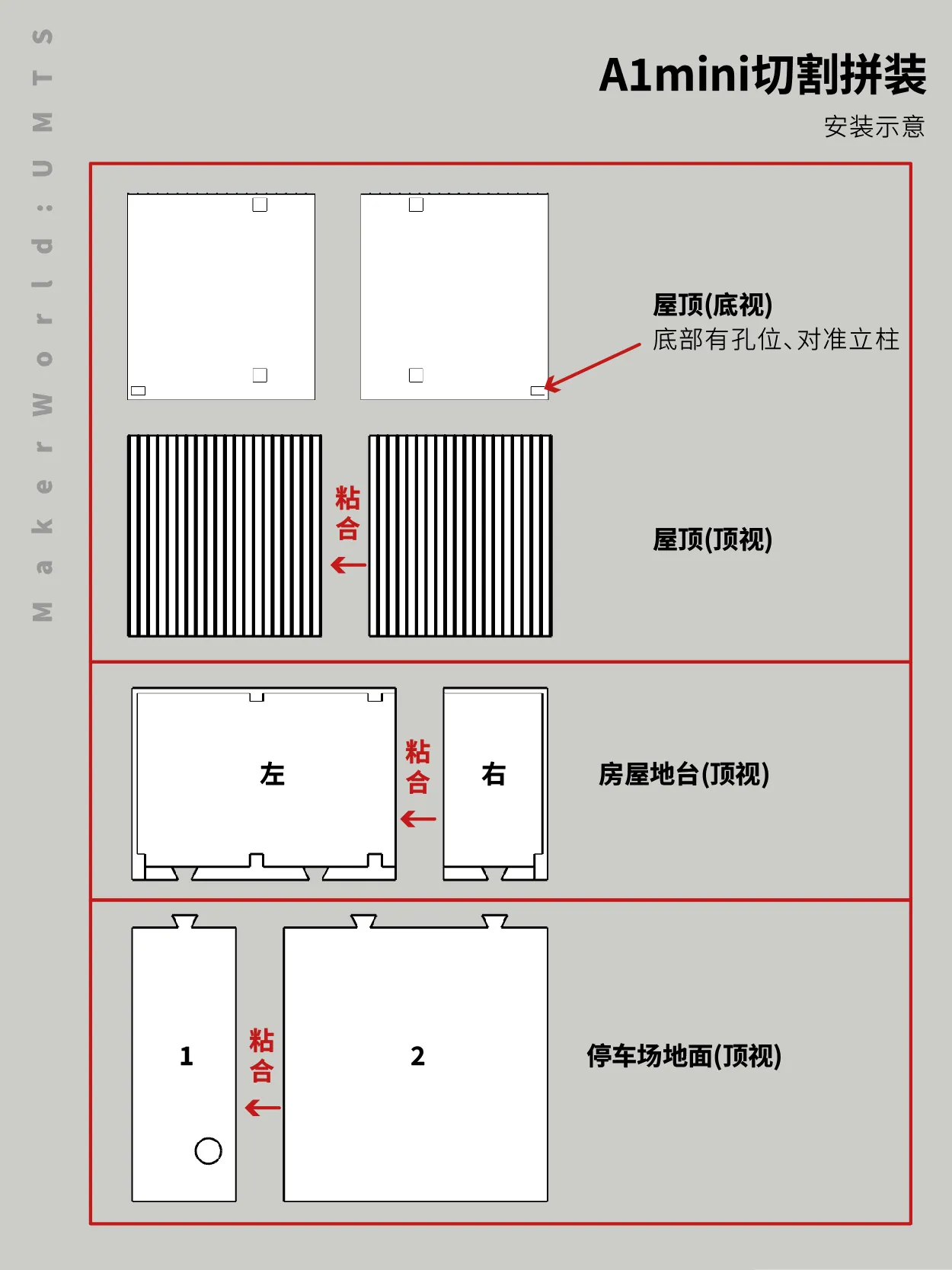

A1 mini users, please print using this 【A1 mini version】 profile, for gluing instructions, refer to this image:

• Notes: Please distinguish the left and right directions of the roof, there are buckle positions at the bottom corresponding to the connections of the walls and pillars

The walls are also divided into two parts, as shown below:

My printer is an A1 mini, the seams of the walls and roof are hidden within the structure, and the ground seams are not obvious after painting and arranging props

【Props and Decorations】

This time, there are many props; the list is as follows:

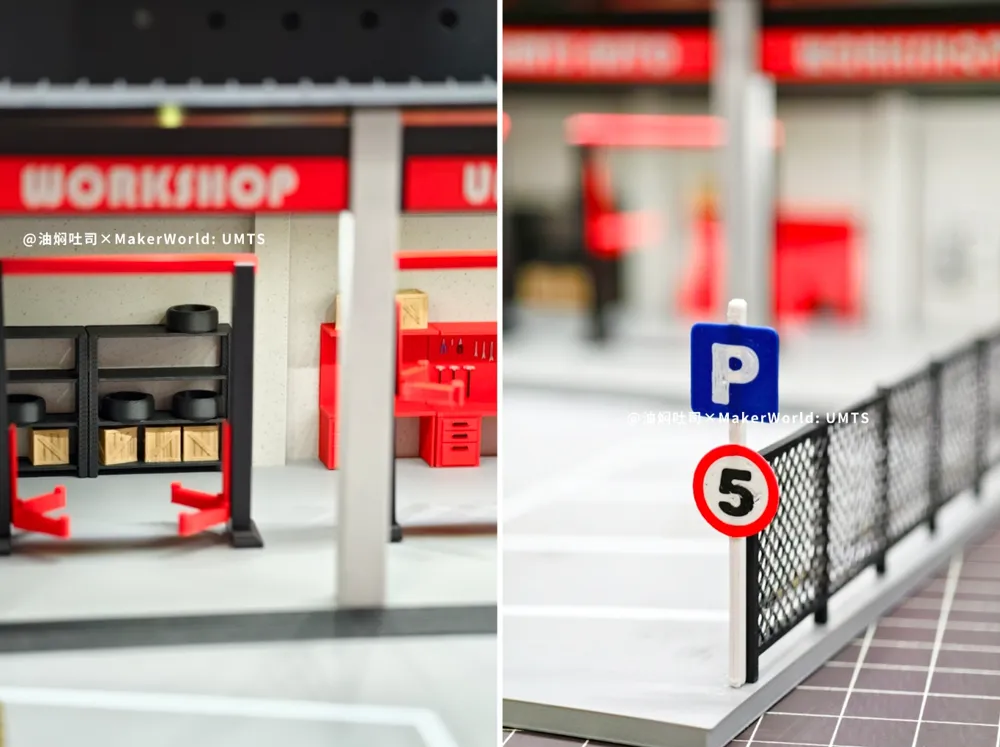

Outdoor: isolation fence x1, barrier gate x1, road sign x1, round manhole cover x1

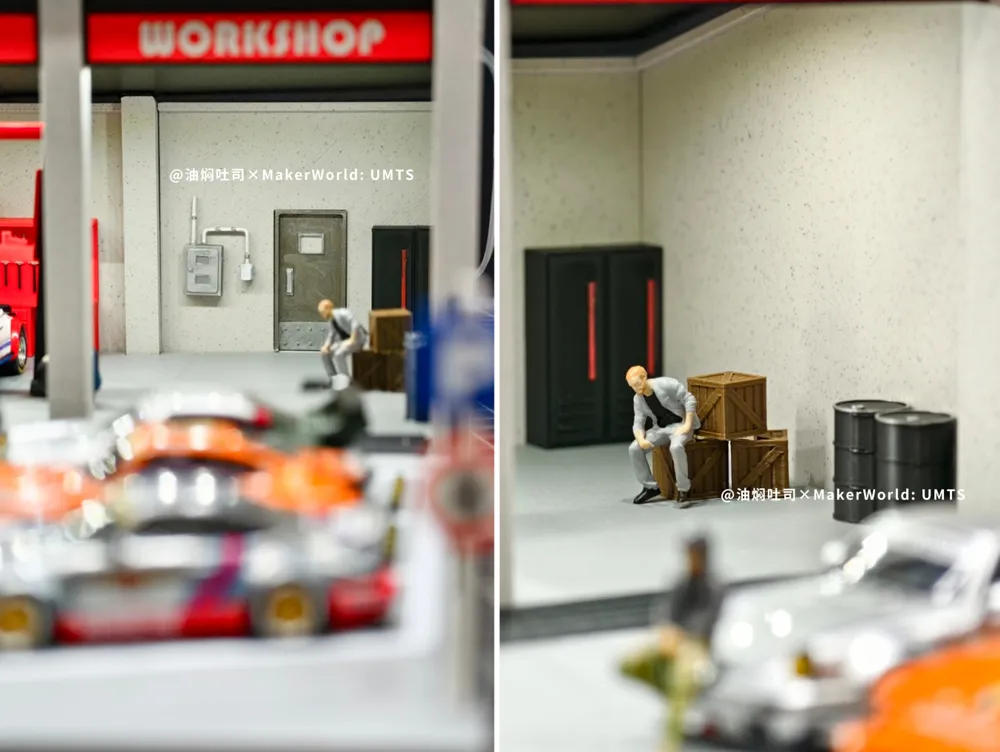

Indoor: storage cabinet x2, tool table x2, electrical box x1, wooden box x6, tire x4, paint bucket x2, gantry lift x2 sets, car stopper x6

The model files are single plate, single color, requiring painting after printing, or custom settings

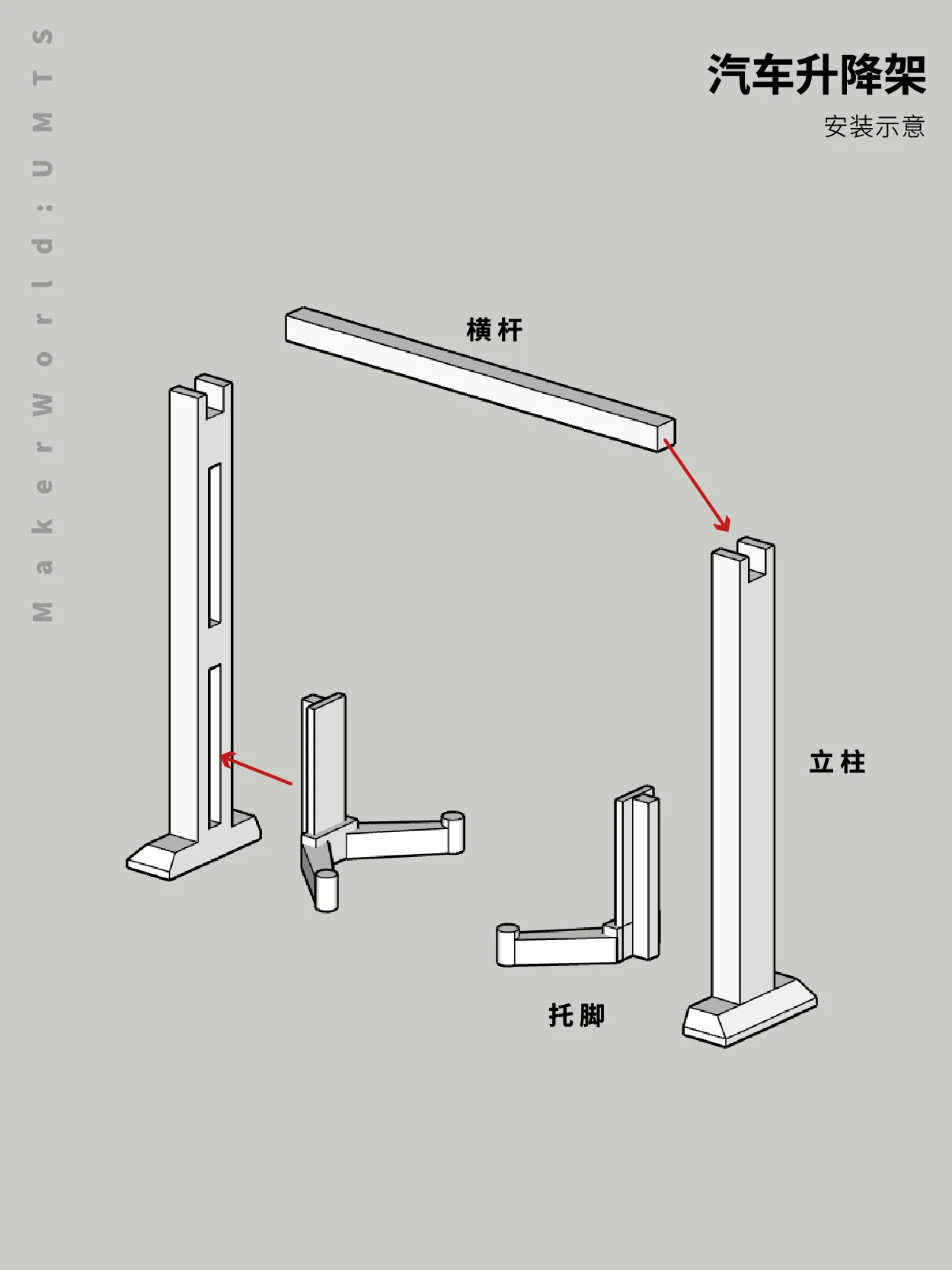

The image below shows the gantry lift assembly diagram:

Note: If you need to place model cars on the supports, please glue each connection firmly to ensure they do not loosen or fall

【0.2mm Nozzle Notes】

The props have very rich details, so please be sure to print them with a 0.2mm nozzle

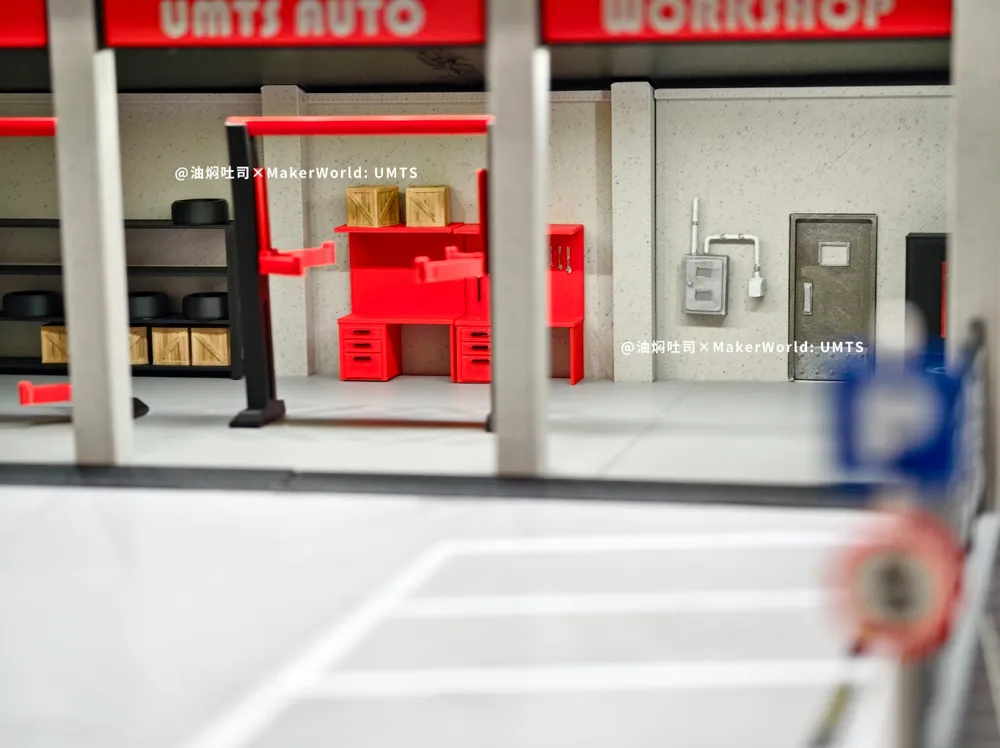

The image shows the effect of painting and distressing after single-color printing, you can separate plates and colors yourself on your computer
