Kids Bike Bell Handlebar Mounting Clamp (Replacement)
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
2
5
0
0
1
0
Released
Bill of Materials
Bambu Filaments
Select all
Description
Content has been automatically translated.
The handlebar mounting clamp of a kids' bike bell was broken, so this is a replacement part newly manufactured with a 3D printer through reverse engineering.
Reason for Creation

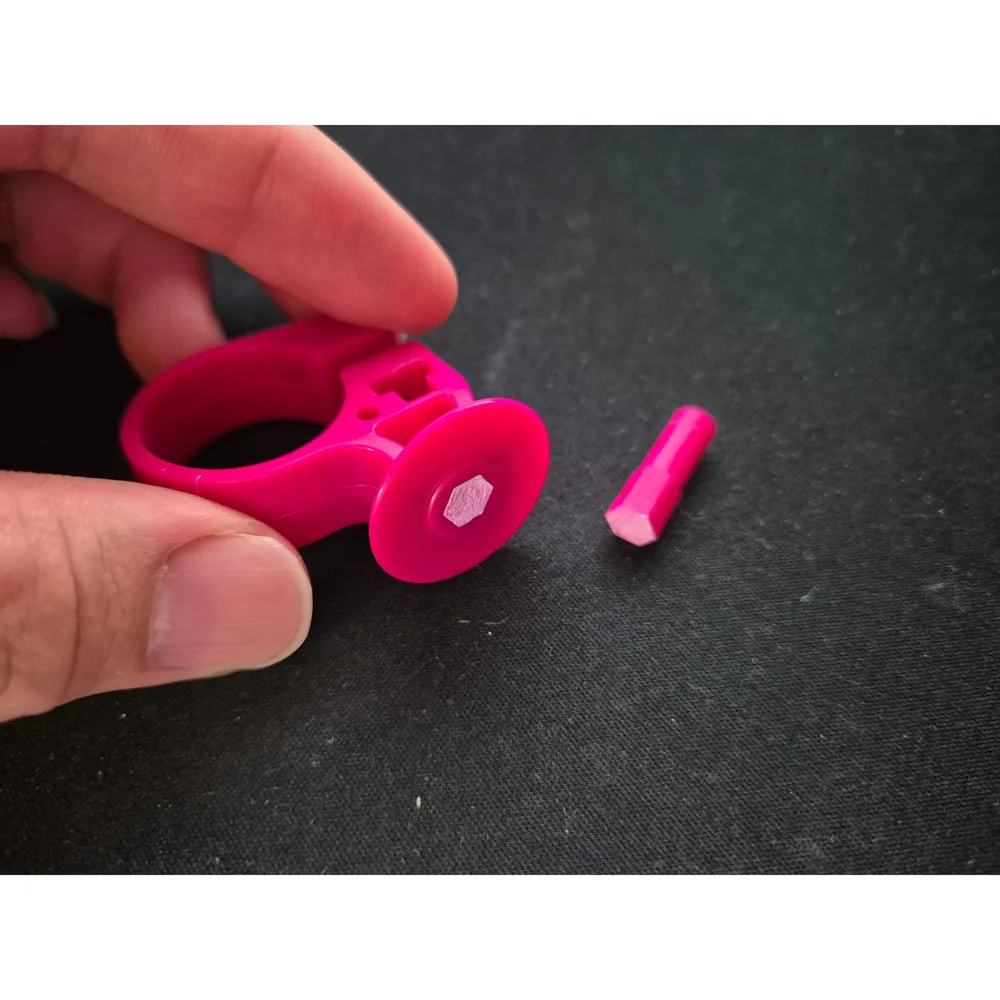

- The bell's handlebar mounting clamp was broken, making it impossible to install the bell on the bicycle.
- As the clamp could not be purchased separately, I restored it directly using a 3D printer.
- The dimensions of the original part are reproduced exactly, ensuring a perfect fit with the existing bell cap (gem-shaped).
Features

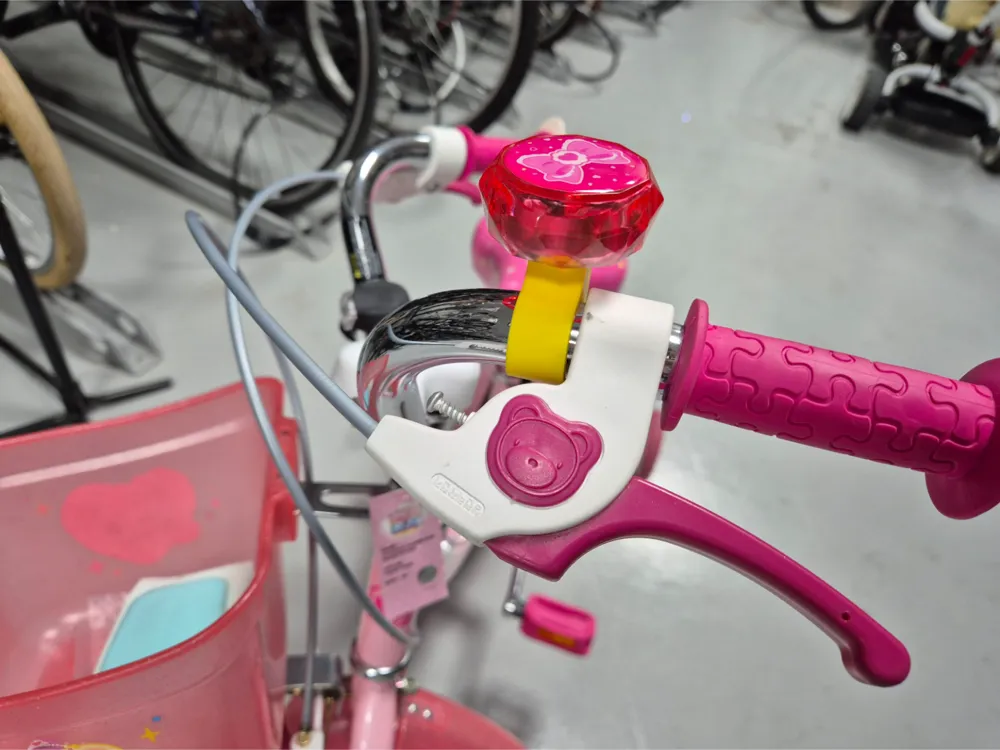

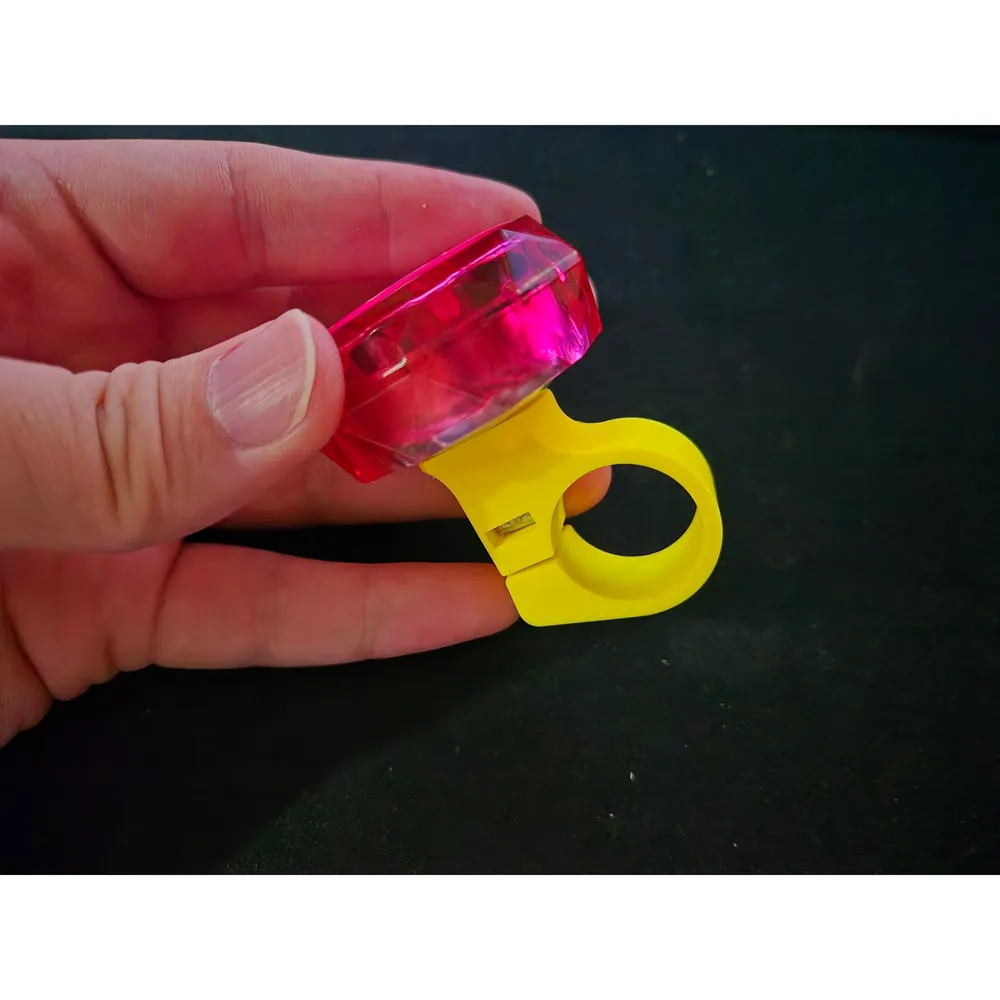

- The bell's original top cap is reused, and only the damaged clamp part is replaced.
- It is designed to be fastened to the handlebar with an M4×18mm bolt and nut.
- Compatible with 22mm diameter handlebars.
Parts Required for Assembly
- M4×18mm bolt-nut set — 1 set (purchase separately)
Compatibility
- Handlebar diameter: 22mm
Notes
- Recommended material: PLA
- Before printing, please check your bicycle's handlebar diameter and bell specifications.
- This is a compatible replacement part, not an official product.
