18650 quick release drone lithium battery
Print Profile(1)
Description

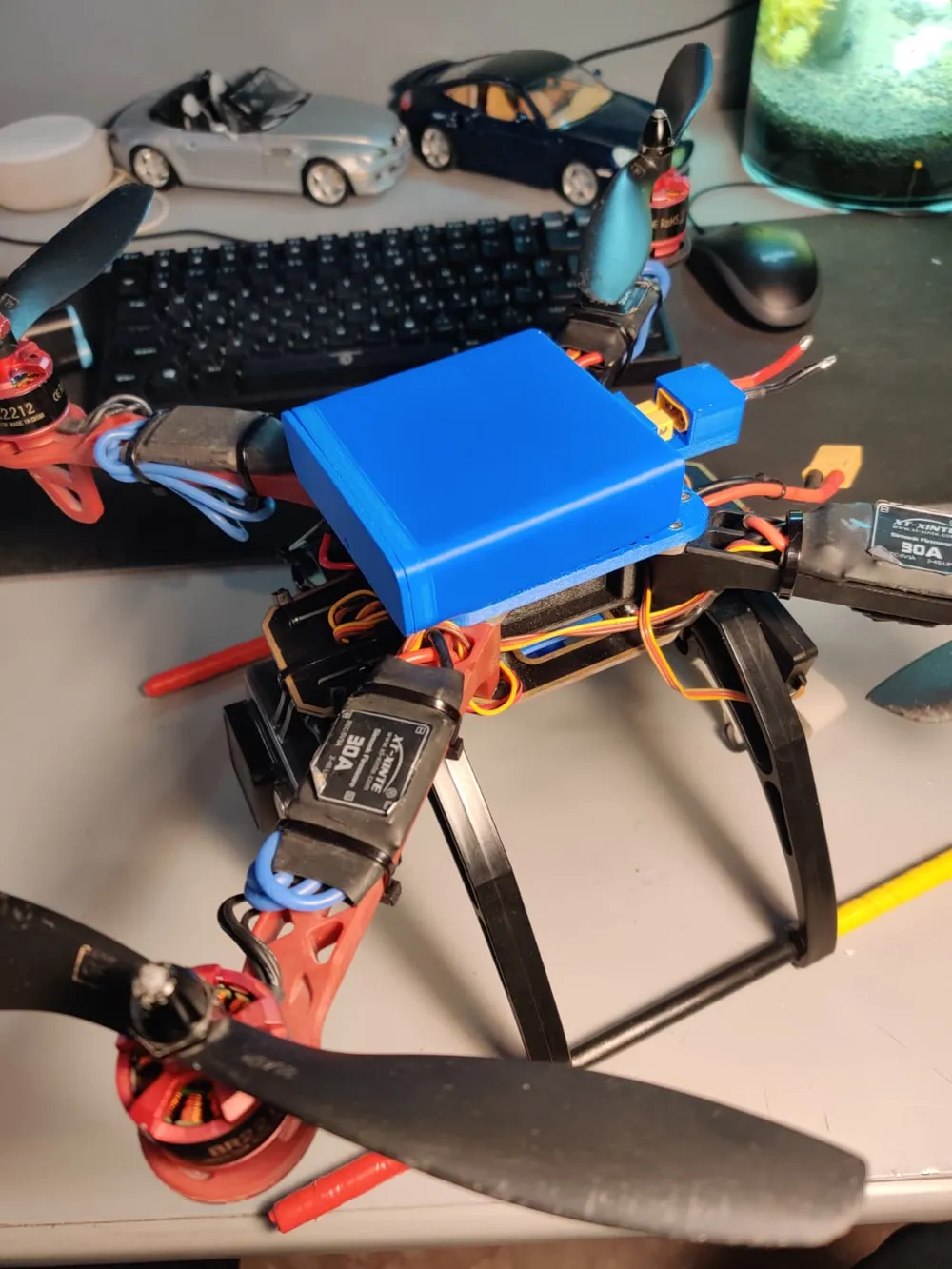

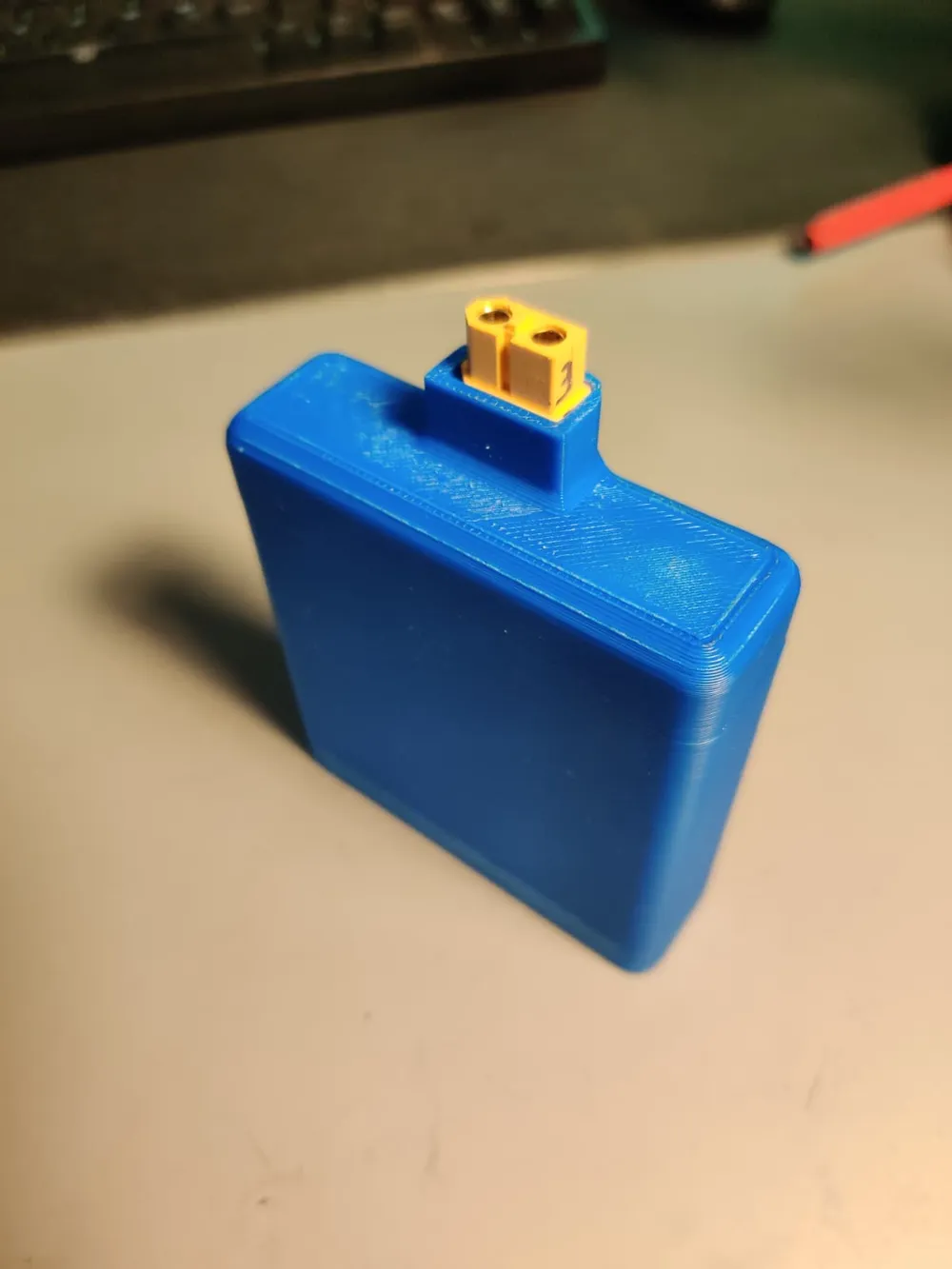

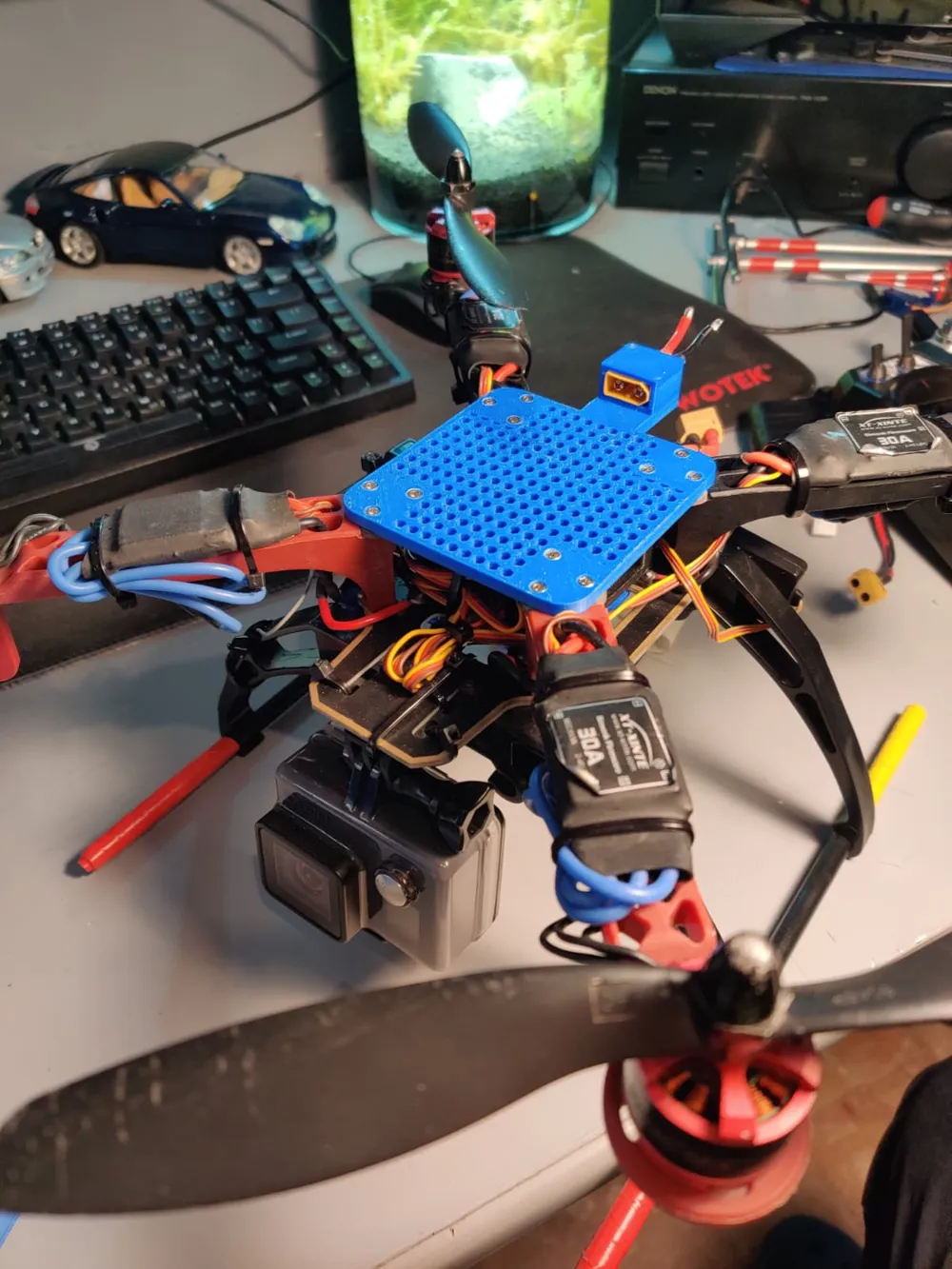

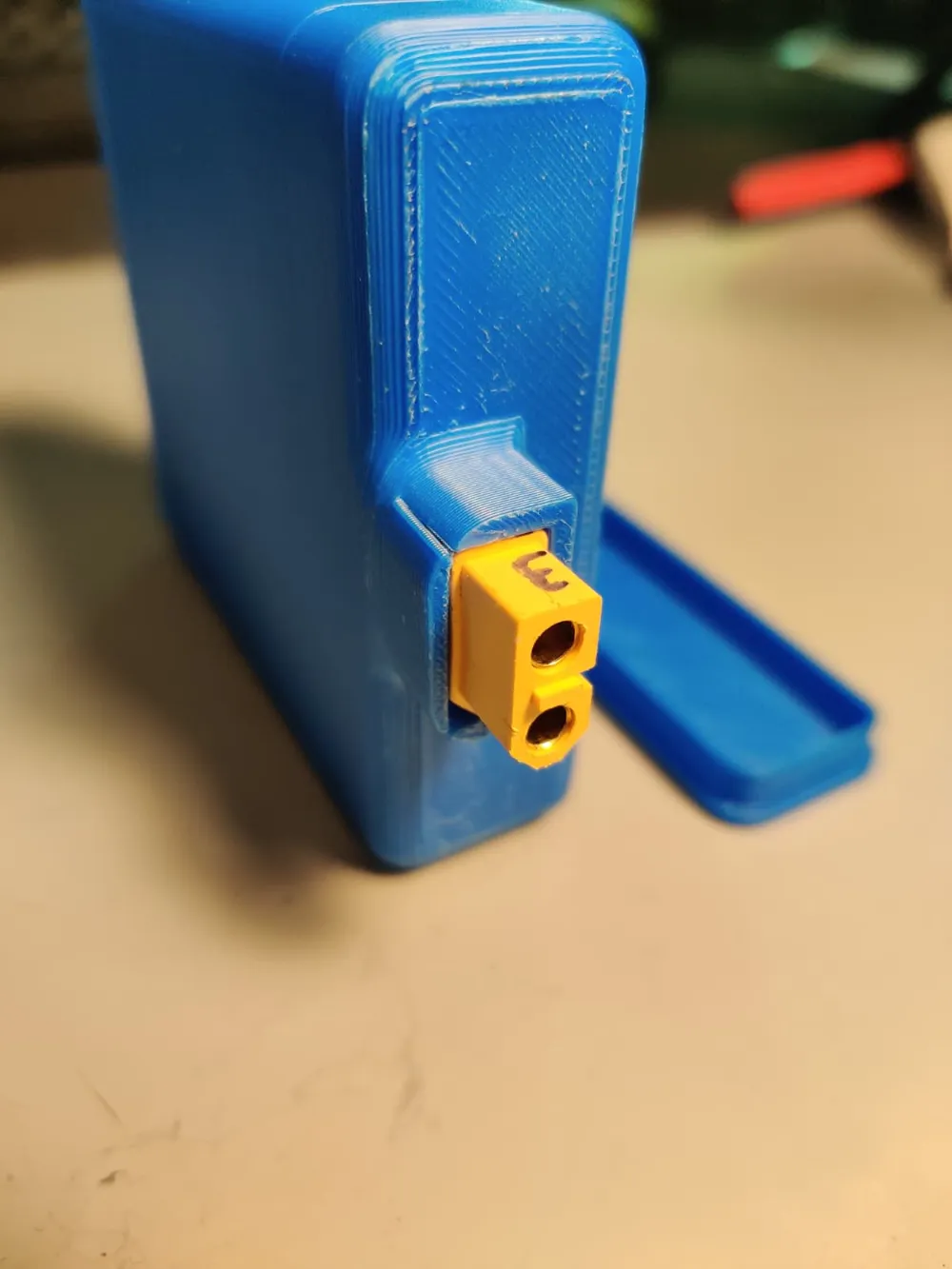

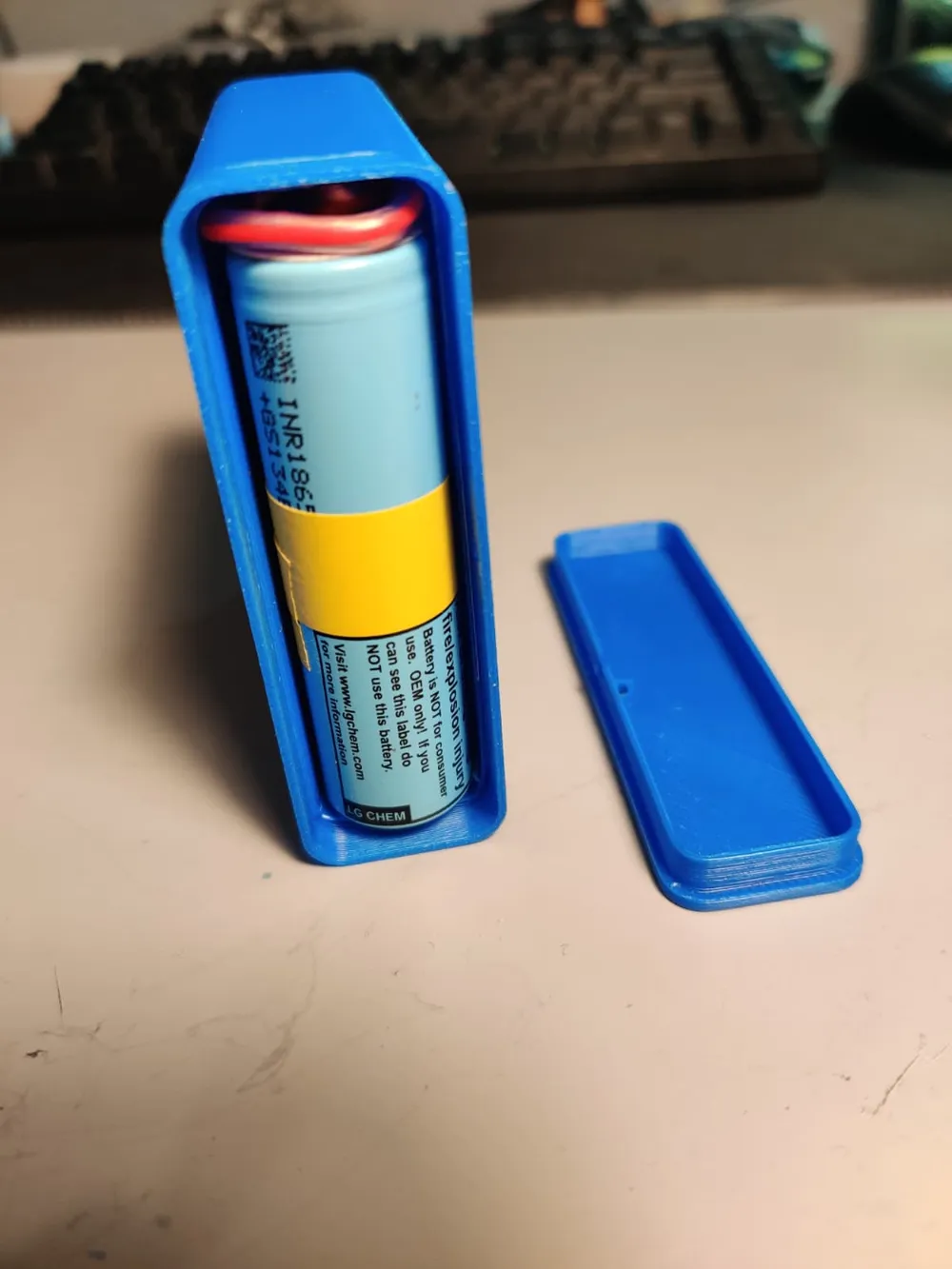

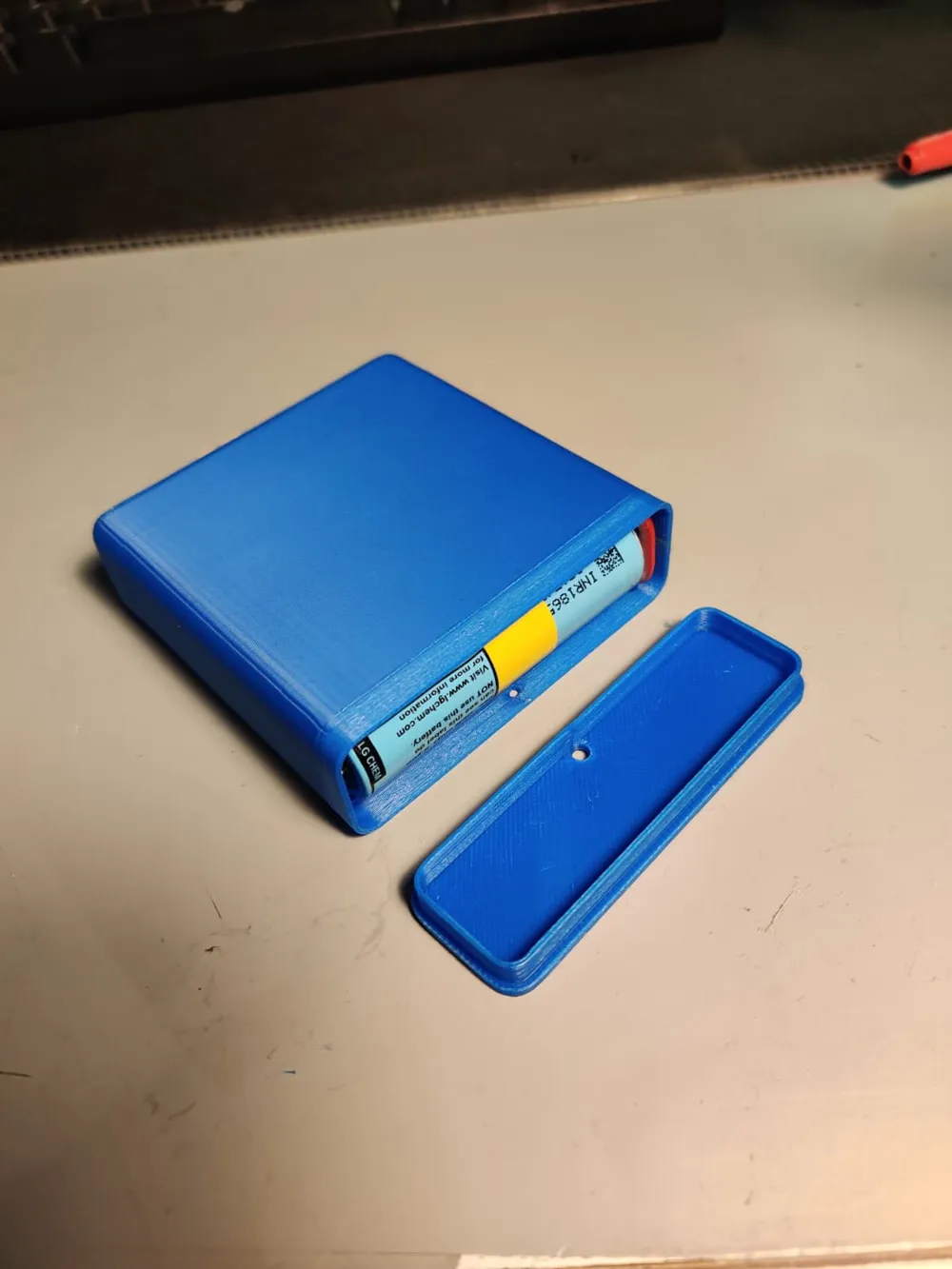

A plug-and-play battery system for DIY drones, suitable for 18650 batteries, with the option of 3s, 4s, and 3s2p configurations. It uses an XT60 mount (female on frame, male on batteries). I recommend using a strap attachment system for safety when securing the battery. I designed it for my DJI F330, but it should also be compatible with larger models like the F450.
I recommend 100% infill for strength, but it depends a lot on the type of material you use. If you already have very strong materials, you can reduce the infill to save weight. Printing with supports is not a problem; the layer height doesn't matter.
