Springfield XDm Elite Magazine Base

Magazine Base plate for XDm Elite, 20-rd magazines

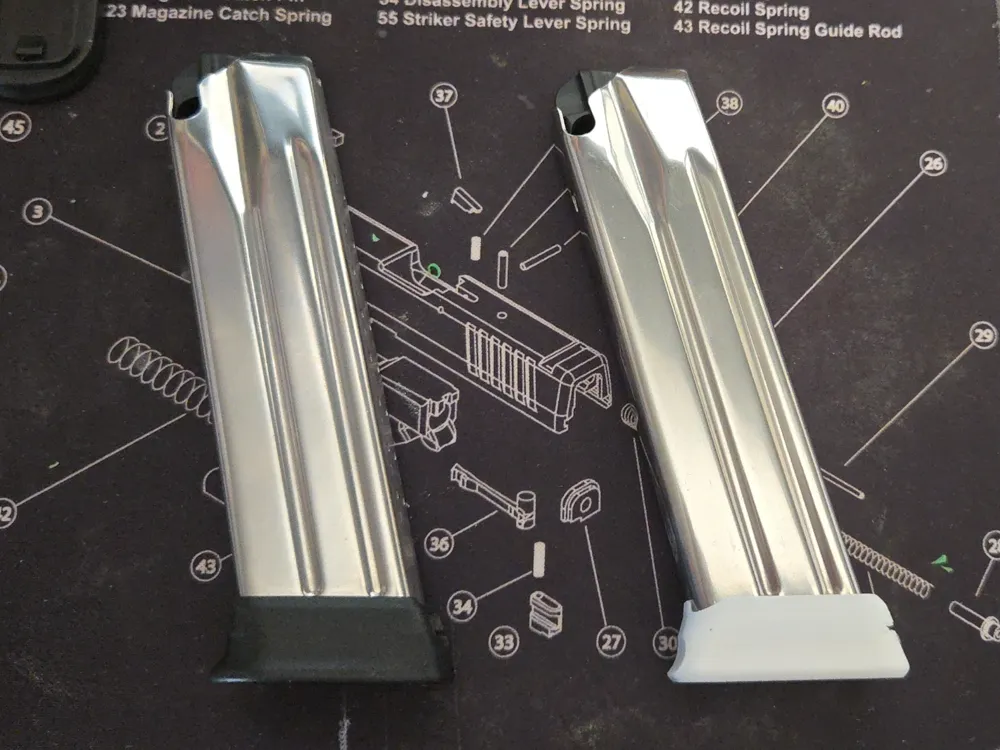

Springfield uses the same stamped steel magazine, marked for 19-rds, from the XDm.  The “Elite” offered an integrated Mag Well, allowing for an extended base plate on the magazine, making them 20 or 22 rd.   This is for the 20-rd magazine, effectively giving the 19-rd stamped steel magazine a “+1”.   Other +2 magazine base plates for the Springfield are out there, but they do not work if you have the Mag Well attached.

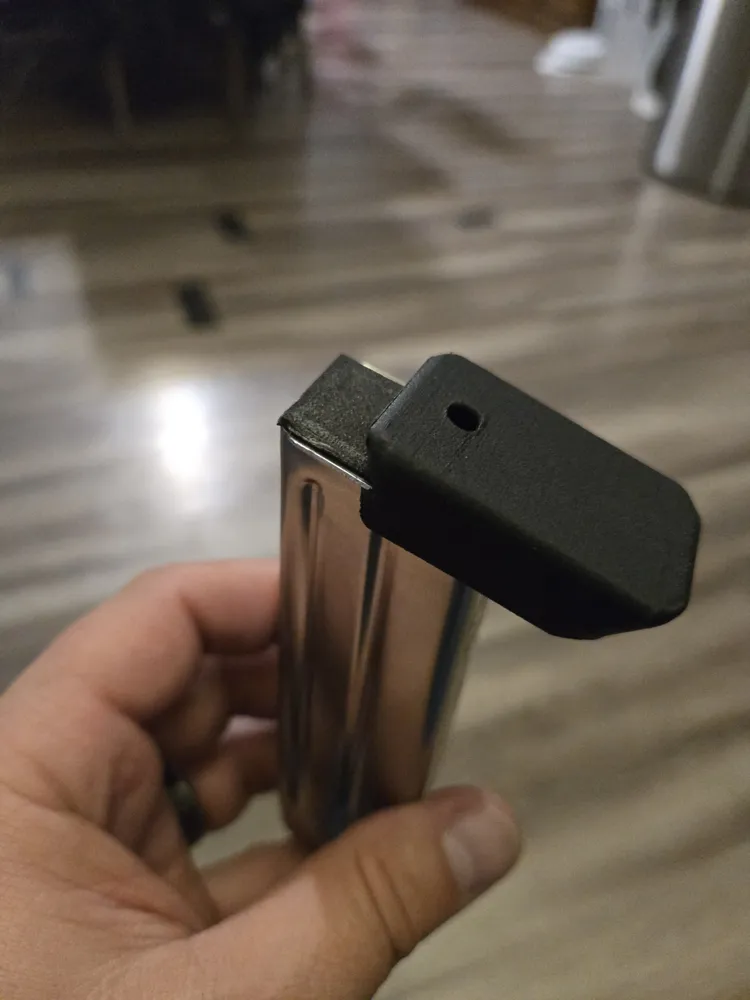

Spring plate hooks on magazine spring and sits inside the magazine base plate to “lock” it in.

Print magazine base plate “vertically” for strength in the grove that the stamped steel magazine slides into.

Printed in PETG-CF.  PLA would probably work, but might not hold up as well.

.16 layer height.  4 or 5 walls for added strength
