Word Clock with ESP32, RTC & Web Interface

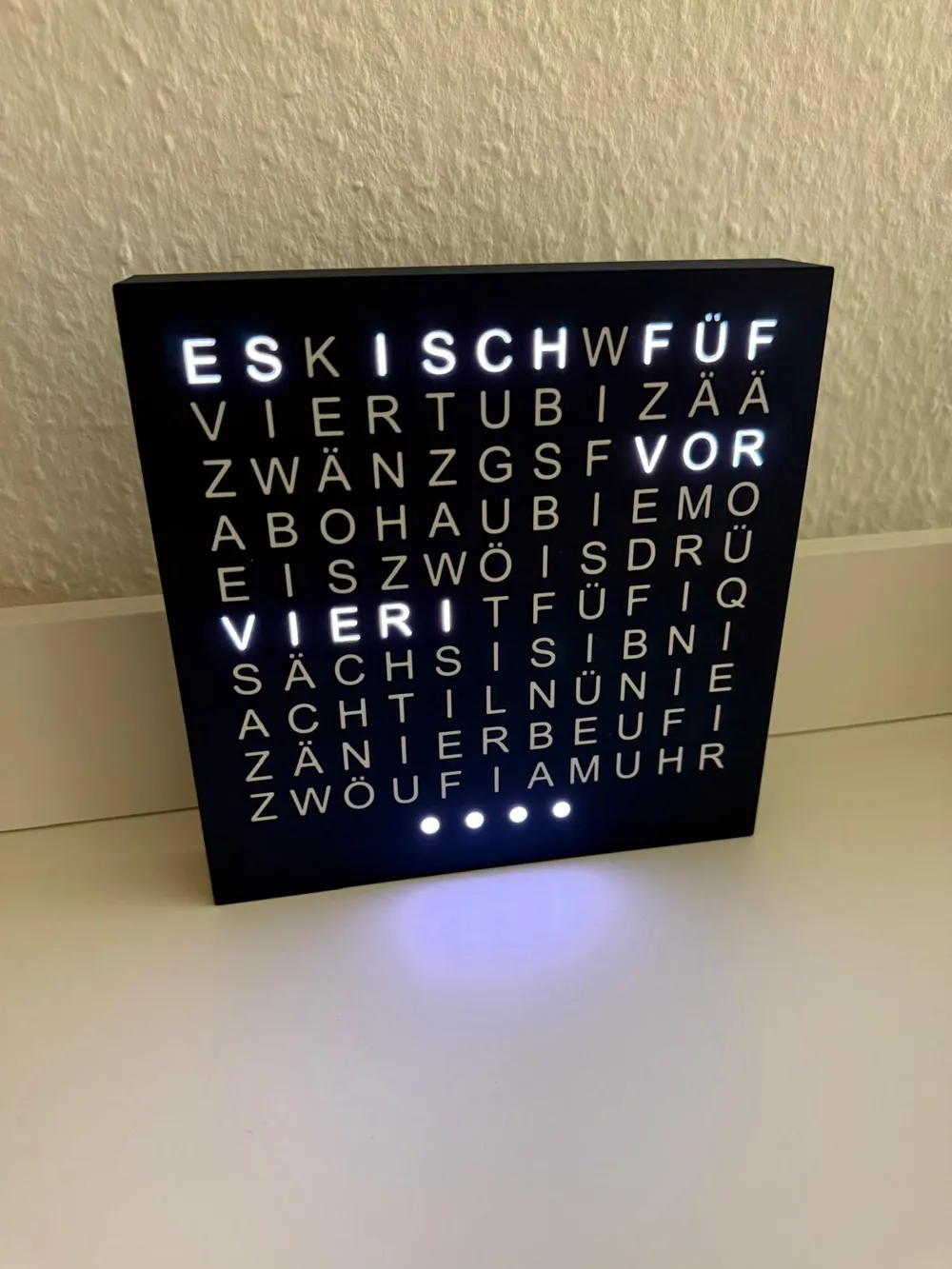

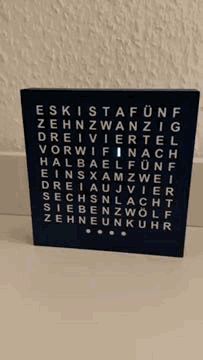

Modular Word Clock (German) with ESP32, RTC & Web Interface

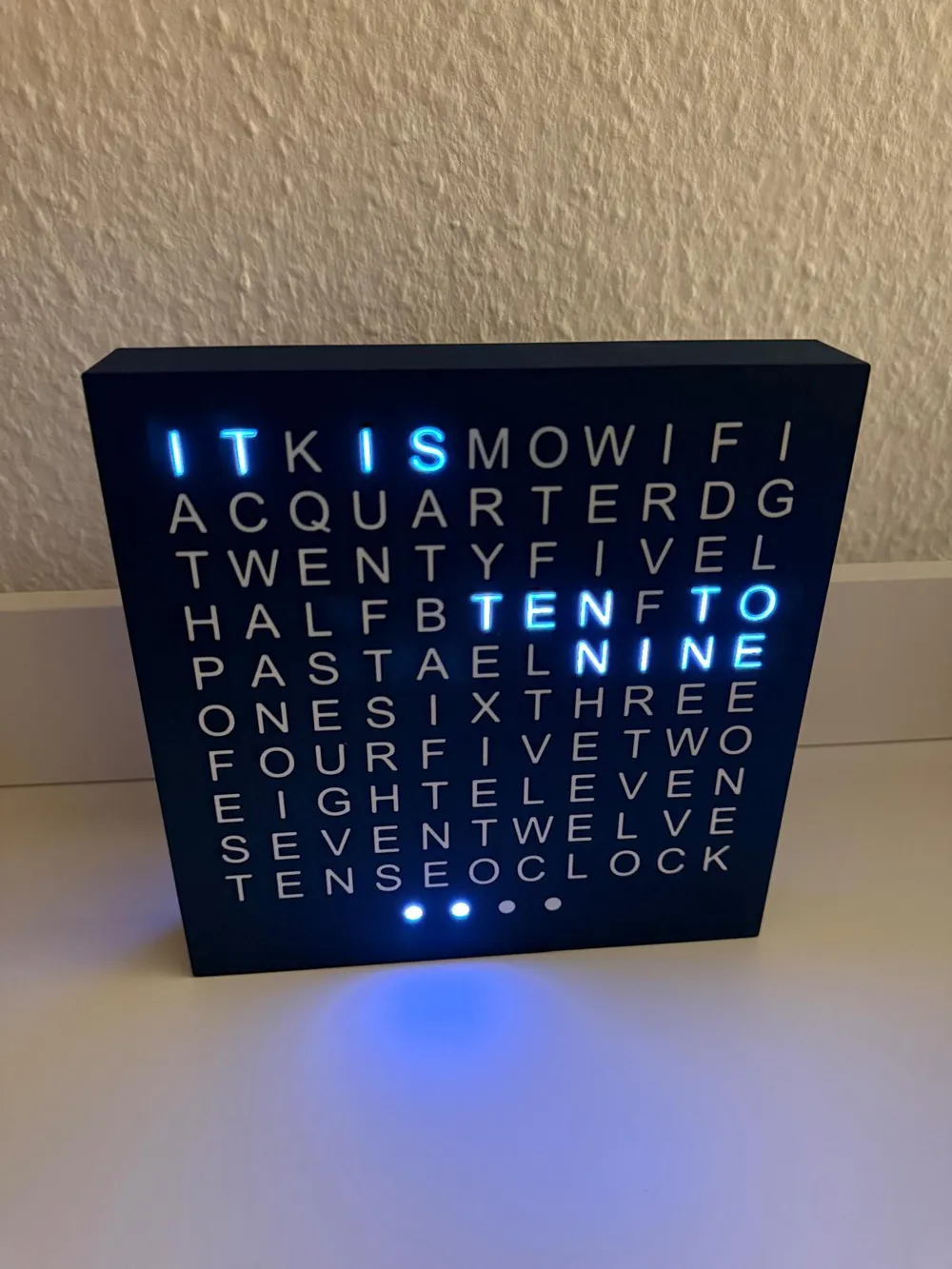

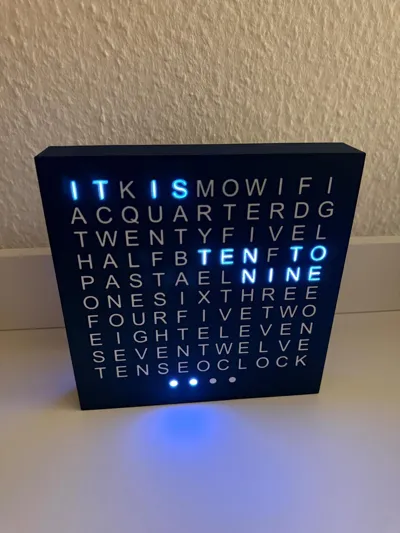

This word clock displays the time in either German or English and is controlled by an ESP32.
Thanks to the integrated RTC module, it operates reliably even without Wi-Fi.

Brightness, color, and night mode settings can be conveniently adjusted via an integrated web interface.

✨ Features

• ESP32 control
• WS2812B LED matrix
• RTC module (e.g., DS3231) for offline operation
• Automatic day/night brightness adjustment
• Color selection via web interface
• Night mode with adjustable times

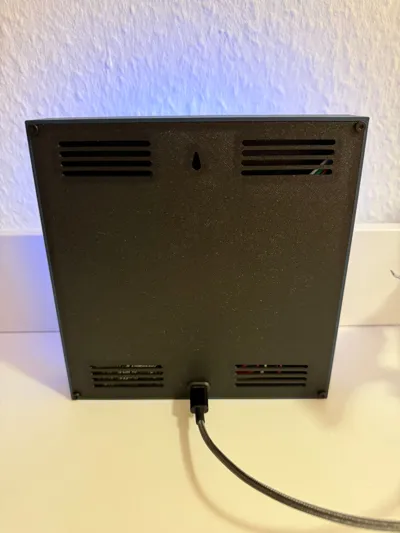

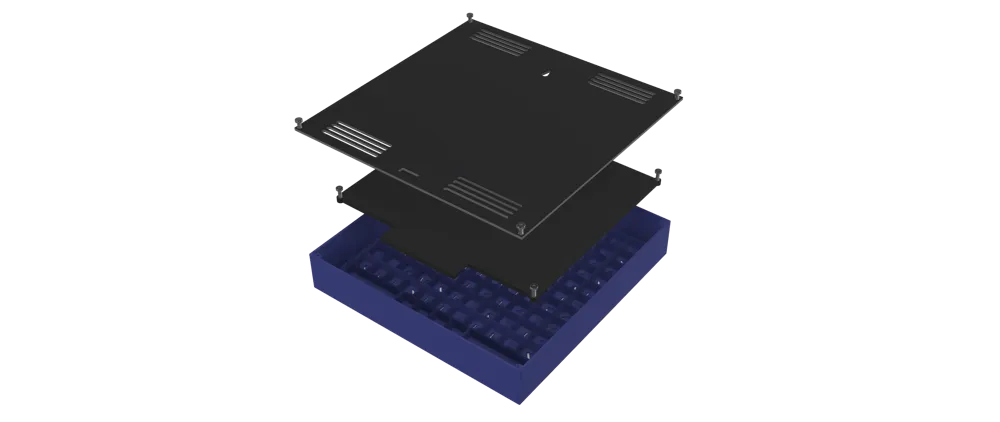

• Modular housing
• Clean cable management
• No cloud required

🌐 Easy Wi-Fi Setup

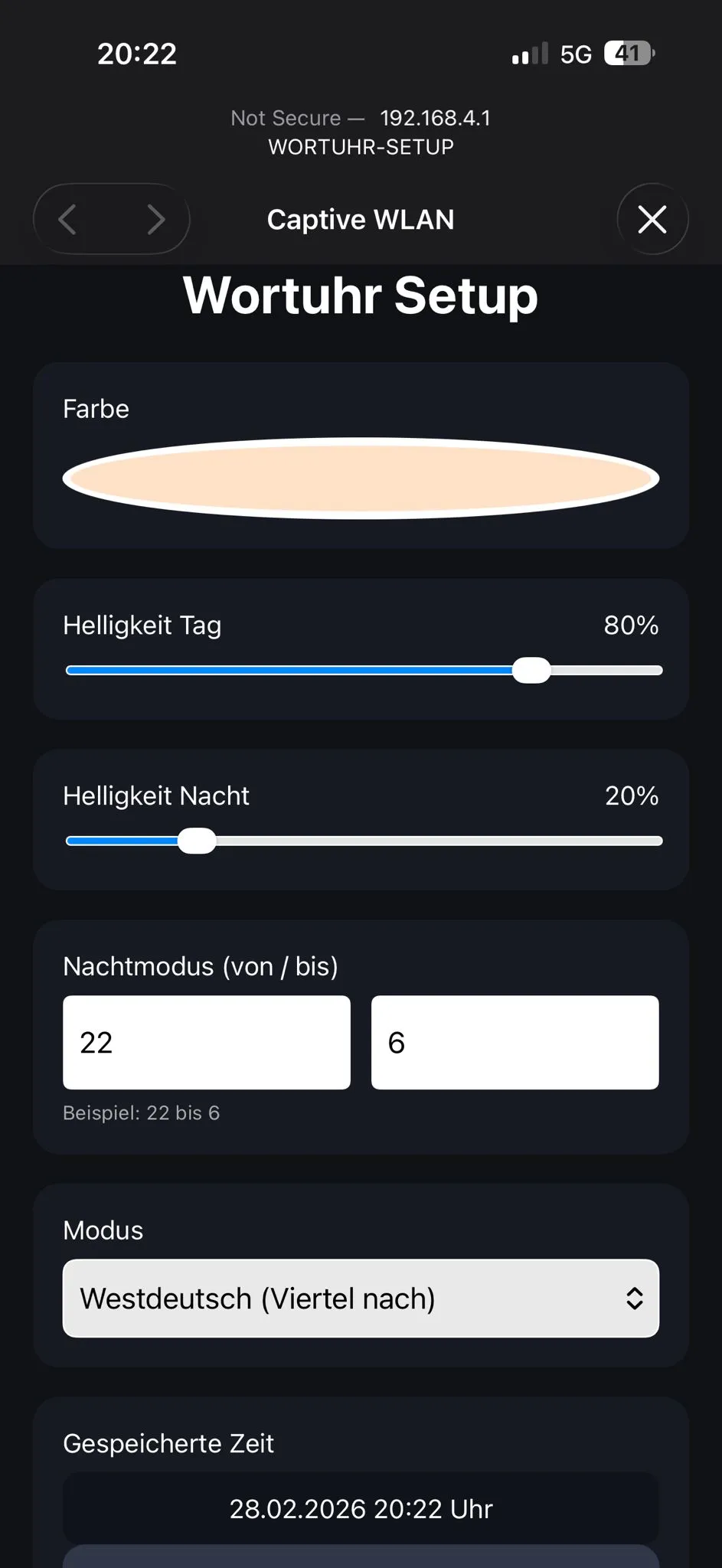

After startup, the clock automatically creates its own Wi-Fi access point for one minute.

Using this access point, the clock can be easily accessed and configured via smartphone.

The following settings can be adjusted:

• Day and night brightness
• Color
• Night mode schedule (when dimming should occur)
• Switch to East German phrasing 😉 (German version only)
• Synchronize time with your smartphone

🛠 Required Hardware

• ESP32 development module

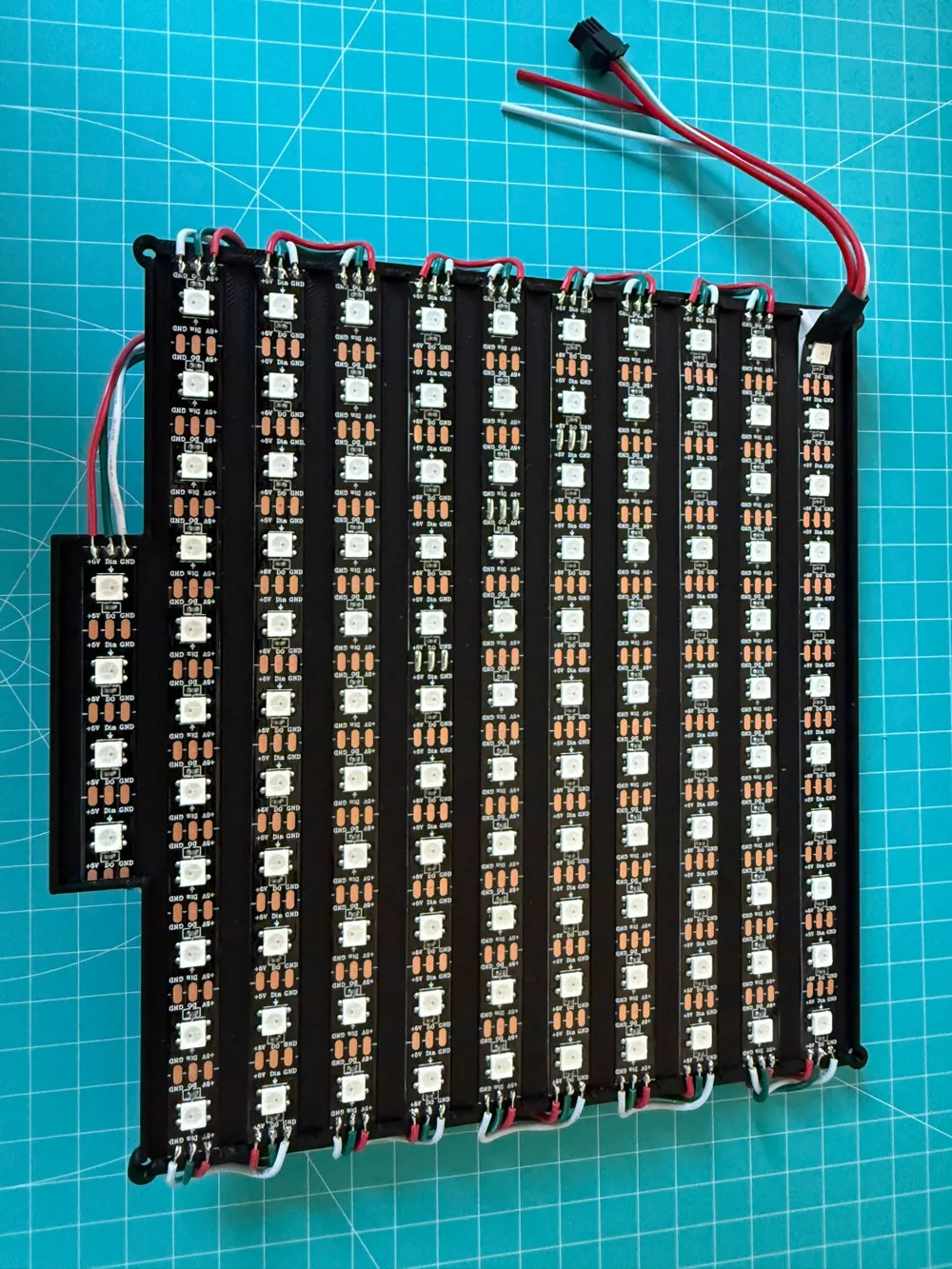

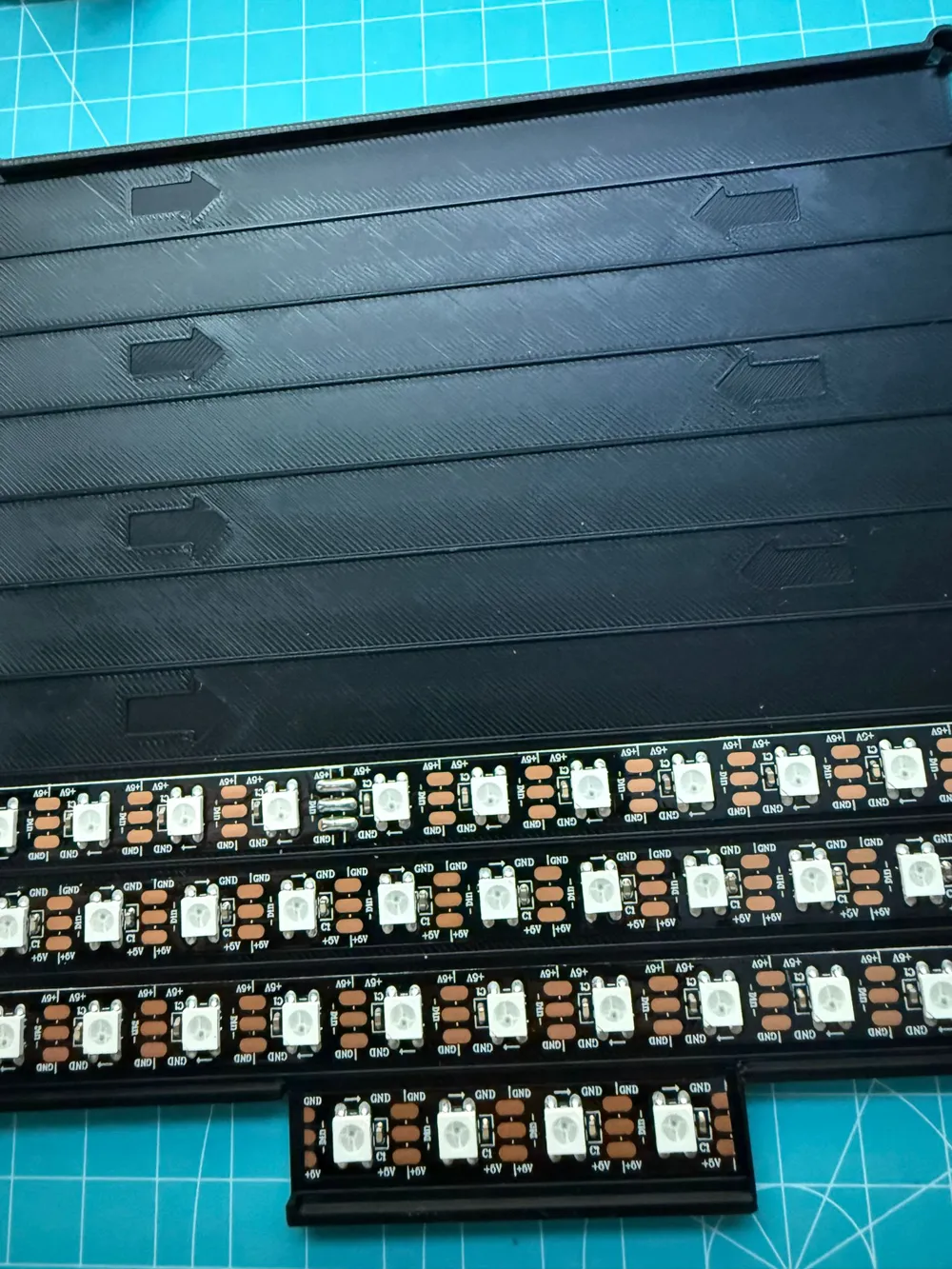

• WS2812B LED strip (approx. 2 m)

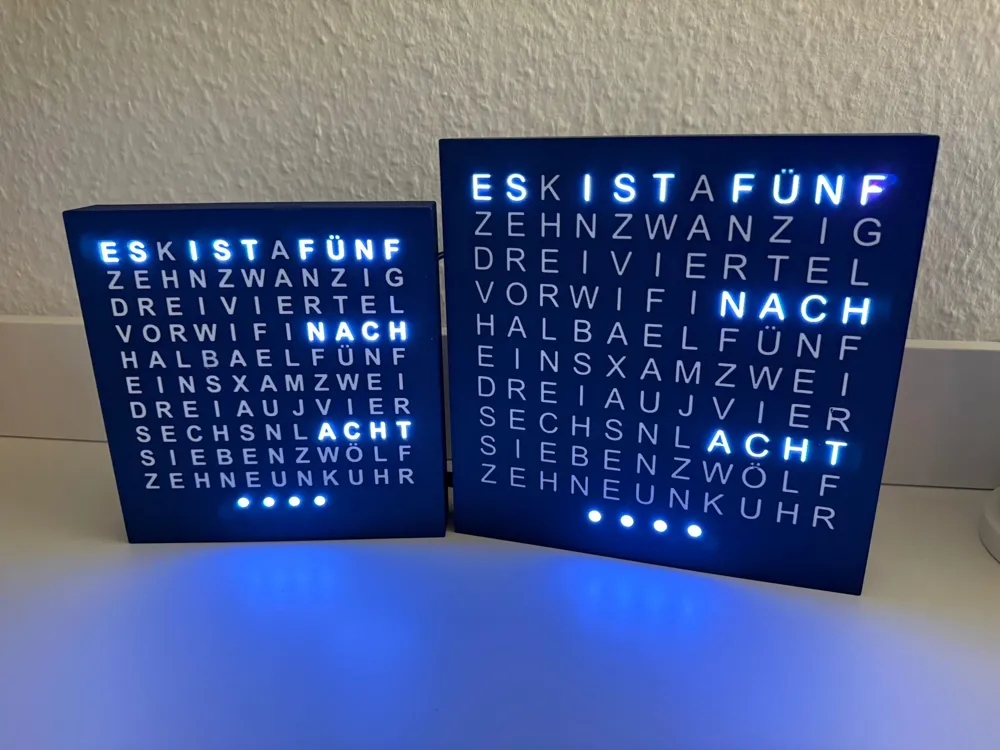

• 60 LEDs/m (large version)
• 74 LEDs/m (small version)
• RTC module (DS3231 recommended)
• 5V power supply (minimum 3A recommended)
• USB-C connector (2-pin)
• 8 screws BT3x8 (e.g., from a beginner kit)
• Wires

⚙ Special Feature

Thanks to the RTC module, the clock continues to run even without Wi-Fi.
Perfect as a gift or for locations without internet access.

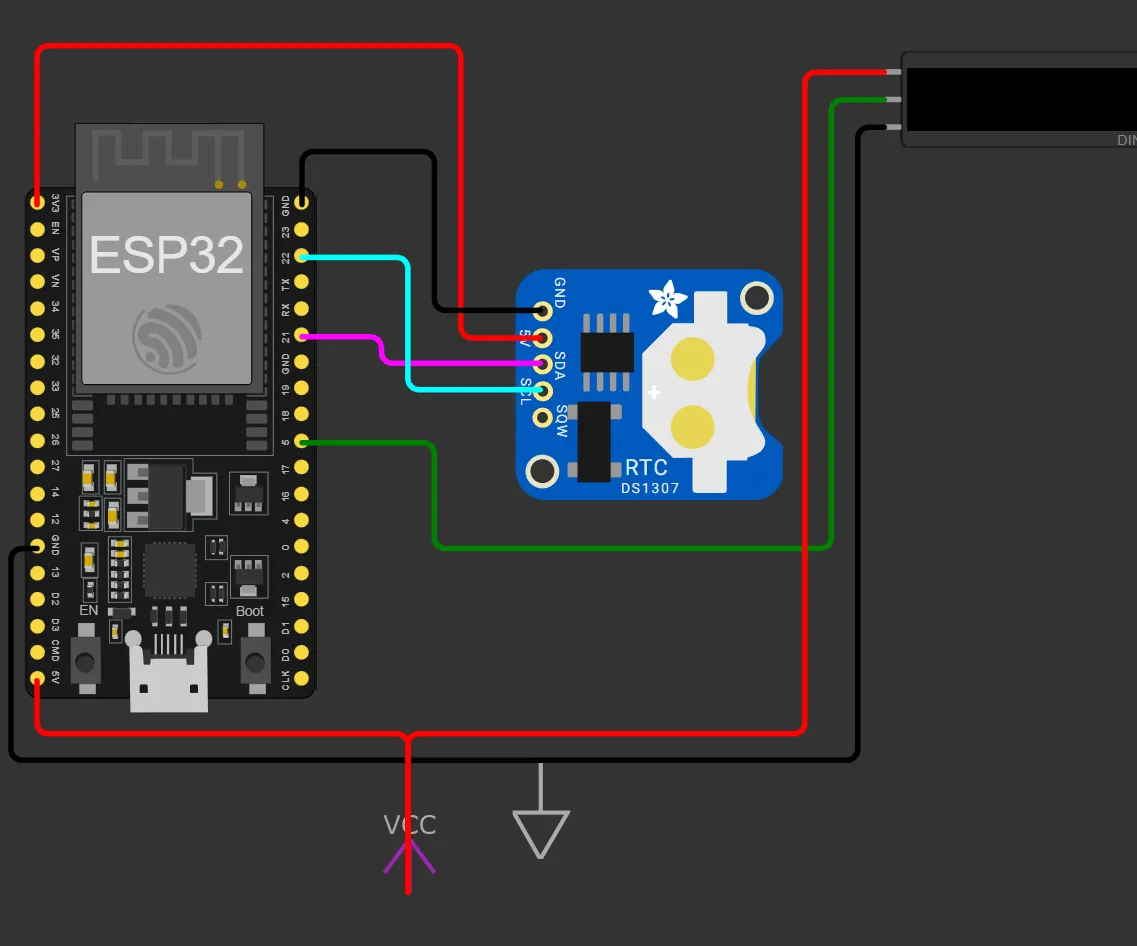

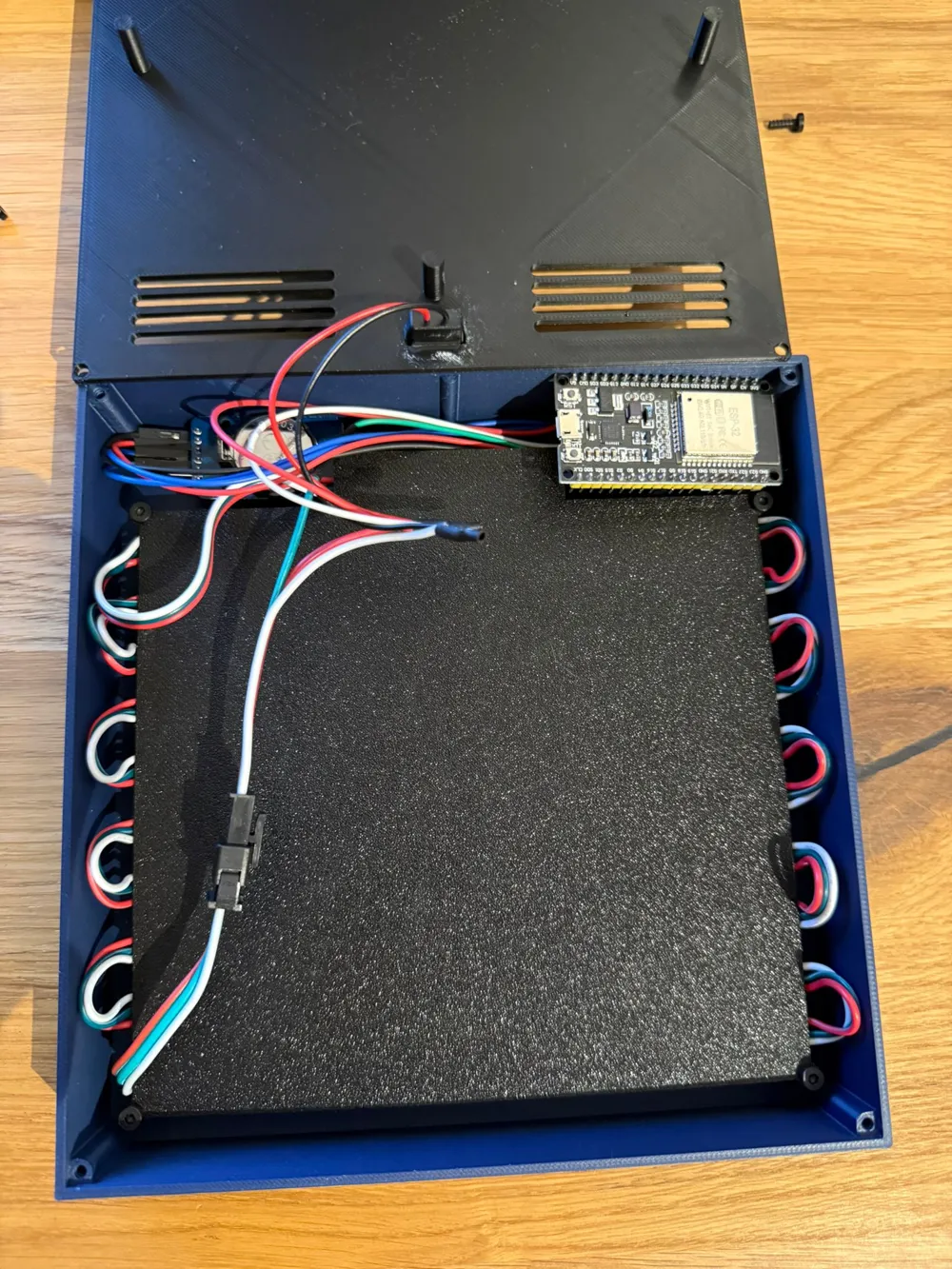

🔌 Wiring

• The RTC module typically uses a 3V supply and can be powered directly from the ESP32
• The LEDs should use a separate 5V power supply
• LEDs are controlled via pin 5
• SDA connected to pin 21
• SCL connected to pin 22
