AUX Beam 8 Gang switch mount for RAM Mount system
Print Profile(1)
Description

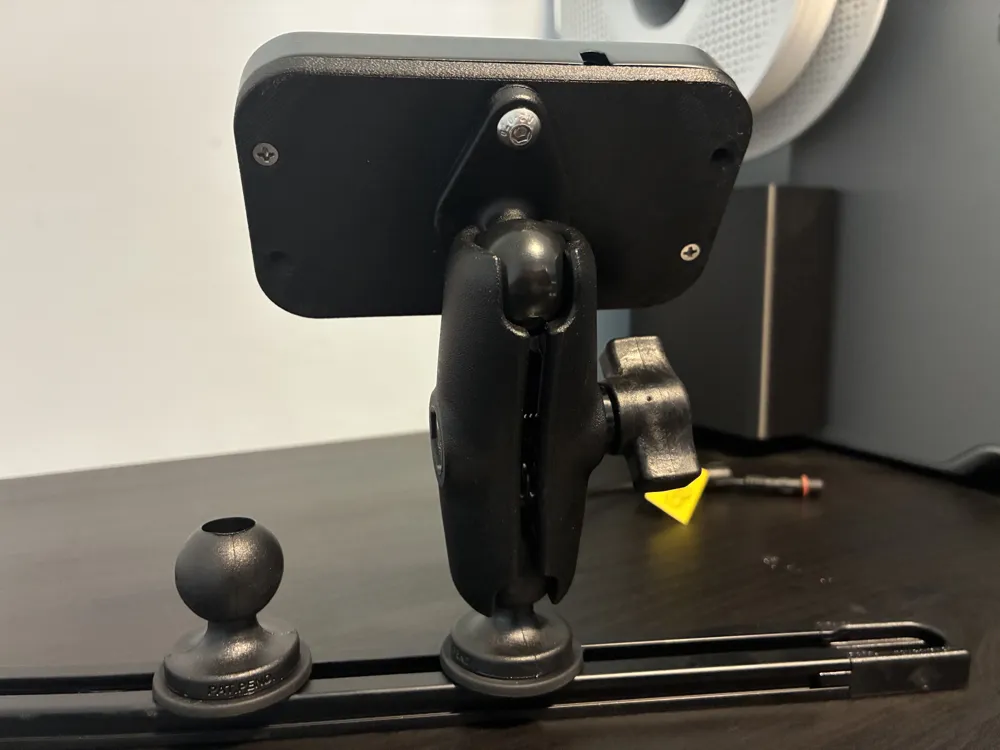

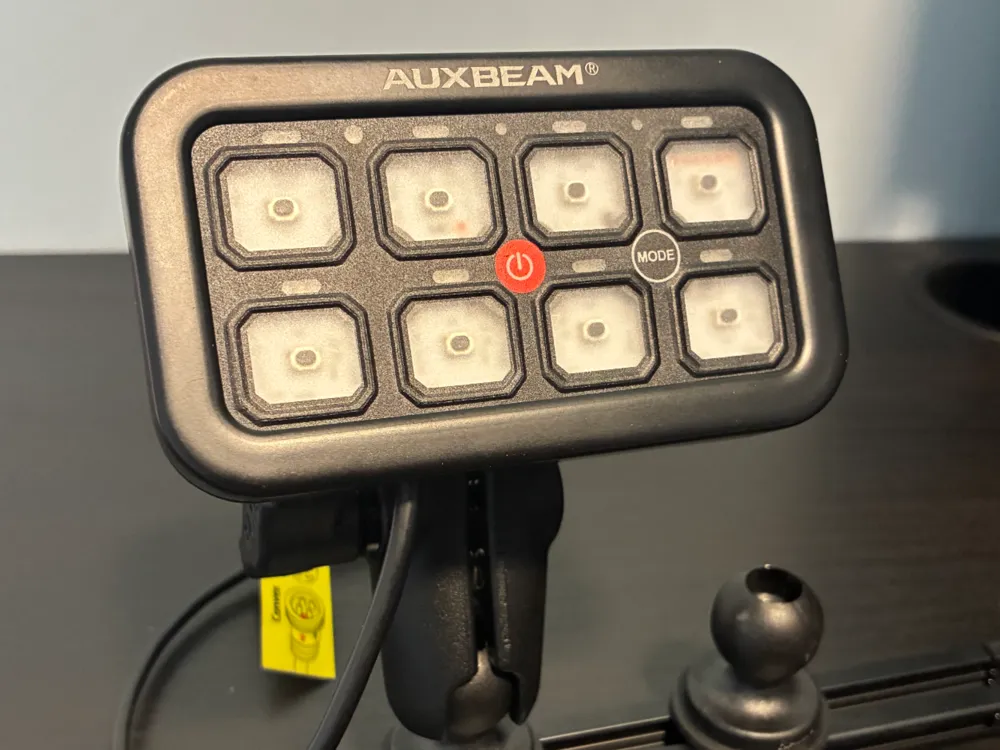

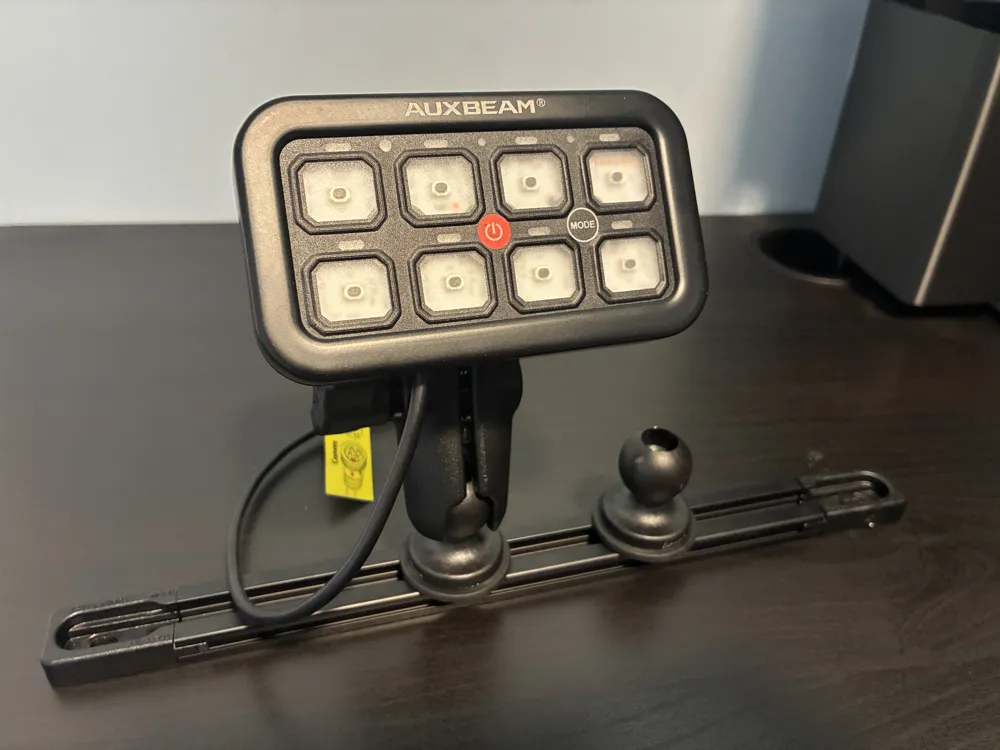

This a simple mount for an AUX Beam 8 gang (8 button) switch. It is designed to work with a RAM Mount B size diamond base. The holes in the back are sized for some ¼" deep M5 nut inserts.

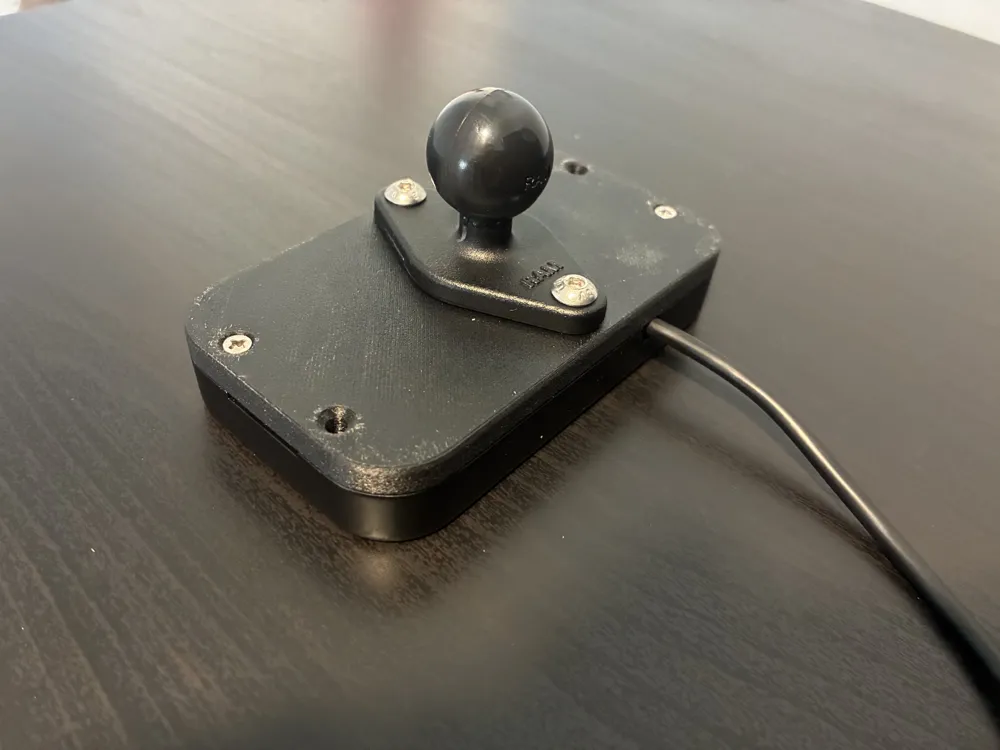

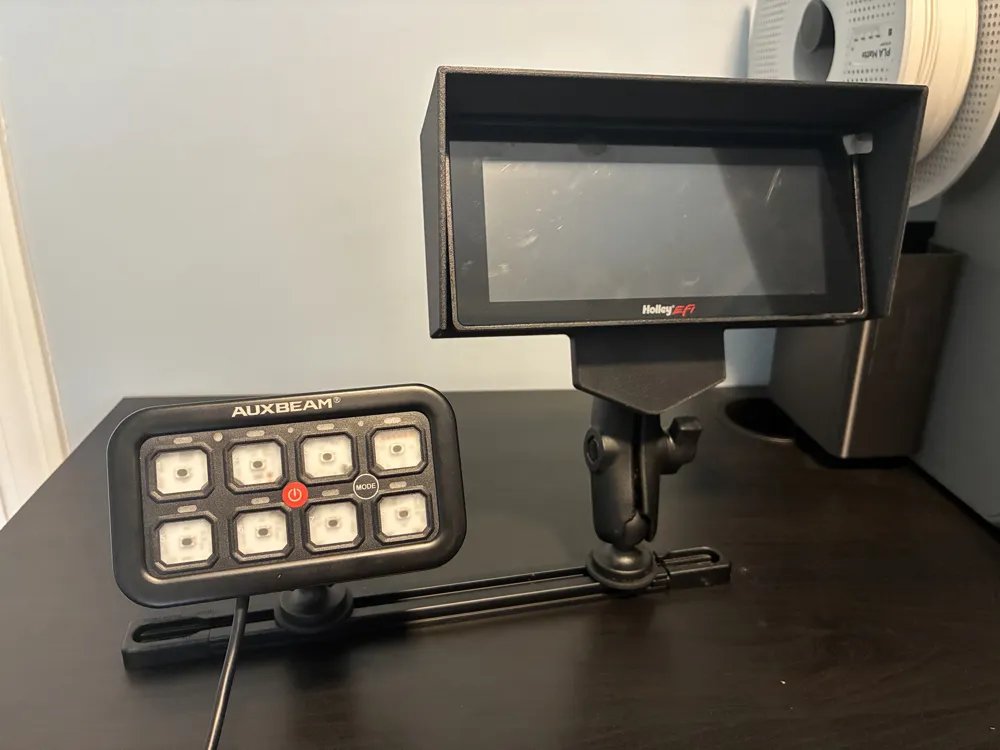

To attach the mount to the RAM Mount base you will need 2x M5 nut inserts, and 2x 12mm M5 screws of your choice. Of cores you will also need the RAM Mount B size diamond base and other RAM Mount parts to fit your needs. They offer a track system in different lengths and materials, as well as suction cup mounts and direct screw or glue on mounts. Their B size system holds 1-2lb depending on driving conditions.

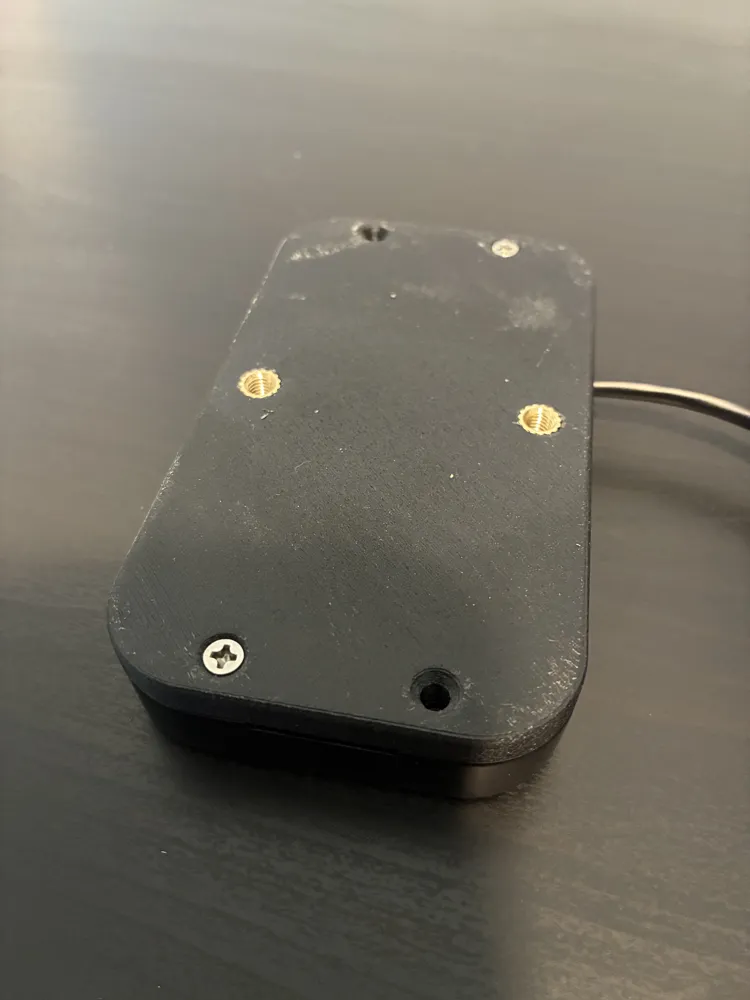

I printed this in ABS-GF on my P2S. Sadly I had some lifting on the edges on my first print which you can see on the back side of the mount in the images. Bad glue job on the print bed.
