Fronius Wattpilot Flex removable wall mount
Print Profile(1)
Description

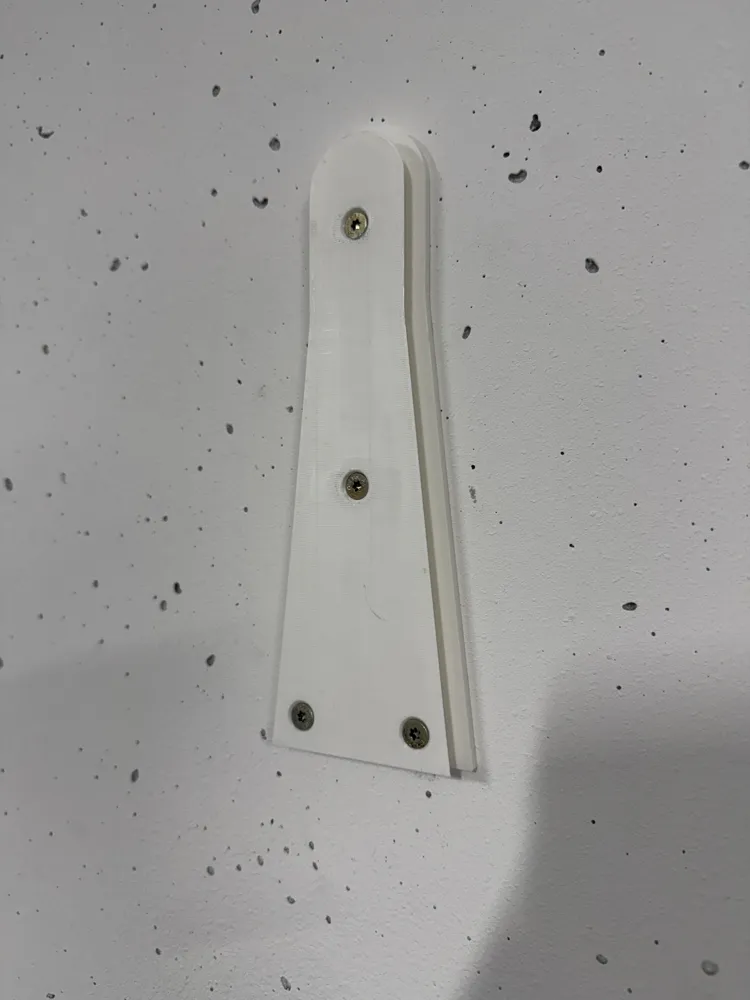

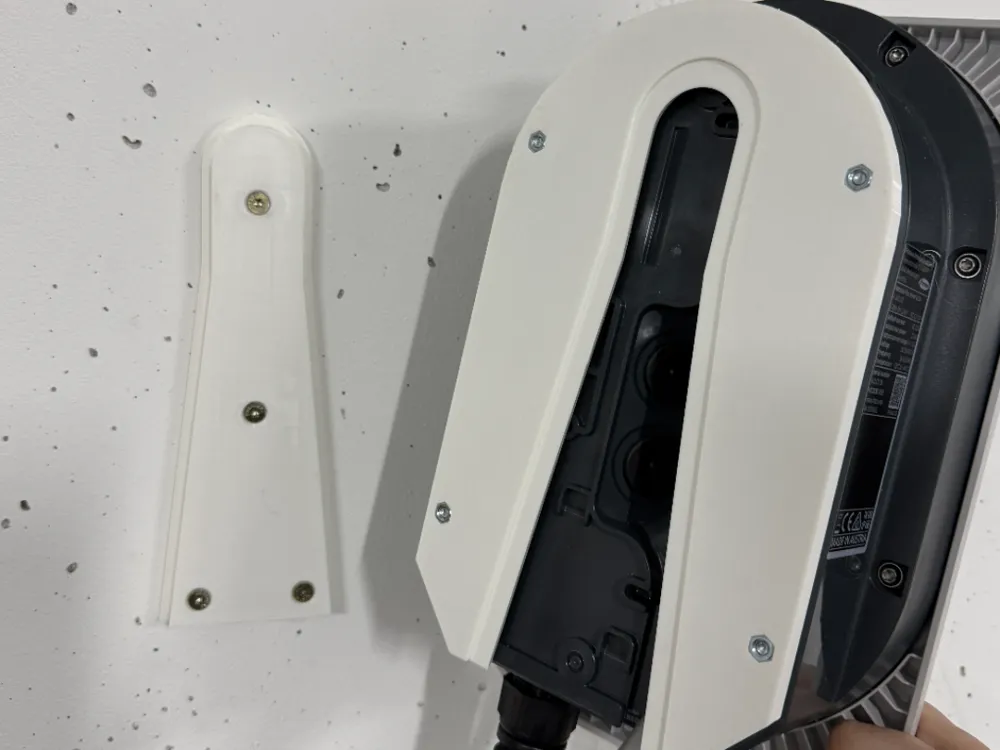

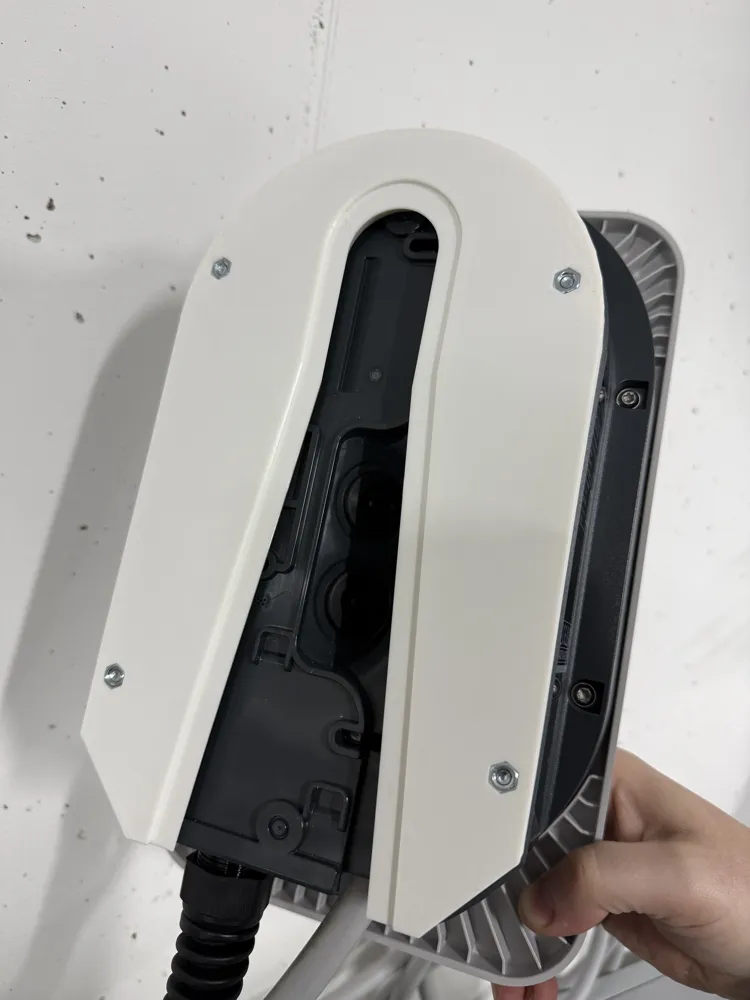

Removable Wall Mount for the Fronius Wattpilot Flex

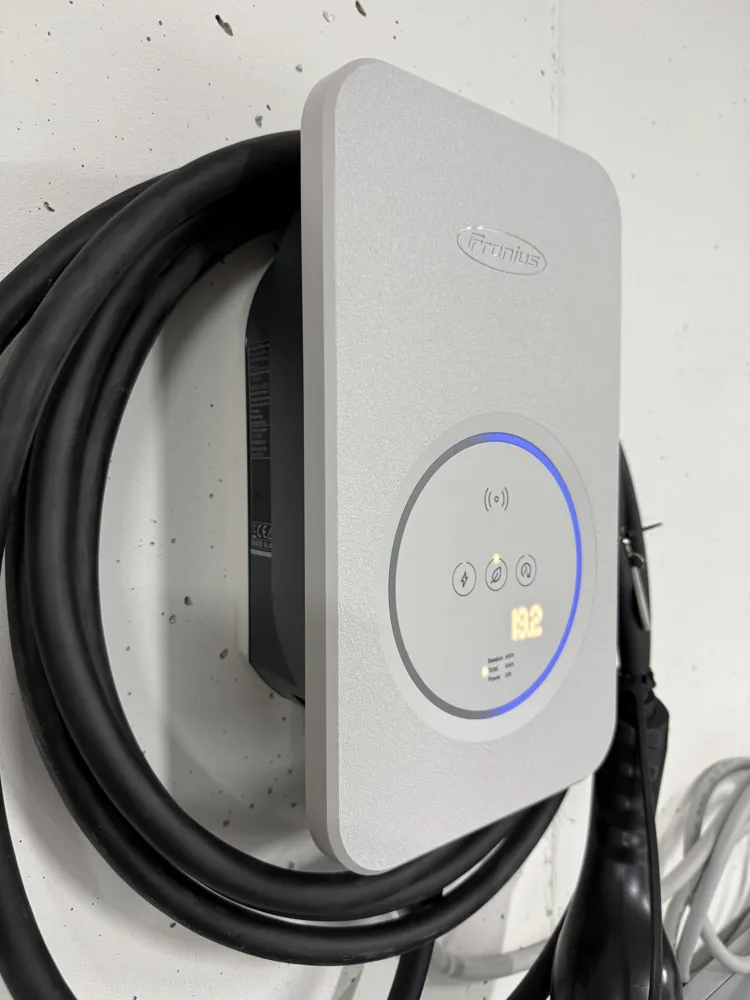

This specially designed wall mount for the Fronius Wattpilot Flex allows for flexible yet stable mounting of your charger
I designed this mount because a fixed wall installation was too impractical for everyday use: if the car is parked further away, the charging cable is often too short With this solution, you can quickly and easily remove the Wattpilot from the wall and, thanks to a 6 m long power cable, flexibly position it closer to the vehicle
Advantages
- ✔ Removable design – no more rigid mounting
- ✔ Stable hold when hooked in

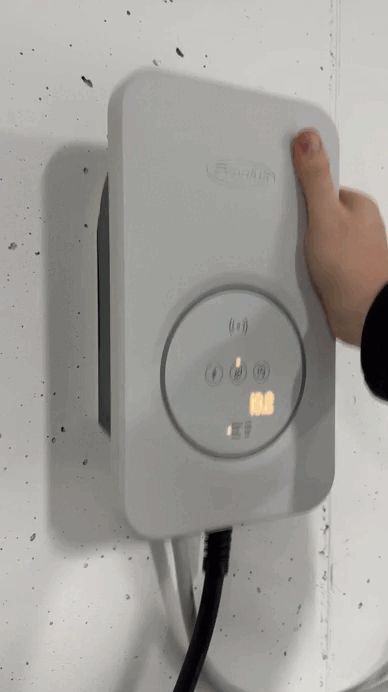

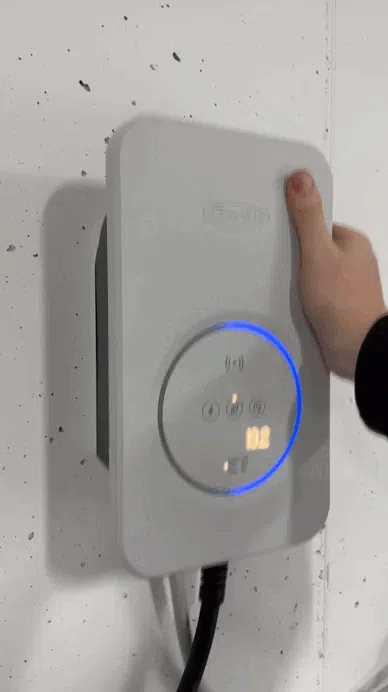

- ✔ Quick removal when needed
- ✔ Ideal for garages, carports, or outdoor areas
Print Recommendation
For maximum stability and temperature resistance, I recommend printing with ABS
Especially at higher temperatures (e.g., in the garage in summer), ABS provides the necessary dimensional stability
Required Hardware
- 4× M5 nuts
- 4× M5x12 screws
- 4x screws with anchors for wall mounting (depending on mounting surface)
If you have suggestions for improvement or need adjustments, I welcome your feedback Happy printing
