3.5-inch racing drone, ducted drone, independent VTX swappable module, quick duct replacement, easier crash maintenance
Print Profile(1)
Description

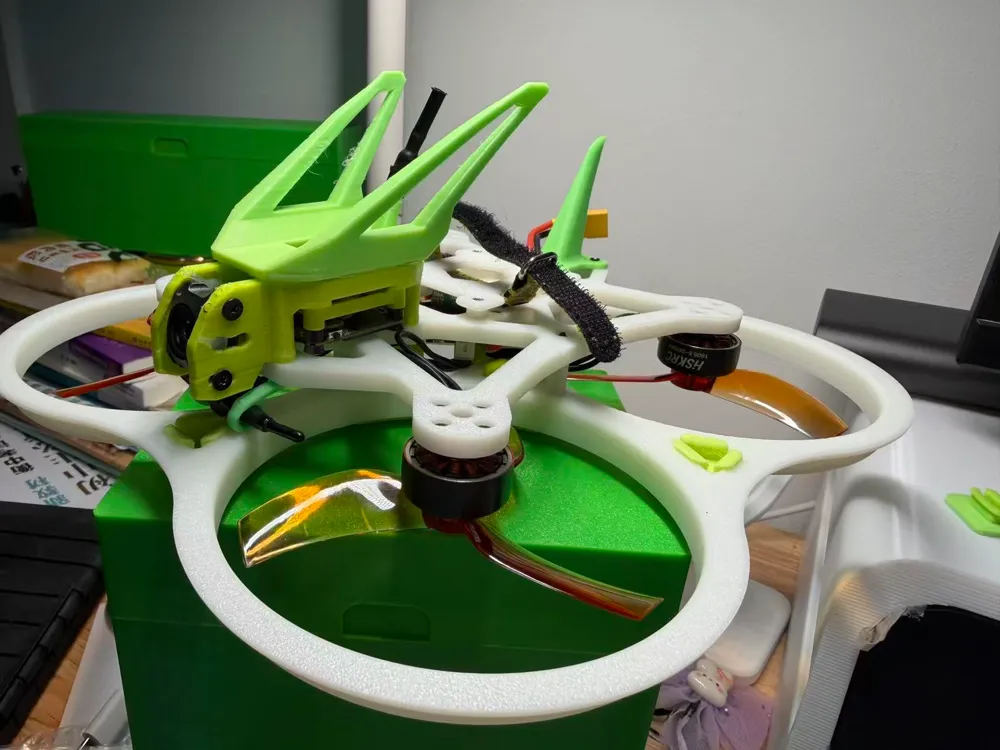

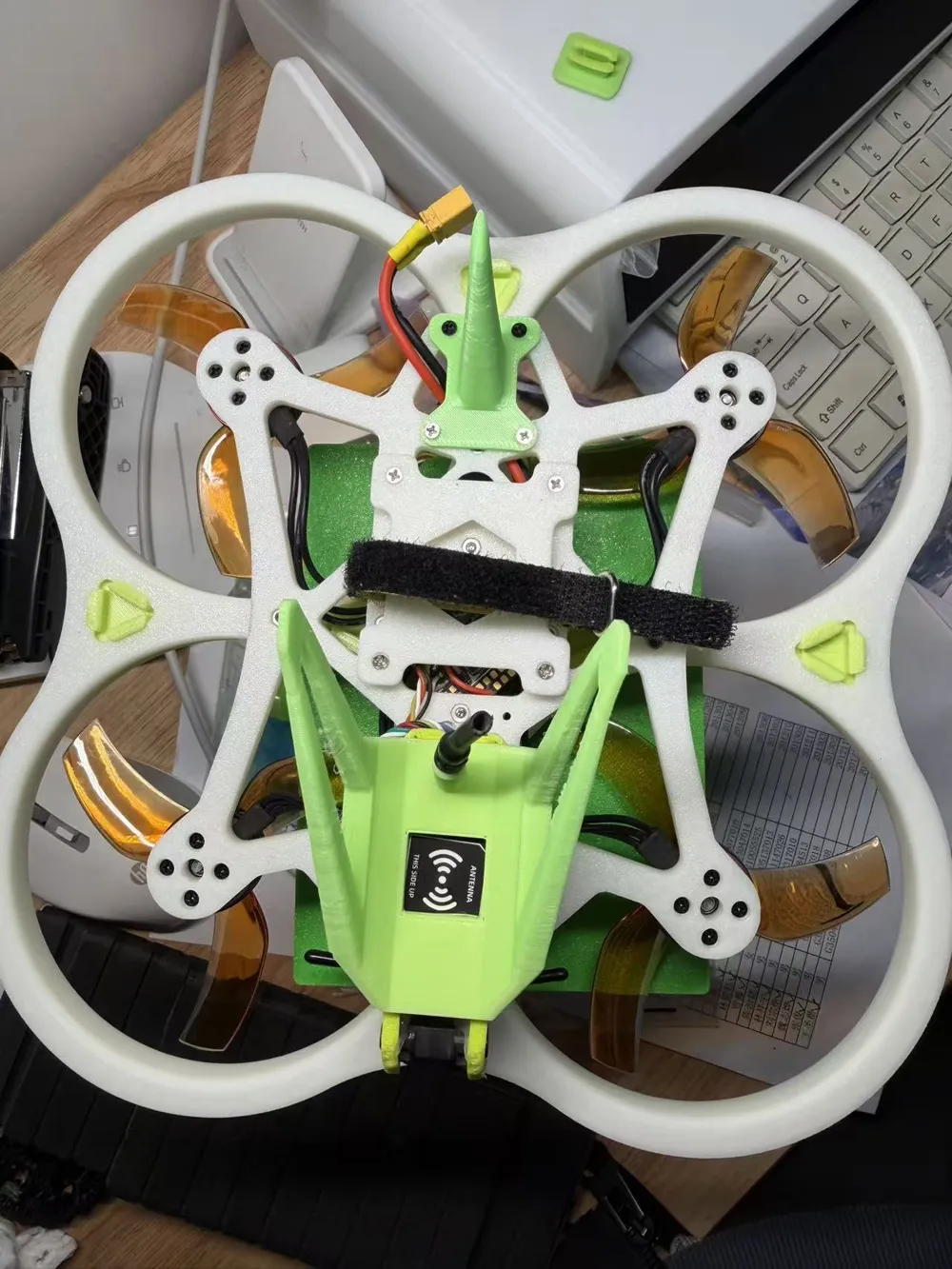

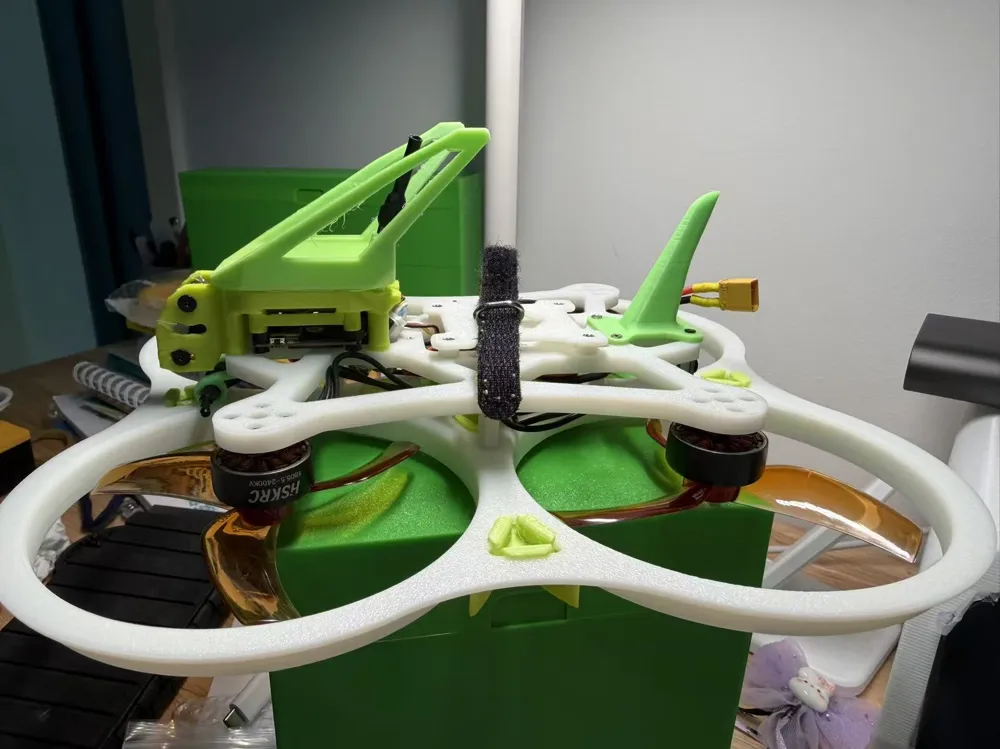

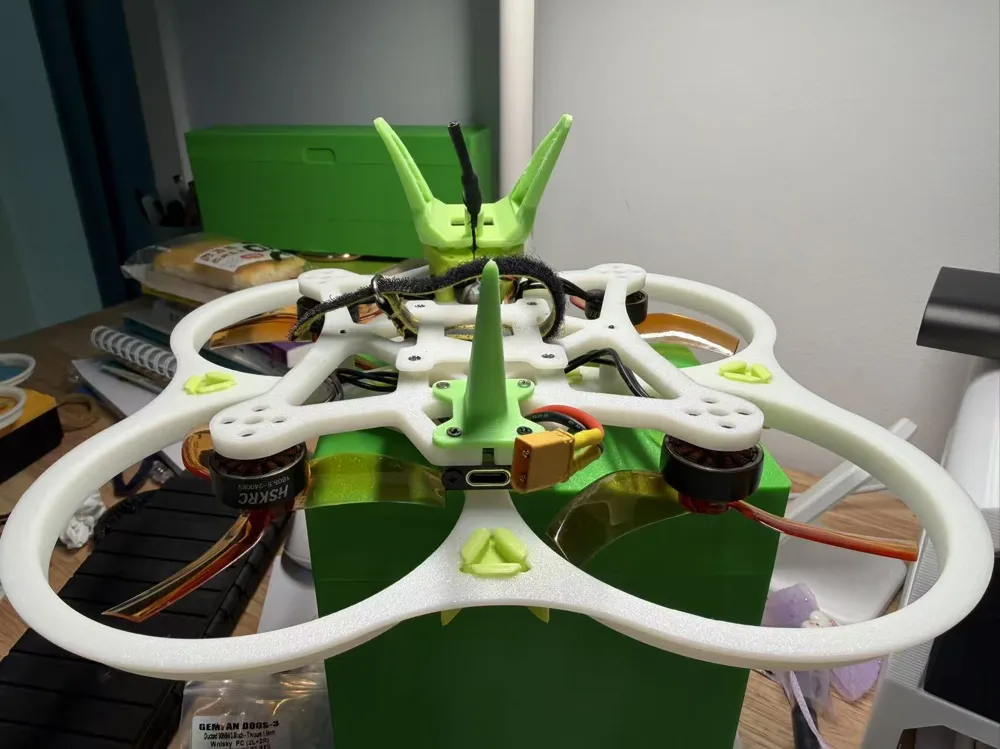

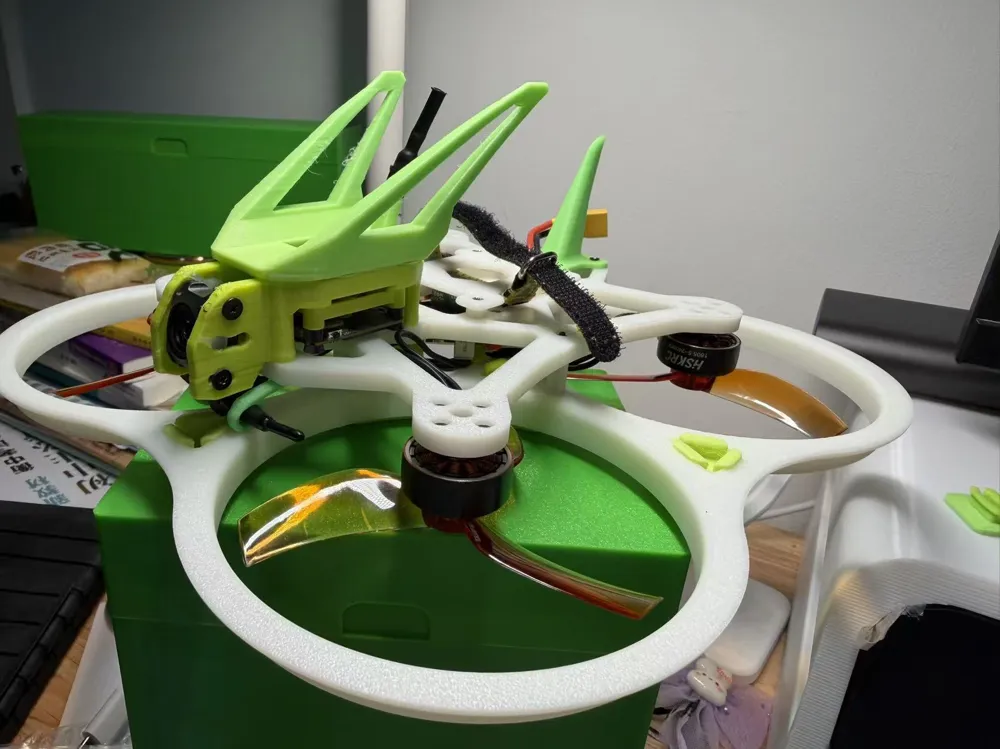

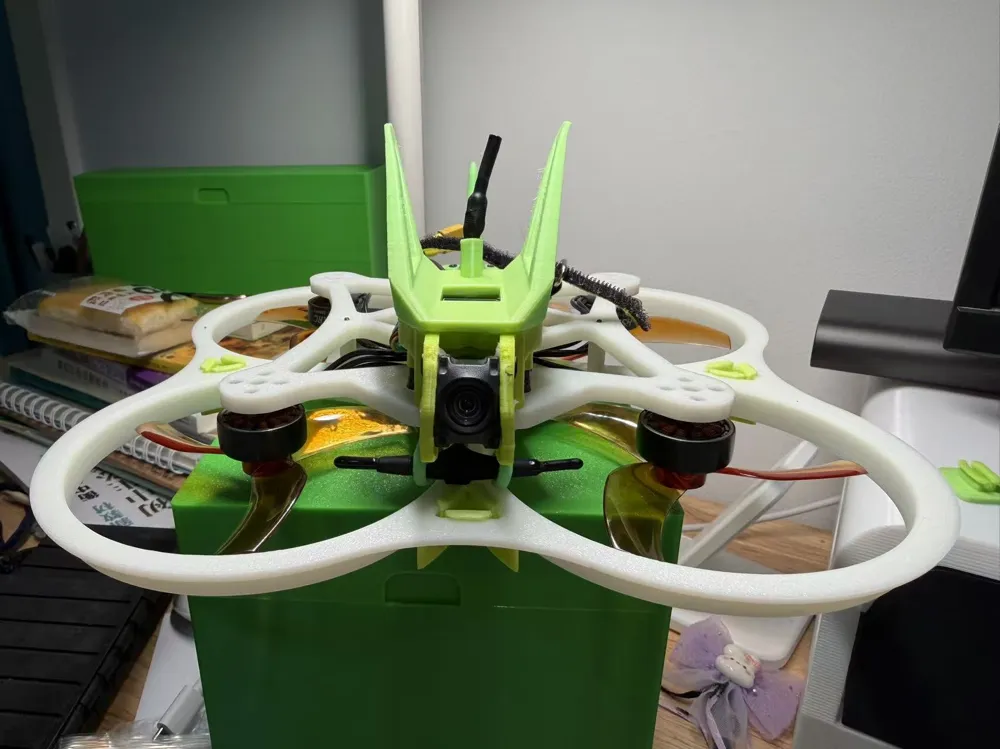

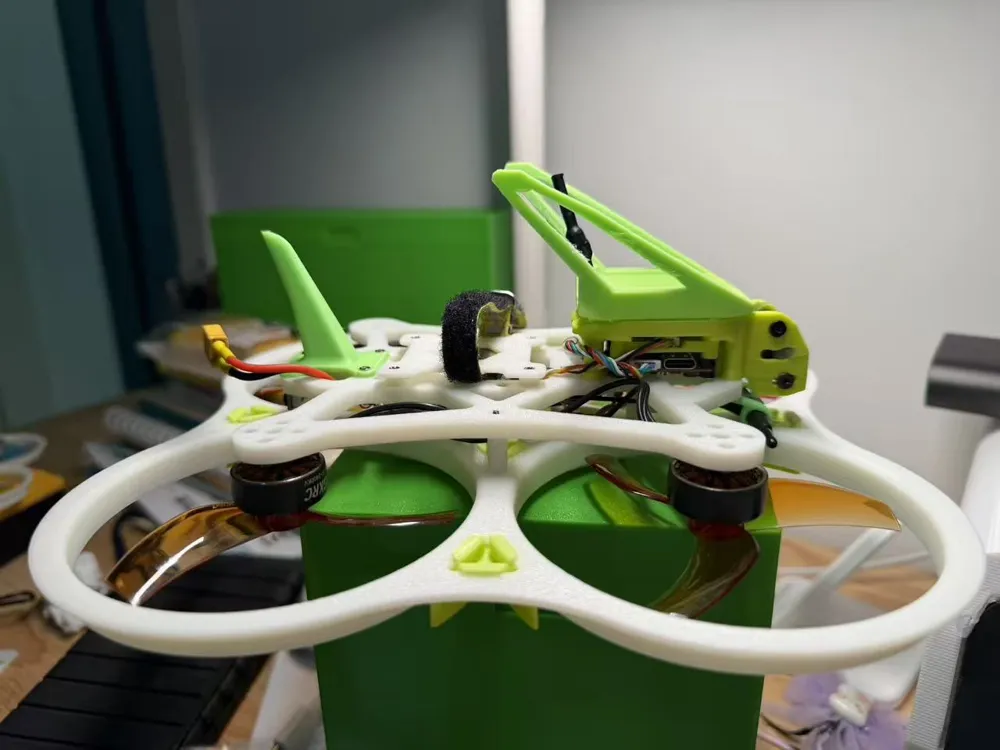

3.5-inch racing drone, ducted drone, independent VTX swappable module, quick duct replacement, easier crash maintenance;
Compatible with DJI O3 Air Unit, GEPRC M10 GPS,
With protective fins, TPU printed for better crash resistance, uses 1805 or larger motors, 3s-6s battery, battery can be mounted horizontally or vertically;
Flight controller mounting holes: 25.5*25.5mm,
Motor mounting M2-5 screws*16, duct mounting M2-20 screws*4, flight controller M2-12 screws*4, and several other M2-6 and M2-8 screws.
Suggested ABS printing for frame and ducts, TPU printing for landing pads, VTX mount, protective fins, etc.
