Heel pads - TPU insoles
Print Profile(7)
Description
I created these small heel lifts following Achilles tendonitis during ski touring.
Tested and approved in ski boots and walking shoes.
Fits adult shoe sizes:
- 36 → 48 EU / CN
- 5 → 15 USA
- 5 → 12.5 UK

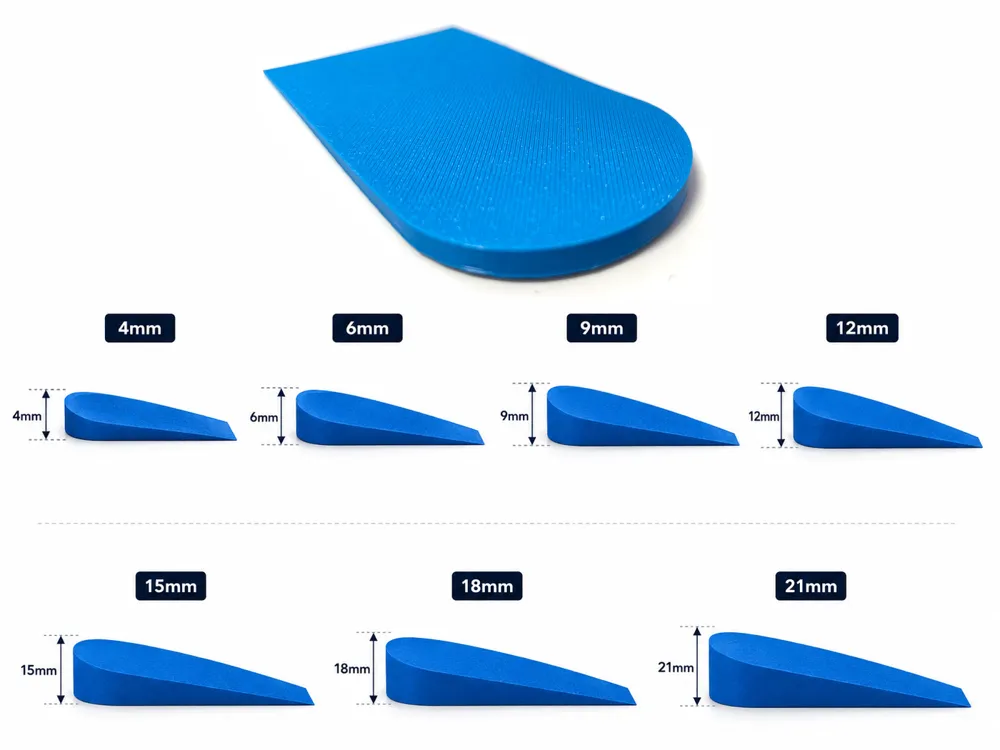

Several thicknesses are now available:
- 4 mm
- 6 mm
- 9 mm
- 12 mm
- 15 mm
- 18 mm
- 21 mm
Printing:
TPU 95A printing recommended.

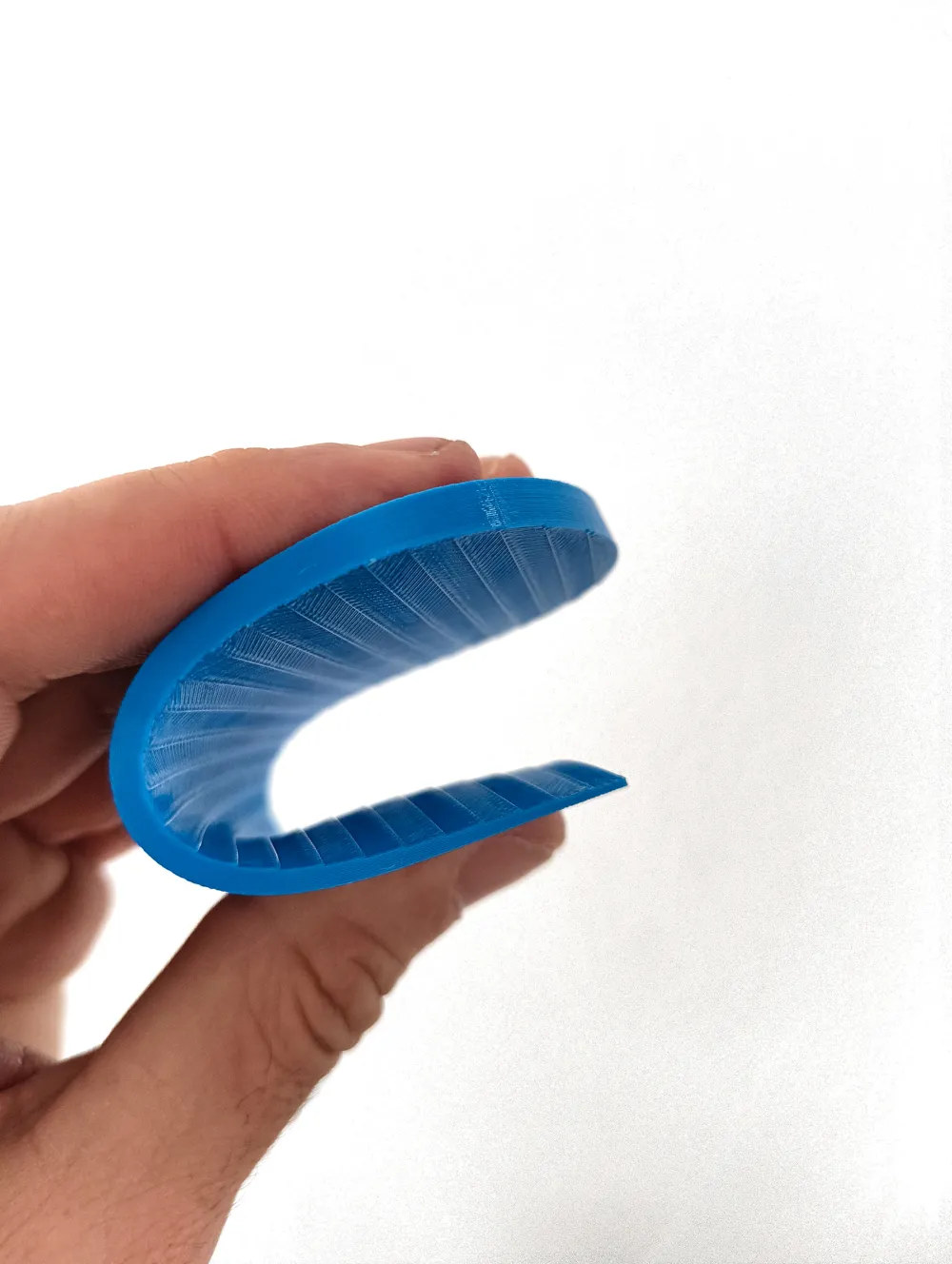

3D honeycomb infill for suitable flexibility, slight cushioning, and a heel lift that retains its shape over time.

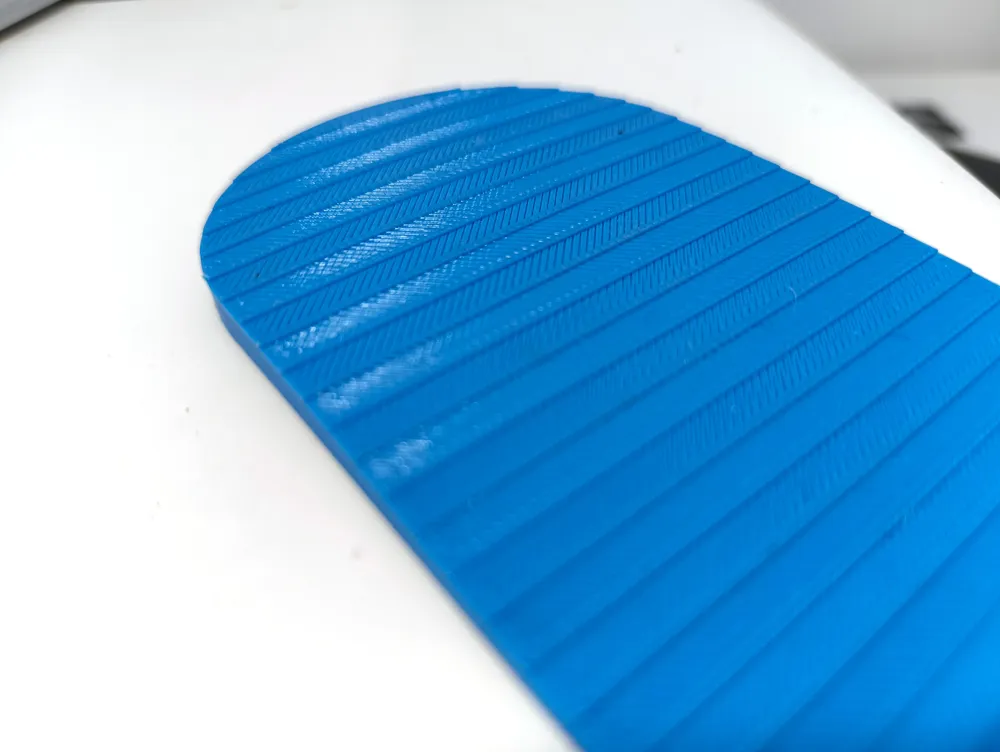

Textured bottom surface for an anti-slip effect at the bottom of the shoe (top surface when printing).
Usage:
To slide under your shoe's insole.
If you want a softer version, reduce infill to 20 or 15% and change from 2 to 1 wall.
Adaptation possible (height, shoe size), leave me a message.

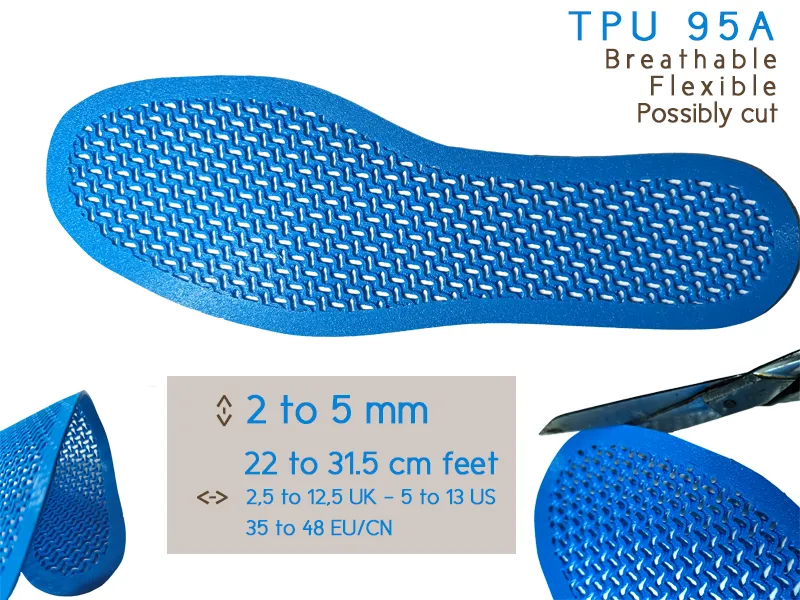

I also offer breathable lift insoles to discover here:
Boost Me (for free)
Feel free to leave feedback on your print and usage. Encourage me to publish models by leaving a boost, a rating, and a comment. Thanks ;)
