Parametric T-Joint Jig
Print Profile(1)
Description
Parametric 3D Joint – Fully Customisable Connector

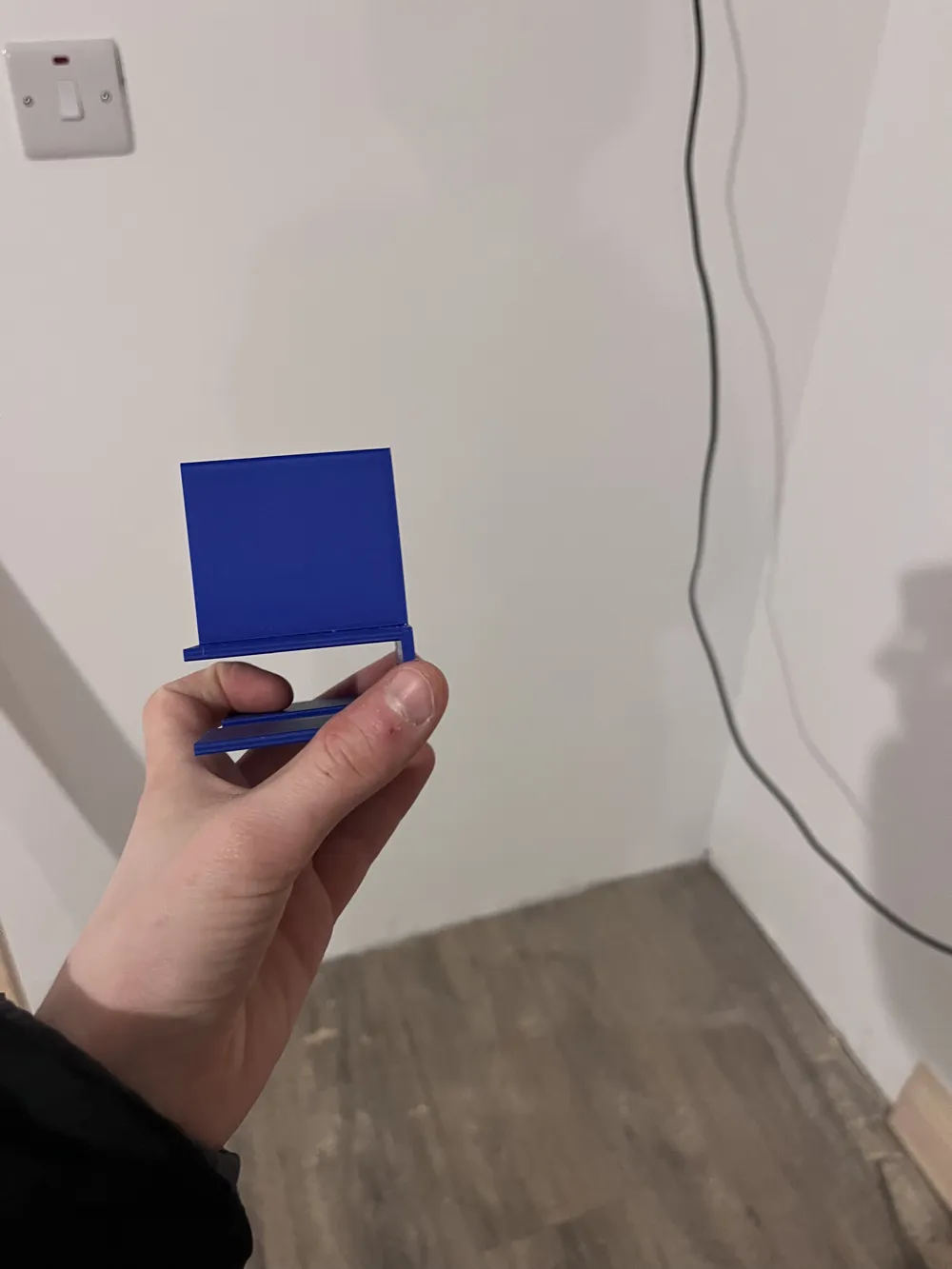

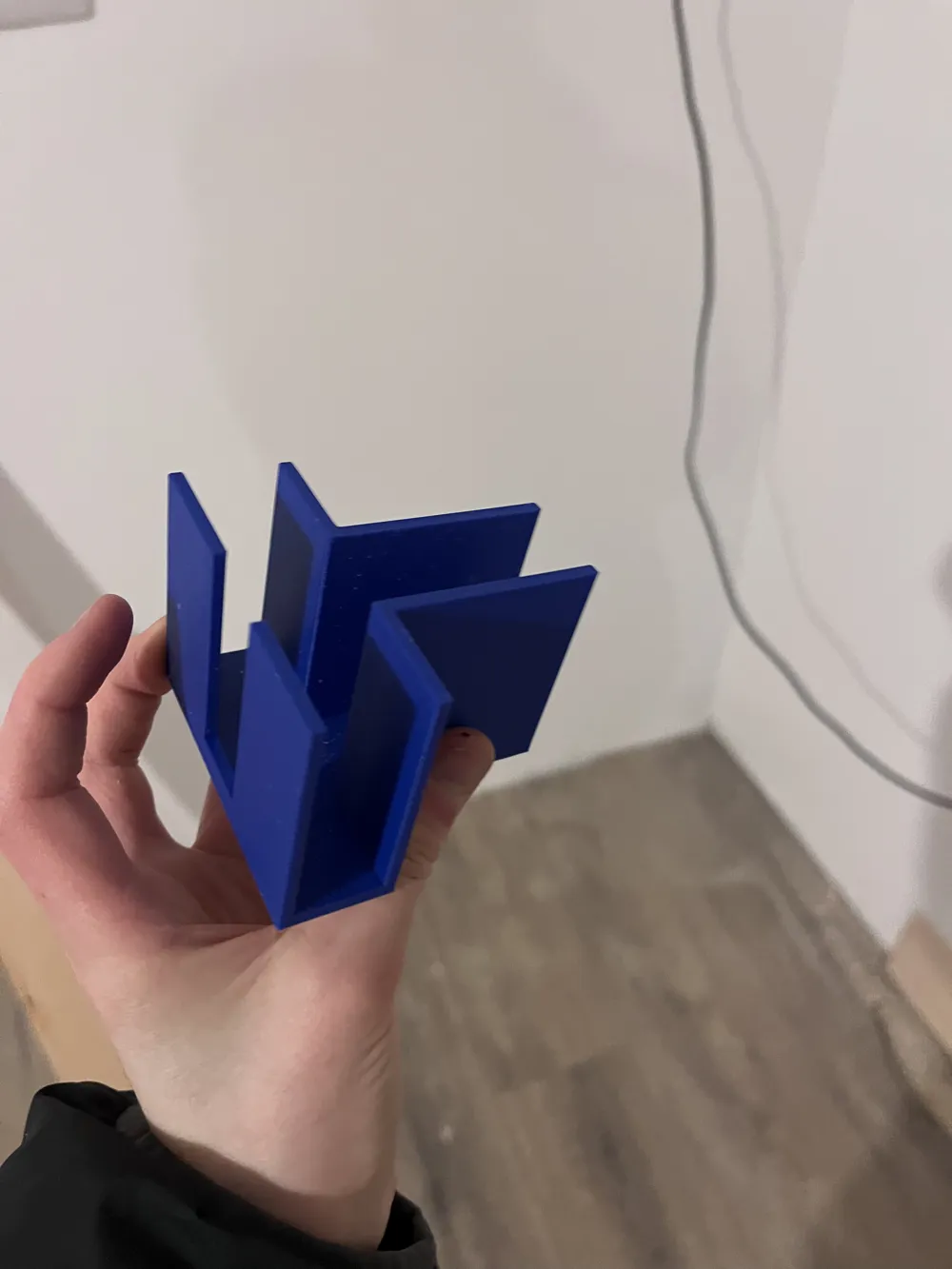

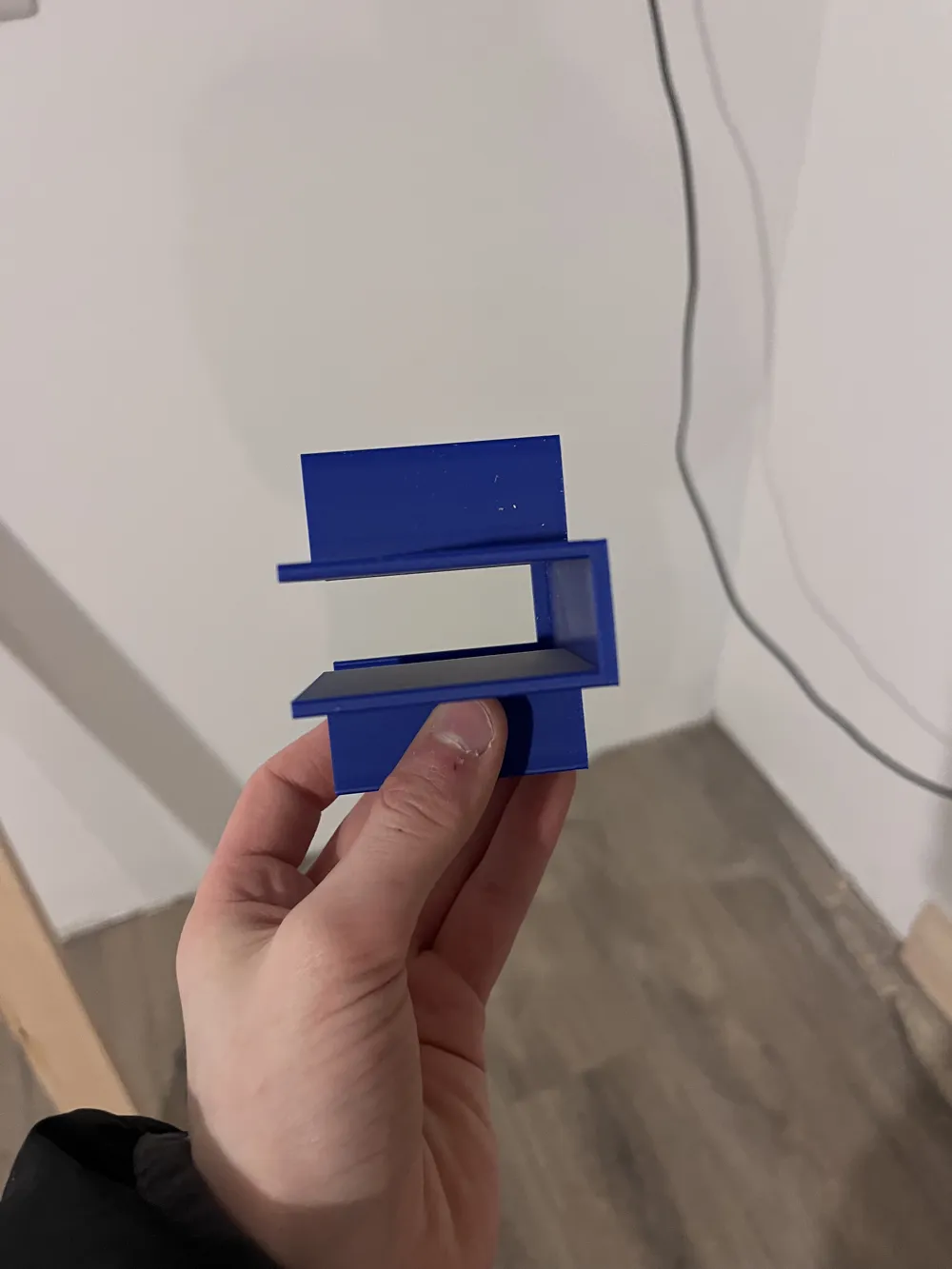

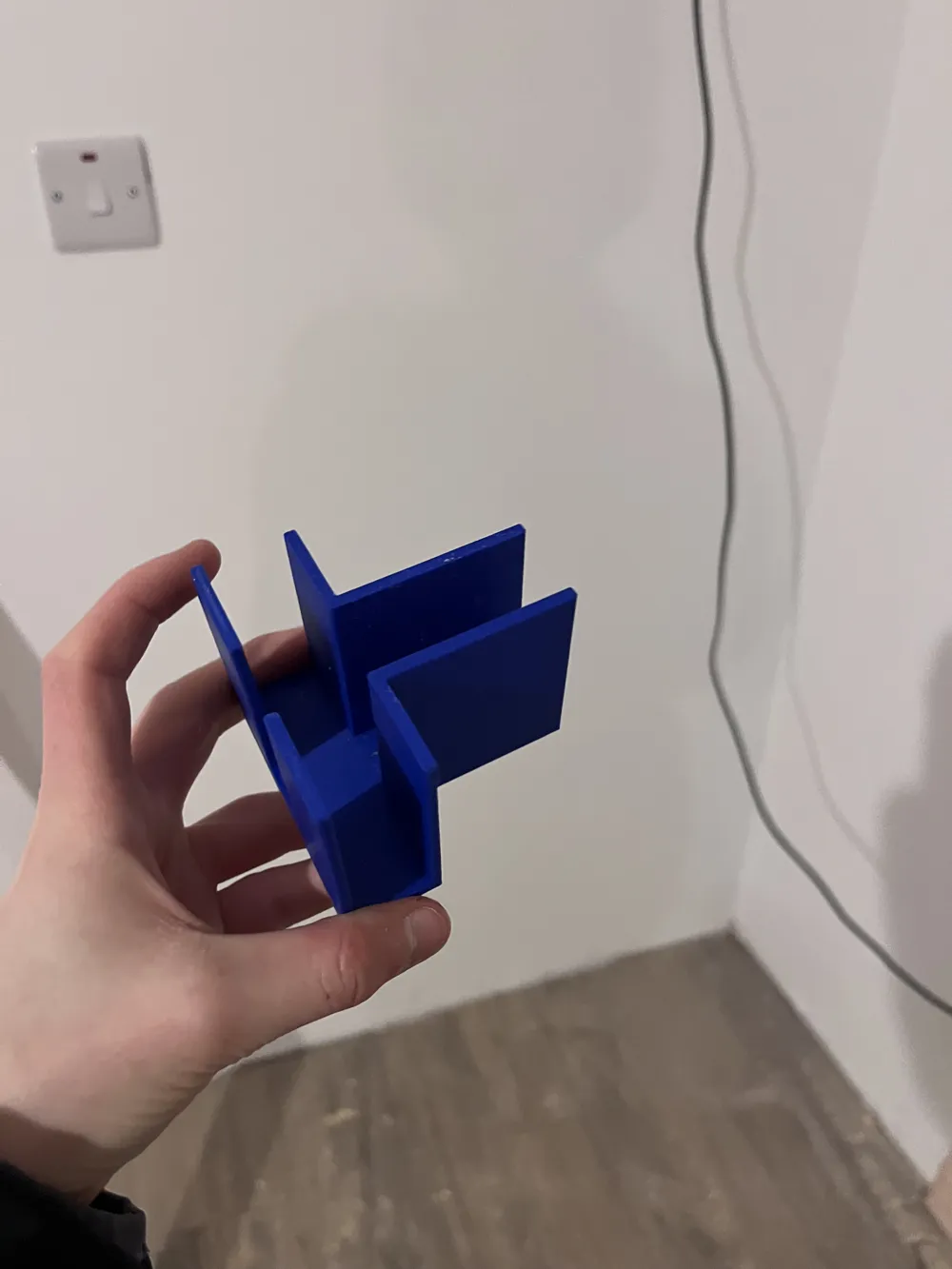

This is a fully parametric 3D printable joint designed for modular builds, frames, enclosures, and structural projects. Every key dimension is adjustable, allowing you to tailor the joint precisely to your specific material and use case.
🔧 Customisable Parameters
- Material thickness (designed to suit your exact sheet/board thickness)
- Slot width and depth
- Joint angle
- Overall dimensions
- Tolerances for press-fit or looser assembly

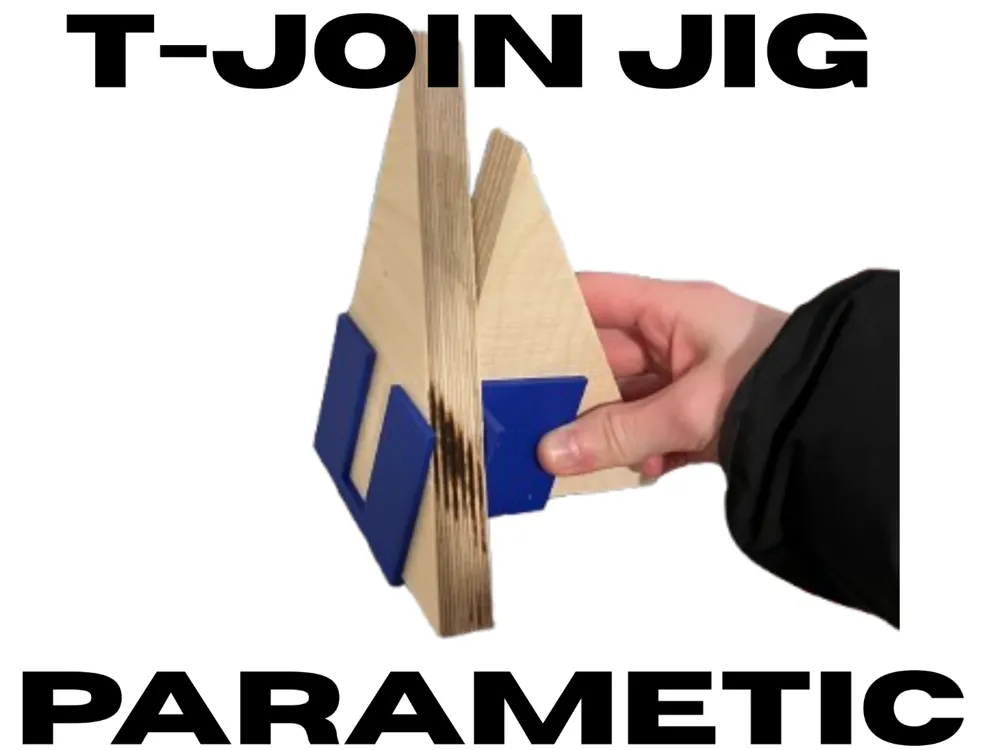

Whether you're working with plywood, acrylic, foam board, MDF, or 3D printed panels, you can set the material thickness directly in the parameters to achieve a proper fit without redesigning the model from scratch.
🛠 Use Cases
- Modular frames
- Structural corner joints
- DIY enclosures
- Prototyping rigs
- Workshop fixtures
🖨 Printing Notes
- Print orientation can be adjusted depending on load direction.
- Increase wall count and infill for structural applications.
- For press-fit joints, fine-tune tolerances based on your printer calibration.
This model is ideal for makers who want flexibility and precision without repeatedly redesigning connectors for different material sizes.
If you find it useful, feel free to leave a like or share your build — I’d love to see what you create with it.
