Description

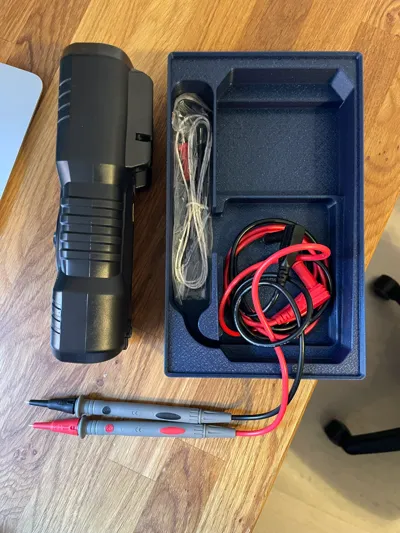

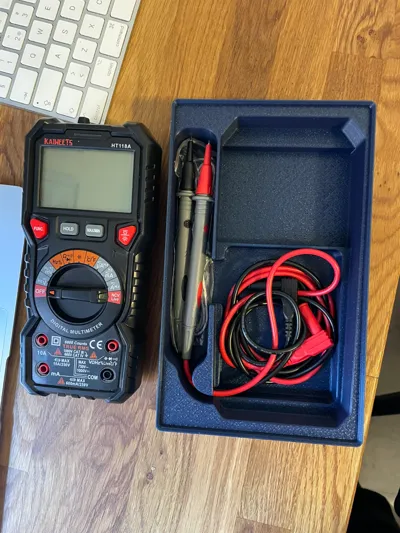

A gridfinity holder I designed for my multimeter. There's room for the probes on the side and the cords goes under the unit. I use a Kaiweets HT118A multimeter.

The size of the main compartment is

length 190 mm
width 89.5 mm at the top and 84 mm at the bottom
depth to the inner lip 20 mm.

Comment & Rating (27)

@Finneas

Great print. Fit my kaiweets multimeter perfectly. I printed out a plain 5x3 gridfinity box to stuck underneath to hold extra test leads, etc.

The designer has replied

@skrivkunnig

thanks for the pic!

@alexfehr1987

Print Profile

Gyroid infil, top surface ironing, adaptive layer heights

perfect

The profile uploader has replied

@skrivkunnig

Thank you!

@tomklaffehn

Boosted

Print Profile

Gyroid infil, top surface ironing, adaptive layer heights

The fit could have been better, otherwise it's quite satisfactory as long as the cable is in the lower compartment, otherwise the whole thing wobbles

Show original

@DRock3d

The model in the designer profile does not match the photos. Wish I would have noticed before printing, now I can't fit the probes with insulators or the temp probe

The designer has replied

@skrivkunnig

In what way doesn’t it match?

@DRock3d

Replying to @skrivkunnig :

The left side where the probes go is completely different. Once opened in Bambu Studio it's an exact fit for the probes rather than being an oversized compartment

@skrivkunnig

Thanks for letting me know. I have to see if I somehow uploaded an earlier version. If that’s the case, I apologise for the inconvenience! I’ll get back to you.

@user_752032211

Print Profile

Gyroid infil, top surface ironing, adaptive layer heights

@guptam

Boosted

Thank you for sharing the model. Worked perfect! I had a little bit of a layer tearing near the lip, but a dab of super glue was handy to fix that!

The designer has replied

@skrivkunnig

Thank you for the kind words and the boost!

@Exotech

Print Profile

Gyroid infil, top surface ironing, adaptive layer heights

The print profile provides a well-balanced configuration for optimizing print quality. The layer adhesion and extrusion settings are well-calibrated, minimizing potential issues like stringing or warping. Additionally, the temperature and speed adjustments maintain a smooth workflow, avoiding under-extrusion or surface defects. Overall, the profile demonstrates excellent performance, with efficient use of material and minimal post-processing required.
