Spiked Gauntlet v2

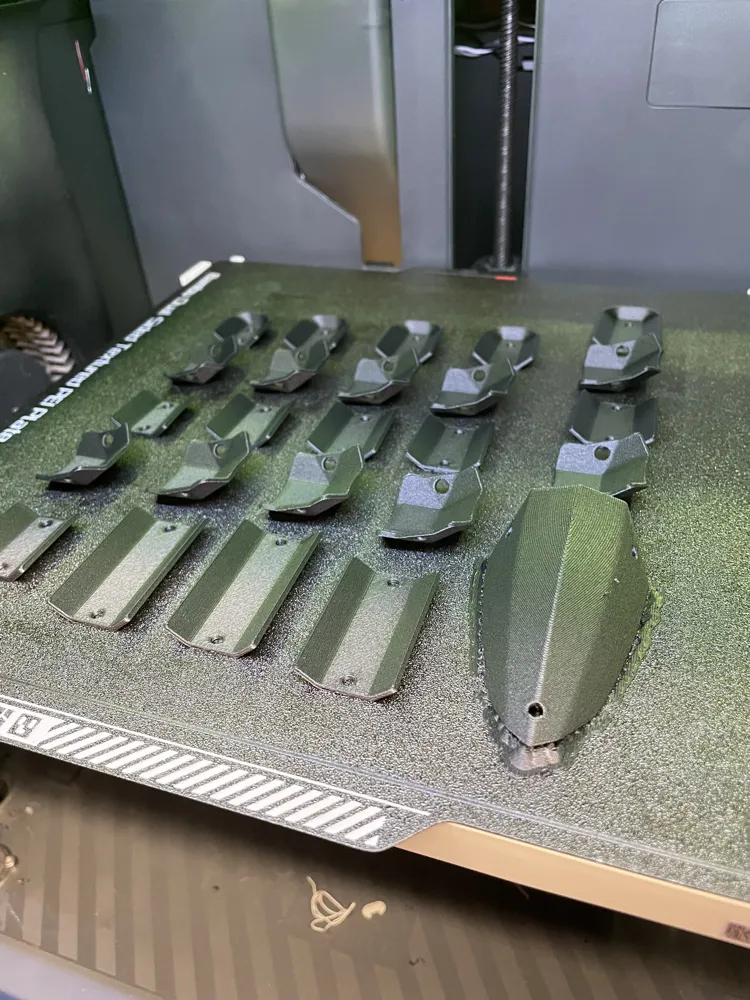

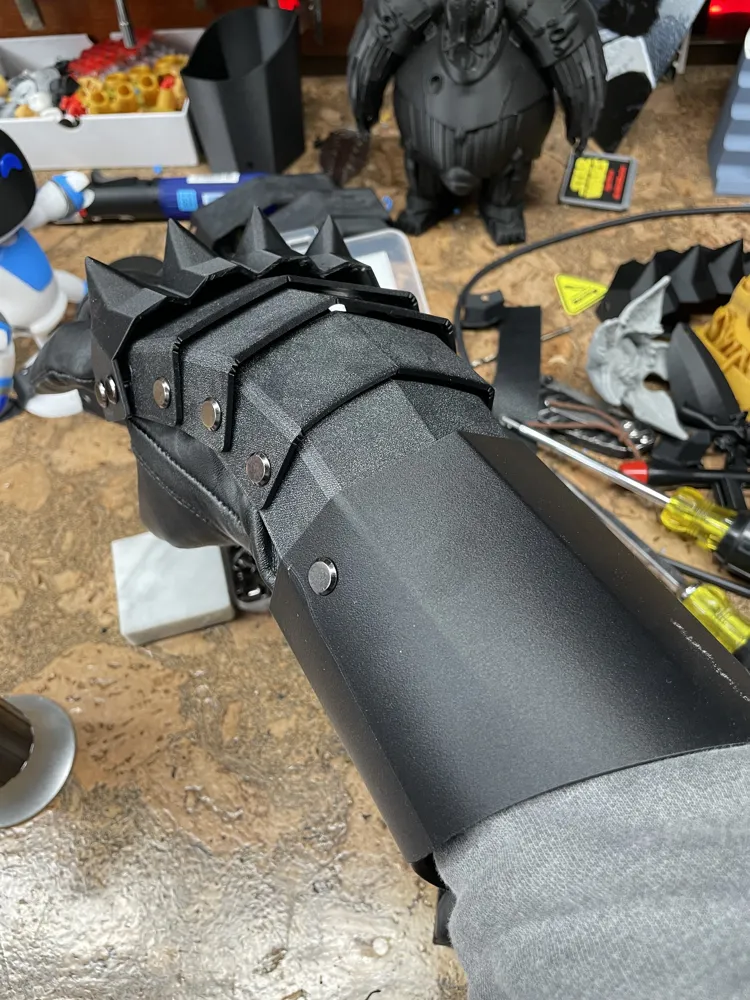

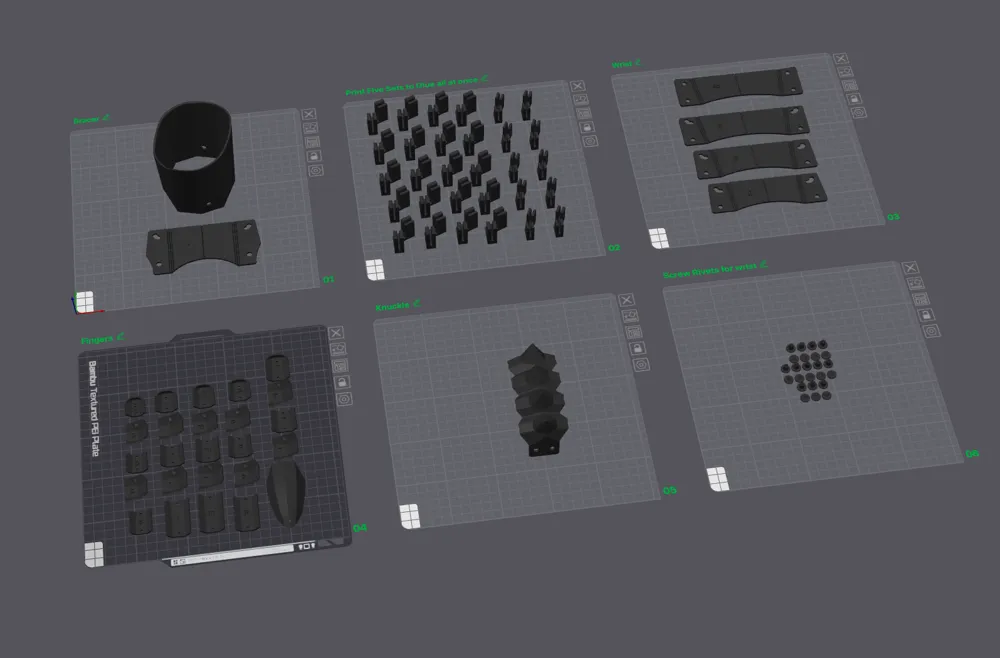

I found this model on Thingiverse and decided to post it here with a few improvements.  Of course, all that you need for one hand is laid out on the six plates. I also coded each finger piece and wrist piece, so it would be easier to put them together once they were all mixed up.  I'm in the process of building this, so I will post finished pictures when I am done.  Finally, I included 3d printed versions of the larger screw rivets required.

Assembly

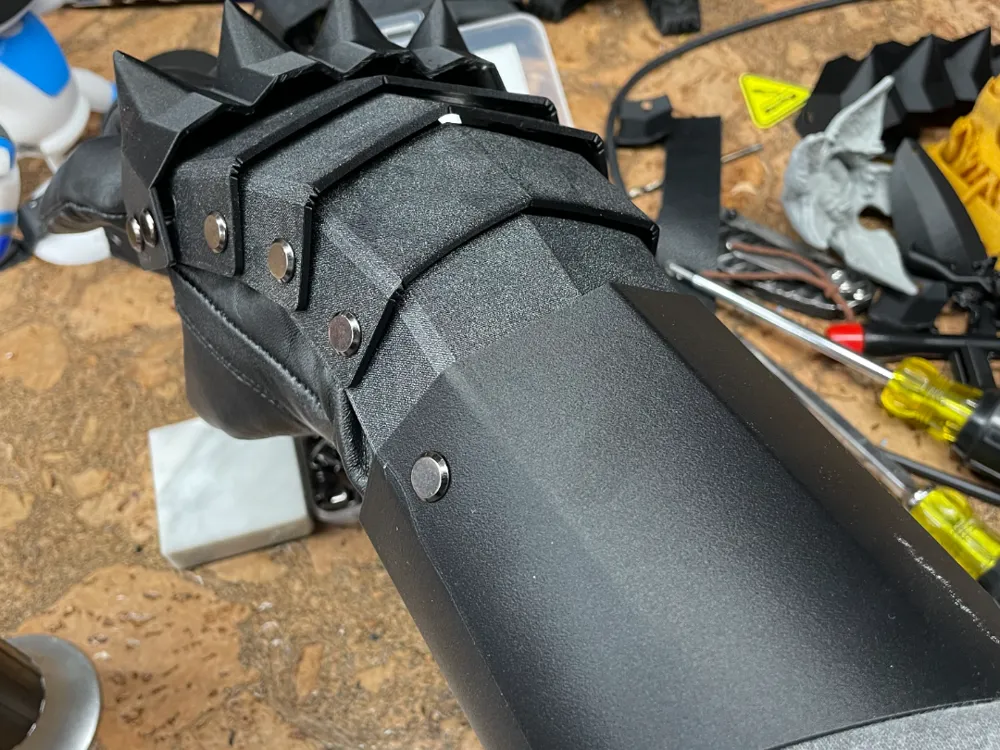

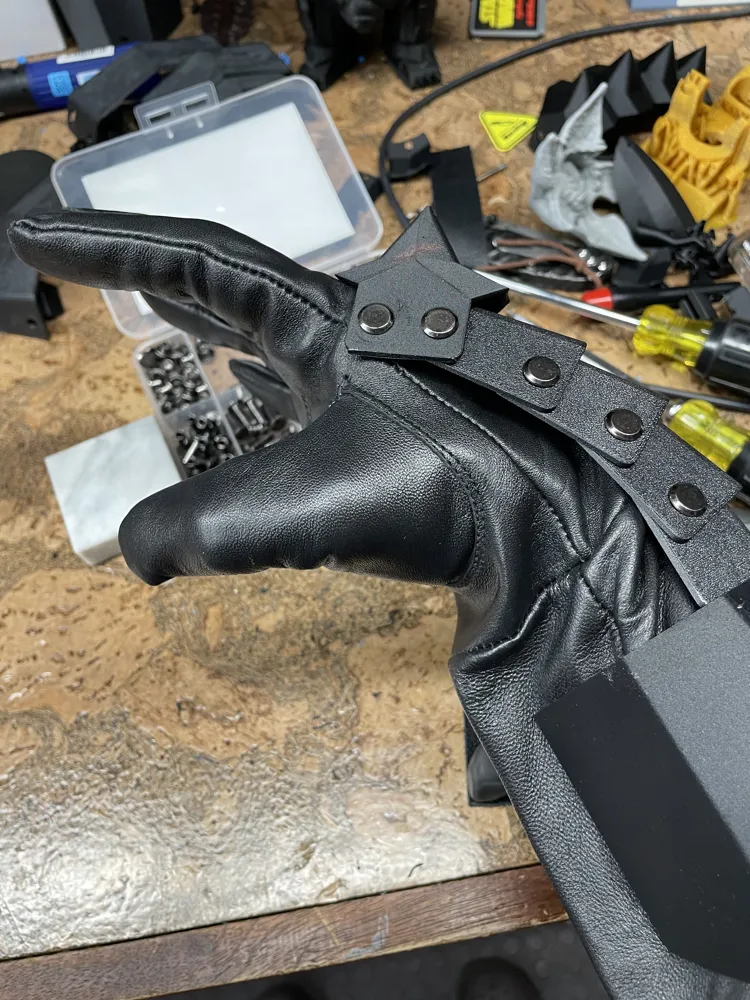

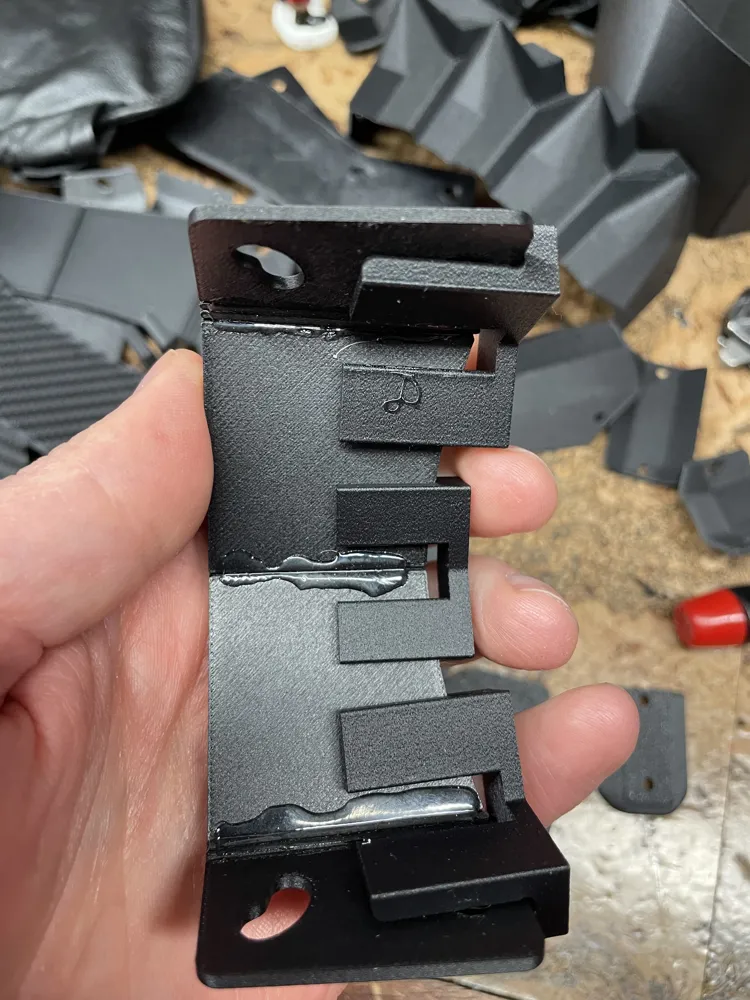

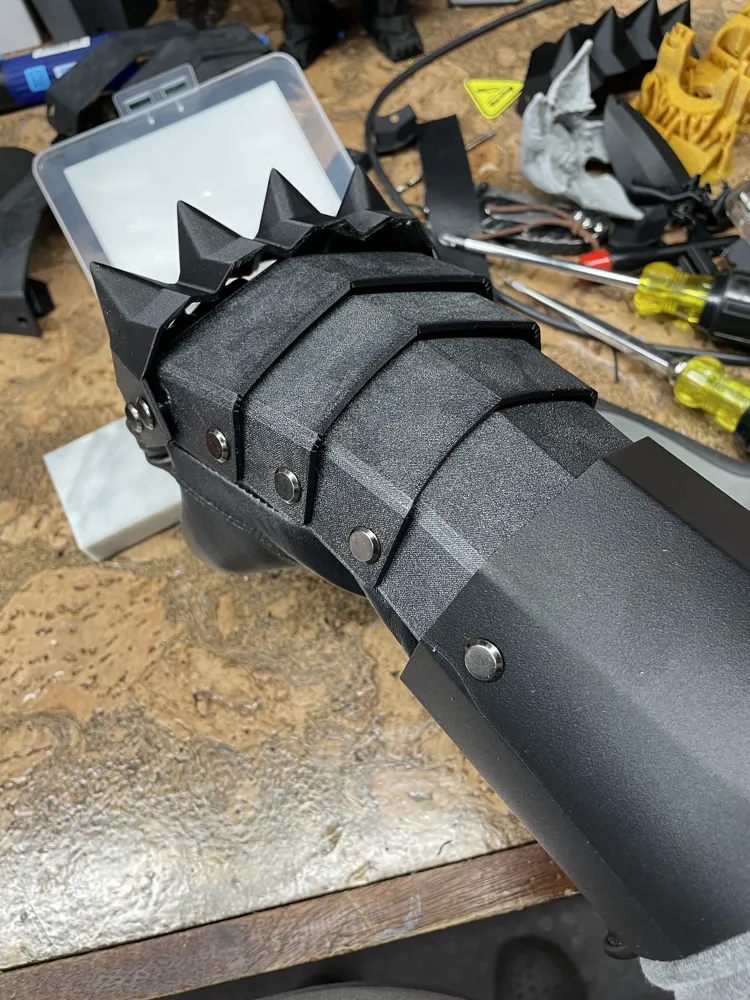

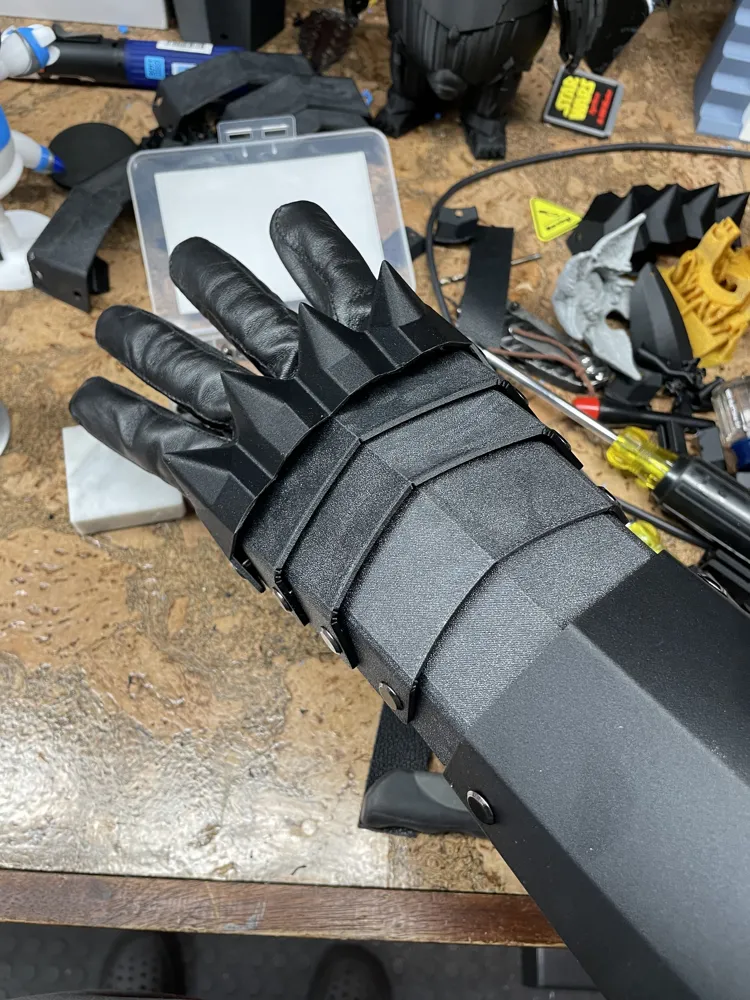

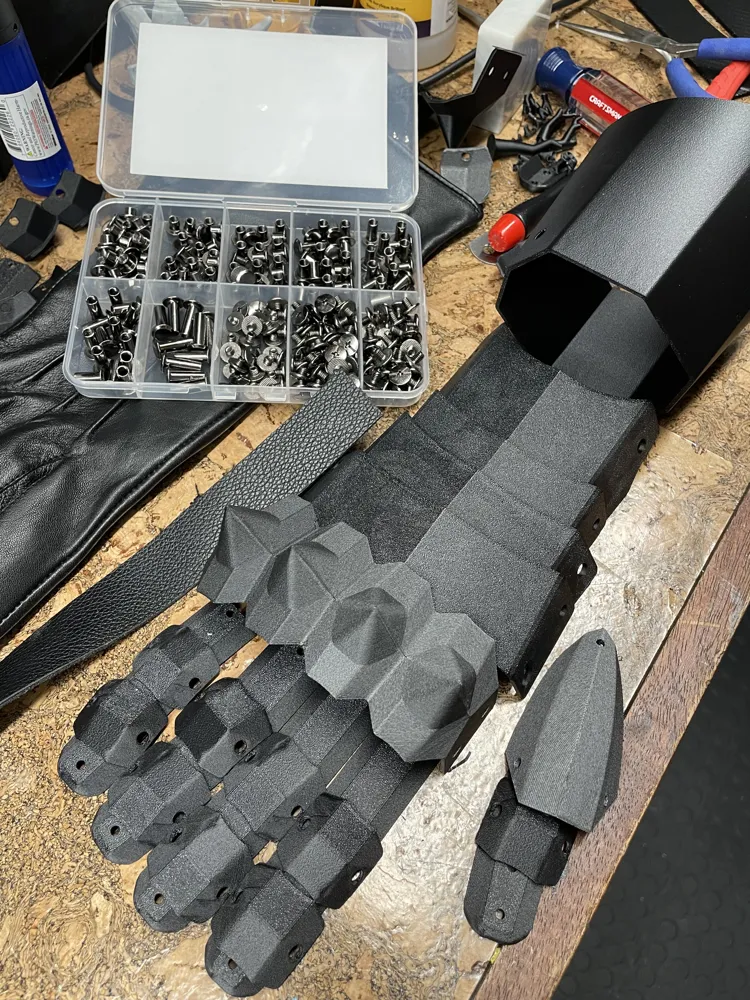

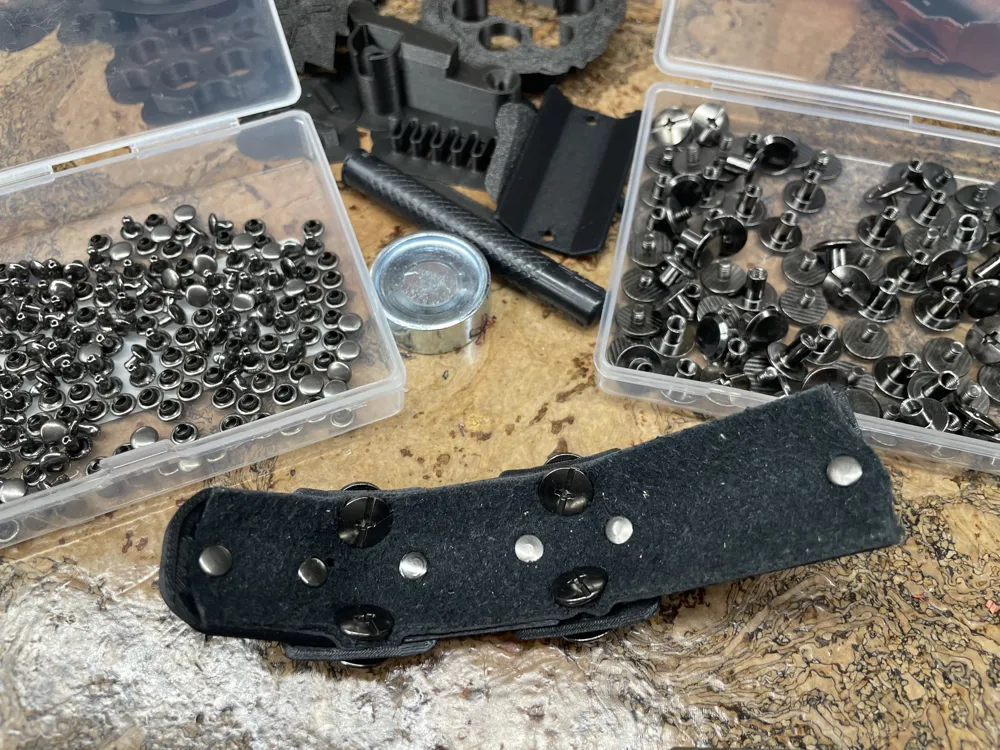

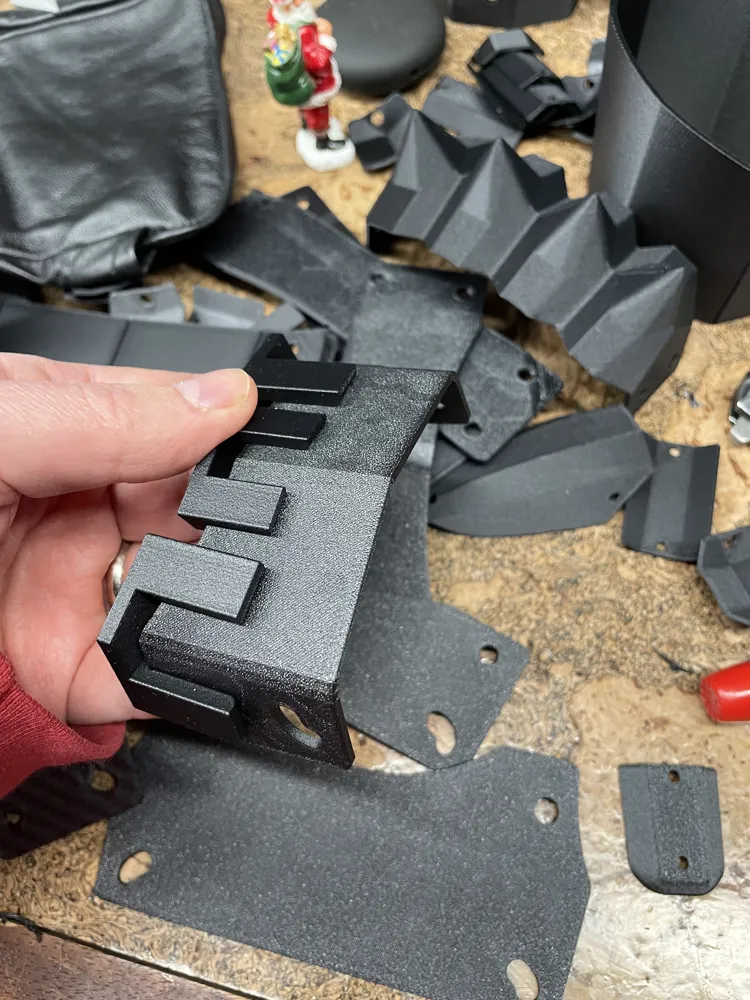

All the finger pieces will be riveted onto a piece of leather before being attached with rivets to the leather glove by two anchor points - top and bottom. Then glue them on E6000 or barge leather glue or similar.  For the joints, use M4 6mm screw rivets to allow them to move.  Glue all of the wrist pieces in place using the angle braces.  Pictures of this are included. I will eventually post a video on how to assemble this.

Hardware

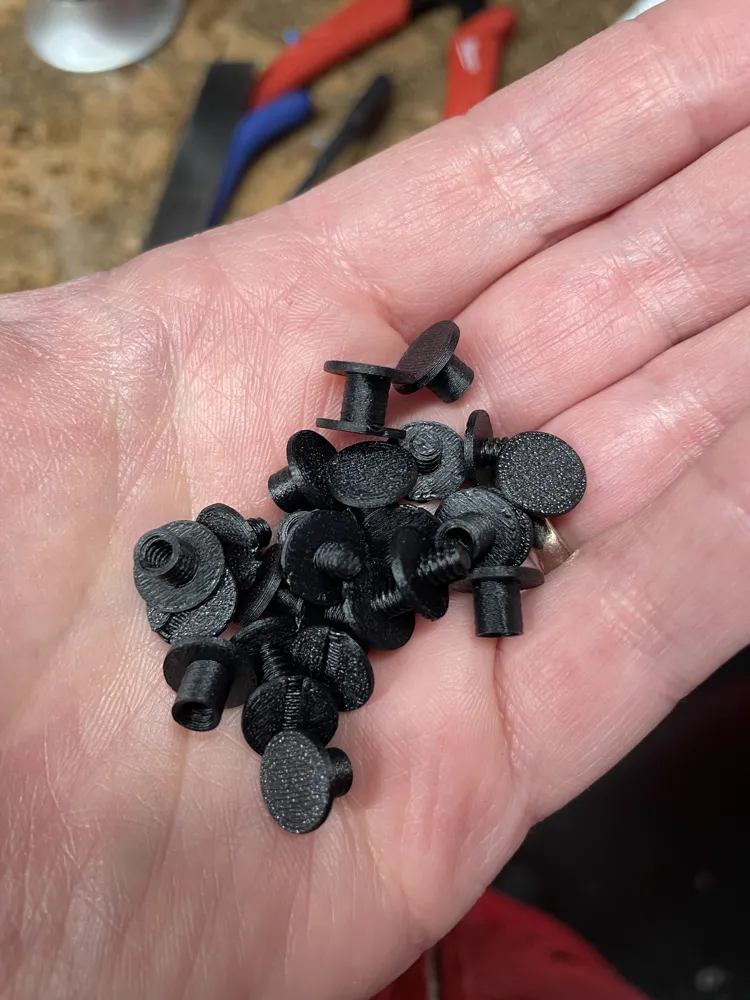

M5 screw rivets - Hand and Knuckle plate (3d printed version included)

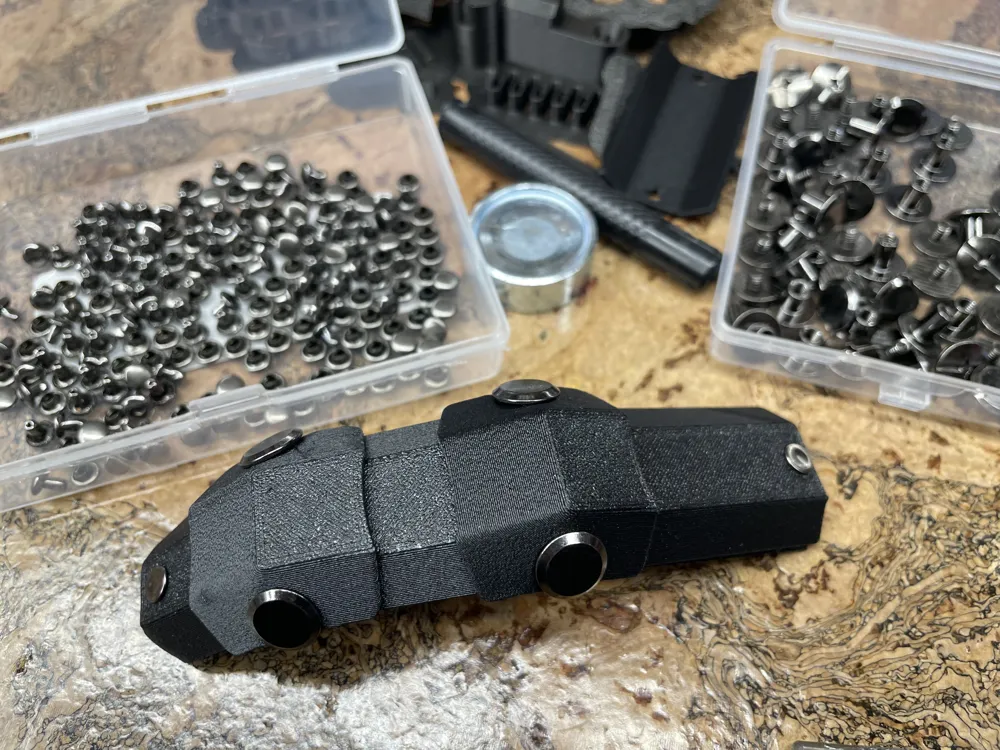

M4 screw rivets - all finger joints (3d printed versions included)
Mini 5x5mm leather rivets - all finger phalanges
