Chess Set Theme: Anglo-Saxon Army with NO Markers

Chess Set Theme: Anglo-Saxon Army NO Markers

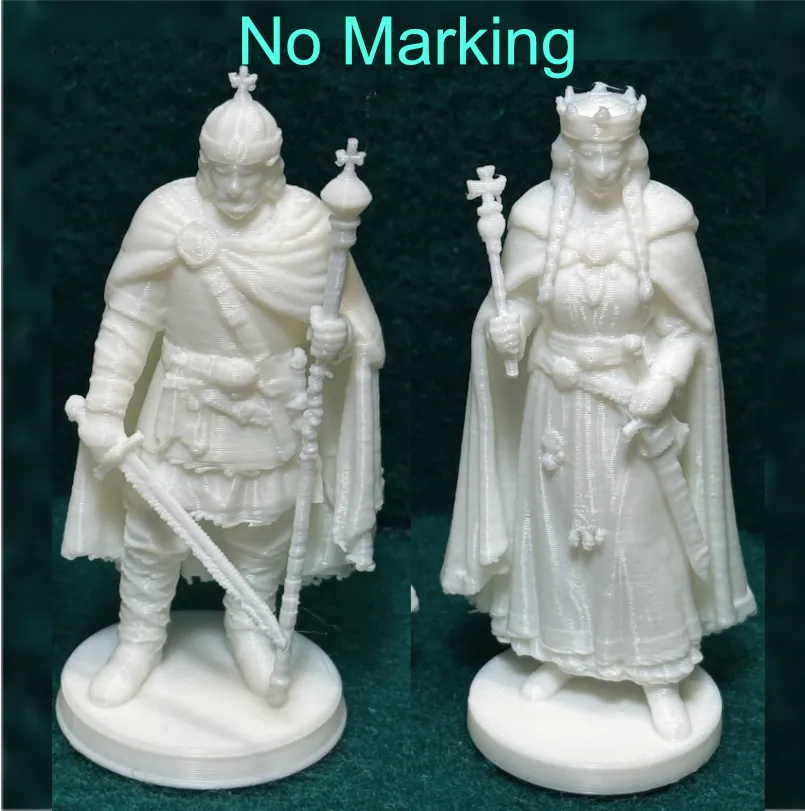

This Chess Set has NO miniature chess piece markings.

Find the Anglo-Saxon Set with the miniatures HERE.


Anglo-Saxon Army Chess Set – Opposing Force to the Vikings

This Anglo-Saxon set represents royal authority, military discipline, and spiritual influence in balance.

Where the Vikings project raw momentum and aggressive force, the Anglo-Saxons present organized structure — shield walls, crowned leadership, and ecclesiastical power woven into the ranks.

The hierarchy is clear:

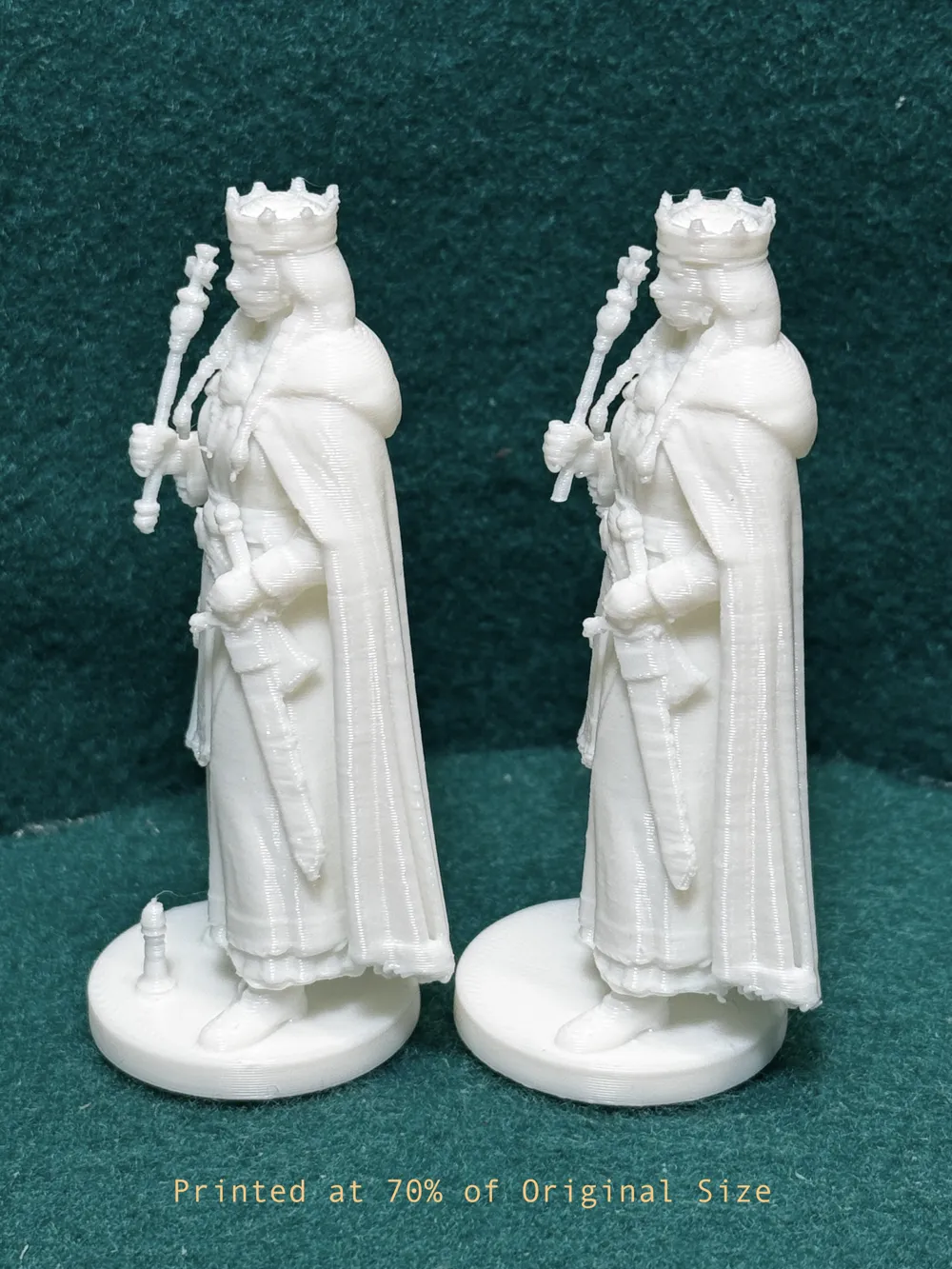

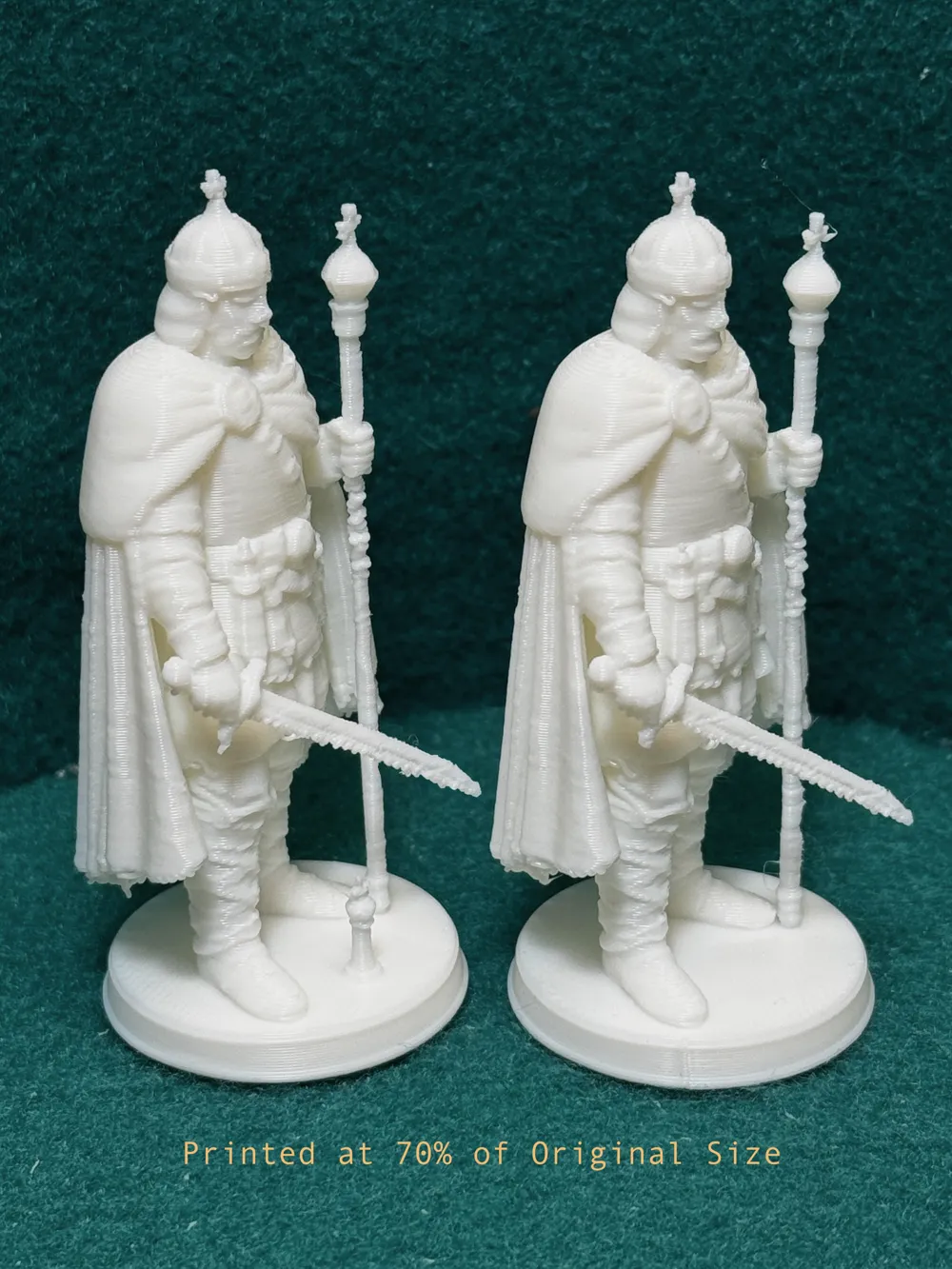

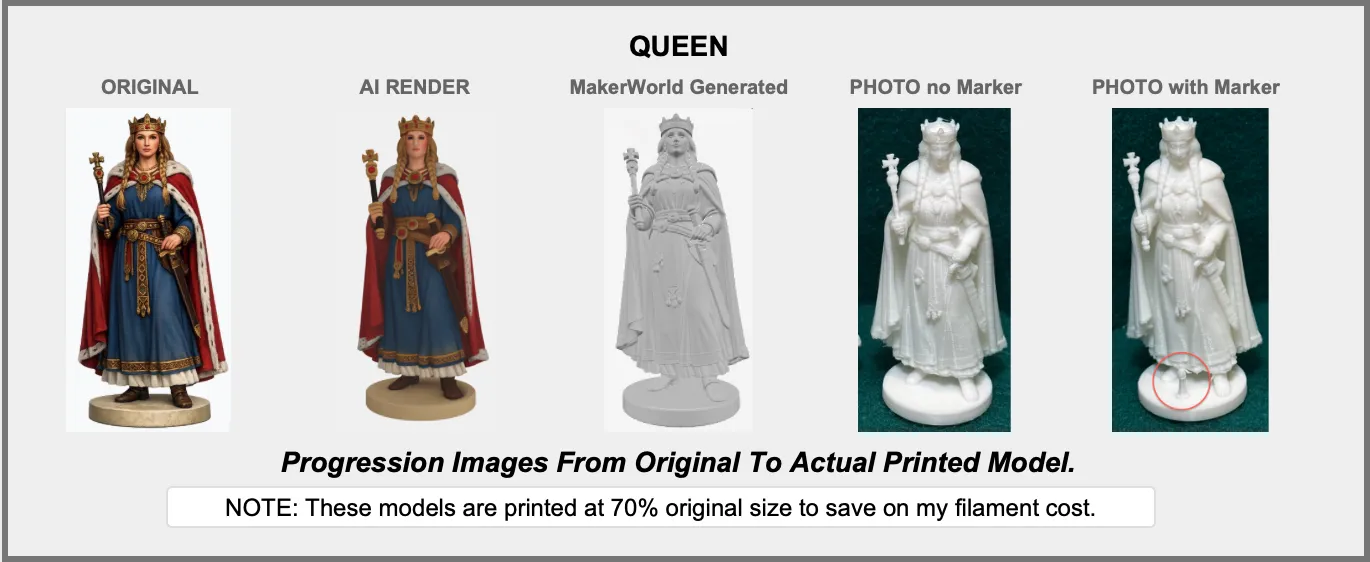

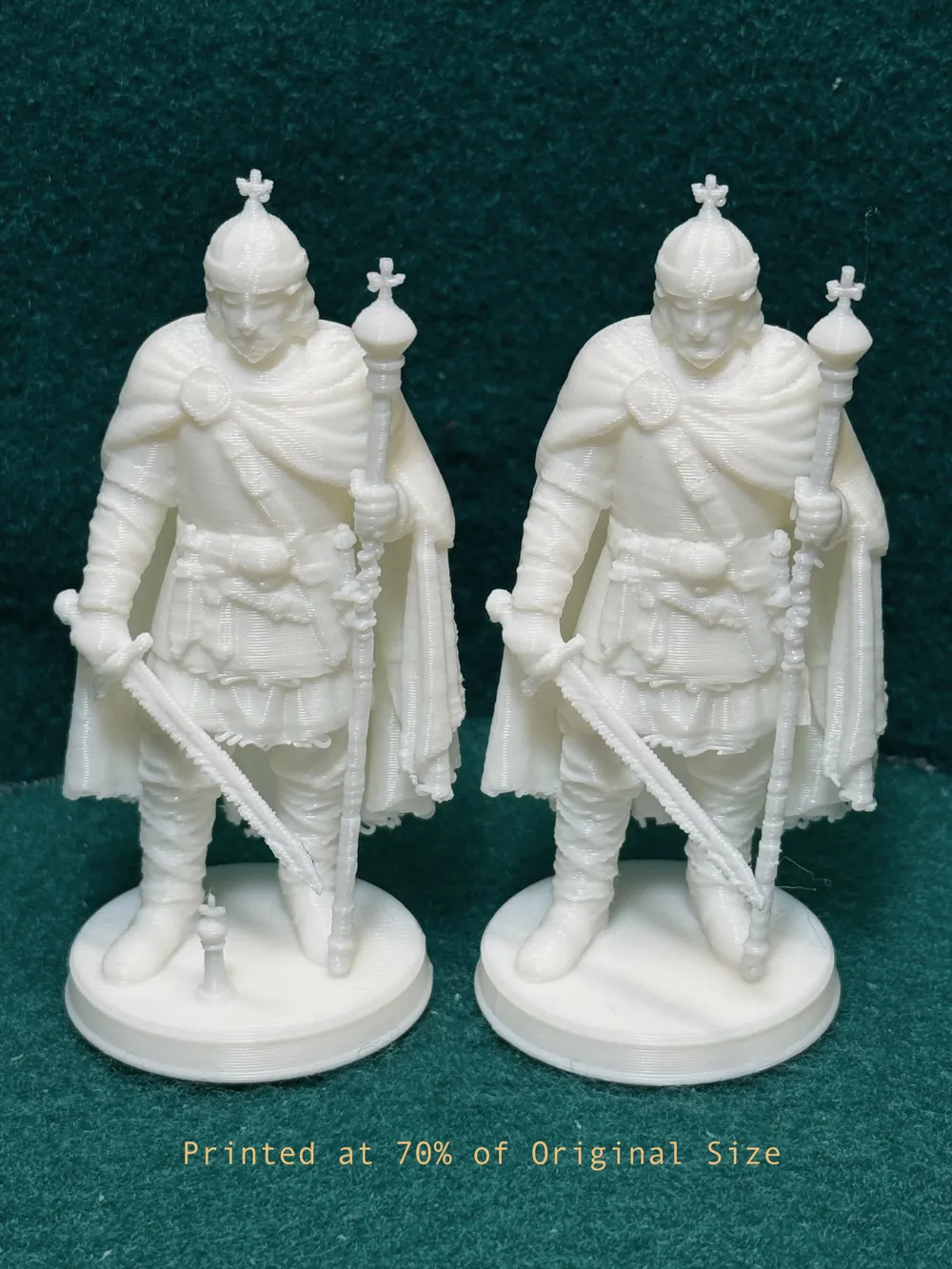

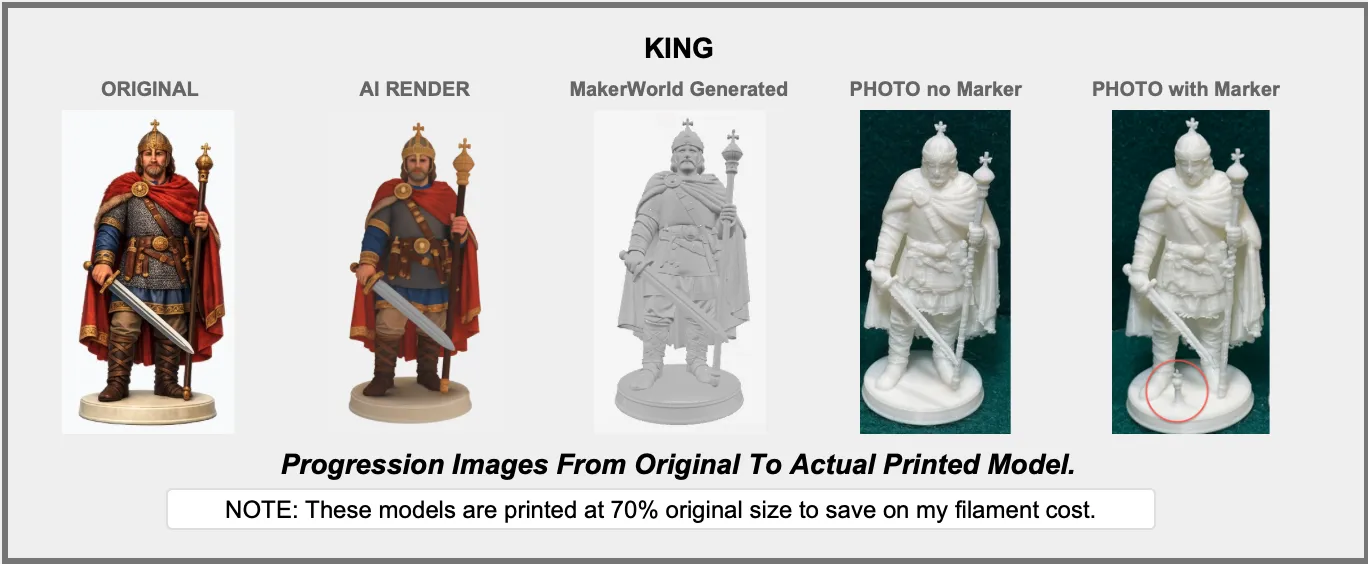

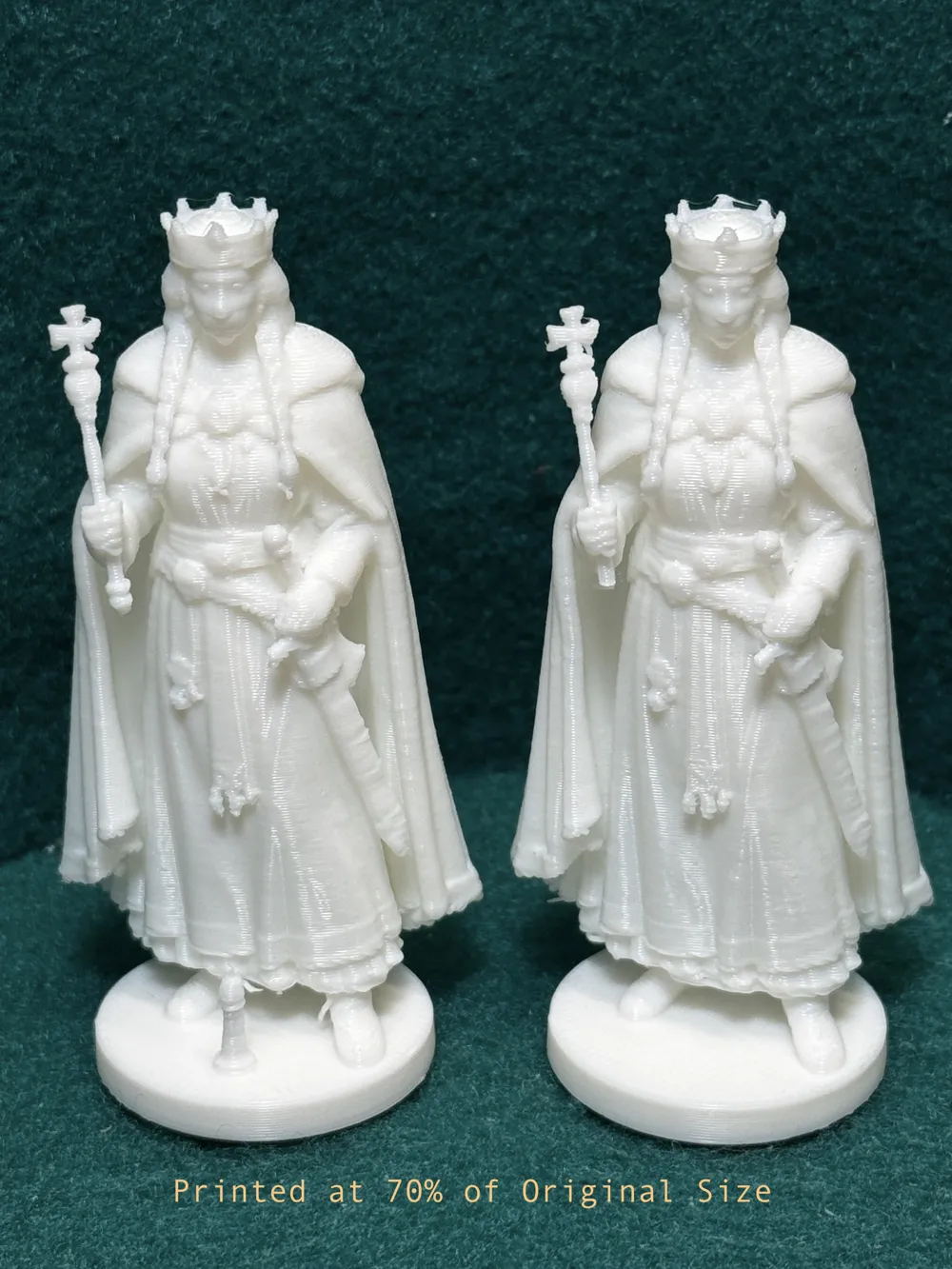

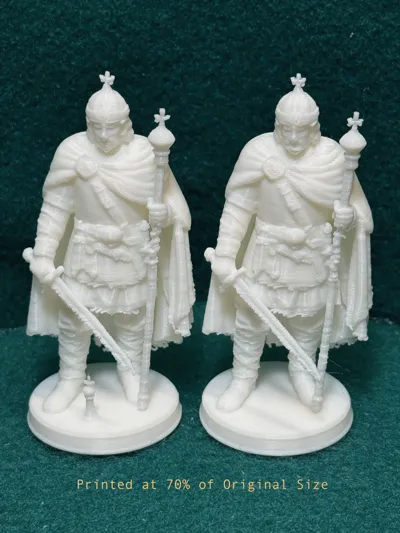

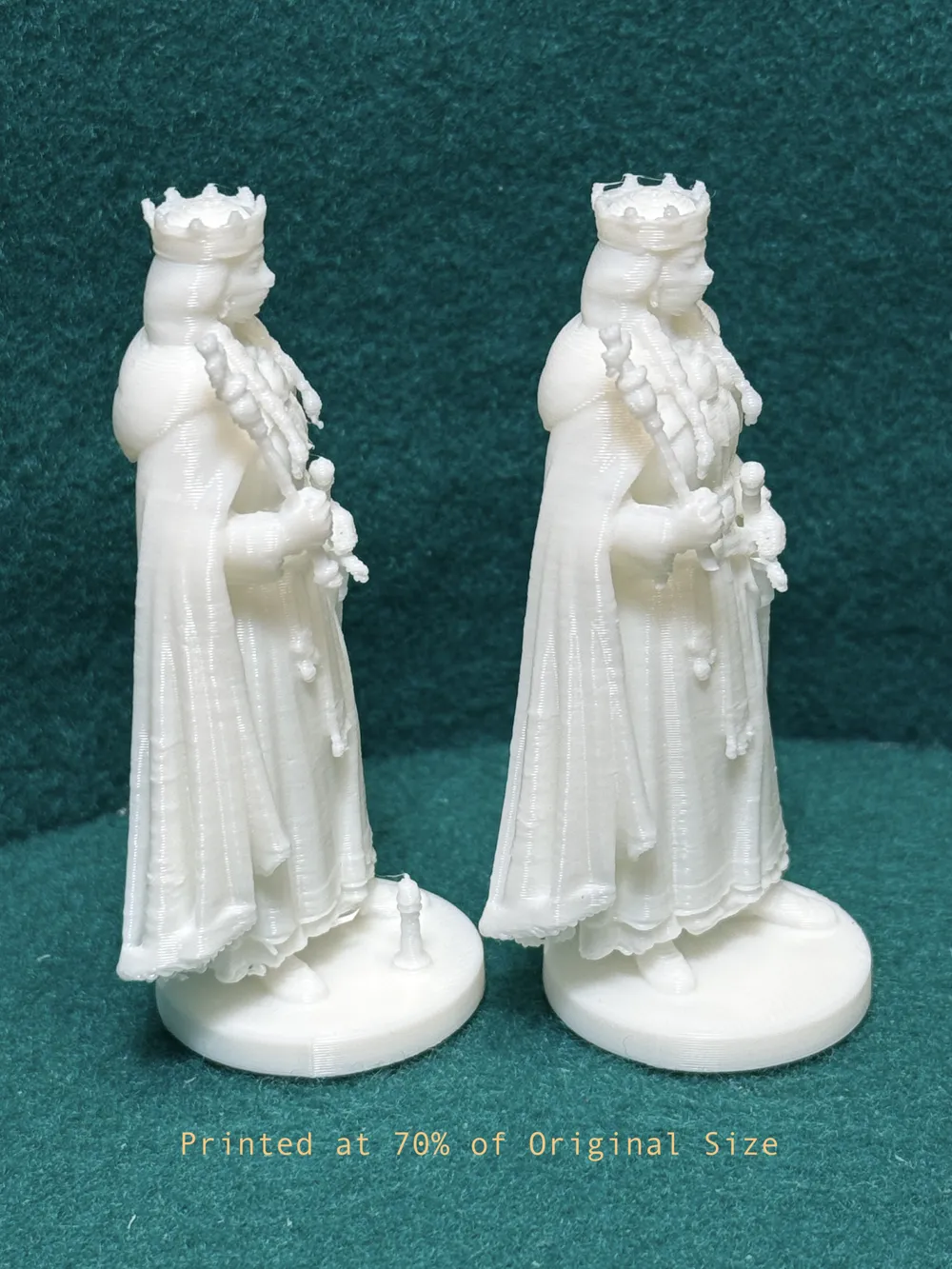

King & Queen
Royal authority grounded in duty and governance. The King stands resolute, sword ready but measured. The Queen carries sovereign composure — strength without spectacle.

Bishops (Ecclesiastical Authority)
Cloaked, staff-bearing spiritual leaders. Vertical silhouettes. Distinct presence from royalty — intellectual and moral command rather than battlefield dominance.

Rooks (Fortified Power)
Architectural strength embodied. Tower-like stance. Defensive mass. Stability over speed.

Knights (Mounted Nobility / Elite Warriors)
Disciplined cavalry energy. Not feral — controlled. Strategic aggression.

Pawns (Shield-Wall Infantry)
Spearmen and shield bearers forming the backbone of the army. Unified, grounded, disciplined. Each carries subtle variation while maintaining cohesive identity.

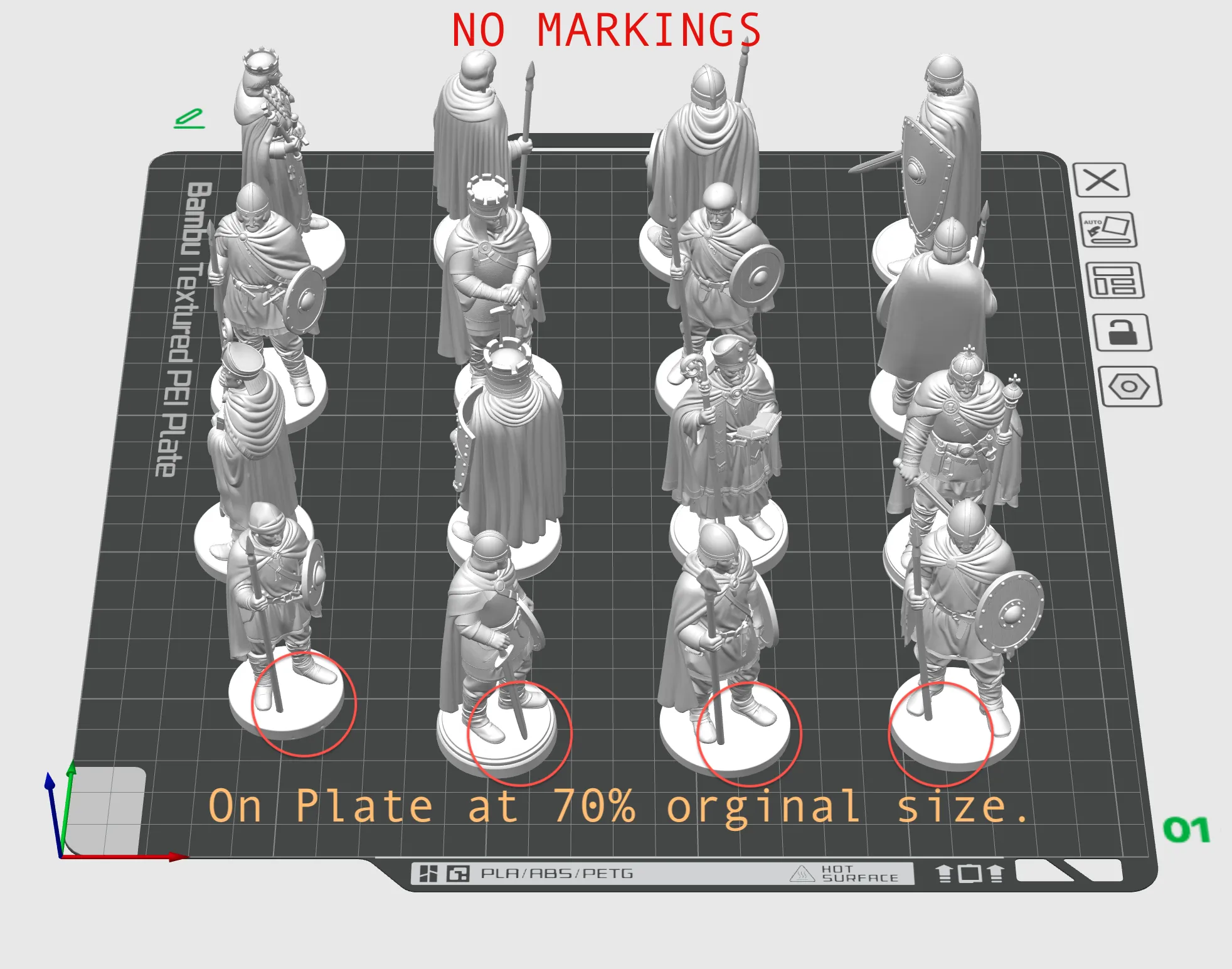

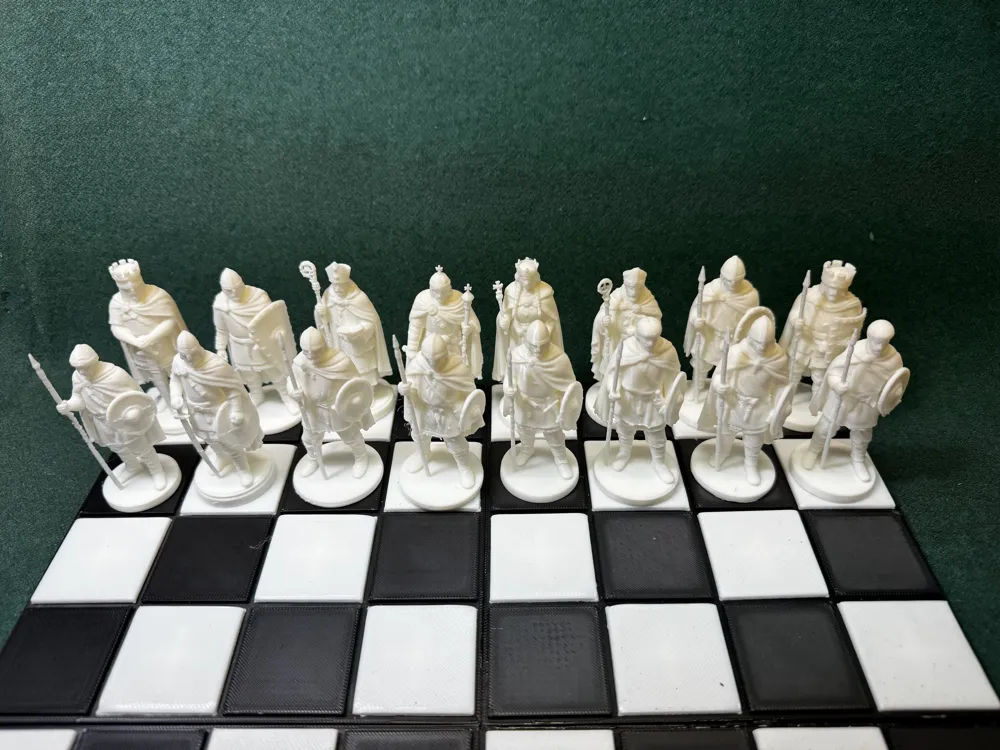

Entire 16 Piece Set is Included.

Printer Settings:

Take time to use these settings for optimal prints. Note: Smartphones and tablets cannot print with Tree supports, so use a PC for these settings.

Bambu Studio Settings

Printer Settings

• Nozzle Diameter → 0.4 mm

• Compatible Material → PLA+

Filament Settings

• Nozzle Temperature (first layer) → 205 °C

• Nozzle Temperature (others) → 200 °C

• Bed Temperature (first layer) → 60 °C

• Bed Temperature (others) → 50–55 °C

• Cooling Fan:

◦ Layer 1–2 → OFF

◦ Layer 3+ → 100%

Quality

• Layer Height (Standard) → 0.20 mm

• Initial Layer Height → 0.20 mm

• Line Width → 0.45 mm

• Elephant Foot Compensation → 0.15 mm

Speed

• First Layer Speed → 20 mm/s

• Outer Wall Speed → 35 mm/s

• Inner Wall Speed → 50 mm/s

• Infill Speed → 50 mm/s

• Travel Speed → 120 mm/s

Acceleration / Jerk

• Default Acceleration → 1000 mm/s²

• Outer Wall Acceleration → 500 mm/s²

• First Layer Acceleration → 300 mm/s²

• Travel Acceleration → 2500 mm/s²

• Jerk (XY) → 8 mm/s

Strength / Infill

• Wall Loops → 3

• Top Layers → 4

• Bottom Layers → 4

• Infill Density → 20%

• Infill Pattern → Gyroid

• Sparse Infill Anchor Length → 5 mm (🔔 Note: increase to 10 mm if you see weak infill connections)

Skirt & Brim

• Skirt Loops → 3

• Skirt Distance → 2 mm

• Skirt Layers → 1

Retraction

• Retraction Distance → 4 mm

• Retraction Speed → 40 mm/s

• Z-Hop → 0.2 mm

• Wipe While Retracting → Enabled

• Retract on Layer Change → Disabled

• Minimum Travel Before Retraction → 1.0 mm

Supports

• Support Style → Tree

• Top Contact Z Distance → 0.25 mm (detachable, fixed)

• Support Density → 15%

• Support Interface Pattern → Grid

• XY Distance → 0.5 mm

• First Layer Support Gap → 0.3 mm

Consider 'Annealing' your chess set.

Annealing your PLA models can improve strength by 10–20%. If you plan to use the set regularly, I highly recommend it. For display or occasional play, annealing is optional, and the appearance and finish remain unchanged.

🔗 More info: [Annealing PLA Prints for Strength — Easy Ways (All3DP)]

https://all3dp.com/2/annealing-pla-prints-for-strength-easy-ways/
