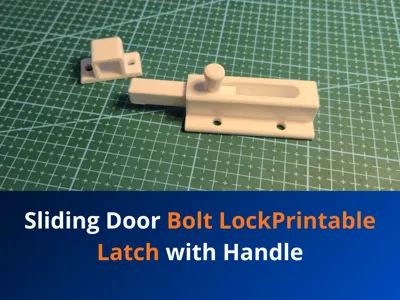

Sliding Door Bolt Lock–Printable Latch with Handle
Print Profile(1)
Description

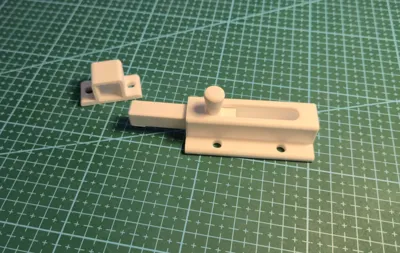

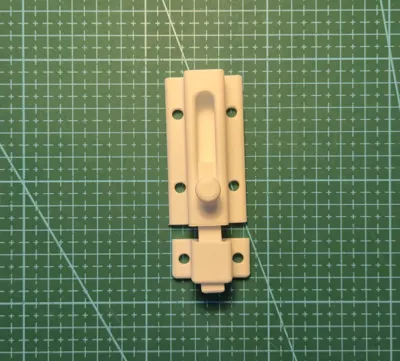

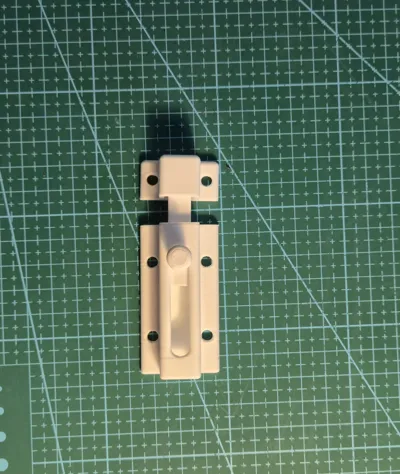

Completely 3D-printable sliding door bolt designed for lightweight doors, panels, cabinets, or storage boxes.

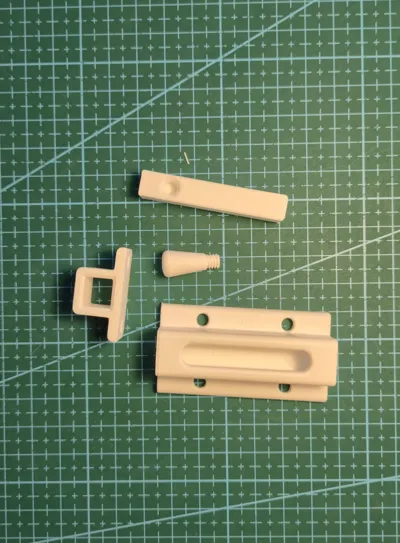

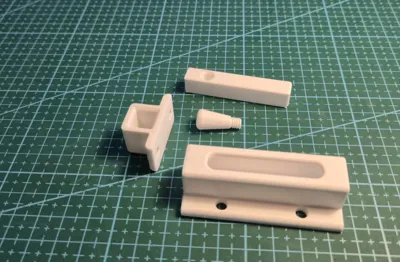

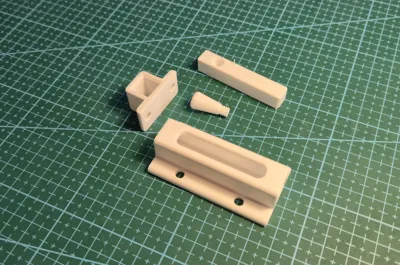

The model consists of four parts: main body with guide, sliding bolt, strike plate, and screw-on knob.
The knurled knob ensures a comfortable and secure grip, while the long guide maintains proper bolt alignment even with minor mounting errors.
All parts are designed to print without supports, using standard through-hole screws for secure attachment to the door and frame.
Recommended materials: PLA+ or PETG for indoor use; for outdoor applications, opt for UV-resistant filaments (ASA/ABS) paired with stainless steel screws.
Dimensions are optimized for wooden doors or furniture panels; the model can be easily scaled for custom sizes.
