Maverick Blackout MT Headlight Reflector Set
Print Profile(1)
Description
Maverick Blackout MT (1:5) – RC Headlight Reflector Set
3D-printed headlight reflector housings designed for 1:5 scale bodies such as Maverick Blackout.
May also fit Redcat Rampage and HSP Warrior (same body style – verify dimensions before printing).
Designed to replace the painted “fake” headlights with real functional lighting.
✦ Features
• Left + right reflector included in file
• Sized for max 10 mm LED (drill to exact fit as needed)
• Clean OEM-style reflector shape
• Lightweight but solid design
• Recommend to be printed in silver / metallic filament
✦ Installation Guide
- Mask the headlight area on the RC body.
- Carefully remove the paint from the inside using paint remover to make the plastic transparent.
(Mask properly to avoid damaging surrounding paint.) - Drill LED hole to desired diameter in the reflector set.

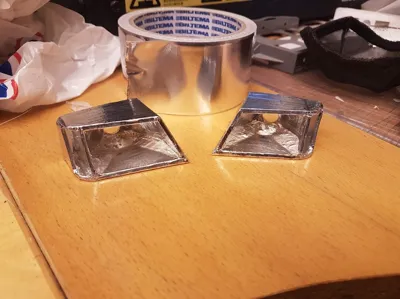

- Optional: Line reflector with reflective aluminum tape for extra brightness.
- Glue reflectors in place from the inside of the body.

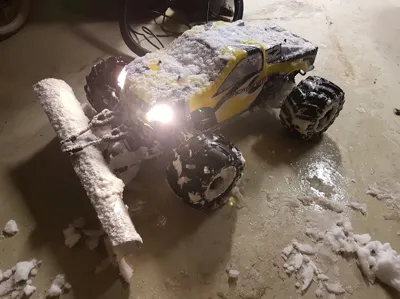

The result: Real functional headlights instead of painted details.
✦ Print Information
Size per reflector: approx. 53 × 25 × 40 mm
Material usage (pair): ~20 g
No supports required
0.4 mm nozzle recommended
Print orientation as provided in STL.
✦ Notes
This model includes both left and right reflectors.
LEDs and wiring are not included.
Test fit before gluing.
If you have suggestions for improvements or additional sizes, feel free to leave feedback.
Happy printing! 💅✨
