🎧 Customizable Parametric Headphone Monitor Hook
Tired of your headphones living on your desk… or worse, the floor? Give them the throne they deserve.
This fully parametric monitor headphone hook lets you customize the fit to your monitor and your headset. Whether you're rocking chunky gaming cans or sleek office headphones, this design adjusts to match your setup perfectly.
Built to slide securely over your monitor’s top bezel, the hook features adjustable parameters so you can dial in everything from monitor thickness to hook angle and headband width. Optional double sided tape recess for even greater hook stability

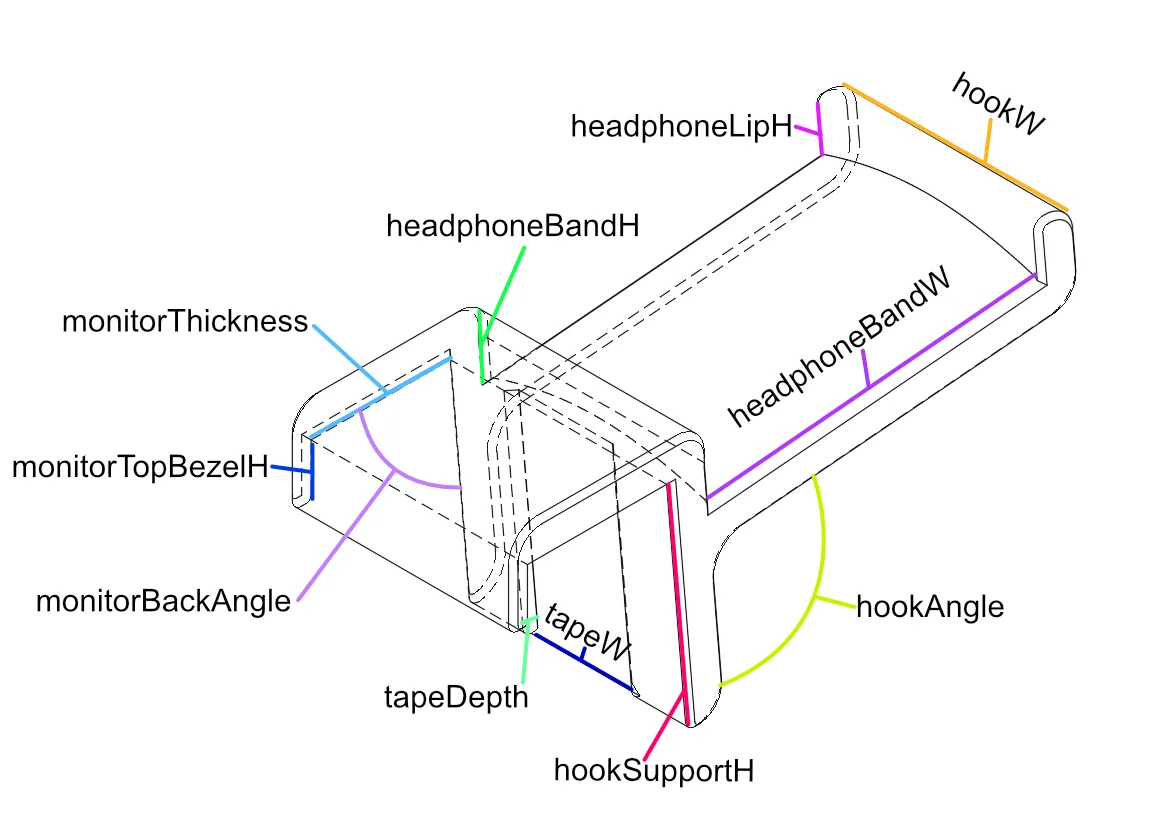

🔧 Fully Adjustable Parameters
Designed for MakerLab and built to customize:
- monitorThickness – Match your exact monitor depth
- monitorTopBezelH – Account for bezel height
- monitorBackAngle – Compensate for angled monitor backs (90 deg is straight and perpendicular to top of monitor)
- tapeDepth & tapeW – Optional double sided tape support tuning (tapeDepth min is 0.001)
- headphoneBandW – Fit narrow or wide headbands
- headphoneBandH – Clearance for thick padding
- headphoneLipH – Lip to prevent sliding off
- hookAngle – Adjust the hook angle relative to the back hook support (90 deg is perpendicular)
- hookW – Overall hook width
- hookSupportH – Total back height for hook
No more guessing if it will fit — just measure, tweak, and print.
🎮 Perfect For
Gaming setups
Office desks
Streaming rigs
Home studios
WFH organization
Minimalist desks
Works great for:
SteelSeries, Logitech, Astro, Turtle Beach, Razer, Sony, Bose, Sennheiser, Audeze, Jabra, Plantronics, Corsair, Beats, JBL, Bang & Olufsen, Anker, Audio-Technica and more.
From lightweight Bluetooth headphones to hefty audiophile headsets — just adjust the parameters to match.
🖨️ Printing Notes
- Print on it's side for best strength
- Increase walls (4+)/infill (30%+) for heavier headphones
- PLA works great with additional walls
Because your headset deserves better than being tossed next to your keyboard.
