Pioneer DDJ-FLX4 Stand

Inclined stands for a Pioneer DDJ FLX 4 controller.

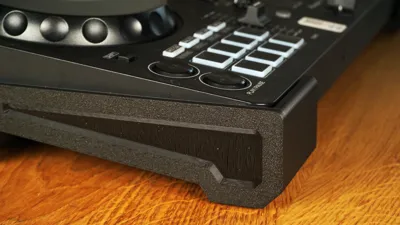

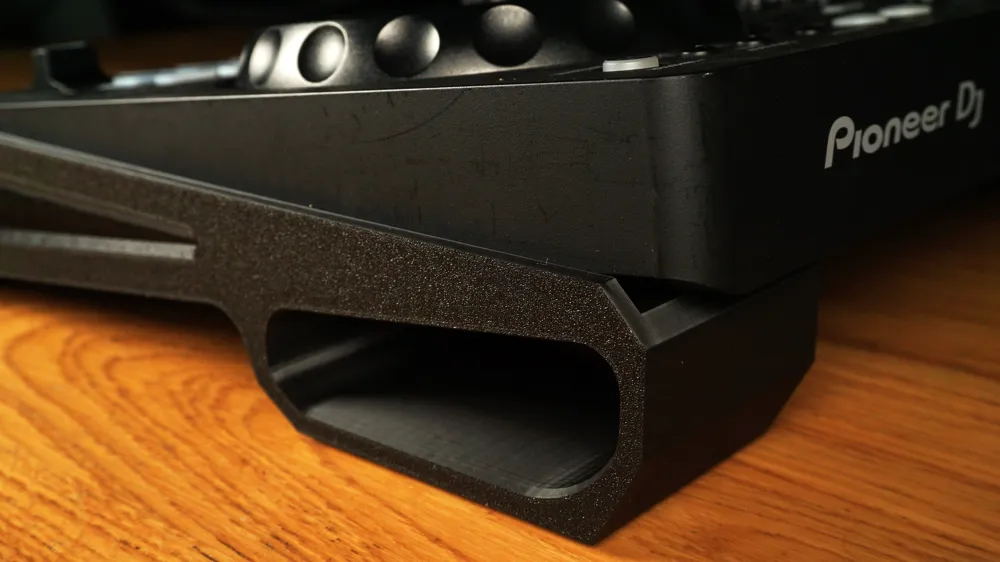

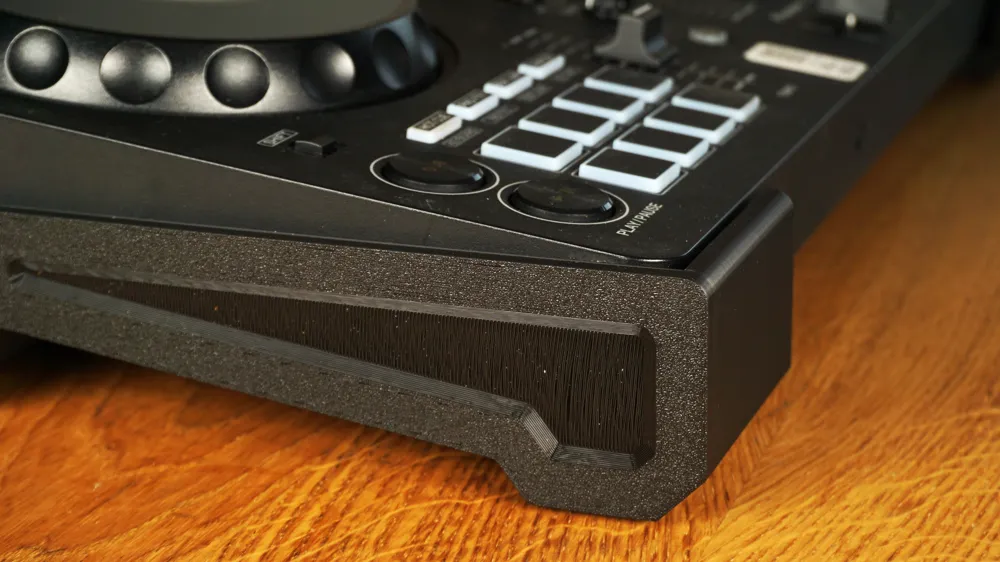

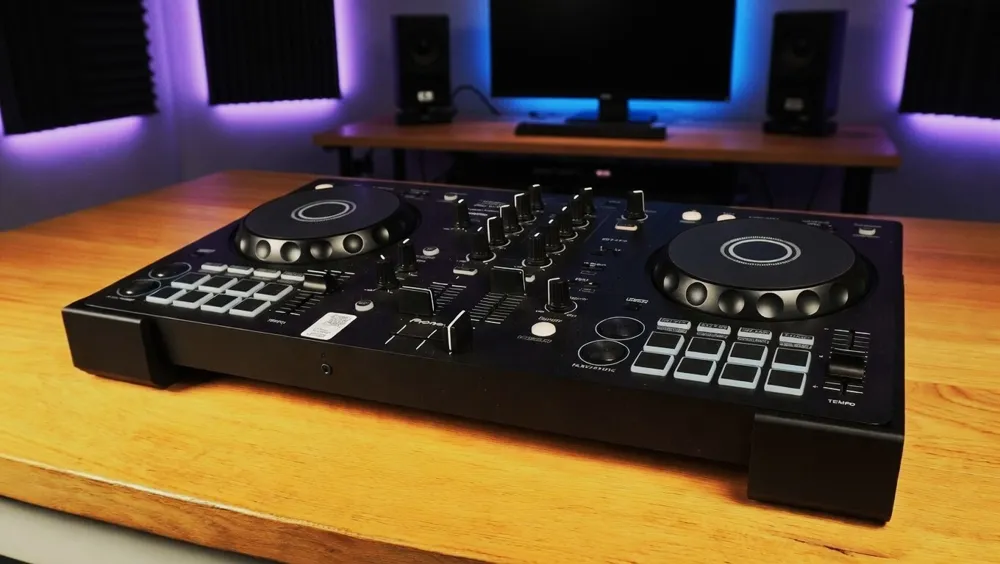

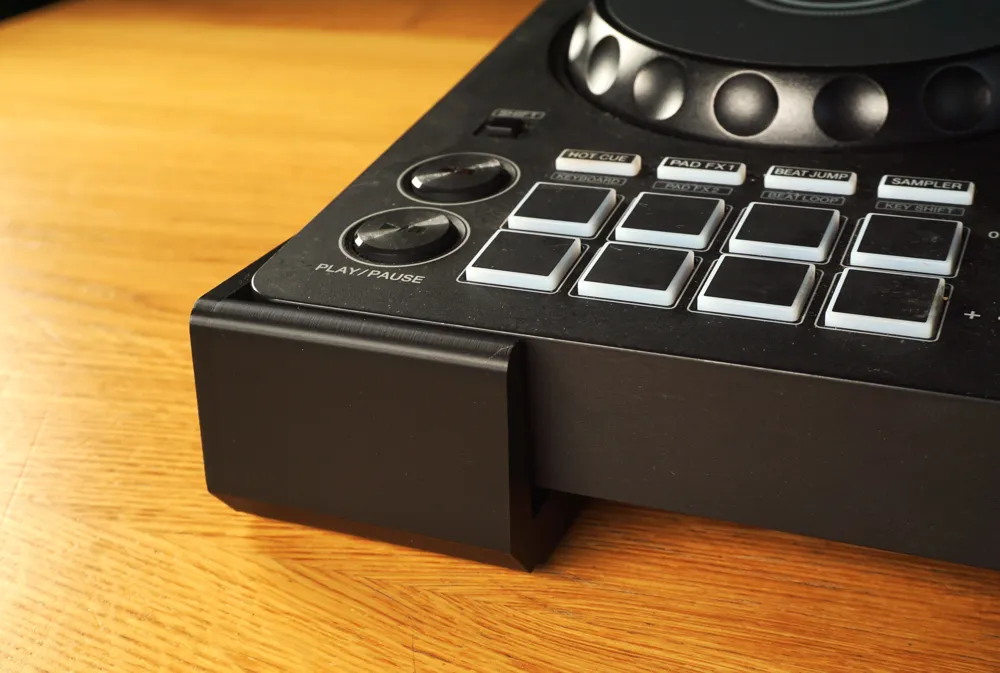

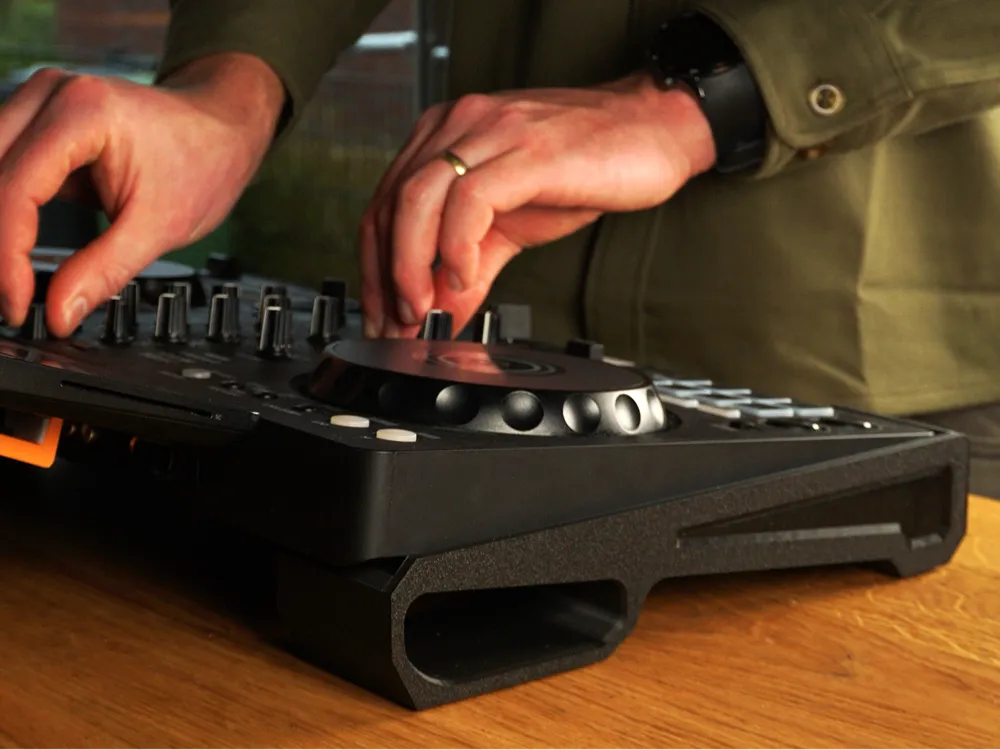

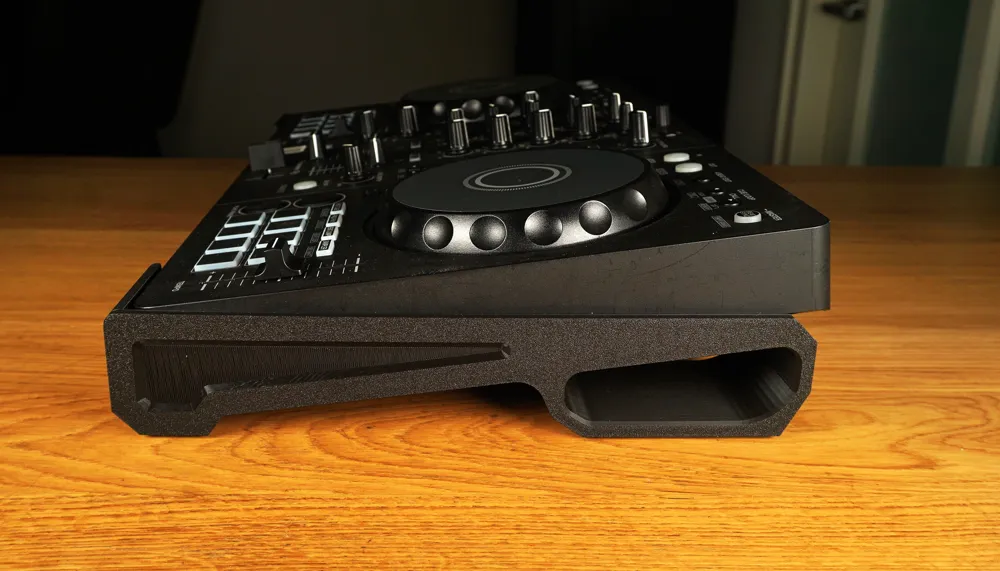

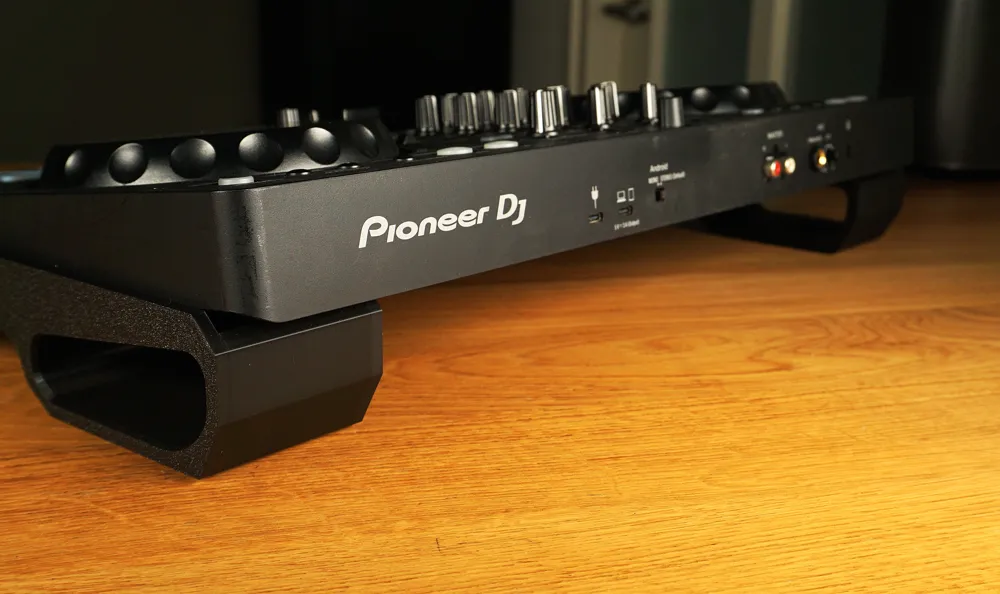

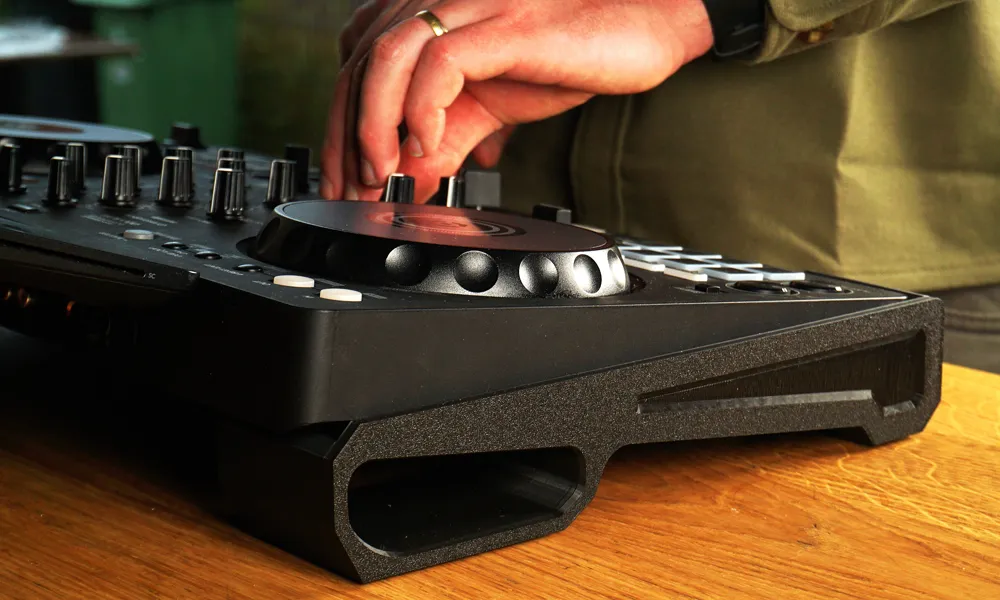

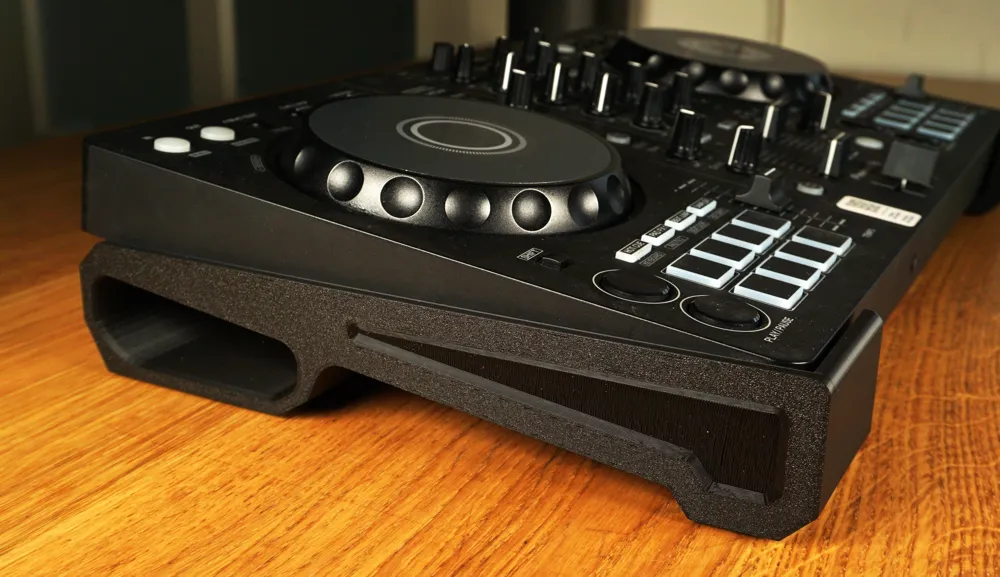

These 3D printed feet raise your DDJ-FLX4 by approx. 4–5 cm and tilt it slightly.

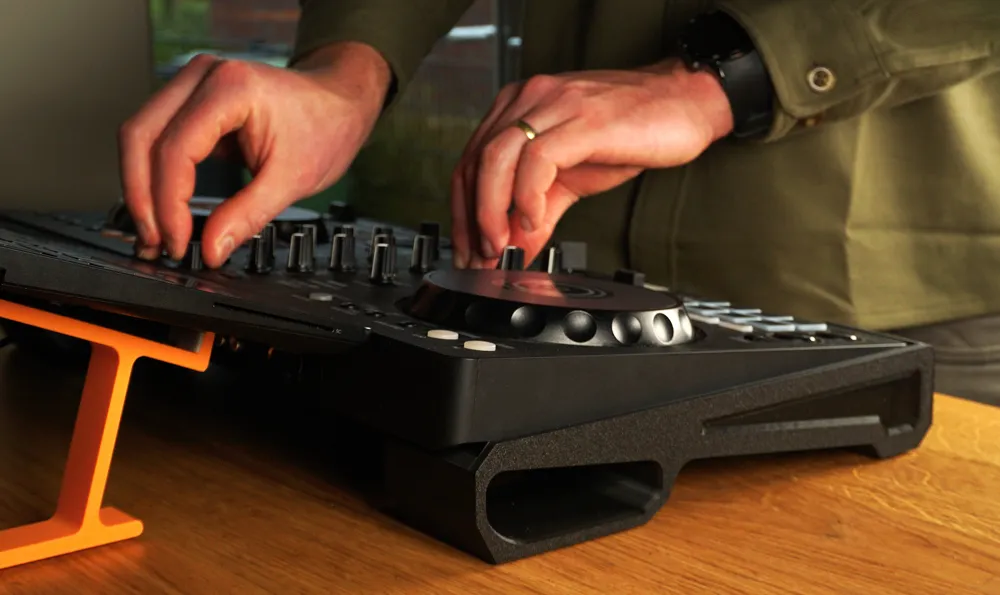

Perfect for a better view of the controller and also much more comfortable working while standing or sitting.

Advantages of these stands

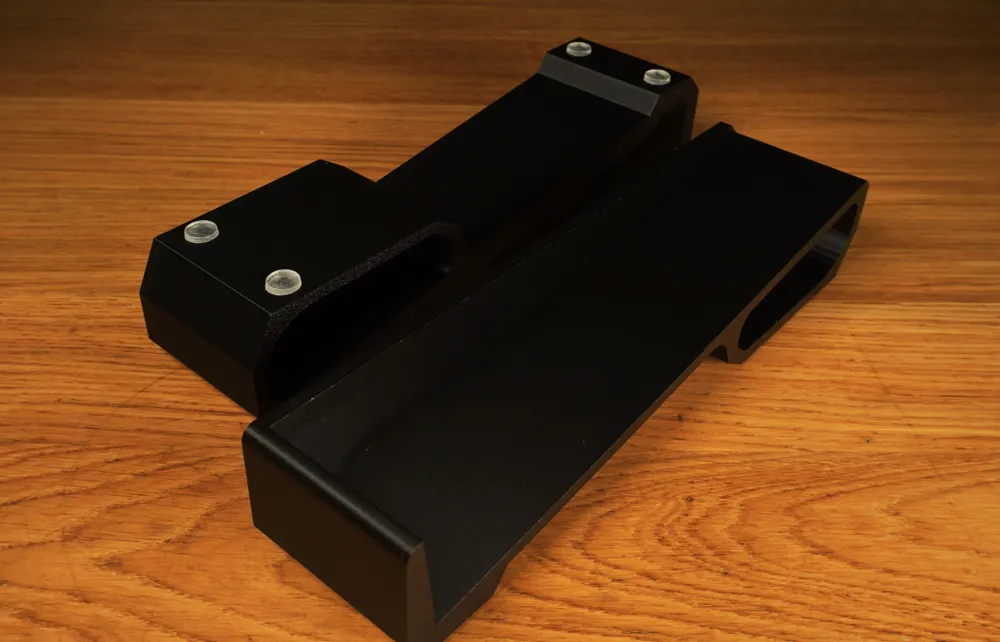

• Stable and non-slip with integrated space for rubber pads 11.6mm

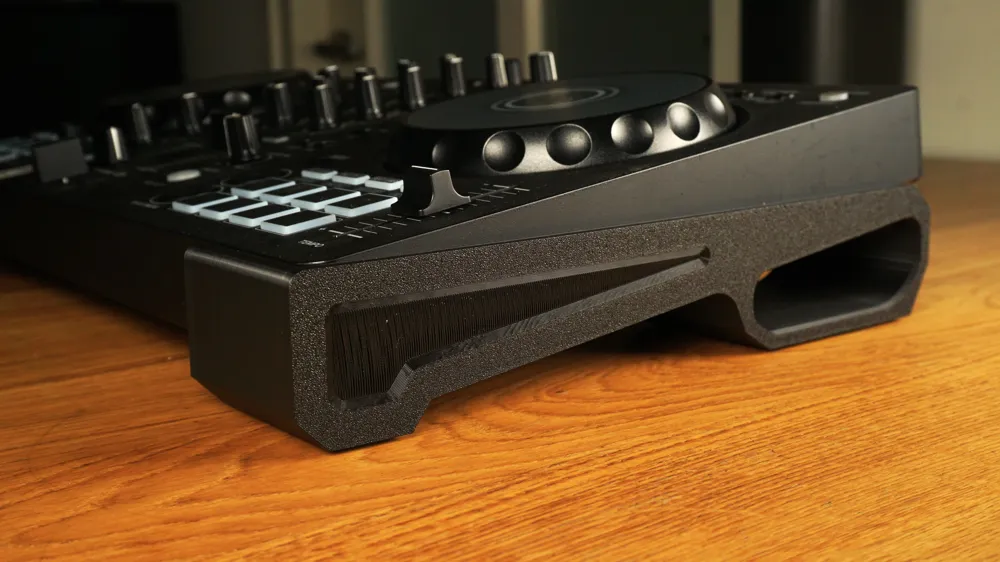

• Slight tilt of approx. 10° for comfortable work
• Quick setup: no glue or screws needed
• Perfectly fitting for the Pioneer DDJ FLX 4
• Optional cover cap (caps) to conceal the area that was printed in air

Included in the 3MF profile:

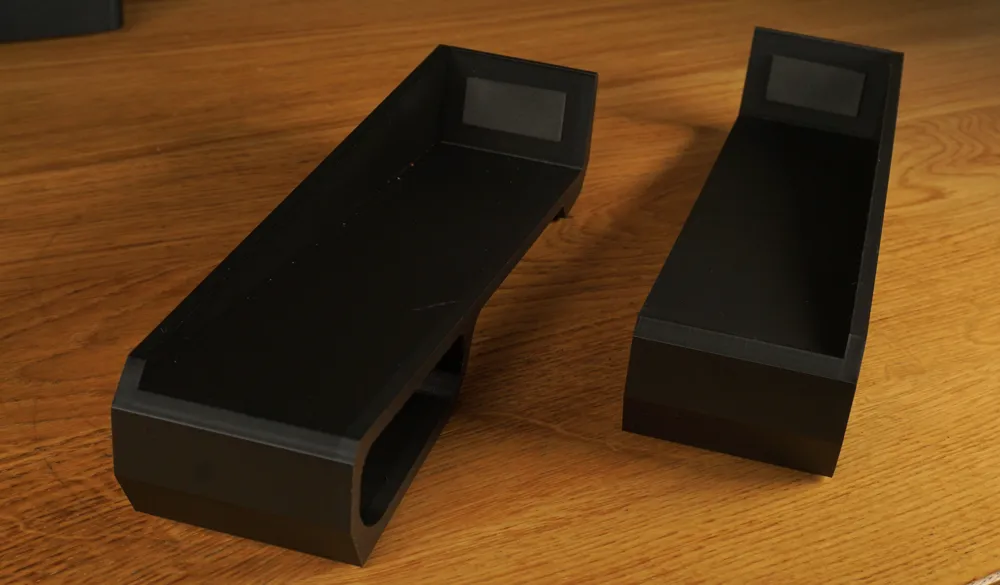

• Both stands (left + right) already placed side-by-side
• Optimal print settings
• Recommended settings:
  • Material: PLA or PETG
  • Layer height: 0.2mm
  • Infill 15% Gyroid
  • Walls 2
  • no supports

Optional

The small caps (separate 3MF) can simply be glued into the recess if you want to conceal the typical overhang lines.

Print time: Approx. 2.5-3 hours per stand

Material consumption: Approx. 120gr per stand

Note: The DDJ-FLX4 is only slightly raised – no replacement for large risers. Tested with original Pioneer controller.

Have fun printing & DJing! Feedback & remixes welcome (attribution + Share-Alike)
