Snap-Fit Pipe Mounts | 15 Sizes 12-50mm | M4 Screw

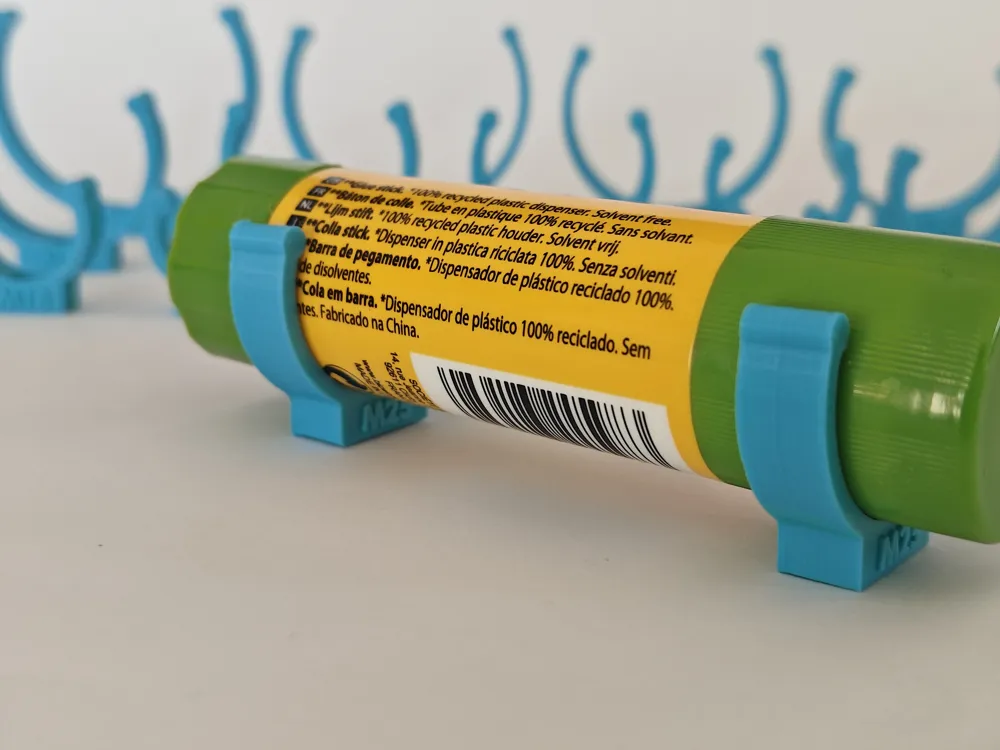

A comprehensive set of heavy-duty, snap-fit pipe brackets. Designed to hold pipes, tubes, or thick conduits securely against walls, ceilings, or under desks.

Key Features:

• Satisfying "Click" Fit: The opening is designed with rounded leading edges. When you push the pipe in, the plastic flexes slightly and snaps shut around the pipe with a loud, satisfying "click"—ensuring it won't pop out under vibration or gravity.
• M4 Countersunk Mounting: Features a central mounting hole perfectly sized for an M4 screw. The hole is deeply countersunk so the screw head sits completely flush, preventing it from scratching your pipe.

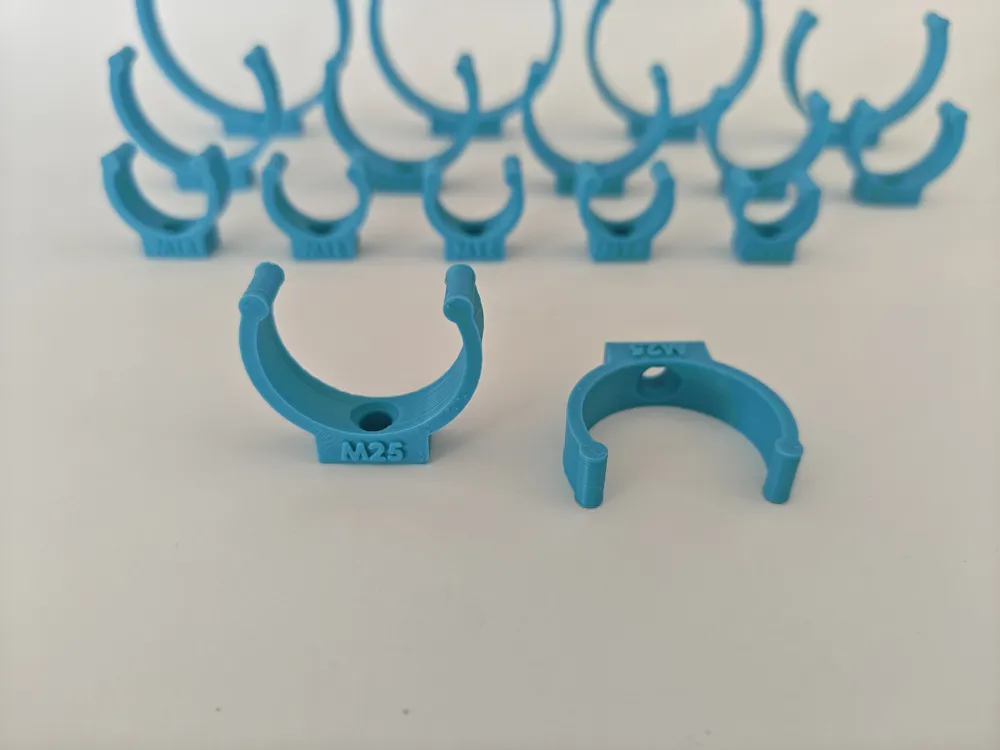

• 15 Exact Sizes: Every bracket has its internal diameter deeply embossed on the side for easy identification.

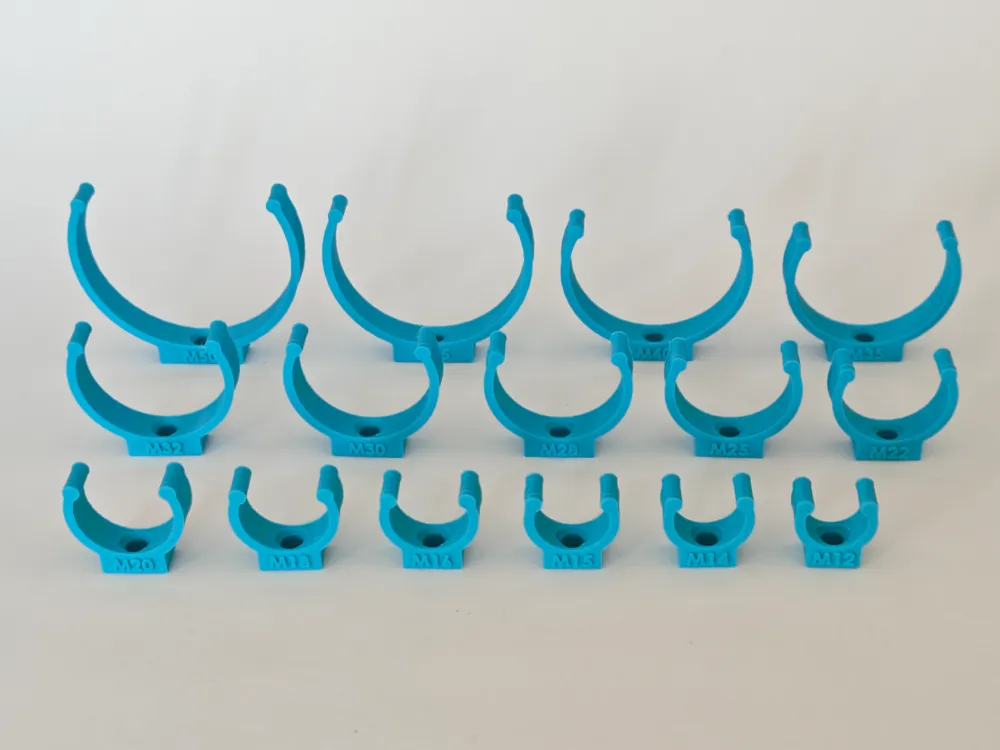

  • Included Diameters (mm): 12, 14, 15, 16, 18, 20, 22, 25, 28, 30, 32, 35, 40, 45, 50.
• Fast & Support-Free: Optimized to print incredibly fast without any support material.

Printing Instructions:

• Orientation: Print flat on its side (C-shape facing down on the build plate). This is critical for maximizing flexural strength so the arms can bend without breaking.
• Supports: NONE.
• Material: * PETG or ABS/ASA is recommended for maximum flexibility and durability.
  • PLA works perfectly fine for indoor, temperature-stable environments (basements, workshops, desks).
• Walls/Perimeters: Use 2walls. For mechanical parts like this, adding perimeters makes it much stronger than increasing infill.
