ForgeForm

cover




















0.2mm layer, 2 walls, 15% infill

0.2mm layer, 5 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Danke für deine Unterstützung </boostcontent></boostme><h2>DIN 935 Kronenmuttern – M8 bis M56</h2><p>Parametrische <strong>DIN 935 Kronenmutter (Castellated Nut)</strong> in den Größen <strong>M8–M56</strong>.<br>Ideal für Sicherungsverbindungen mit Splint, z. B. im Maschinenbau, Fahrzeugbau oder bei mechanisch belasteten Baugruppen.</p><h3>✅ Eigenschaften</h3><ul><li>Norm: <strong>DIN 935</strong></li><li>Typ: Kronenmutter mit Schlitzen für Splintsicherung</li><li>Größen: M8 – M56 (siehe Auswahl)</li><li>Saubere, normgerechte Proportionen</li><li>Druckoptimiert für präzise Kanten und saubere Schlitze</li><li>Ideal für Funktionsmuster, Anschauungsmodelle oder Leichtlast-Anwendungen</li></ul><h3>🖨️ Druckhinweise</h3><ul><li>Empfohlene Schichthöhe: 0,2 mm oder feiner</li><li>4+ Perimeter für stabile Flanken</li><li>40–100 % Infill je nach Anwendung</li><li>PETG / ASA empfohlen für mechanische Belastung</li><li>Für reine Demo-Zwecke reicht PLA</li></ul><p>⚠️ Hinweis: Kein Ersatz für geprüfte Metallbauteile bei sicherheitsrelevanten Anwendungen.</p><h2>📦 Enthaltene Größen</h2><p>M8<br>M10<br>M12<br>M14<br>M16<br>M18<br>M20<br>M22<br>M24<br>M27<br>M30<br>M36<br>M42<br>M48<br>M56</p>

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Thank you for your support</boostcontent></boostme><h2>DIN 935 Castellated Nuts – M8 to M56</h2><p>Parametric <strong>DIN 935 Castellated Nut</strong> in sizes <strong>M8–M56</strong>.<br>Ideal for securing connections with a cotter pin, e.g., in mechanical engineering, vehicle manufacturing, or for mechanically stressed assemblies.</p><h3>✅ Features</h3><ul><li>Standard: <strong>DIN 935</strong></li><li>Type: Castellated nut with slots for cotter pin securing</li><li>Sizes: M8 – M56 (see selection)</li><li>Clean, standard-compliant proportions</li><li>Print-optimized for precise edges and clean slots</li><li>Ideal for functional prototypes, display models, or light-load applications</li></ul><h3>🖨️ Printing Notes</h3><ul><li>Recommended layer height: 0.2 mm or finer</li><li>4+ perimeters for stable walls</li><li>40–100% infill depending on application</li><li>PETG / ASA recommended for mechanical stress</li><li>PLA is sufficient for pure demo purposes</li></ul><p>⚠️ Note: No substitute for tested metal components in safety-critical applications.</p><h2>📦 Included Sizes</h2><p>M8<br>M10<br>M12<br>M14<br>M16<br>M18<br>M20<br>M22<br>M24<br>M27<br>M30<br>M36<br>M42<br>M48<br>M56</p>

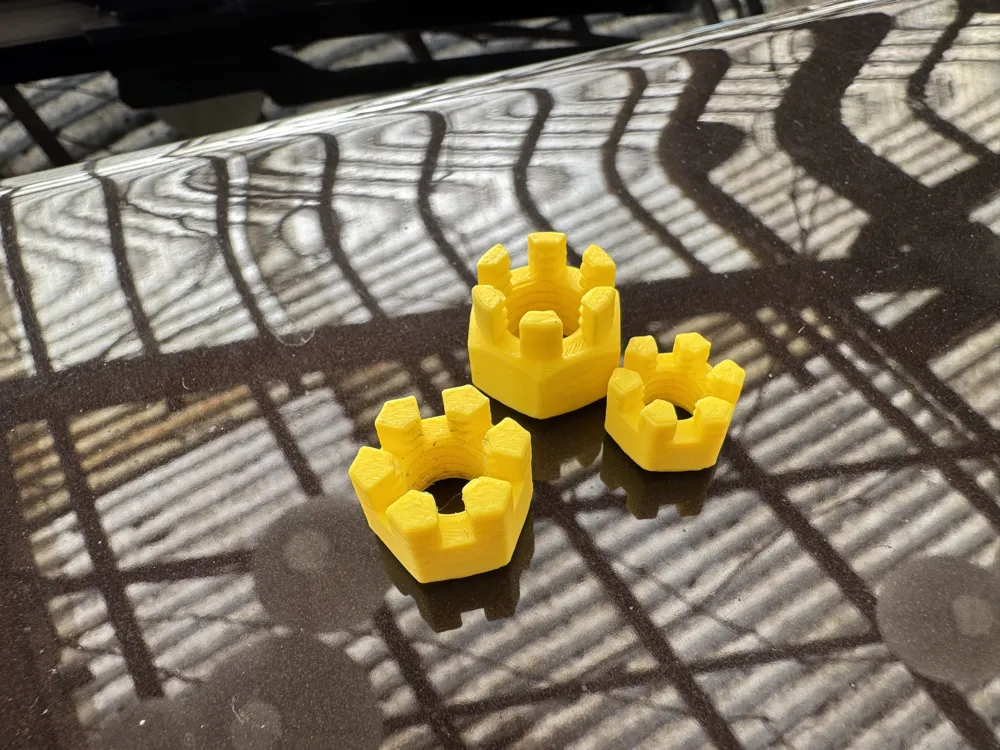

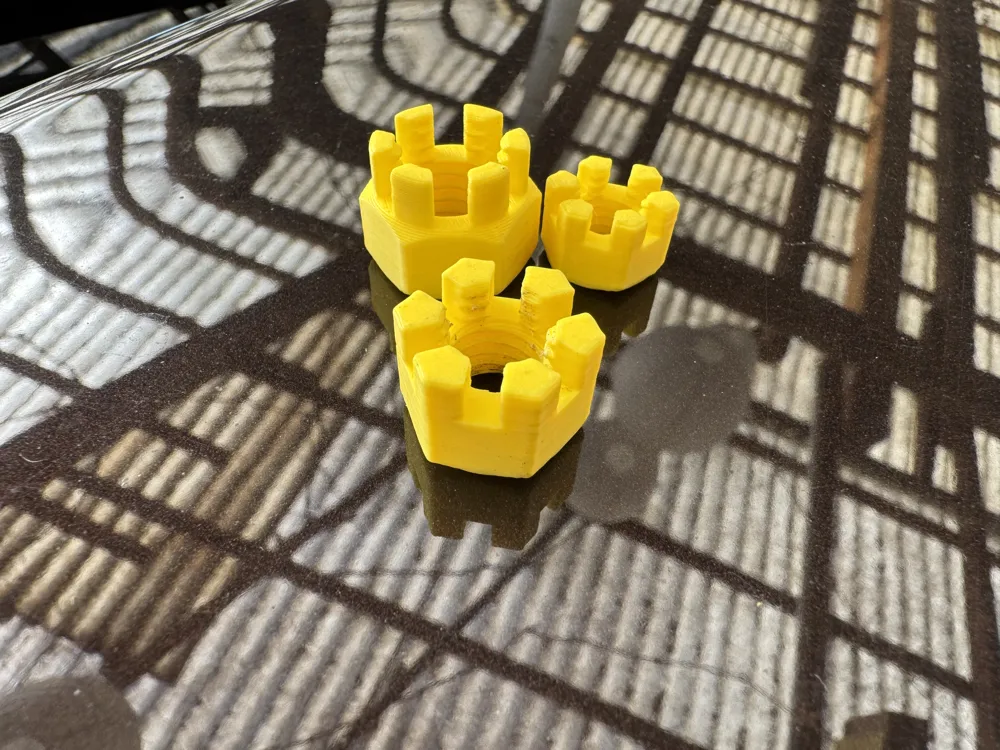

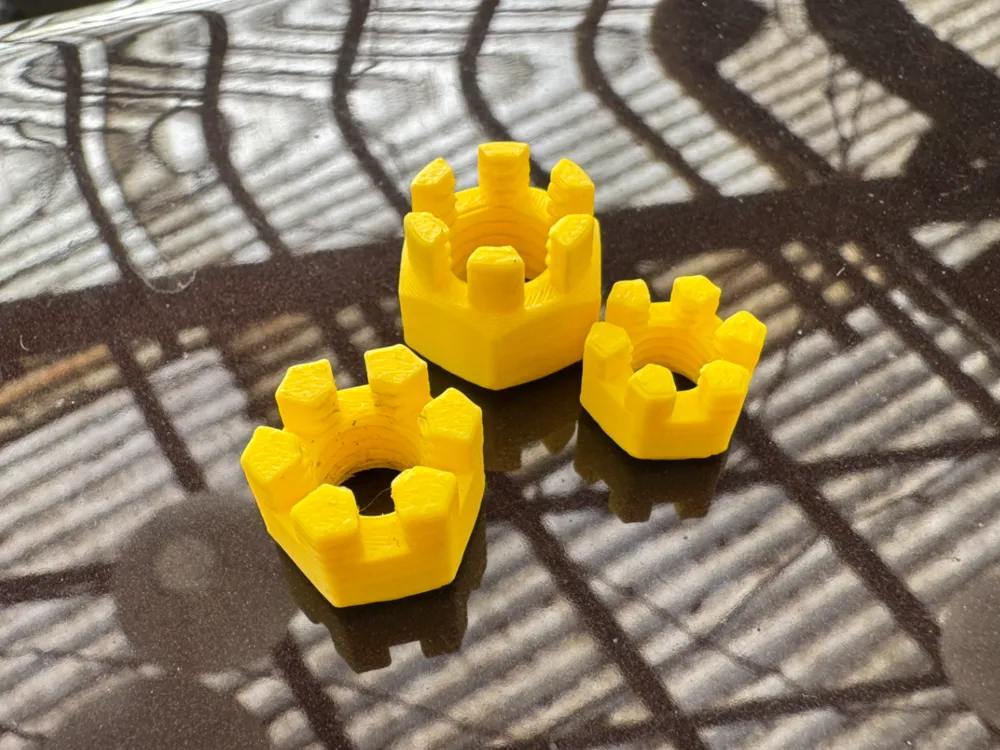

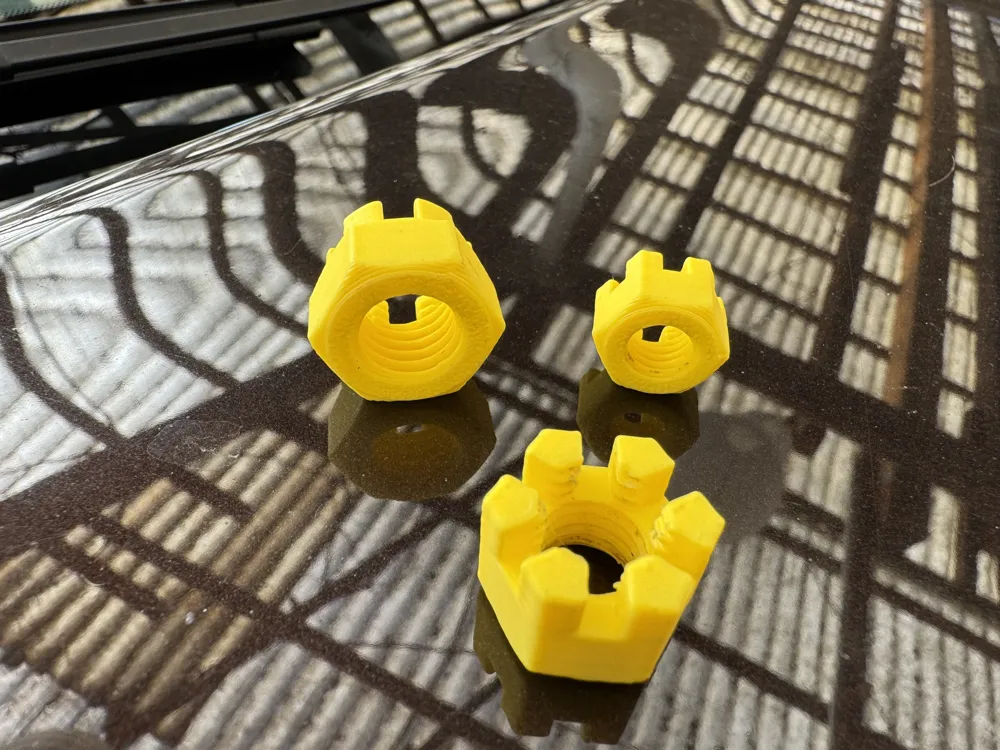

DIN 935 Castellated Nuts – M8 to M56

ASIA

Print Profile(2)

Description

DIN 935 Castellated Nuts – M8 to M56

✅ Features

🖨️ Printing Notes

📦 Included Sizes
