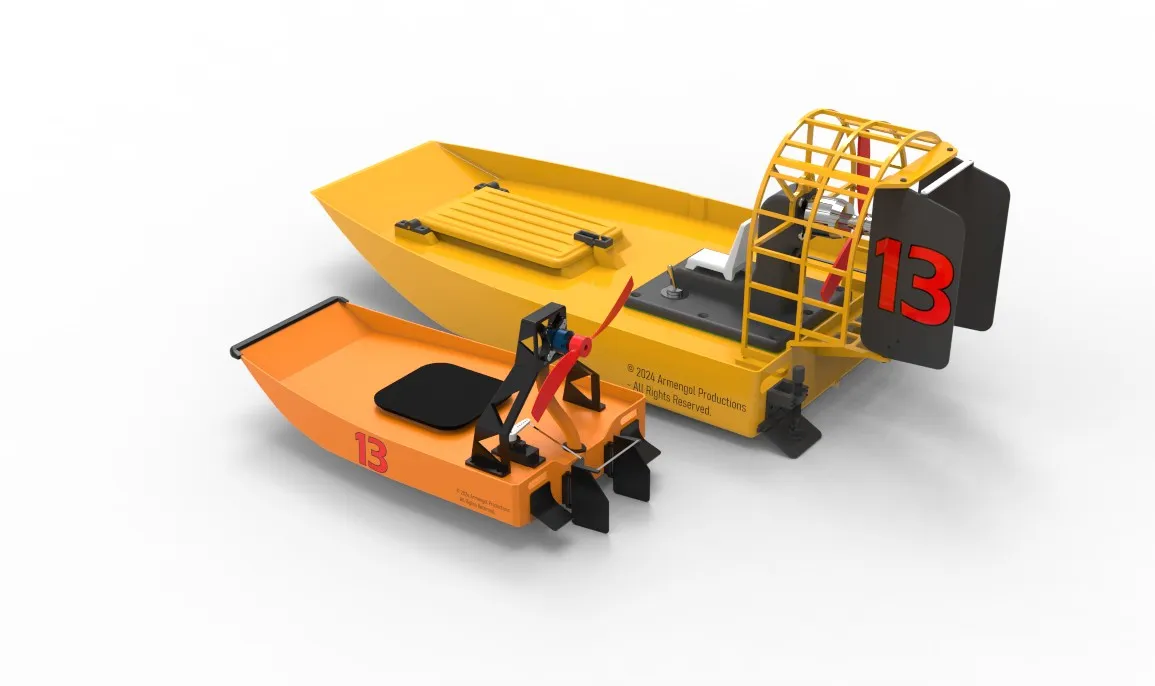

New smaller boat for smaller printers (or smaller lakes):

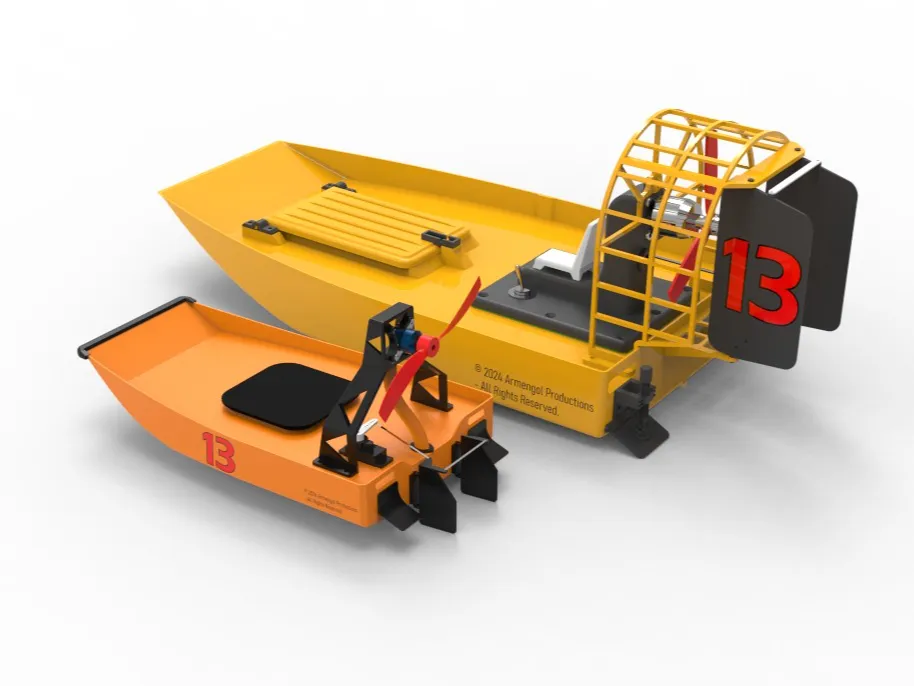

Want a bigger one? Click here to print the big brother.
Please read before printing:
This is a work in progress. Please understand that there is some room for improvement here. I welcome your feedback to help make this design the best it can be.

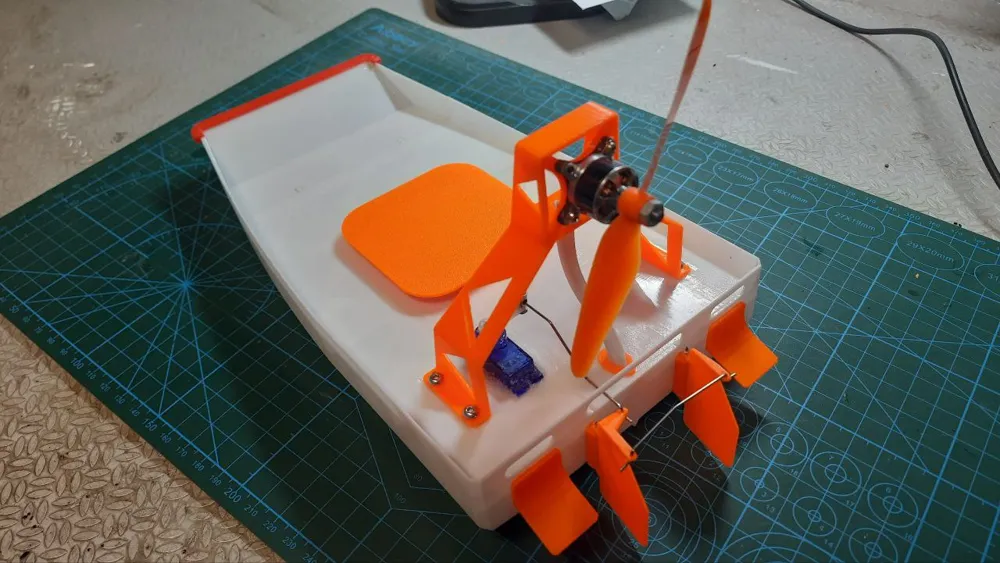

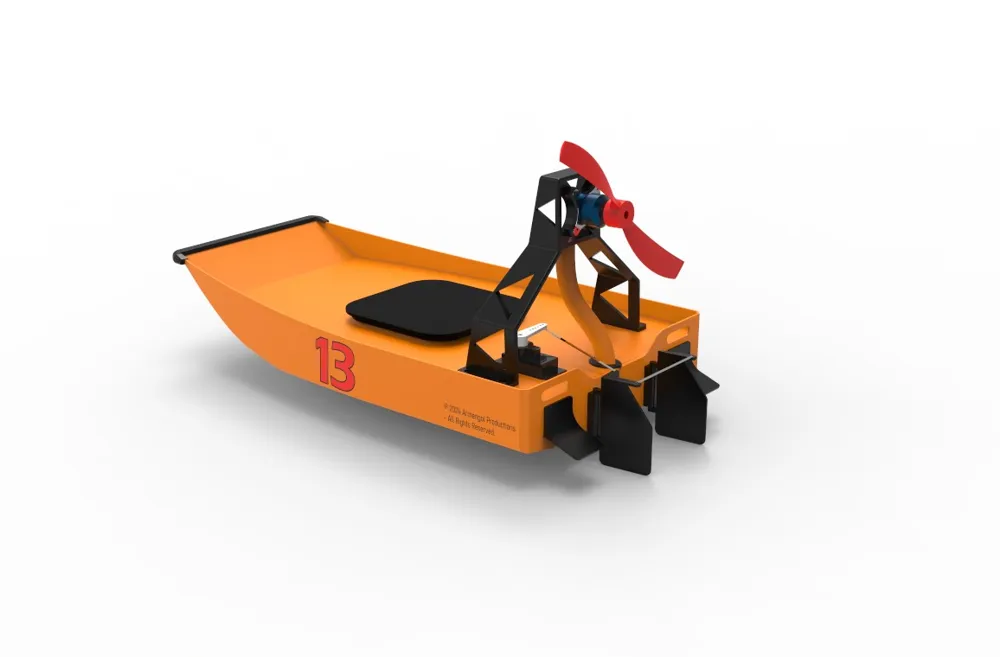

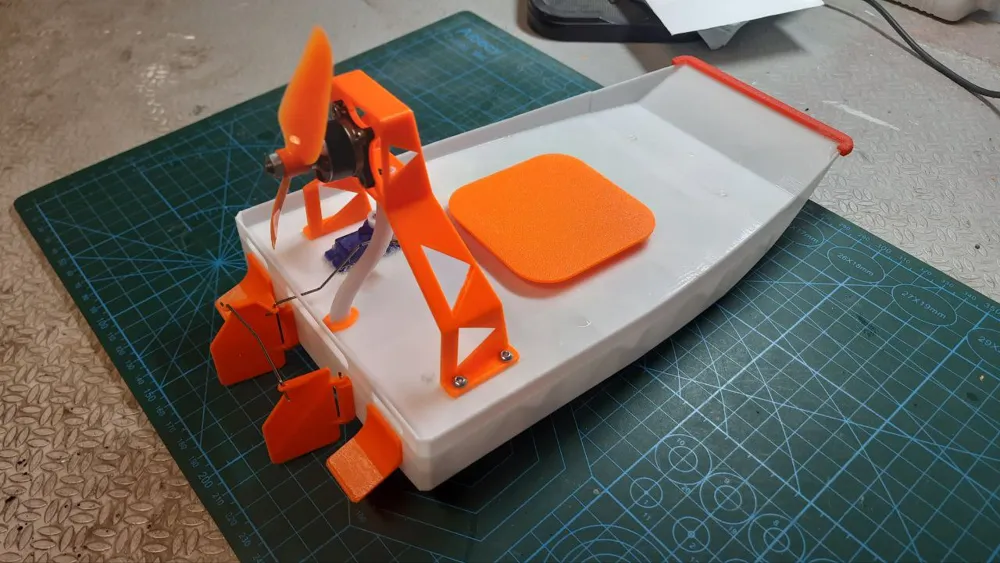

Introducing the Radio Control Racing Boat!
Needed parts:
Transmitter: https://amzn.to/3ZEqISv
Servo: https://amzn.to/3ZCsmnL
10A ESC: https://amzn.to/4cLWuFu
2200kv Motor: https://amzn.to/4geUmF5
2s 500/1000mAh Battery: https://amzn.to/4r4dB98
Propeller 5030: https://amzn.to/46p729K
Printing:
Boat dimensions: 285x140x114,6mm
Printing hours: 6,4h
PLA is not recommended for the boat parts (it works, but ABS, ASA, or PETG would be better).

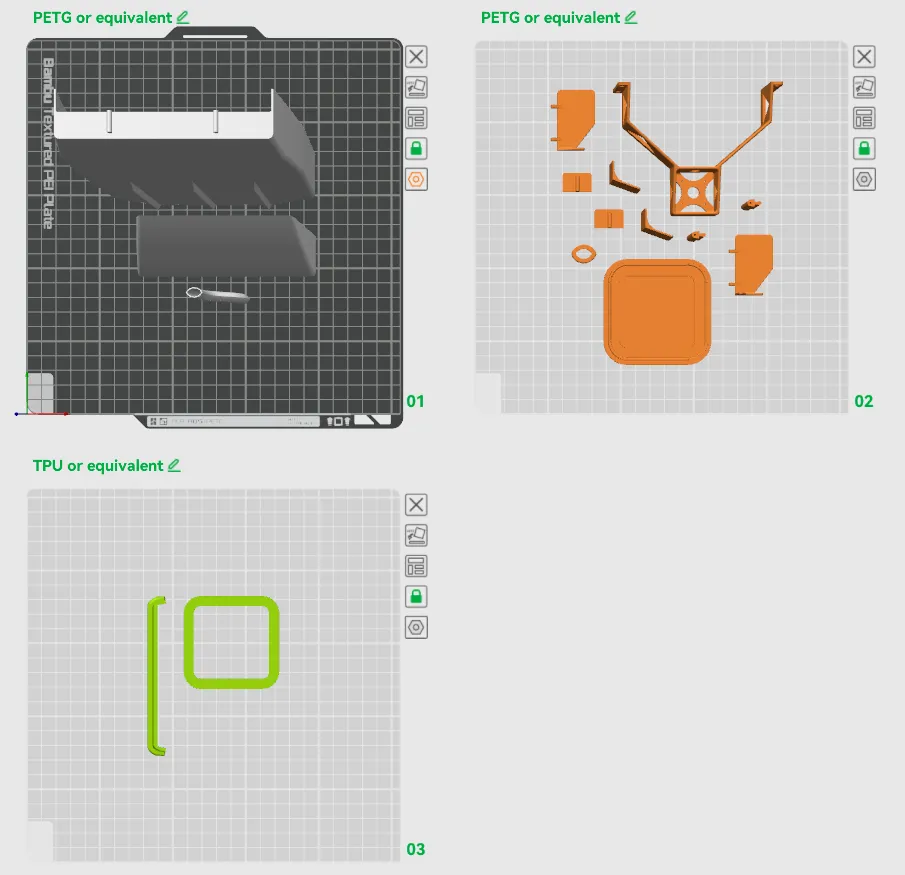

You can use the included 3MF files with pre-plated parts, or arrange the individual parts yourself.
Recommended print settings (100% scale, 0.4mm nozzle):
Use PETG or similar material with 5% infill.
Print the green parts in soft material like TPU.

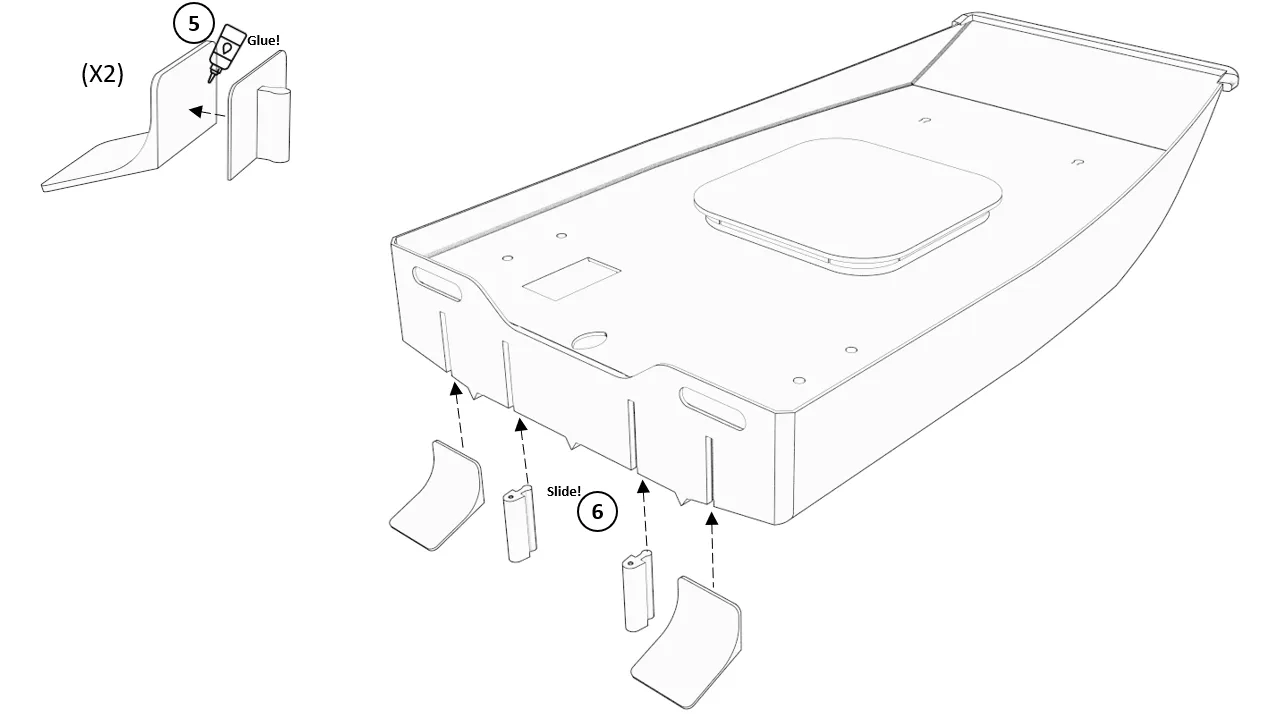

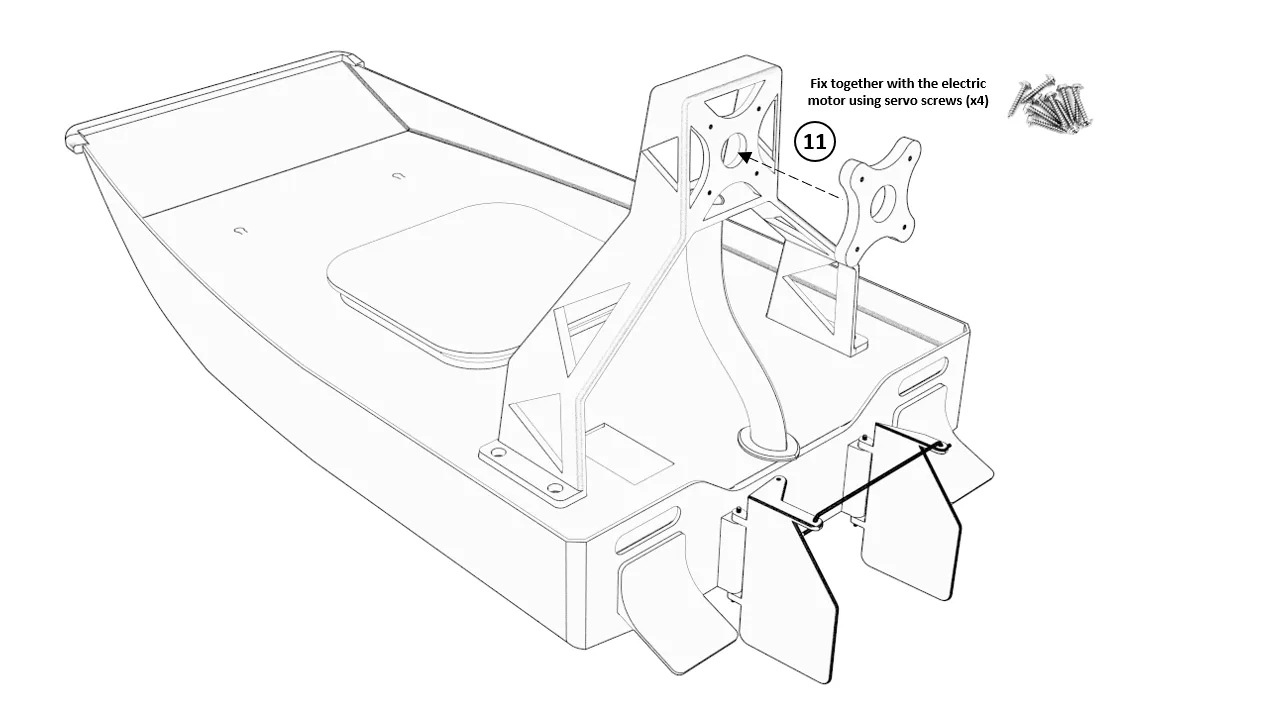

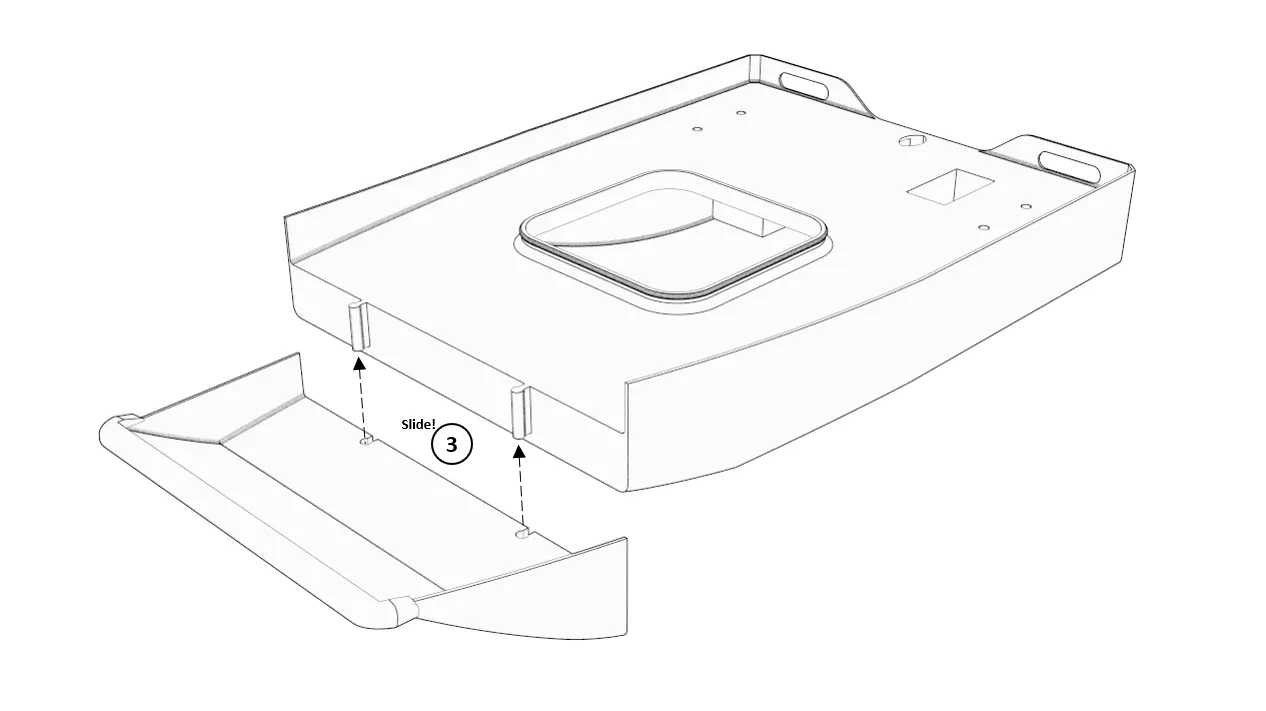

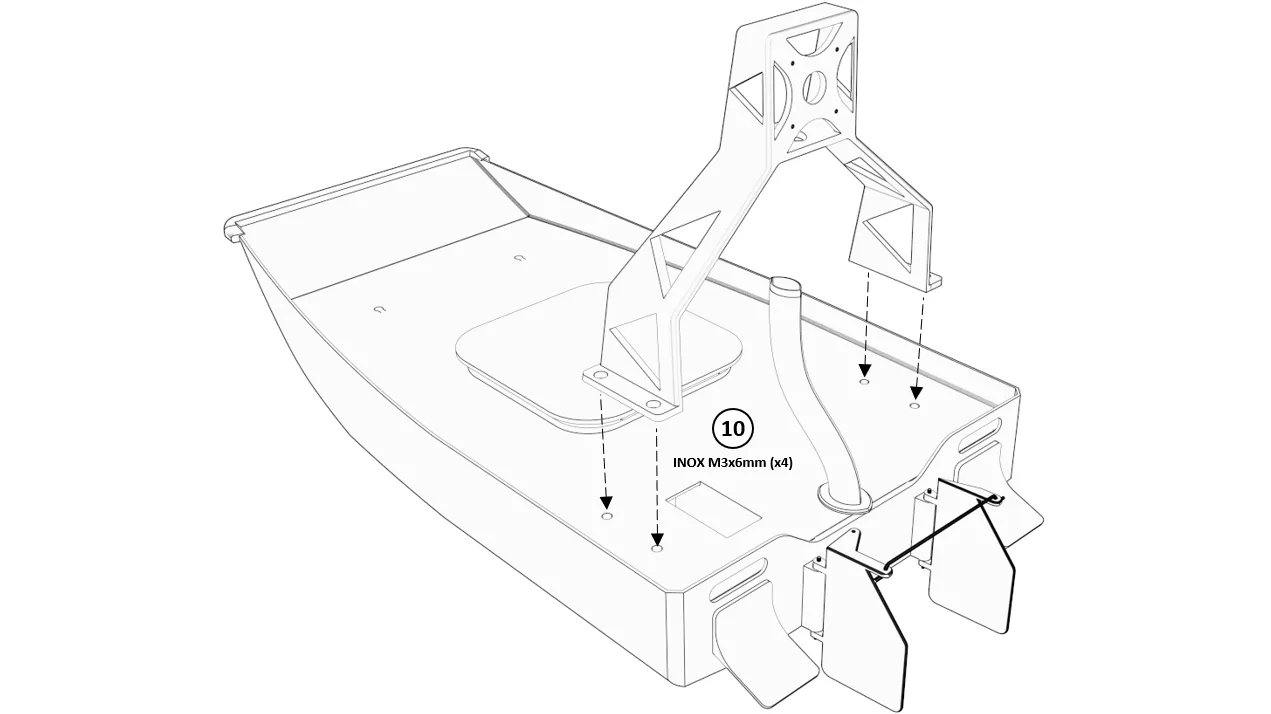

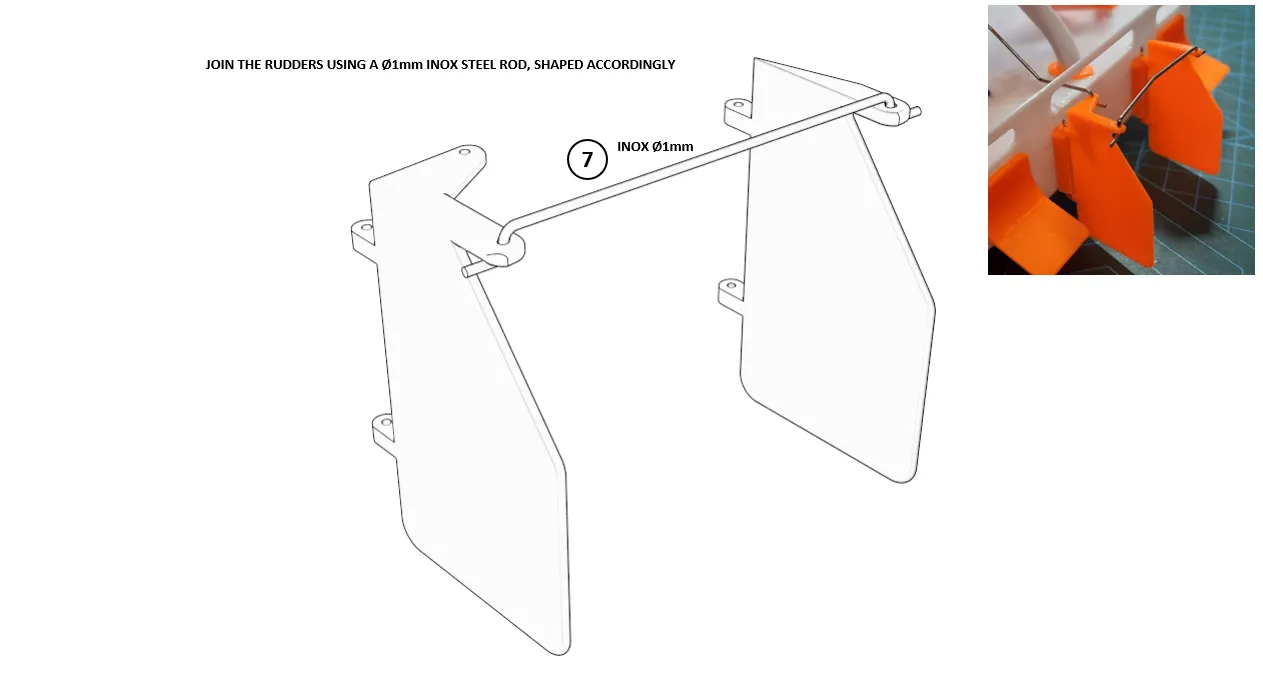

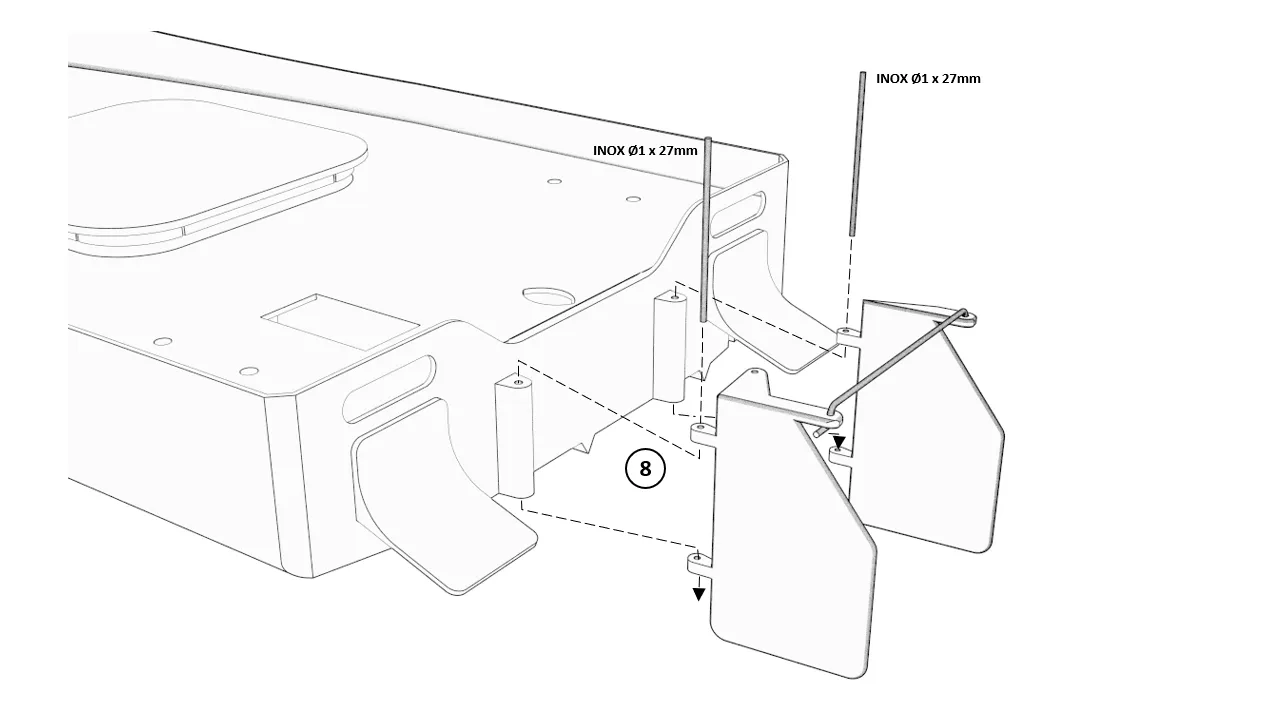

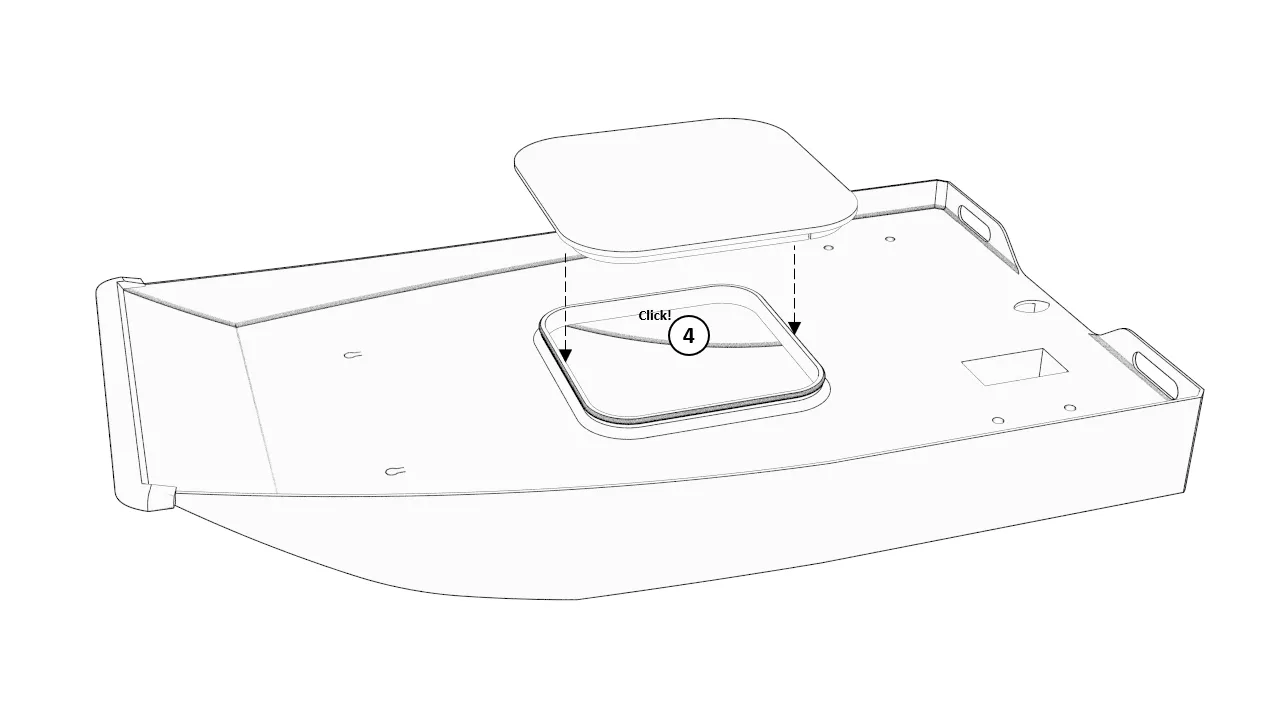

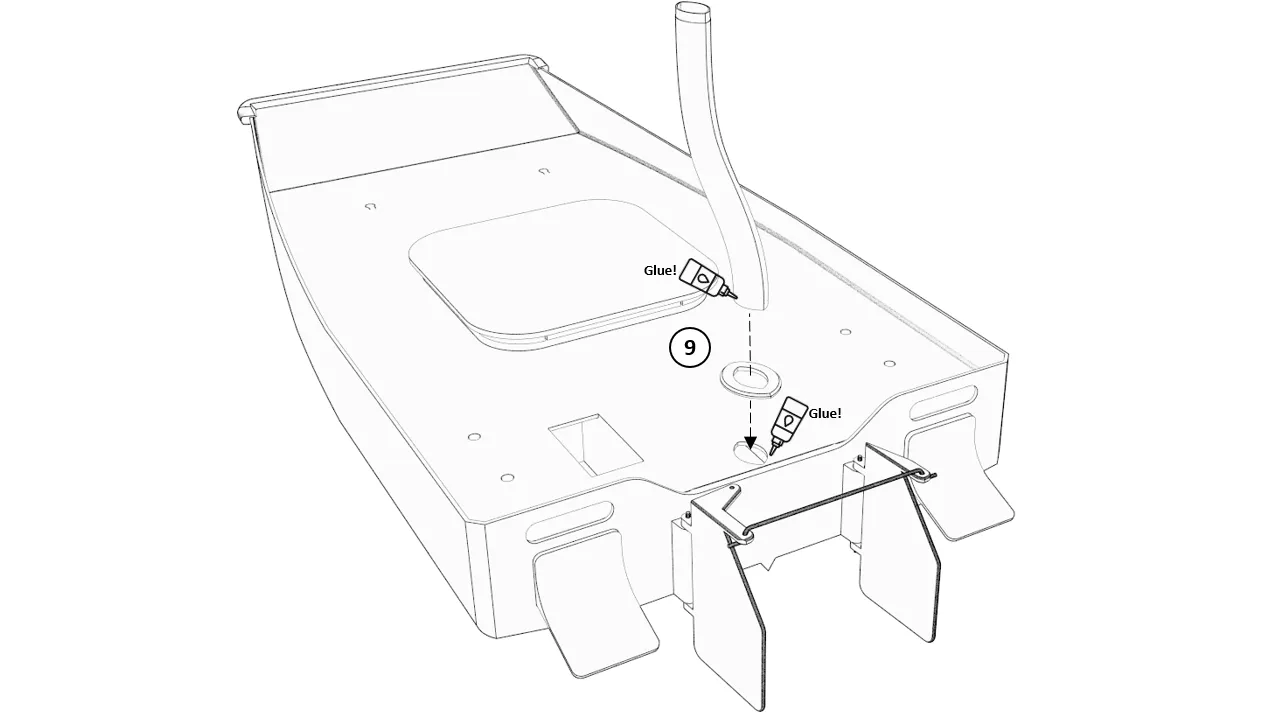

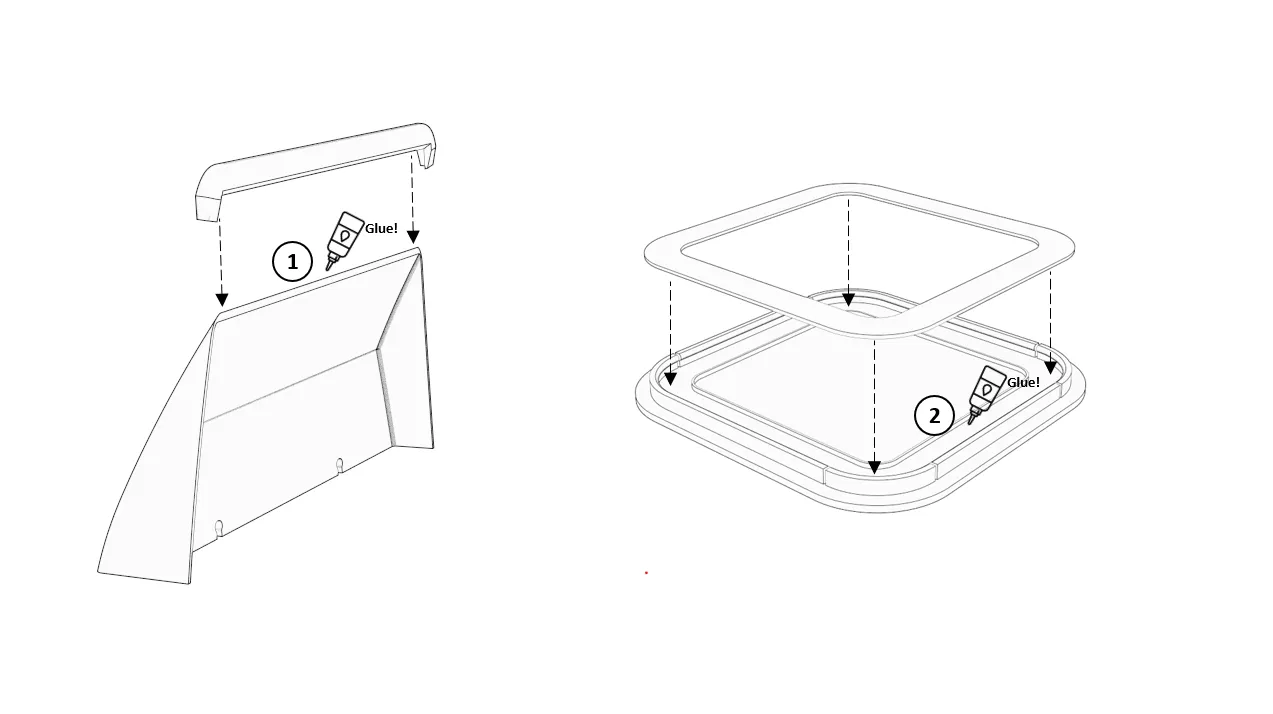

Assembly Manual: ‘Think twice print once’:
If you want to guarantee the watertightness of the hull, I recommend applying one or two coats of clear varnish.
