Description

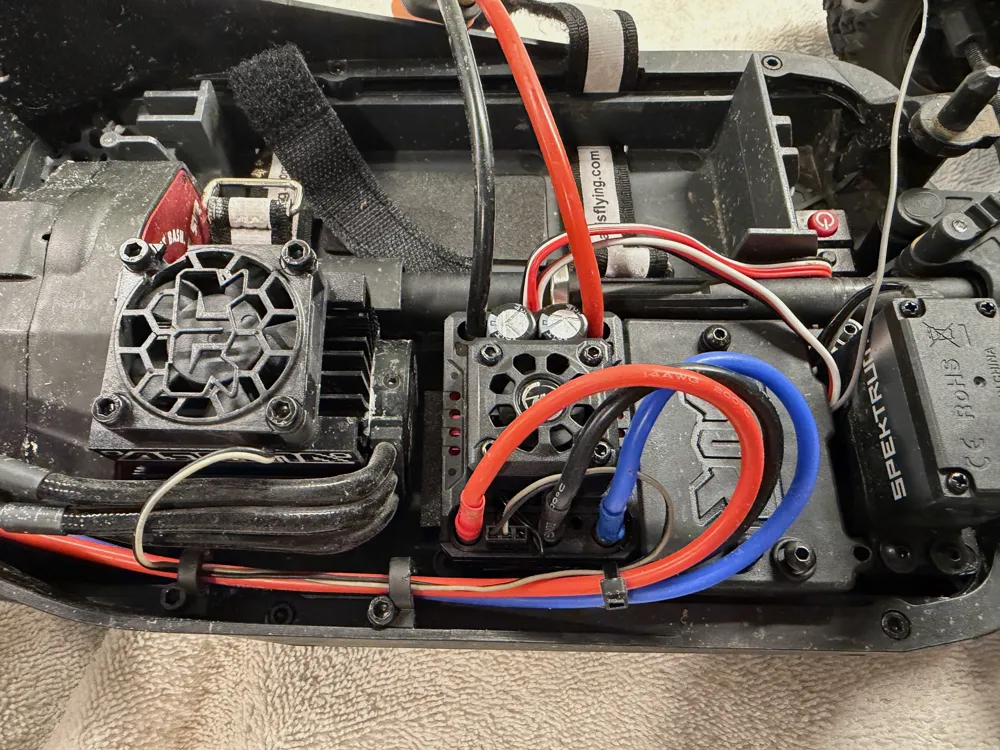

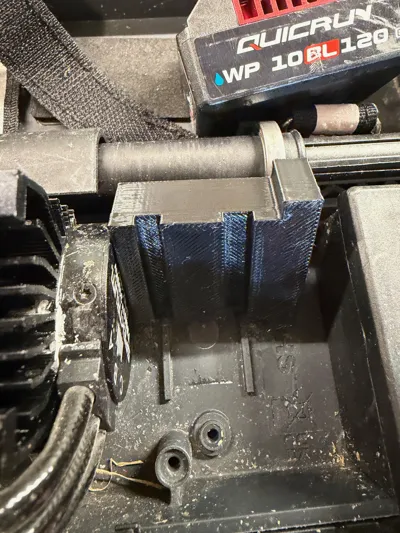

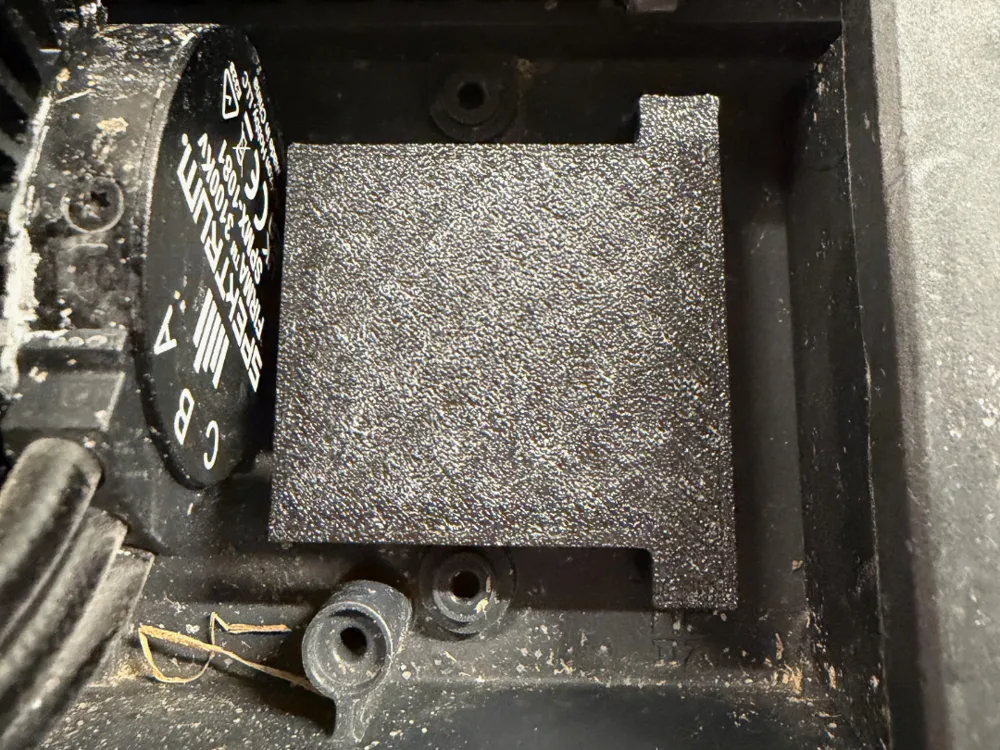

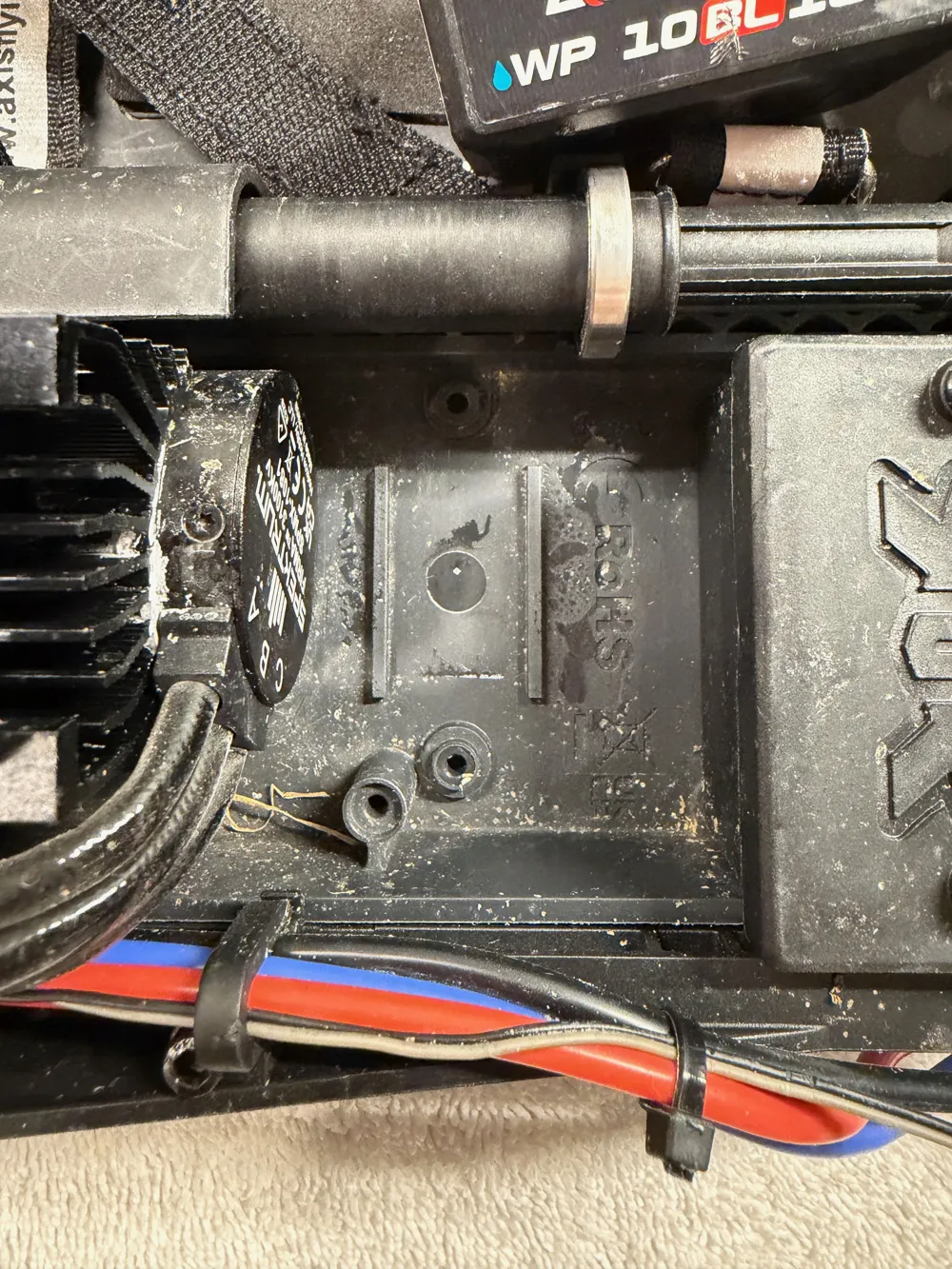

I wanted to replace the receiver in my Arrma Typhon 223s but couldn't since it has a 2-1 ESC.  The Hobbywong ESC I replaced it with was a little too high to site on top of the receiver box so I needed to put it off to the side.  The problem was the 2 little rails (seen in pic) and could not get the ESC flush with the tub bottom.  Just created a simple base to fit over it using double sided 3m tape. Printed in PETG
