Pattern Weight Shell Sew - Sewing Weight Cover
IP Report
Print Profile(4)
good/medium - 0.16mm layer
Designer
2.3 h
1 plate
Fast - 0.2mm layer
Designer
1.4 h
1 plate
Fine/Slow - 0.08mm layer
Designer
4 h
1 plate
mini/fast - 0.2mm layer
Designer
1.6 h
2 plates
Open in Bambu Studio
Boost
85
429
6
0
52
28
Released
Bill of Materials
List other parts
- Hantelscheibe 0,5KG 1.1LB Decathlon x 1: Link in description
Description
Content has been automatically translated.
english version (german version below):

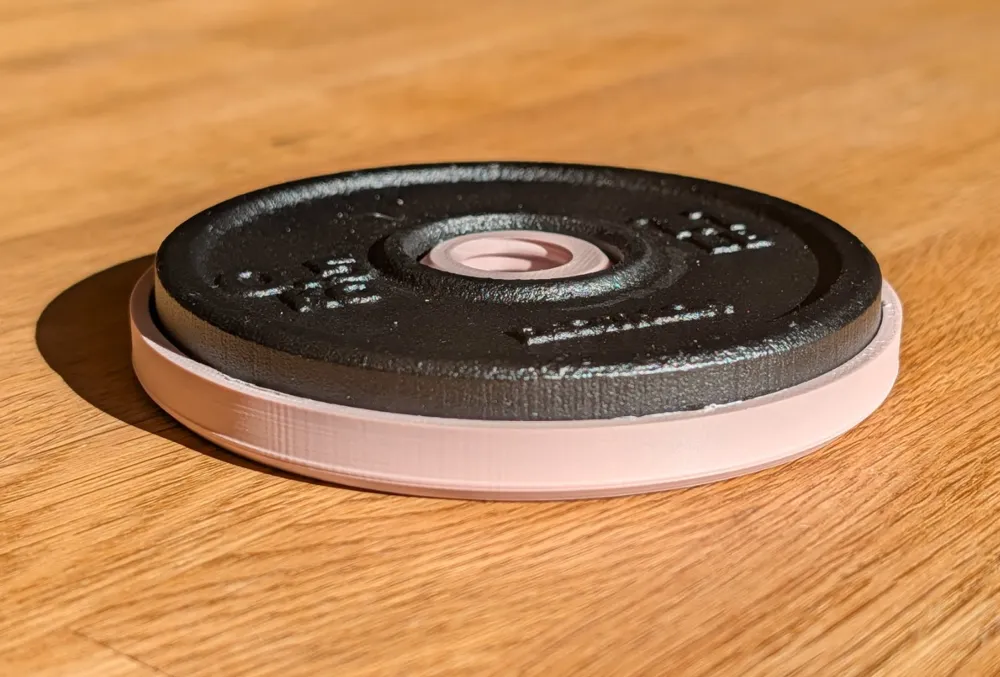

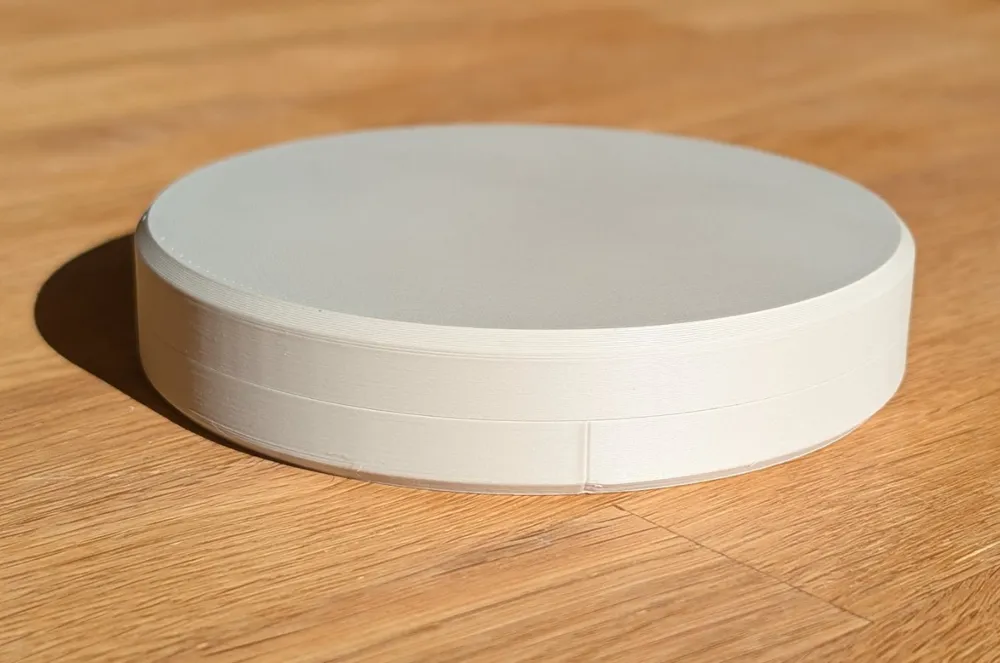

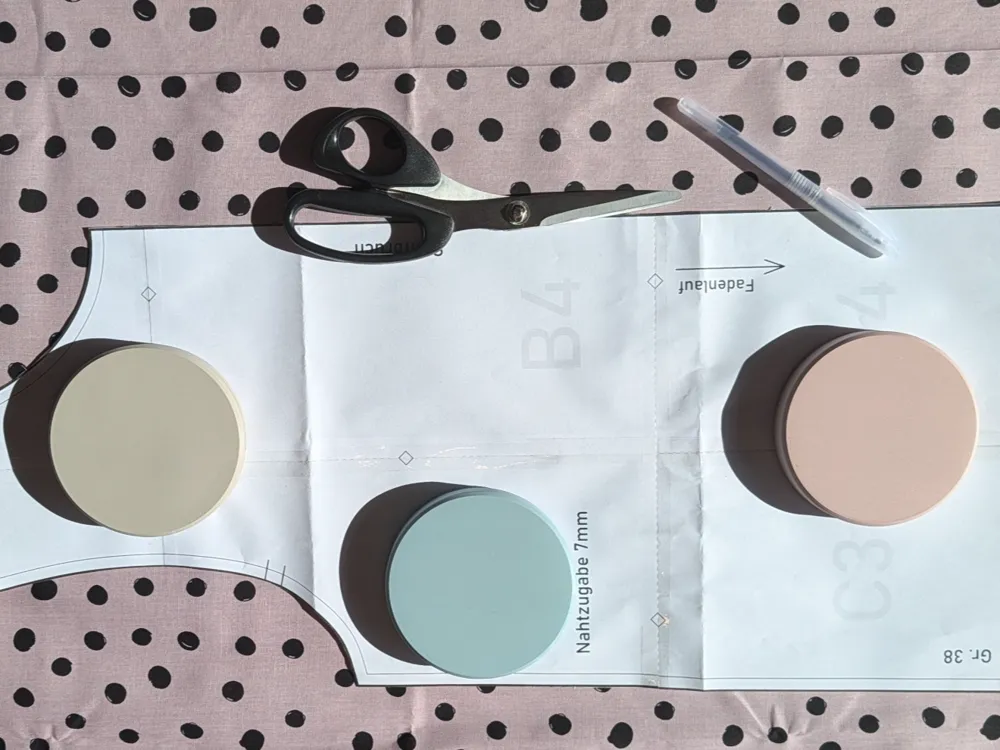

Turn affordable weight plates into professional sewing weights!
Anyone who sews a lot knows the problem: professional pattern weights are expensive. This 3D-printed shell is designed for 0.5 kg cast iron weight plates from Decathlon (Domyos, 28mm bore).
Features:
- Fabric Protection: The rough cast iron is completely enclosed, preventing snags and metal residue on light-colored fabrics.

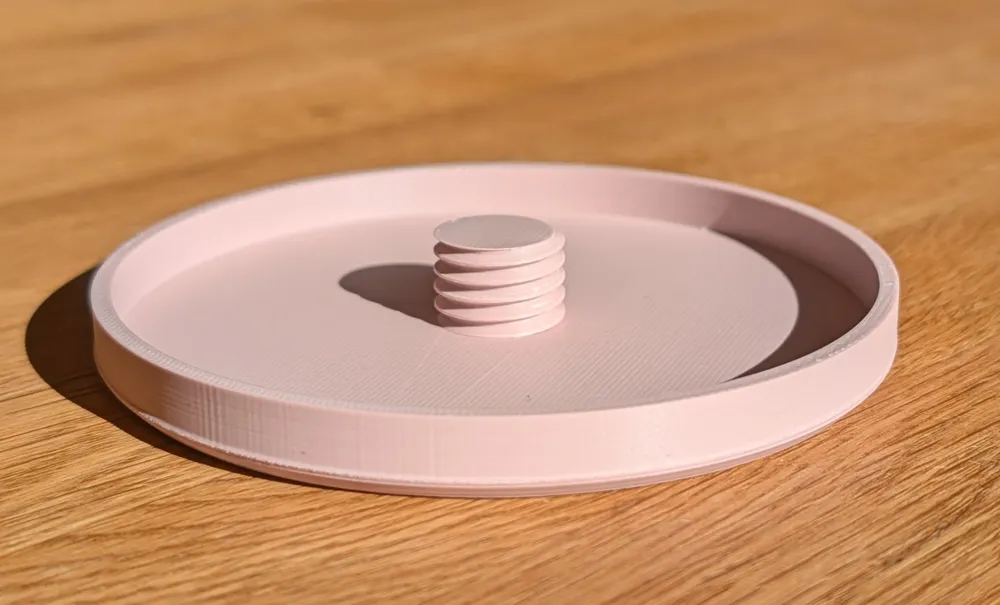

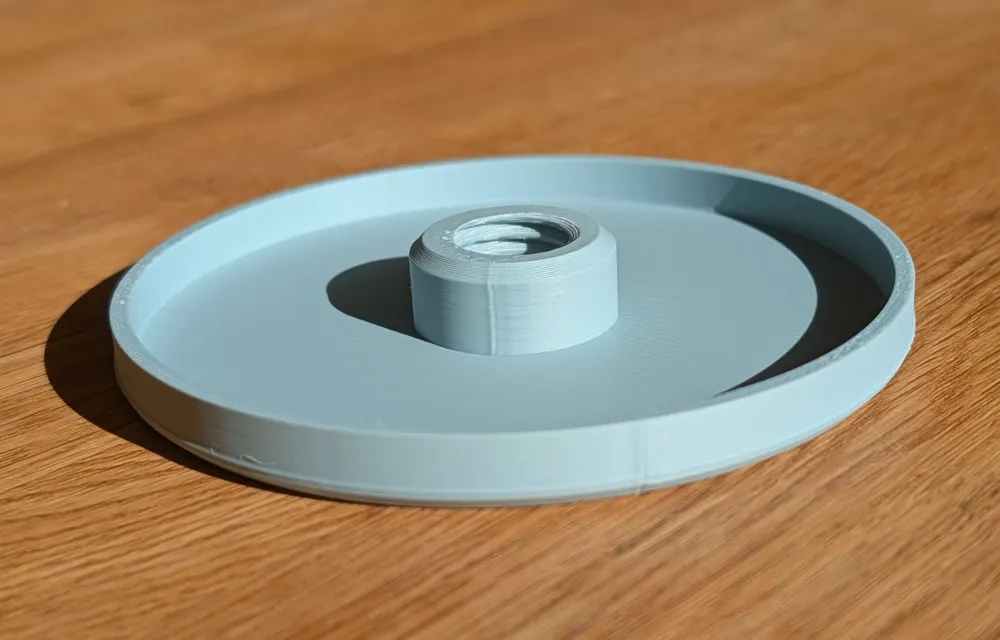

- Secure Fit: The shell consists of two parts that screw together. No glue required!
- Multifunctional: Not just for sewing! Also great as a general-purpose weight for various projects.
Designed for:

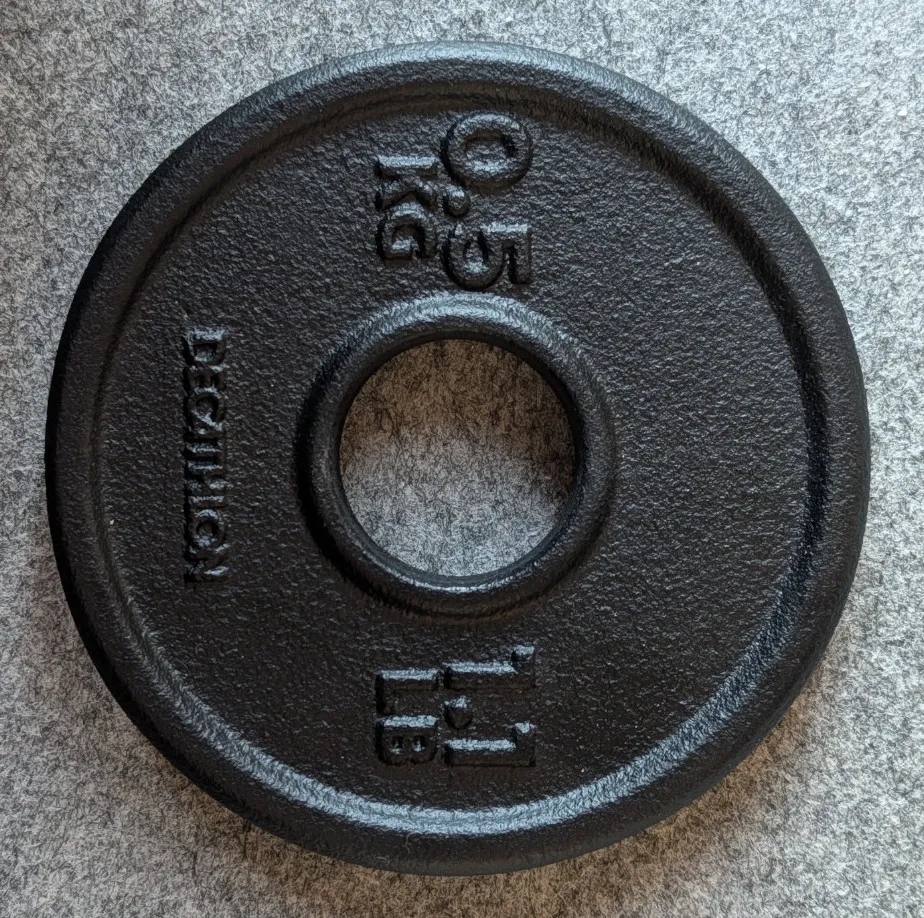

- Decathlon cast iron weight plate 0.5 kg (Art. 8816721) - link
- Plate Dimensions: Ø 100mm, 11mm thickness (actual 13.5mm), 28mm bore.
Technical Details:
- The STEP file is included so you can adapt the shell to your own weight plates.
- The thread has a clearance of 0.1mm for a perfect fit (neither too tight nor too loose).
