Description
Content has been automatically translated.

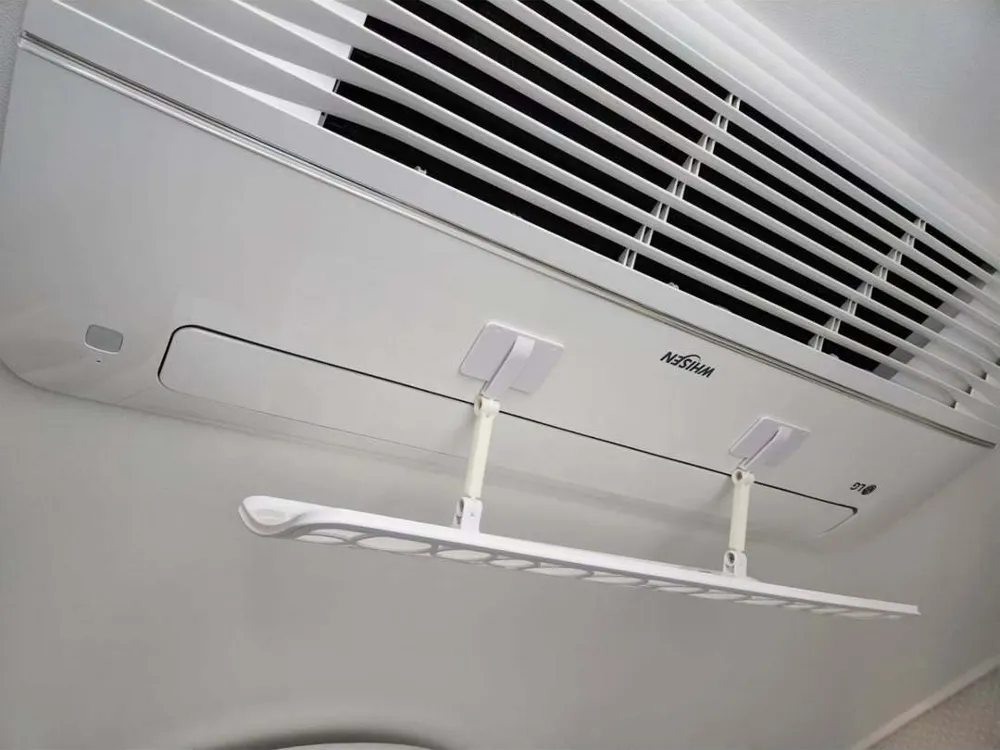

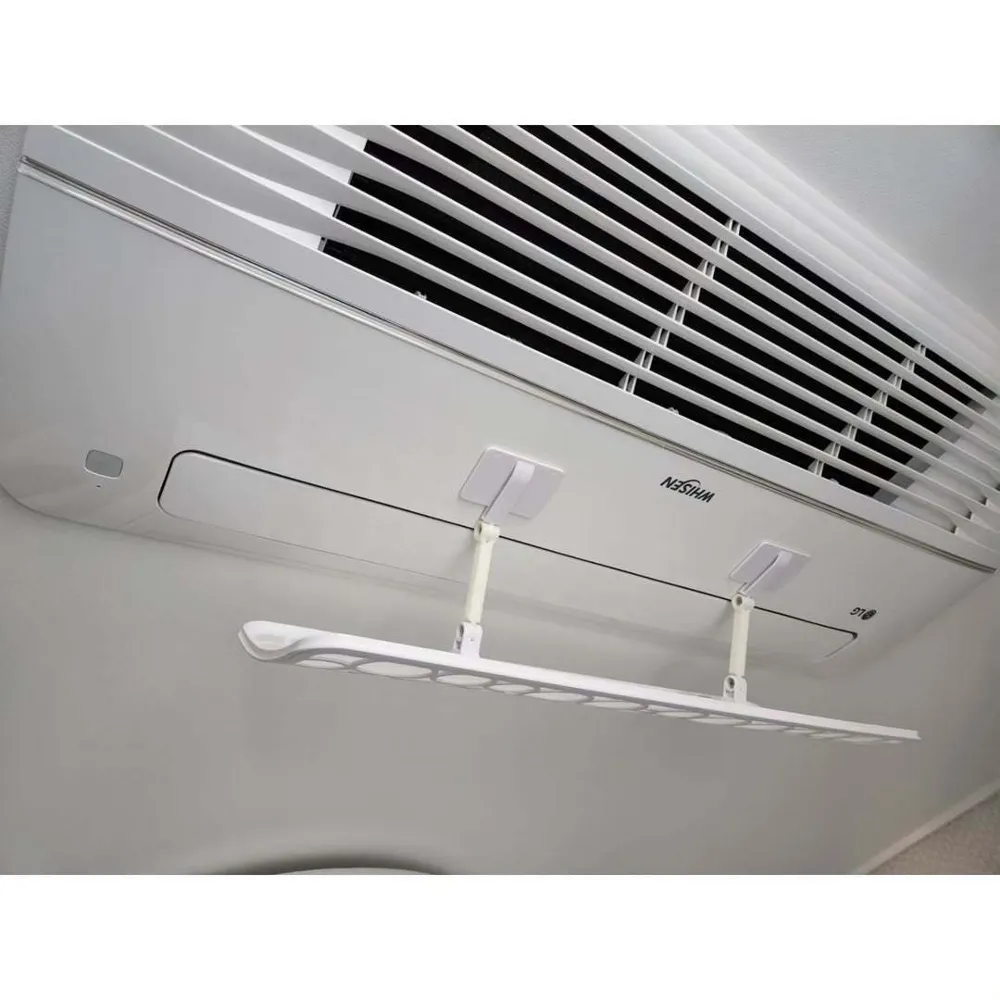

This is a replacement link arm part for fixing the air conditioner deflector to the main unit
Reasons for creation
- My child pulled the air conditioner deflector, breaking the fixed link arm.

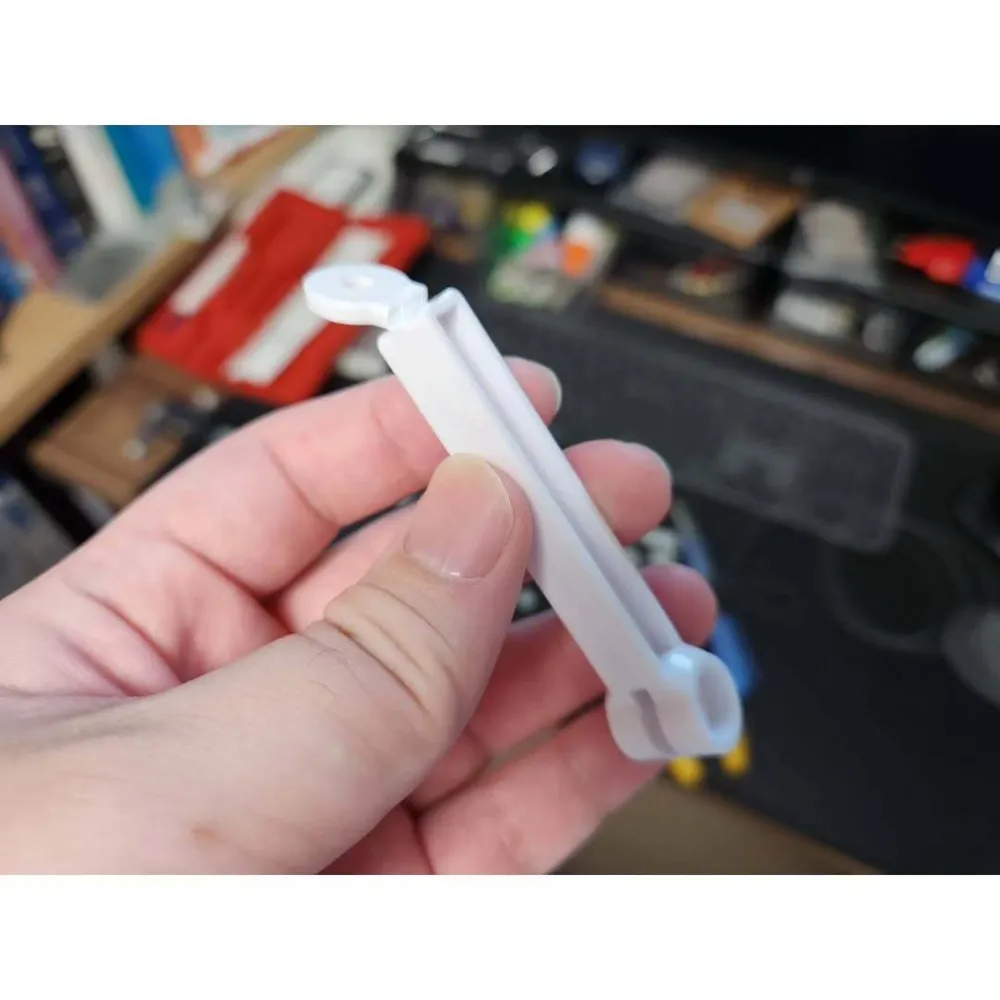

- Since the link arm could not be purchased separately, I measured the original part, reverse-engineered it, and 3D Printed it myself.
- The dimensions of the original part are reproduced exactly, ensuring a perfect fit with the existing deflector.
Features

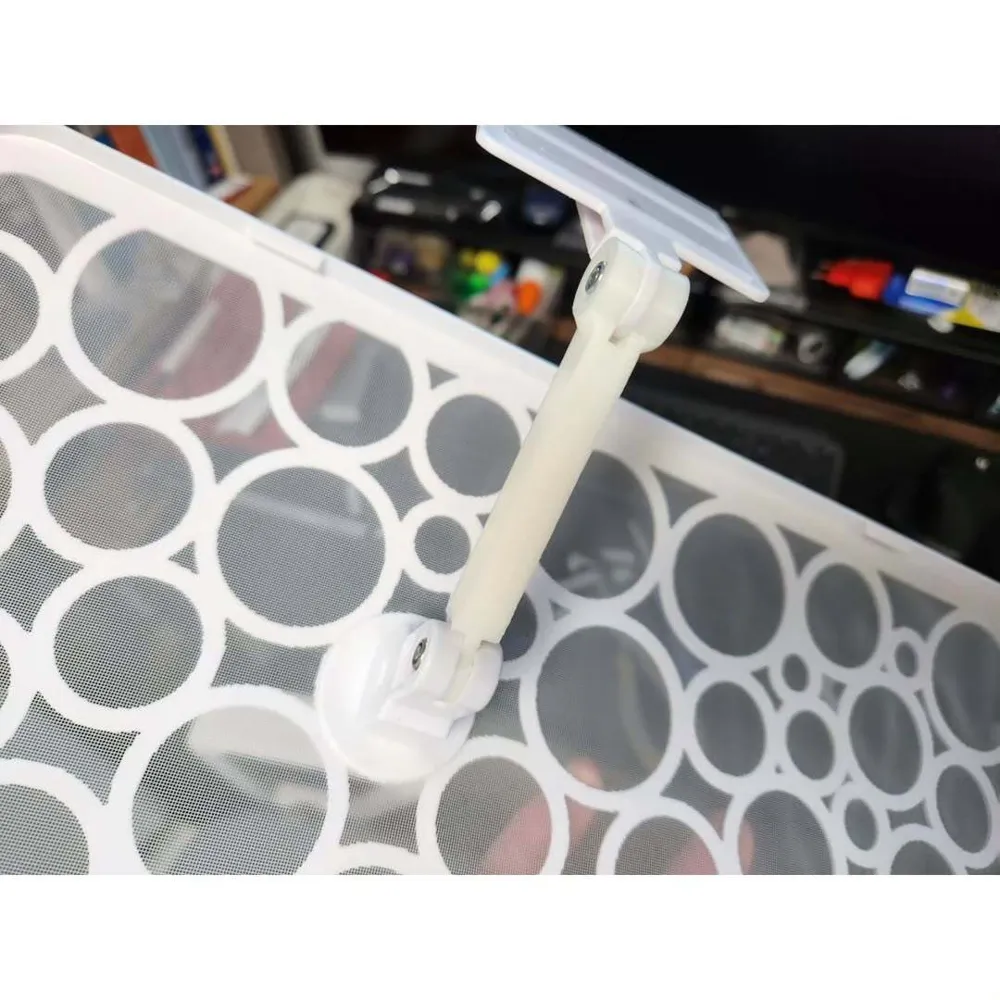

- Secured by screws in the pivot holes at both ends, connecting in the same way as the original part.
- Rotary link structure allowing adjustment of the deflector angle.
Installation Method
- Remove the broken original link arm.
- Place the 3D Printed link arm in the same position.
- Secure it in both pivot holes using the original screws, and it's complete.
Recommended Print Settings
- Material: PLA can be used
- Layer height: 0.2mm
- Infill: 30% or more
- Supports: Required
Notes
- Before installation, please be sure to compare and verify the length, hole spacing, and hole diameter of the original part.
- This is a compatible replacement part, not an official product.
