PARKSIDE PALC 3 C1 Switch Housing Collar

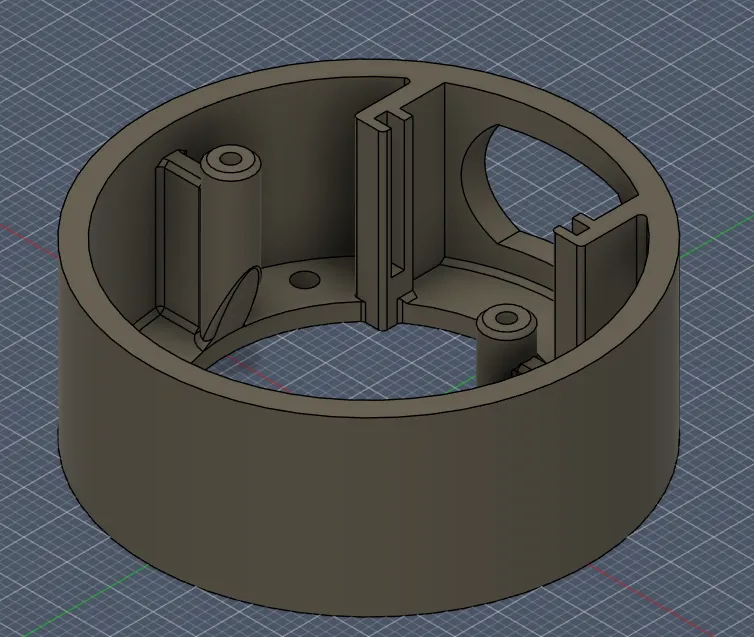

The original switch housing collar of the PARKSIDE PALC 3 C1 can fail at the two mounting points after extended use. This redesigned replacement part strengthens these weak areas with structural ribs and smoother geometry to improve durability.

Key improvements:

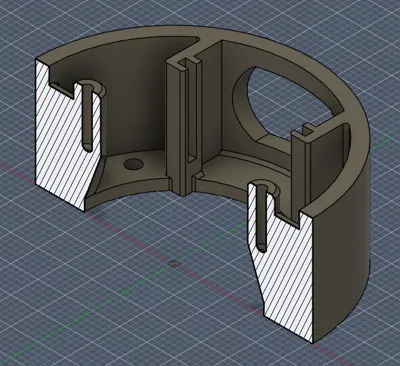

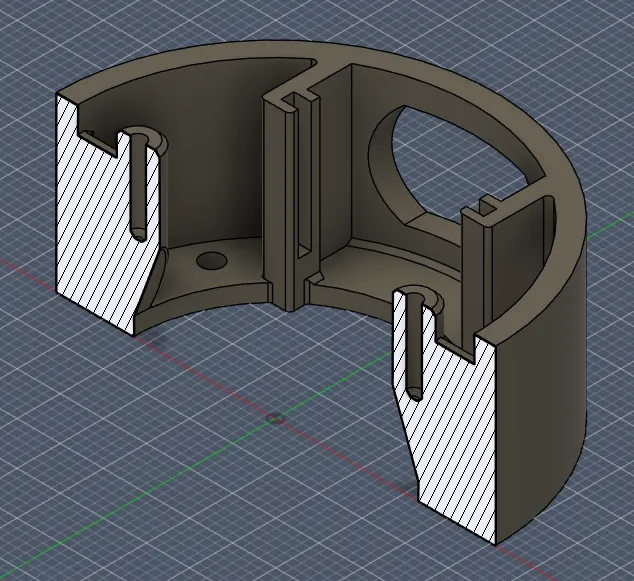

• Reinforced mounting tabs
• Reduced sharp angles to minimize cracking
• Extended base flange to improve print stability and reduce warping
• Designed for easy FDM printing

This is a niche replacement part intended for users who have experienced this specific failure. Nevertheless, sharing the improved design allows others to benefit from the solution if they encounter the same problem.

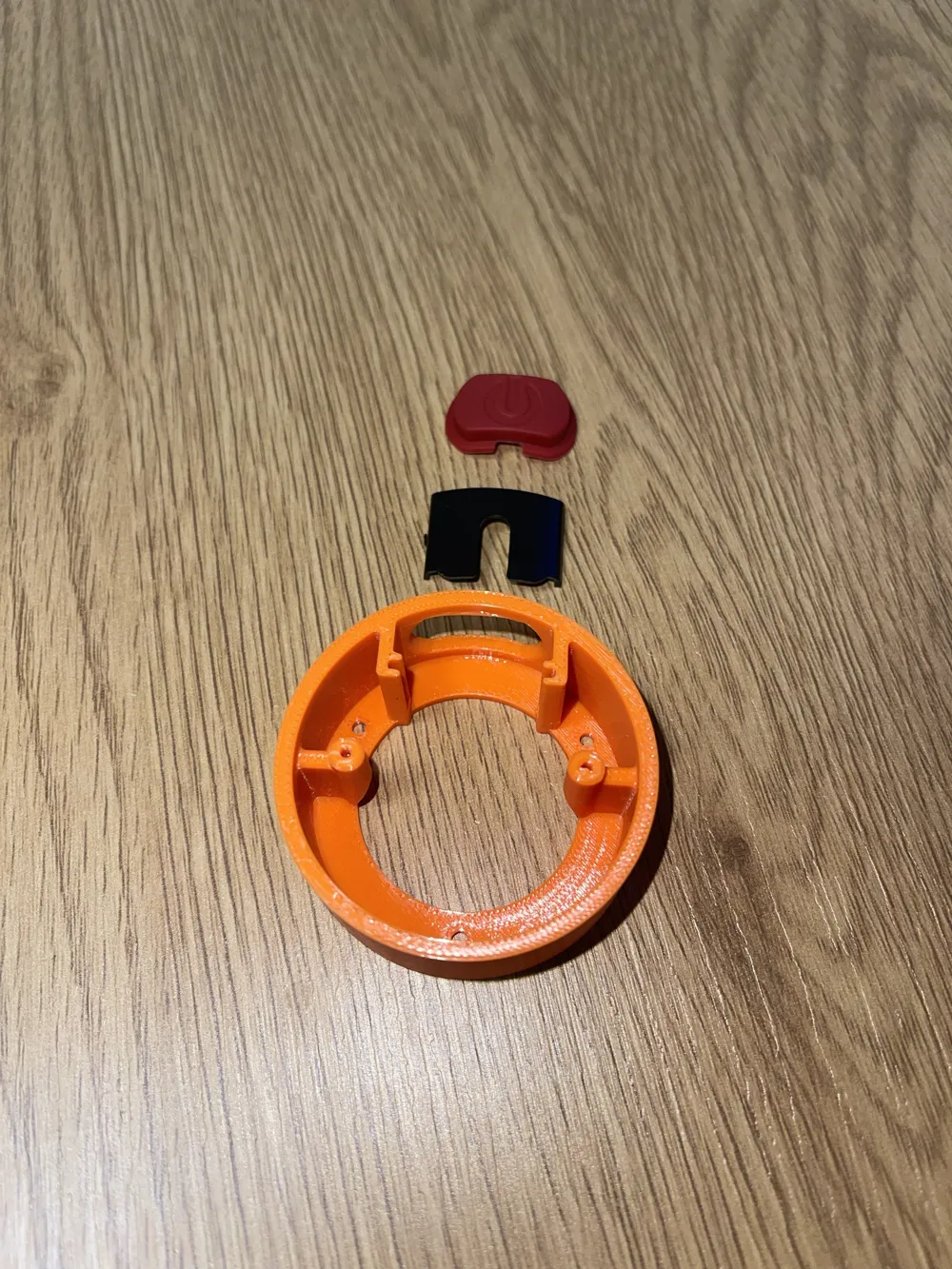

You can reuse:

• Original machine screws
• Original plastic spring beneath the switch cover

Recommended material: PETG for better toughness.

Assembly should be done with hand tools only. Avoid power tools to prevent overtightening.
